Advantech SIMB-A01 Manuale di installazione e funzionamento

SIMB-A01 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

• 1 x Intel Q35 ATX Main board

• 1 x CD ROM per carton, which contains the followings:

- User’s Manual in PDF ﬁle

- Drivers

• 1 x SATA cable kit (SATA/Power)

• 1 x I/O Shield

• 1 x Startup Manual per carton

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note1:

Acrobat Reader is required to view any PDF ﬁle. Acrobat

Reader can be downloaded at: www. adobe.com/Prodindex/

acrobat/readstep.html (Acrobat is a trademark of Adobe).

SIMB-A01

Intel® Q35 LGA775 socket for Intel® Core™ 2

Quad ATX Motherboard Startup Manual

System

• CPU:Intel® Q35 LGA775 socket for Intel® Core™ 2

Quad / Core™2 Duo / processors compatible with Intel®

05B/05A/06 processors support Intel® next generation

45nm multi-core CPU

• FSB:1333 / 1066 / 800 MHz

• BIOS:AMI 32 Mb SPI BIOS

• SystemChipset:Intel Q35 GMCH/ICH9R

• I/OChipset:Winbond W83627DHG-A

• Memory:Four 240-pin DIMM sockets support up to 8 GB

Dual Channel DDR2 800/667 SDRAM

• WatchdogTimer:Reset: 1 sec.~255 min. and 1 sec. or 1

min./step

• H/WStatusMonitor:Monitoring temperatures, voltages,

and cooling fan status. Auto throttling control when CPU

overheats

• ExpansionSlots:1 x PCI Express x16, 1 x PCI Express

x1, 5 x PCI (PCI Rev. 2.3 compliant)

• DIO:16 bit (8-in/8-out by PCA9555)

• S3/S4:Ye s

• TPM:TPM1.2 (Inﬁneon® TPM chip 9635 TT 1.2 on board)

• WakeuponLANorRing:LAN (PME / RPL)

• SmartFanControl:Yes , support 3 modes (Silent/Opti-

mal/Performance)

Display

• Chipset:Intel Q35 GMCH integrated Graphics Media

Accelerator 3100

• DisplayMemory:Intel DVMT 4.0 supports up to 384 MB

video memory

• Max.Resolution:2048 x 1536 bpp(@ 75Hz)

• VGA:Yes , on board GMA 3100

• LVDS/DVI/HDMI:Through ADD2 LVDS Card

• SecondaryVGA:Yes , through ADD2 card

Audio

• AudioCodec:Realtek® ALC888, 7.1 W/O multiple

streaming or 5.1+2 with multiple streaming HD audio

• AudioInterface:Mic in, Line in, Line out

• AudioAmplier(W):Dual 6W Amp.(TPA3005D2 ,

Optional)

Ethernet

• LAN1:RTL8111C Gigabit LAN

• LAN2:RTL8111C Gigabit LAN

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the SIMB-A01 series Rev. A1.

Part No. 20060A0110

Printed in China

1st Edition

July 2011

2 SIMB-A01 Startup Manual

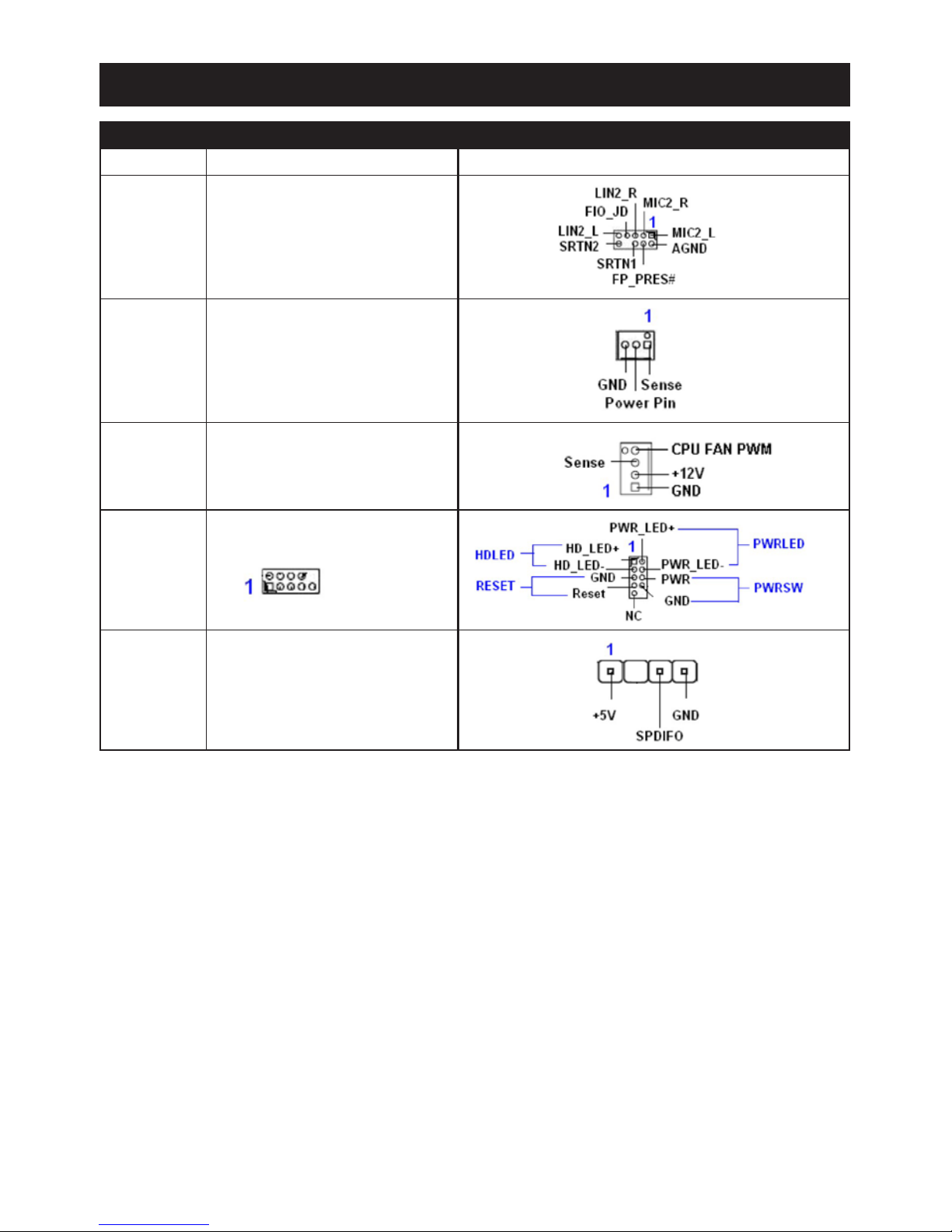

Connectors

Label Function Note

AAFP Front Panel Audio Connector

CHA_FAN1 Chassis Fan Connector

CPU_FAN CPU Fan Connector

F_PANEL

System Panel Connector

SPDIF_OUT Digital Audio connector

Connectors and Jumpers

SIMB-A01 Startup Manual 3

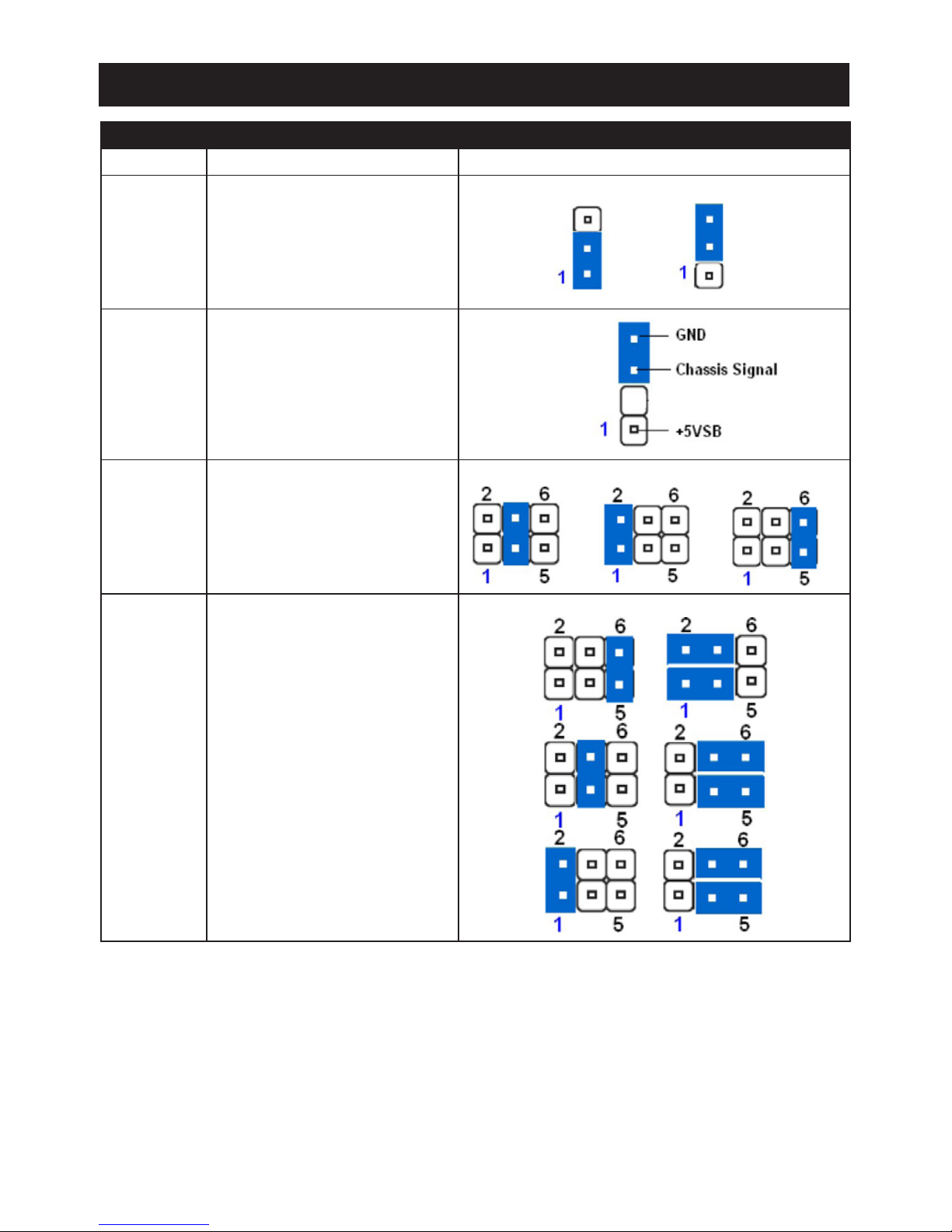

Jumpers

Label Function Note

CLRTC Clear CMOS

Norrnal* Clear CMOS

CHASSIS Chassis Intrusion Connector

JCOMPWR

1,2,3,4 COM1,2,3,4 RI/+5V/+12V Select

RI* +5V +12V

JCOMPWR

5,6,7,8 COM4 RS-232/422/485 Select

JCOMPWR5 JCOMPWR6, 7

RS-232*

RS-422

RS-485

Connectors and Jumpers

4 SIMB-A01 Startup Manual

The manufacturer reserves the right to make changes, with-

out notice, to any product, including circuits and/or software

described or contained in this manual in order to improve

design and/or performance. The manufacturer assumes

no responsibility or liability for the use of the described

product(s), conveys no license or title under any patent,

makes no representations or warranties that these products

are free from patent, copyright, or mask work right infringe-

ment, unless otherwise speciﬁed. For the detail product

information, please refer to user’s manual.

Safety Declaration

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

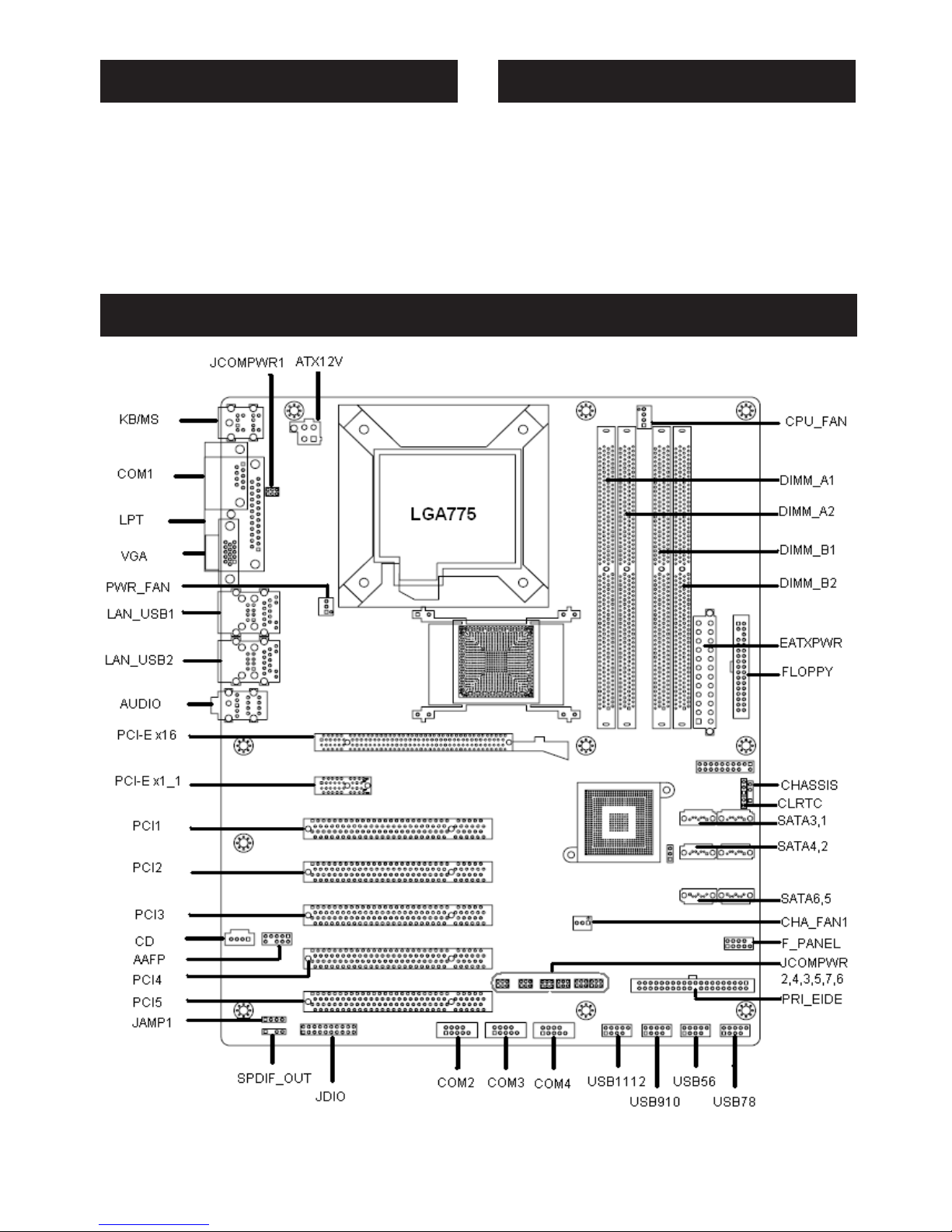

Board Diagram

Disclaimer and Notice
