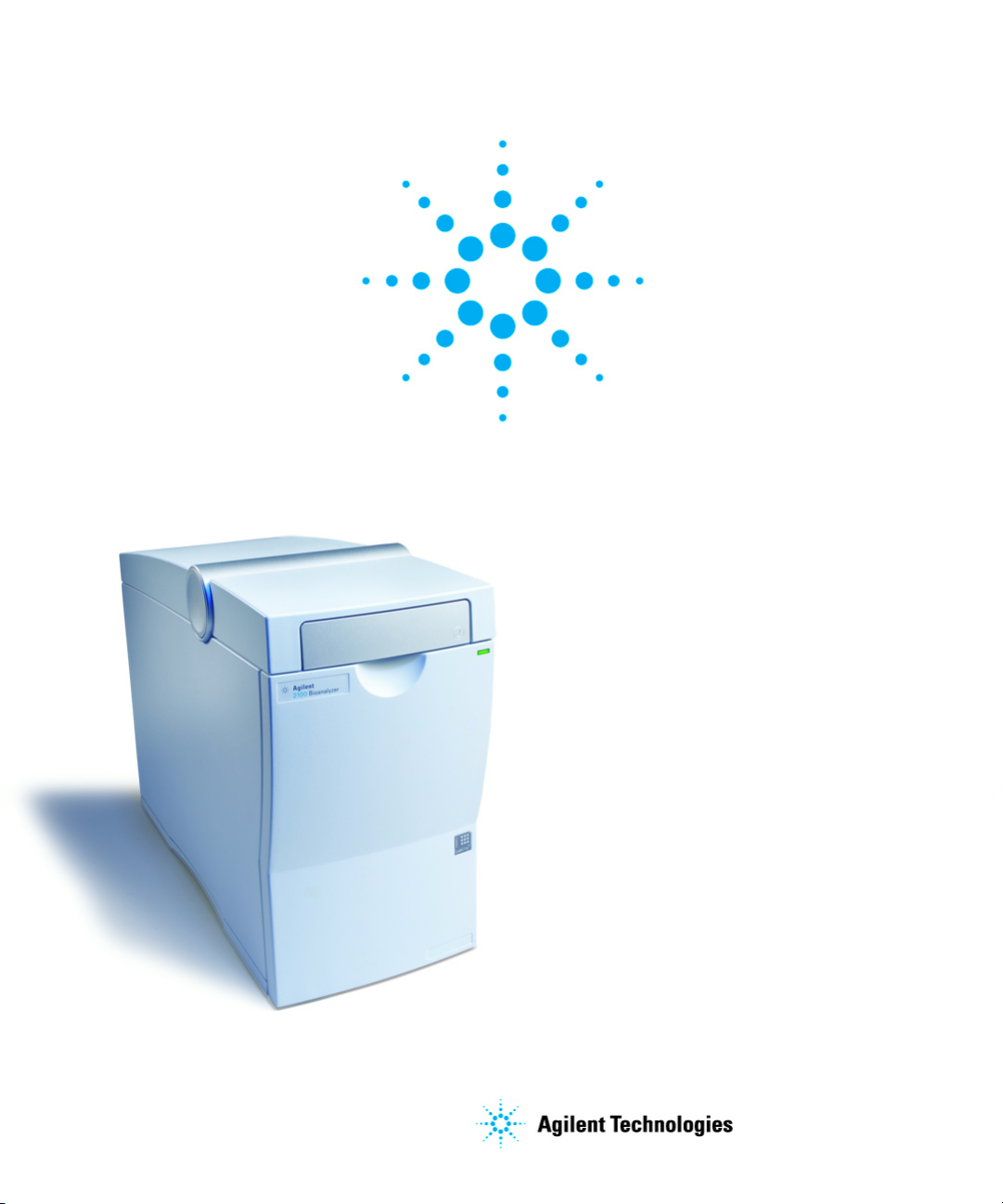

Agilent Technologies 2100 Bioanalyzer System Manuale di installazione e funzionamento

Agilent 2100 Bioanalyzer

Installation and Safety Guide

Notices

No part of this manual may be reproduced

in any form or by any means (including elec-

tronic storage and retrieval or translation

into a foreign language) without prior agree-

ment and written consent from Agilent

Technologies, Inc. as governed by United

States and international copyright laws.

Manual Part Number

G2938-90007 Rev B

Edition

Printed in Germany

Agilent Technologies

Hewlett-Packard-Strasse 8

76337 Waldbronn

This product may be used as a com-

ponent of an in vitro diagnostic sys-

tem if the system is registered with

the appropriate authorities and com-

plies with the relevant regulations.

Otherwise, it is intended only for gen-

eral laboratory use.

Warranty

The material contained in this docu-

ment is provided “as is,” and is sub-

ject to being changed, without notice,

in future editions. Further, to the max-

imum extent permitted by applicable

law, Agilent disclaims all warranties,

either express or implied, with regard

to this manual and any information

contained herein, including but not

limited to the implied warranties of

merchantability and fitness for a par-

ticular purpose. Agilent shall not be

liable for errors or for incidental or

consequential damages in connection

with the furnishing, use, or perfor-

mance of this document or of any

information contained herein. Should

Agilent and the user have a separate

written agreement with warranty

terms covering the material in this

document that conflict with these

terms, the warranty terms in the sep-

arate agreement shall control.

Technology Licenses

The hardware and/or software described in

this document are furnished under a license

and may be used or copied only in accor-

dance with the terms of such license.

Restricted Rights Legend

If software is for use in the performance of a

U.S. Government prime contract or subcon-

tract, Software is delivered and licensed as

“Commercial computer software” as

defined in DFAR 252.227-7014 (June 1995),

or as a “commercial item” as defined in FAR

2.101(a) or as “Restricted computer soft-

ware” as defined in FAR 52.227-19 (June

1987) or any equivalent agency regulation

or contract clause. Use, duplication or dis-

closure of Software is subject to Agilent

Technologies’ standard commercial license

terms, and non-DOD Departments and

Agencies of the U.S. Government will

receive no greater than Restricted Rights as

defined in FAR 52.227-19(c)(1-2) (June

1987). U.S. Government users will receive

no greater than Limited Rights as defined in

FAR 52.227-14 (June 1987) or DFAR

252.227-7015 (b)(2) (November 1995), as

applicable in any technical data.

Safety Notices

CAUTION

A CAUTION notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly per-

formed or adhered to, could

result in damage to the product

or loss of important data. Do not

proceed beyond a CAUTION

notice until the indicated condi-

tions are fully understood and

met.

WARNING

A WARNING notice denotes a

hazard. It calls attention to an

operating procedure, practice,

or the like that, if not correctly

performed or adhered to, could

result in personal injury or

death. Do not proceed beyond a

WARNING notice until the indi-

cated conditions are fully under-

stood and met.

Contents

1 Safety Information 5

Power Cords 7

Operation 8

Safety Symbols 9

Laser Safety 10

Chemical and Biological Safety 11

Legal Notice 13

2 Site Requirements for the Agilent 2100 Bioanalyzer 15

Power Considerations 16

Bench space 17

Environment 18

Sound Emission 19

Physical Specifications of the Agilent 2100 Bioanalyzer 20

3 Unpacking the Agilent 2100 Bioanalyzer System 21

Damaged Packaging 22

4 Installing the Agilent 2100 Bioanalyzer System 25

Setting up PC and Printer 26

Setting up the Agilent 2100 Bioanalyzer 27

5 Starting the Agilent 2100 Bioanalyzer 31

Turning on the Agilent 2100 Bioanalyzer 32

Connecting the Bioanalyzer via the USB/Serial Cable 33

Starting the Agilent 2100 Bioanalyzer Software 34

Preparing the Assay 35

6 Maintenance of the Agilent 2100 Bioanalyzer 37

7 Spare Parts and Accessories 39

Contents

Agilent Technologies

Safety Information

Power Cords 7

Operation 8

Safety Symbols 9

Laser Safety 10

Chemical and Biological Safety 11

Legal Notice 13

The following general safety precautions must be observed during all phases of

operation, service, and repair of the Agilent 2100 Bioanalyzer.

All safety instructions should be read and understood before installation,

operation and maintenance of the instrument. Failure to comply with these

precautions or with specific warnings elsewhere in this manual violates safety

standards of design, manufacture and intended use of the instrument.

Agilent Technologies assumes no liability for the customer’s failure to comply

with these requirements.

WARNING

A WARNING notice denotes a hazard.

It calls attention to an operating procedure, practice, or the like that, if not correctly

performed or adhered to, could result in personal injury or death.

➔Do not proceed beyond a WARNING notice until the indicated conditions are fully

understood and met.

1Safety Information

CAUTION

A CAUTION notice denotes a hazard.

It calls attention to an operating procedure, practice, or the like that, if not correctly

performed or adhered to, could result in damage to the product or loss of important

data.

➔Do not proceed beyond a CAUTION notice until the indicated conditions are fully

understood and met.

NOTE

Instrument Safety: This is a Safety Class I instrument (provided with a terminal for

protective grounding) and has been manufactured and tested according to international

safety standards.

Safety Information 1

Power Cords

Different power cords are offered as options with the Agilent 2100

Bioanalyzer. The female end of all power cords is identical. It plugs into the

power-input socket at the rear of the instrument. The male end of each power

cord is different and designed to match the wall socket of a particular country

or region.

WARNING

Electric Shock

The absence of ground connection and the use of an unspecified power cord can

lead to electric shock or short circuit.

➔Never operate your instrument from a power outlet that has no ground connection.

➔Never use a power cord other than the Agilent Technologies power cord designed

for your region.

➔Never use cables other than those supplied by Agilent Technologies to ensure

proper functionality and compliance with safety or EMC regulations.

1Safety Information

Operation

Before the instrument is switched on, all protective ground terminals,

extension cords, auto-transformers, and devices connected to it must be

connected to a protective ground socket. Any interruption of the protective

grounding will cause a potential shock hazard that could result in serious

personal injury. Whenever it is likely that the protection has been impaired,

the instrument must be made inoperative and be secured against any intended

operation.

To operate the instrument safely:

•Do not remove any cover of the Agilent 2100 Bioanalyzer

•Avoid any maintenance of the instrument under voltage

•Do not let liquid drip into the Agilent 2100 Bioanalyzer. It could cause a

shock or it could damage the Agilent 2100 Bioanalyzer.

•Do not replace components of the instruments (e.g. electrode cartridge or

pressure cartridge) with power turned on.

•Do not operate the instrument in the presence of flammable gases or fumes.

Operation of any electrical instrument in such an environment constitutes a

definite safety hazard.

•Do not install substitute parts or make any unauthorized modification to

the instrument.

WARNING

Ensure the proper usage of the equipment

The protection provided by the equipment may be impaired.

➔The operator of this instrument is advised to use the equipment in a manner as

specified in this manual.

Safety Information 1

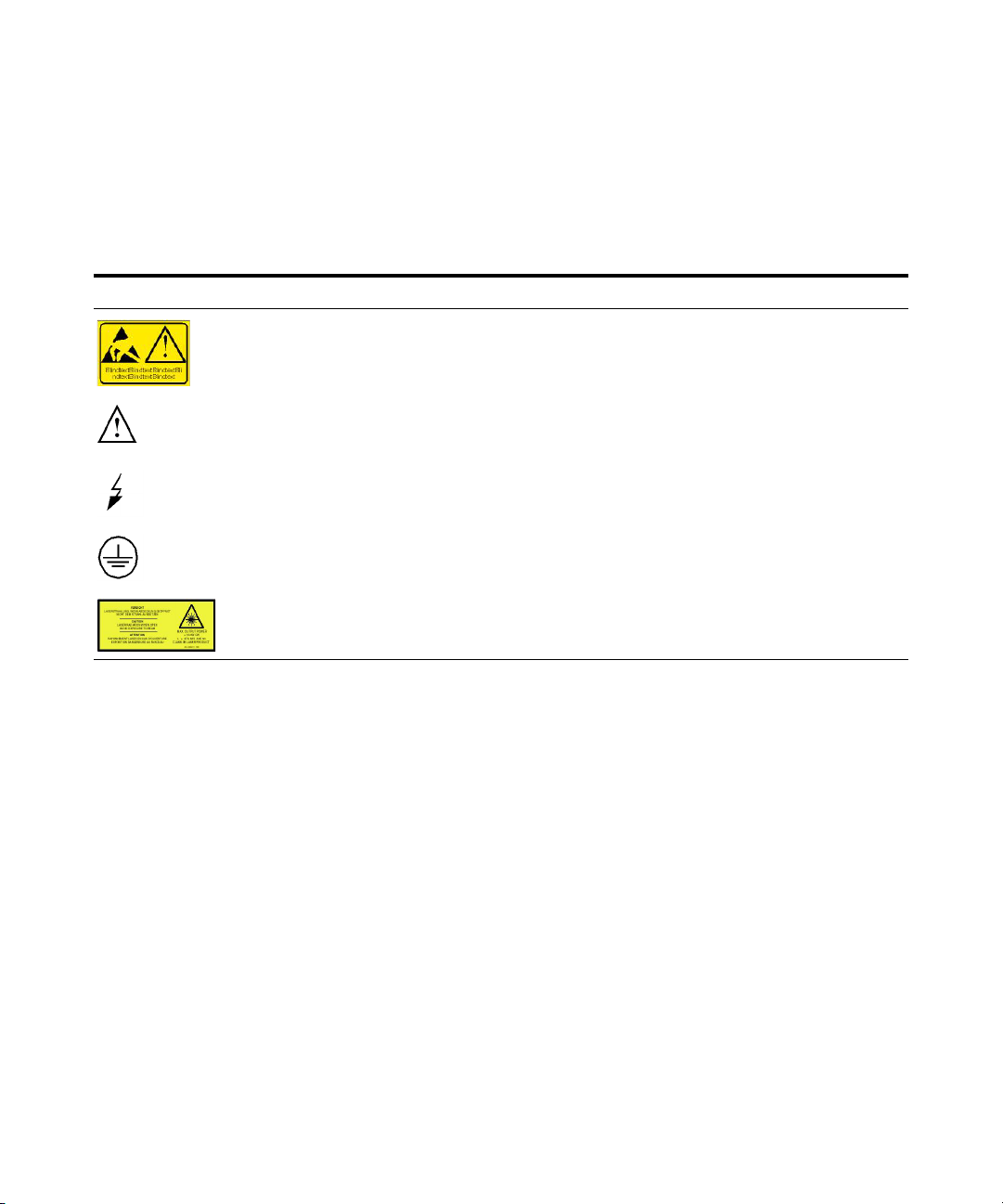

Safety Symbols

Symbol Description

Electrosensitive device.

The apparatus is marked with this symbol when the user should refer to the Installation and Safety

Manual in order to prevent risk of harm to the operator and to protect the apparatus against damage.

Indicates dangerous voltages.

Indicates a protected ground terminal.

Laser Radiation. When open avoid exposure to beam.

1Safety Information

Laser Safety

The Agilent 2100 Bioanalyzer is classified as a "Laser Class 1" product

(IEC825-1, CFR1040.10). During normal operation of the Agilent 2100

Bioanalyzer no laser light is accessible to the user.

When the laser is in use, the laser light source emits light at a power that may

be harmful to the eyes. To prevent operator exposure to potentially harmful

laser light, an interlock mechanism turns off the laser whenever the lid of the

Agilent 2100 Bioanalyzer is not closed. Furthermore, the lid can't be

completely opened and has a black light absorbing surface in order to prevent

any potential laser light reflection.

WARNING

Harmful laser light

The laser light source emits light at a power that may be harmful to the eyes.

➔Never look into the beam or direct it towards someone else.

➔System interlocks should never be disabled.
