EVAL-ADAQ8088EBZ User Guide

UG-1825

One Technology Way •P. O. Box 9106 •Norwood, MA 02062-9106, U.S.A. •Tel: 781.329.4700 •Fax: 781.461.3113 •www.analog.com

Evaluating the ADAQ8088 Dual-, Differential, Low-Pass Filter μModule

with Gain and ADC Driver

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT

WARNING AND LEGAL TERMS AND CONDITIONS. Rev. 0 | Page 1 of 12

FEATURES

3 common signal processing and conditioning blocks, a

preamplifier, an 8-pole filter, and an ADC driver integrated

to support a variety of demodulator applications

No external components required for proper operation

EVALUATION KIT CONTENTS

EVAL-ADAQ8088EBZ evaluation board

EQUIPMENT NEEDED

Bench supply of 2.7 V to 3.3 V

SMA cables

4-Port or 2-port network analyzer

AD9681-125EBZ evaluation kit

HSC-ADC-EVALEZ evaluation kit

Keysight 33600A generator

Allen Avionics LPF #F3056-7P7 (2 pieces)

PC running Windows®

GENERAL DESCRIPTION

The EVAL-ADAQ8088EBZ evaluates the ADAQ8088 and requires

a 2.7 V to 3.3 V power supply for proper operation. The EVAL-

ADAQ8088EBZ accepts baseband differential in-phase/quadrature

(I/Q) inputs via Subminiature A (SMA)connectors (Jx) and

drives pipeline analog-to-digital converters (ADCs) via SMA

output connectors. The EVAL-ADAQ8088EBZ contains the

ADAQ8088 μModule, which is a dual-channel analog system in

package (SIP) that integrates three common signal processing

and conditioning blocks to support a variety of demodulator

applications and data acquisition applications. The device

integrates all active and passive components to form a complete

signal chain between the output of an I/Q demodulator and the

input to an ADC. For full details on the ADAQ8088, see the

ADAQ8088 data sheet, which must be consulted in conjunction

with this user guide when using the EVAL-ADAQ8088EBZ.

EVAL-ADAQ8088EBZ PHOTOGRAPH

Figure 1.

25399-001

Downloaded from Arrow.com.

UG-1825 EVAL-ADAQ8088EBZ User Guide

Rev. 0 | Page 2 of 12

TABLE OF CONTENTS

Features .............................................................................................. 1

Evaluation Kit Contents................................................................... 1

Equipment Needed........................................................................... 1

General Description ......................................................................... 1

EVAL-ADAQ8088EBZ Photograph............................................... 1

Revision History ............................................................................... 2

Evaluation Board Hardware............................................................ 3

Setting Up the Evaluation Board................................................ 3

Analog Inputs................................................................................ 3

Magnitude and Phase Response Measurements Using A Four-

Port Network Analyzer .................................................................... 4

Measuring the Magnitude and Phase of the I-Channel .......... 4

Measuring the Magnitude and Phase of the Q-Channel......... 4

Calibration Procedure.................................................................. 4

Magnitude and Frequency Response Measurements Using A

Two-Port Network Analyzer........................................................... 5

Measuring the Magnitude and Frequency Response of the I-

Channel...........................................................................................5

Measuring the Magnitude and Frequency Response of the Q-

Channel...........................................................................................6

Calibration Procedure ..................................................................6

Evaluating the ADAQ8088 by Driving the AD9681 ADC ..........7

Configuring the EVAL-ADAQ8088EBZ, AD9681-125EBZ,

and HSC-ADC-EVALEZ...............................................................7

Measurement Results when Driving the AD9681 Using the

ADAQ8088 as a Driver.................................................................7

Troubleshooting Tips....................................................................8

Evaluation Board Schematics and Artwork...................................9

Ordering Information.................................................................... 12

Bill of Materials........................................................................... 12

REVISION HISTORY

3/2021—Revision 0: Initial Version

Downloaded from Arrow.com.Downloaded from Arrow.com.

EVAL-ADAQ8088EBZ User Guide UG-1825

Rev. 0 | Page 3 of 12

EVALUATION BOARD HARDWARE

SETTING UP THE EVALUATION BOARD

Figure 2 shows the simplified EVAL-ADAQ8088EBZ block

diagram. The ADAQ8088 μModule that is soldered to the

EVAL-ADAQ8088EBZ requires a supply voltage from 2.7 V to

3.3 V. The EVAL-ADAQ8088EBZ allows the user to set the

I_OUT_VOCM pin and Q_OUT_VOCM pin of the EVAL-

ADAQ8088EBZ through the EXVCMA and EXVCMB jumpers.

ANALOG INPUTS

The EVAL-ADAQ8088EBZ I inputs (I_INP and I_INN) are

connected through the J1 and J2 SMA connectors, respectively,

and the Q inputs (Q_INP and Q_INN) are connected through

the J4 and J3 SMA connectors, respectively.

Table 1. Jumper Details with Factory Default Settings

Link Default Function Comment

P1 Not

populated

VS+ ADAQ8088 supply.

P2 Not

populated

EXVCMA Connect EXVCMA to the

common-mode output of the

ADC I-channel. This jumper

can also be left floating.

P3 Not

populated

EXVCMB Connect EXVCMB to the

common-mode output of the

ADC Q-channel. This jumper

can also be left floating.

Note that the I-channel and the Q-channel correspond to

Channel A and Channel B, respectively, of the ADAQ8088

data sheet.

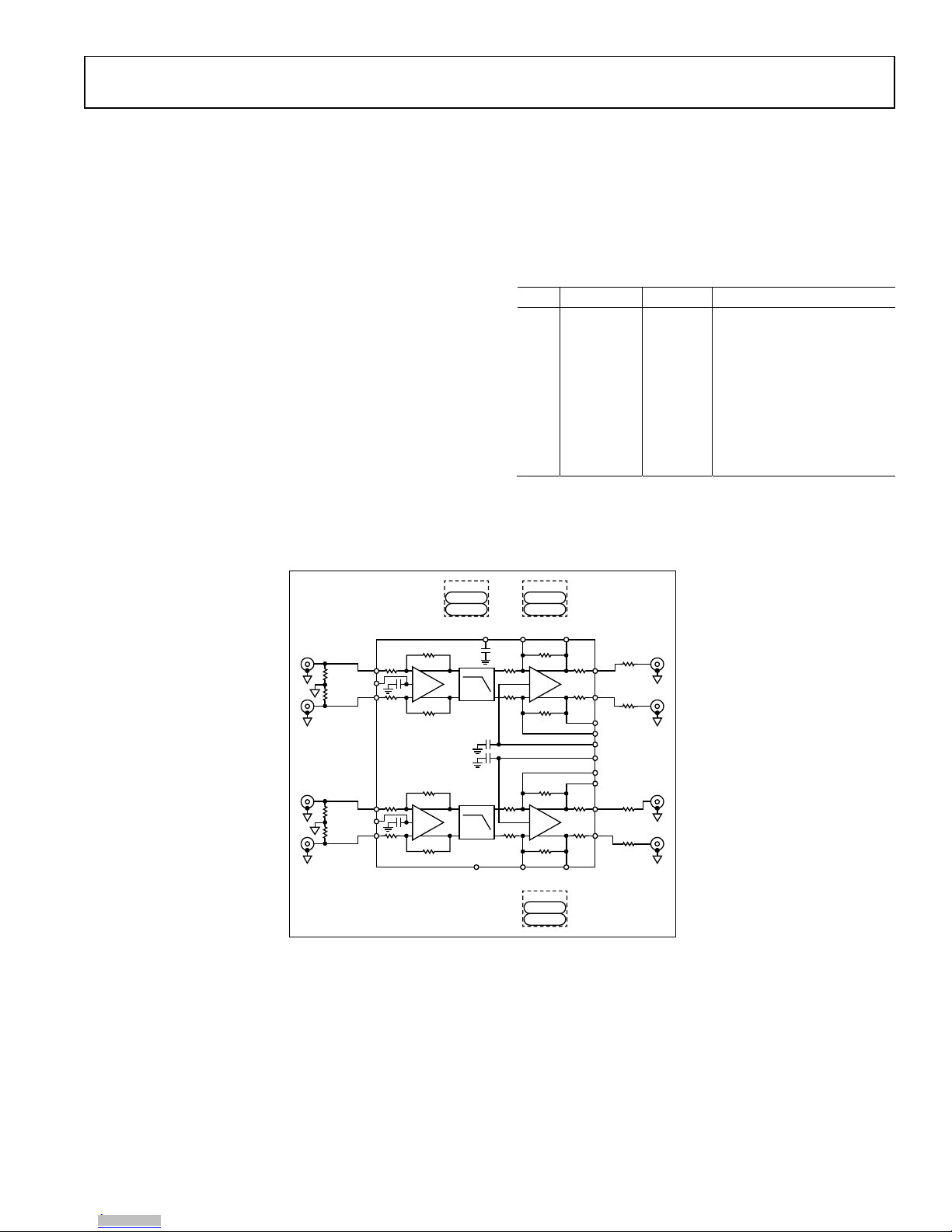

Figure 2. Simplified EVAL-ADAQ8088EBZ Block Diagram

–

–+

–

VCC I_OUT_RGP I_OUT_RFN

I_OUT_RFP

I_OUT_RGN

Q_OUT_RFP

Q_OUT_RGN

I_OUT_V

OCM

Q_OUT_V

OCM

Q_IN_V

OCM

–

–+

–

Q_OUT_RGN Q_OUT_RFPGND

Q_INP

_INN

I_INP

I_INN

Q_OUTP

Q_OUTN

I_OUTP

I_OUTN

EXVCMA

GND

EXVCMB

GND

VS+

GND

25399-002

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

UG-1825 EVAL-ADAQ8088EBZ User Guide

Rev. 0 | Page 4 of 12

MAGNITUDE AND PHASE RESPONSE MEASUREMENTS USING A FOUR-PORT

NETWORK ANALYZER

MEASURING THE MAGNITUDE AND PHASE OF

THE I-CHANNEL

To measure the magnitude and phase of the I-channel using a

four-port network analyzer (see Figure 3), take the following

steps:

1. Use an SMA cable to connect J1 of the EVAL-

ADAQ8088EBZ to Port 1 of the network analyzer.

2. Use an SMA cable to connect J2 of the EVAL-

ADAQ8088EBZ to Port 2 of the network analyzer.

3. Use an SMA cable to connect J7 of the EVAL-

ADAQ8088EBZ to Port 3 of the network analyzer.

4. Use an SMA cable to connect J5 of the EVAL-

ADAQ8088EBZ to Port 4 of the network analyzer.

5. Set the network analyzer output, Port 1 and Port 2, to a

power level of −20 dBm (63 mV p-p).

6. Observe the output phase on Port 3 and Port 4 of the

network analyzer.

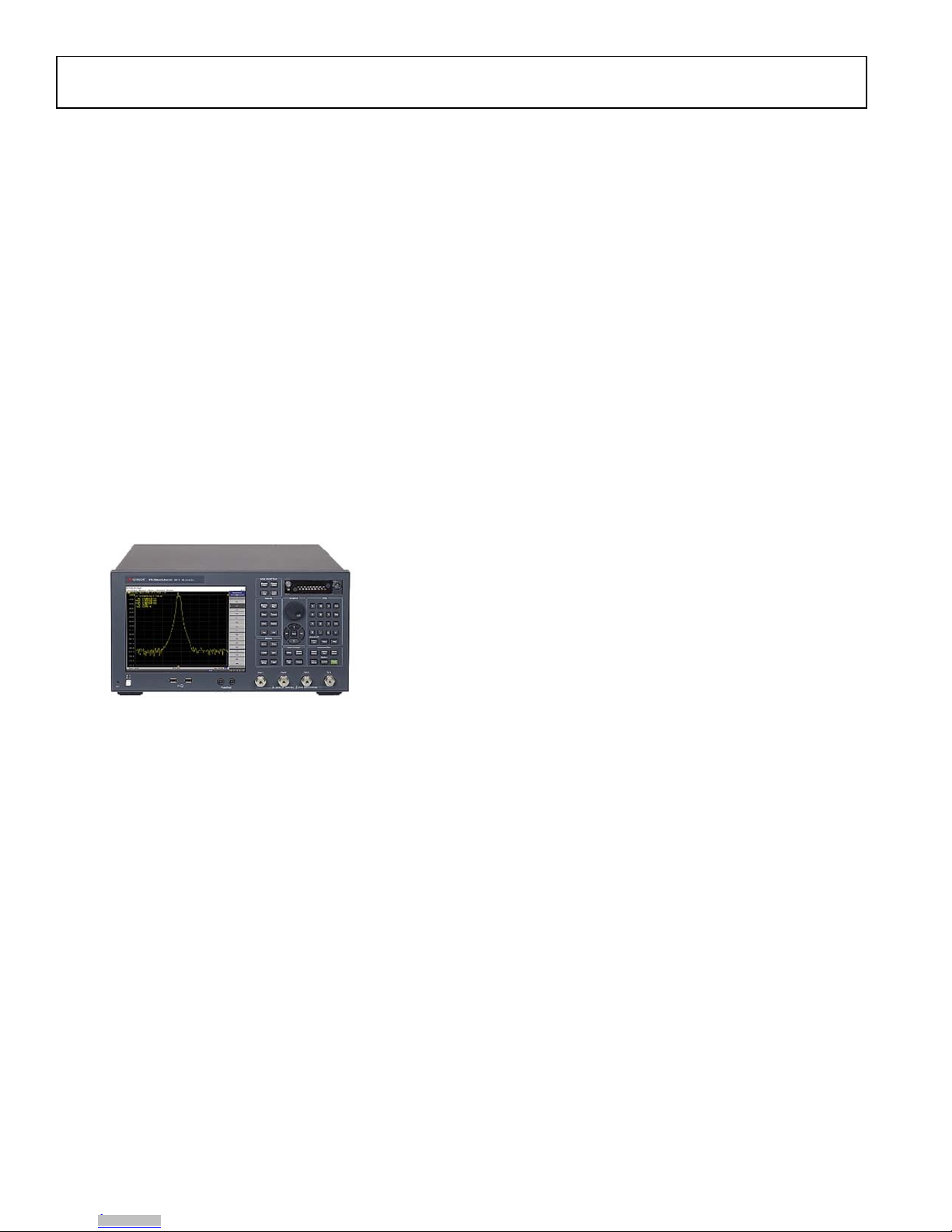

Figure 3. Four-Port Network Analyzer (E5071C Model)

MEASURING THE MAGNITUDE AND PHASE OF

THE Q-CHANNEL

To measure the magnitude and phase of the Q-channel using

a four-port network analyzer (see Figure 3), take the following

steps:

1. Use an SMA cable to connect J4 of the EVAL-

ADAQ8088EBZ to Port 1 of the network analyzer.

2. Use an SMA cable to connect J3 of the EVAL-

ADAQ8088EBZ to Port 2 of the network analyzer.

3. Use an SMA cable to connect J8 of the EVAL-

ADAQ8088EBZ to Port 3 of the network analyzer.

4. Use an SMA cable to connect J6 of the EVAL-

ADAQ8088EBZ to Port 4 of the network analyzer.

5. Set the network analyzer output, Port 1 and Port 2, to a

power level of −20 dBm (63 mV p-p).

6. Observe the output phase on Port 3 and Port 4 of the

network analyzer.

CALIBRATION PROCEDURE

First ensure that the four-port network analyzer is calibrated

using either the ECal (electronic calibration) module, or the

manual short, open, and load method. When the network

analyzer is calibrated using one of these two methods, take

the following steps to complete the network analyzer through

calibration:

1. Use an SMA cable to connect a through connector from

Port 1 to Port 3 of the network analyzer.

2. Use an SMA cable to connect a through connector from

Port 2 to Port 4 of the network analyzer.

3. Press the Cal button on the network analyzer.

4. Click Calibrate > Response (Thru) > Select Ports on

the network analyzer, and then take the following steps

to start calibration:

a. Select 3-1 and click Thru on the network analyzer

to start the calibration on Port 3 and Port 1.

b. When the calibration on Port 3 and Port 1 is

complete, select 4-2 and click Thru on the network

analyzer to start calibration on Port 4 and Port 2.

5. Use an SMA cable to connect a through connector from

Port 1 to Port 4 of the network analyzer.

6. Use an SMA cable to connect a through connector from

Port 2 to Port 3 of the network analyzer.

7. Press the Cal button on the network analyzer.

8. Click Calibrate > Response (Thru) > Select Ports on

the network analyzer, and then take the following steps

to start calibration:

a. Select 4-1 and click Thru on the network analyzer

to start the calibration on Port 4 and Port 1.

b. When the calibration on Port 4 and Port 1 is

complete, select 3-2 and click Thru on the network

analyzer to start calibration on Port 3 and Port 2.

25399-003

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

EVAL-ADAQ8088EBZ User Guide UG-1825

Rev. 0 | Page 5 of 12

MAGNITUDE AND FREQUENCY RESPONSE MEASUREMENTS USING A TWO-PORT

NETWORK ANALYZER

MEASURING THE MAGNITUDE AND FREQUENCY

RESPONSE OF THE I-CHANNEL

I_INP as the Active Input

To measure the magnitude and frequency response of the I-

channel with the I_INP input as the active input and using a

two-port network analyzer (see Figure 4), take the following

steps:

1. Use an SMA cable to connect J1 of the EVAL-

ADAQ8088EBZ to Port 1 of the network analyzer.

2. Leave J2 of the EVAL-ADAQ8088EBZ floating.

3. To measure the frequency response at the I_OUTP

output of the EVAL-ADAQ8088EBZ, take the following

steps:

a. Use an SMA cable to connect J7 of the EVAL-

ADAQ8088EBZ to Port 2 of the network analyzer.

b. Terminate J5 to 50 Ω.

c. Set the network analyzer output, Port 1, to a power

level of −20 dBm.

d. Observe the frequency response on Port 2 of the

network analyzer.

4. To measure the frequency response at the I_OUTN

output of the EVAL-ADAQ8088EBZ, take the following

steps:

a. Use an SMA cable to connect J5 of the EVAL-

ADAQ8088EBZ to Port 2 of the network analyzer.

b. Terminate J7 to 50 Ω.

c. Set the network analyzer output, Port 1, to a power

level of −20 dBm.

d. Observe the frequency response on Port 2 of the

network analyzer.

I_INN as the Active Input

To measure the magnitude and frequency response of the I-

channel with the I_INN input as the active input and using a

two-port network analyzer (see Figure 4), take the following

steps:

1. Use an SMA cable to connect J2 of the EVAL-

ADAQ8088EBZ to Port 1 of the network analyzer.

2. Leave J1 of the EVAL-ADAQ8088EBZ floating.

3. To measure the frequency response at the I_OUTP and

I_OUTN outputs of the EVAL-ADAQ8088EBZ, repeat

Step 3 and Step 4 of the procedure in the I_INP as the

Active Input section.

Figure 4. Two-Port Network Analyzer (E5071 Model)

25399-005

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

UG-1825 EVAL-ADAQ8088EBZ User Guide

Rev. 0 | Page 6 of 12

MEASURING THE MAGNITUDE AND FREQUENCY

RESPONSE OF THE Q-CHANNEL

Q_INP as the Active Input

To measure the magnitude and frequency response of the Q-

channel with the Q_INP input as the active input and using a

two-port network analyzer (see Figure 4), take the following

steps:

1. Use an SMA cable to connect J4 of the EVAL-

ADAQ8088EBZ to Port 1 of the network analyzer.

2. Leave J3 of the EVAL-ADAQ8088EBZ floating.

3. To measure the frequency response at the Q_OUTP

output of the EVAL-ADAQ8088EBZ, take the following

steps:

a. Use an SMA cable to connect J8 of the EVAL-

ADAQ8088EBZ to Port 2 of the network analyzer.

b. Terminate J6 to 50 Ω.

c. Set the network analyzer output, Port 1, to a power

level of −20 dBm.

d. Observe the frequency response on Port 2 of the

network analyzer.

4. To measure the frequency response at the Q_OUTP

output of the EVAL-ADAQ8088EBZ, take the following

steps:

a. Use an SMA cable to connect J6 of the EVAL-

ADAQ8088EBZ to Port 2 of the network analyzer.

b. Terminate J8 to 50 Ω.

c. Set the network analyzer output, Port 1, to a power

level of −20 dBm.

d. Observe the frequency response on Port 2 of the

network analyzer.

Q_INN as the Active Input

To measure the magnitude and frequency response of the Q-

channel with the Q_INN input as the active input and using a

two-port network analyzer (see Figure 4), take the following

steps:

1. Use an SMA cable to connect J3 of the EVAL-

ADAQ8088EBZ to Port 1 of the network analyzer.

2. Leave J4 of the EVAL-ADAQ8088EBZ floating.

3. To measure the frequency response at the Q_OUTP and

Q_OUTN outputs of the EVAL-ADAQ8088EBZ, repeat

Step 3 and Step 4 of the procedure in the Q_INP as the

Active Input section.

CALIBRATION PROCEDURE

First ensure that the two-port network analyzer is calibrated

using either the ECal (electronic calibration) module, or the

manual short, open, and load method. When the network

analyzer is calibrated using one of these two methods, take

the following steps to complete the network analyzer through

calibration:

1. Use an SMA cable to connect a through connector from

Port 1 to Port 2 of the network analyzer.

2. Press the Cal button on the network analyzer.

3. Click Calibrate > Response (Thru) > Select Ports on

the network analyzer.

4. Select 2-1, and click Thru.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

EVAL-ADAQ8088EBZ User Guide UG-1825

Rev. 0 | Page 7 of 12

EVALUATING THE ADAQ8088 BY DRIVING THE AD9681 ADC

CONFIGURING THE EVAL-ADAQ8088EBZ,

AD9681-125EBZ, AND HSC-ADC-EVALEZ

Before using the software for testing, take the following steps

to configure the EVAL-ADAQ8088EBZ, AD9681-125EBZ,

and HSC-ADC-EVALEZ:

1. Take the following steps to modify the EVAL-

ADAQ8088EBZ:

a. Remove the R5, R6, R7, and R8 resistors.

b. Install a 40 Ω resistor on R5, R6, R7, and R8.

2. Take the following steps to modify the AD9681-125EBZ

(FMC connector version) of each channel selected (Figure 6

shows Channel A1 and Channel A2 selected for use):

a. Install an SMA connector on the J102 and J104

ports.

b. Remove the R14, R16, C3, C4, J6, J7, C7 to C10,

R36, to R39, and T17 to T20.

c. Install a 0 Ω resistor on R321, R415, C3, C4, J6, J7,

C7 to C10, and R36 to R39.

d. Connect a jumper wire from Pin 3 to Pin 4 of T1.

e. Connect a jumper wire from Pin 1 to Pin 6 of T1.

f. Connect a jumper wire from Pin 3 to Pin 4 of T2.

g. Connect a jumper wire from Pin 1 to Pin 6 of T2.

3. Connect the EVAL-ADAQ8088EBZ to the AD9681-

125EBZ, as shown in Figure 6, and then connect the

AD9681-125EBZ to the HSC-ADC-EVALEZ by aligning

each of their field programmable gate array mezzanine

card (FMC) connector and carefully press them together.

Note that FMC connectors often come from the factory

with a sticker that prevents connection. Remove this sticker

(if needed) before attempting to make the connection.

4. On the EVAL-ADAQ8088EBZ, confirm that the jumpers

are installed as shown in Figure 8.

5. Connect one 6 V, 2.5 A switching power supply (such as

the CUI, Inc., EPS060250UH-PHP-SZ supplied in the

AD9681-125EBZ evaluation kit) to the AD9681-125EBZ.

6. Connect the 12 V, 3.3 A switching power supply to the

HSC-ADC-EVALEZ board.

7. Connect the HSC-ADC-EVALEZ to the PC using a USB

cable (supplied in the HSC-ADC-EVALEZ evaluation kit).

8. On the EVAL-ADAQ8088EBZ, replace the value of R5,

R6, R7, and R8 with 40 Ω each and use a clean signal

generator with low phase noise to provide an input signal.

9. Connect the output signal from either J5 and J7 or J6

and J8 to the selected channel of the AD9681-125EBZ.

MEASUREMENT RESULTS WHEN DRIVING THE

AD9681 USING THE ADAQ8088 AS A DRIVER

The configurations of the EVAL-ADAQ8088EBZ and the

AD9681-125EBZ used during testing include the following:

 The input source dual-channel generator (Keysight

33600A differential signal generator) is set to 6 MHz,

52 mV p-p for −1 dbFS.

 The input filter (Allen Avionics low-pass filter (LPF),

F3056-7P7) is set to a 7.7 MHz cutoff frequency. Another

LPF can be selected with a cutoff frequency above the input

frequency and below the first harmonic.

 The I-channel and Q-channel are driven and measured

(refer to Figure 6). A sample FFT of the measurement is

shown in Figure 5.

 The output loading is configured as follows:

 10 Ω internal to μModule.

 40 Ω on the EVAL-ADAQ8088EBZ.

 33 Ω and 5 pF LPF on the EVAL-ADAQ8088EBZ

(still allows for optimization).

For details on the correct EVAL-ADAQ8088EBZ jumper

positions, modes of operation, and using the ADC data

capture software for testing, see the AD9681-125EBZ user

guide page at https://wiki.analog.com/resources/eval/ad9681-

125ebz.

Figure 5. Fast Fourier Transform (FFT) Result

25399-008

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

UG-1825 EVAL-ADAQ8088EBZ User Guide

Rev. 0 | Page 8 of 12

Figure 6. EVAL-ADAQ8088EBZ, AD9681-125EBZ, and HSC-ADC-EVALEZ Connections

TROUBLESHOOTING TIPS

If the FFT appears normal but the performance is poor, check

for the following:

 Ensure that the output signal of the ADAQ8088 is clean

(low phase noise).

 Ensure that the connection between the output of the

EVAL-ADAQ8088EBZ to the AD9681-125EBZ is tight.

Using a smaller length of cable or connector is

recommended.

 Ensure that an appropriate filter is used on the analog input.

 Ensure that the signal generator for the clock is clean

(low phase noise).

 Slightly change the analog input frequency if

noncoherent sampling is used.

 Ensure that the SPI configuration file matches the device

being evaluated.

For further details on troubleshooting while evaluating

the ADAQ8088 by driving the AD9681 ADC, see the

AD9681-125EBZ user guide page at

https://wiki.analog.com/resources/eval/ad9681-125ebz.

5399-006

3V BENCH

SUPPLY

EVAL-ADAQ8088EBZ

AD9681-125EBZ

HSC-ADC-EVALEZ

LPF

DIFFERENTIAL

SIGNAL

GENERATOR

2LPF

SIGNAL GENERATOR

OPTIONAL

CLOCK SOURCE

PC RUNNING

VISUAL ANALOG

AND SPI CONTROLLER

USER SOFTWARE

SWITCHING

POWER SUPPLY

WALL OUTLET

100V AC TO 240V AC

47Hz TO 63Hz

12V

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

EVAL-ADAQ8088EBZ User Guide UG-1825

Rev. 0 | Page 9 of 12

EVALUATION BOARD SCHEMATICS AND ARTWORK

Figure 7. EVAL-ADAQ8088EBZ Schematic

Figure 8. EVAL-ADAQ8088EBZ Feedback Resistor/Capacitor Placeholders

Figure 9. EVAL-ADAQ8088EBZ Top Copper Layer

A12

VS+

RA21

A13 RA22

A1 VINAP

C1 VINAN

C12 RA11

C13

345

RA12

A9 VCMA

F9 VCMB

F12 RB21

F13 RB22

A14

VOUTAP C14

VOUTAN

D14

VOUTBP F14

VOUTBN

D1 VINBP

F1 VINBN

D12 RB11

D13 RB12

A4 GND

A7 GND

A8 GND

B1 GND

B2 GND

B3 GND

B4 GND

B5 GND

AGND

VCMA

EXVCMA

BLU

AGND2

BLK

69157–102HLF

AGND

I–CHANNEL

SMA–J–P–H–ST–EM1

Q–CHANNEL

B6 GND

B7 GND

B8 GND

B9 GND

B10 GND

B11 GND

B12 GND

B13 GND

B14 GND

E1 GND

E2 GND

E3 GND

E4 GND

E5 GND

E6 GND

E7 GND

E8 GND

E9 GND

E10 GND

E11 GND

E12 GND

E13 GND

E14 GND

F4 GND

F7 GND

F8 GND

VCC C5

VCC C6

VCC C7

VCC C8

VCC C9

VCC C10

VCC D4

VCC D5

VCC D6

VCC D7

VCC D8

VCC D9

VCC D10

VCC

A2 DNC

A3 DNC

A5 DNC

A6 DNC

A10 DNC

A11 DNC

C2 DNC

C3 DNC

C11 DNC

D2 DNC

D3 DNC

D11 DNC

F2 DNC

F3 DNC

F5 DNC

F6 DNC

F10 DNC

F11 DNC

R14

345

R13 I_INP

I_INN

345

R15

R16

Q_INP

Q_INN

345

61.9Ω

INPU

COMMON-MODE VOLTAGE (VCM) POWER SUPPLY

432

AGND

I–CHANNEL

SMA–J–P–H–ST–EM1

Q–CHANNEL

432

R5I_OUTP

I_OUTN

432

Q_OUTP

Q_OUTN

432

OUTPUT

AGND

VCMB

EXVCMB

BLU

AGND3

BLK

69157–102HLF

AGND

VCMB

VS+

RED

AGND1

BLK

69157–102HLF

10µFC1

25399-024

R9 DNI

RA21 RA221kΩ

0.1µF

R10DNI

DNI

RA11 RA121kΩ

0.1µF

R11DNI

RB21 RB221kΩ

0.1µF

R12DNI

DNI

RB11 RB121kΩ

0.1µF

25399-025

25399-026

UG-1825 EVAL-ADAQ8088EBZ User Guide

Rev. 0 | Page 10 of 12

Figure 10. EVAL-ADAQ8088EBZ GND Plane

Figure 11. EVAL-ADAQ8088EBZ Power Plane

25399-027

25399-028

Indice

Altri manuali Analog Devices Hardware per computer

Analog Devices

Analog Devices EVAL-ADPD6000 Manuale utente

Analog Devices

Analog Devices LTC6955 Guida rapida alla configurazione

Analog Devices

Analog Devices EVAL-ADuCM420QSP1Z Manuale utente

Analog Devices

Analog Devices ADPA1105-EVALZ Manuale utente

Analog Devices

Analog Devices Blackfin Manuale utente

Analog Devices

Analog Devices ADSP-BF561 EZ-KIT Lite Manuale utente

Analog Devices

Analog Devices SHARC ADSP-214 Series Guida all'applicazione

Analog Devices

Analog Devices EVAL-AD7715-5EB Manuale utente

Analog Devices

Analog Devices EZ-KIT Lite ADSP-BF537 Manuale utente

Analog Devices

Analog Devices ADSST-EM-3040 Manuale utente

Analog Devices

Analog Devices EZ-Extender PWM 180-Pin Manuale utente

Analog Devices

Analog Devices adsp-2100 Manuale utente

Analog Devices

Analog Devices HPUSB Manuale utente

Analog Devices

Analog Devices ADSP-TS101 TigerSHARC Guida all'applicazione

Analog Devices

Analog Devices SHARC ADSP-2136 Series Guida all'applicazione

Analog Devices

Analog Devices ADSP-BF53x Blackfin Manuale di servizio

Analog Devices

Analog Devices ADSP-SC58 Series Guida all'applicazione

Analog Devices

Analog Devices Linear LT3383 Guida rapida alla configurazione

Analog Devices

Analog Devices EZ-KIT Lite ADSP-21364 Manuale utente

Analog Devices

Analog Devices EVAL-ADAU1772Z Manuale utente

Analog Devices

Analog Devices ADM1060 Manuale utente

Analog Devices

Analog Devices VisualDSP++ 5.0 Manuale utente

Analog Devices

Analog Devices Linear Technology LTC6953 Guida rapida alla configurazione

Analog Devices

Analog Devices Linear LTC3114-1 Guida rapida alla configurazione

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
