iBoard

®

iBoard® by APS PART#: IB-R054

READ INSTRUCTIONS CAREFULLY BEFORE START ING

INSTALLATION. REMOVE CONTENTS FROM BOX AND

VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS

RECOMMENDED.

*ROCKER PANEL MOUNT

*NO DRILLING REQUIRED

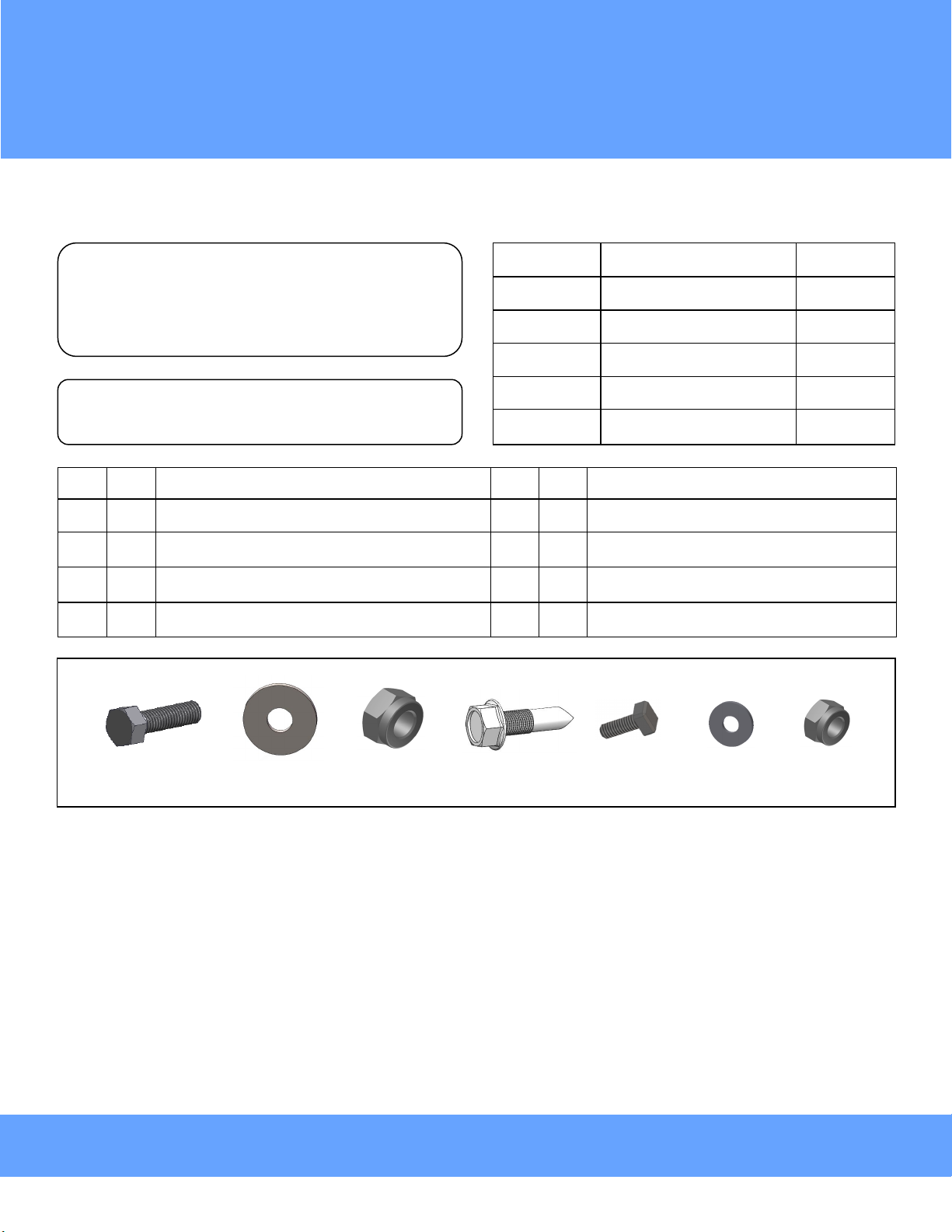

Item QTY Description Item QTY Description

1# 8Mounting Brackets 5# 16 ST6.3-22mm Hex Flange Self Tapping Screws

2# 8M8X1.25-20mm Hex Bolts 6# 16 M6X1-20mm Square Head Bolts

3# 16 M8 Flat Washers 7# 16 M6 Large Flat Washers

4# 8M8 Nylon Lock Nuts 8# 16 M6 Nylon Lock Nuts

4 # 8 #7 #

5 # 6 #

Fastener Size Tightening Torque (ft-lbs) Required

6mm 6-7 √

8mm 16-18 √

10mm 31-32 X

12mm 56-58 X

14mm 92-94 X

3 #

2 #

Customer Support: [email protected]

Rev. 20211001

2

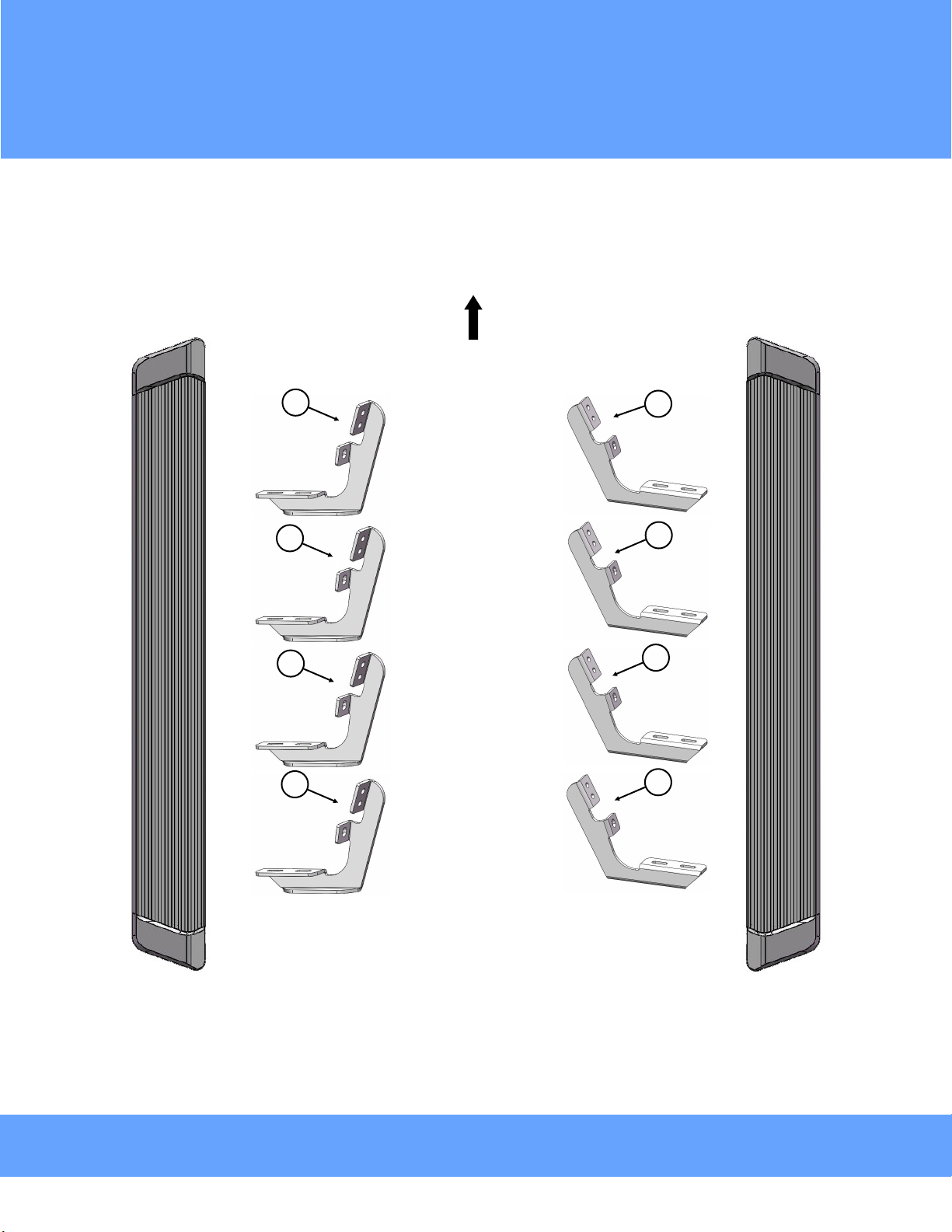

iBoard

®

PassengerDriver Front

1# 1#

1#

1#

1#

1#

1#

1#

Customer Support: [email protected]

Rev. 20211001

3

iBoard

®

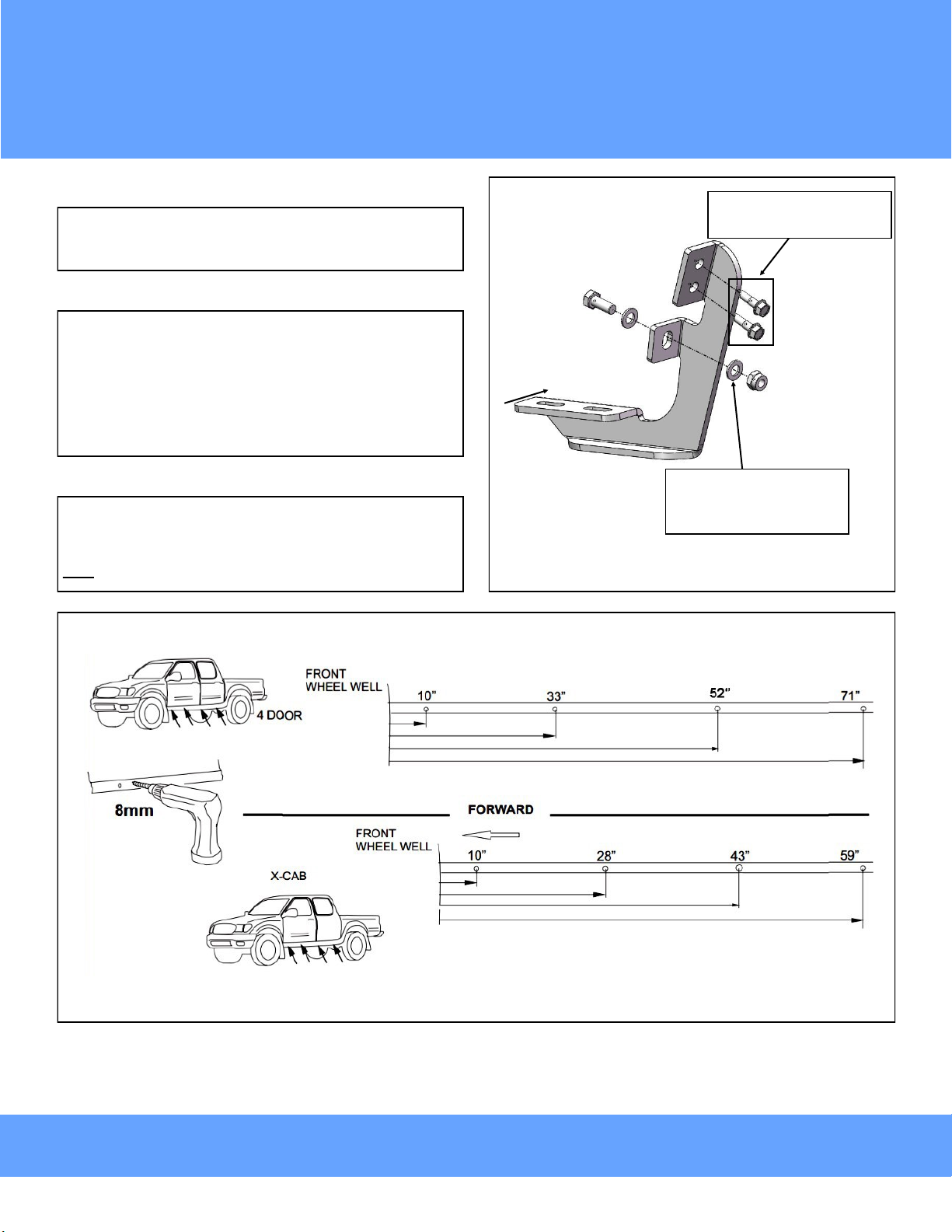

STEP 1

Starting on the Driver side of the vehicle. Drilling (4) 8mm holes

in pinch weld as shown (Fig 1).

STEP 2

Select (1) Mounting Bracket, attach the Mounting Bracket to the

drilled holes on driver side front mounting location with (2)

ST6.3-22mm Hex Flange Self Tapping Screws , (1) M8X1.25-

20mm Hex Bolts, (2) M8 Flat Washers and (1) M8 Nylon Lock

Nuts (Fig 2). Do not fully tighten at this time.

STEP 3

Repeat Steps 1-2 for the 2nd & 3rd & 4th Mounting Brackets

installation. Do not fully tighten hardware at this time.

Note: (8) Mounting Brackets are Universal.

(1) M8X1.25-20mm Hex Bolt

(2) M8 Flat Washers

(1) M8 Nylon Lock Nut

Front

(Fig 2) Driver Front Mounting Bracket Installation

(Fig 1) Driver Side Mounting Locations Pictured

(2) ST6.3-22mm Hex Flange

Self Tapping Screws

Customer Support: [email protected]

Rev. 20211001

4

iBoard

®

STEP 4

Select a Running Board. Slip (4) M6x1-20mm Square Head

Bolts into each bottom channel (Fig 3). Carefully position the

Running Board onto the (4) Mounting Brackets.

IMPORTANT: Do not slide the Running Board on the Brackets

or the bottom surface of the board will be damaged. Attach the

Running Board to each Mounting Bracket with (2) M6x1-20mm

Square Head Bolts, (2) M6 Large Flat Washers and (2) M6

Nylon Lock Nuts (Fig 4). Do not fully tighten at this time.

(Fig 3) Slip M6X1-20mm Square Head Bolts Into

The Bottom Channels

M6X1-20mm Square Head Bolts

STEP 5

Level and adjust the Running Board and fully tighten all hard-

ware.

Important: Please follow the recommended Tightening Tor-

ques shown in the table on page 1. Don’t over tighten, or

the nuts/bolts will be damaged.

STEP 6

Repeat Steps 1-5 for the other side Running Board installation.

The installation is completed.

Attention

Do periodic inspections to the installation to make sure

that all hardware is secure and tight.

In order to protect your bars/boards, please use only

mild soap/non-abrasive products for cleaning.

(Fig 4) Running Board Installed Onto Mounting Bracket

(2) M6X1-20mm Square Head Bolts

(2) M6 Large Flat Washers

(2) M6 Nylon Lock Nuts
