APS iBoard IB-R159 Manuale utente
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220601
1

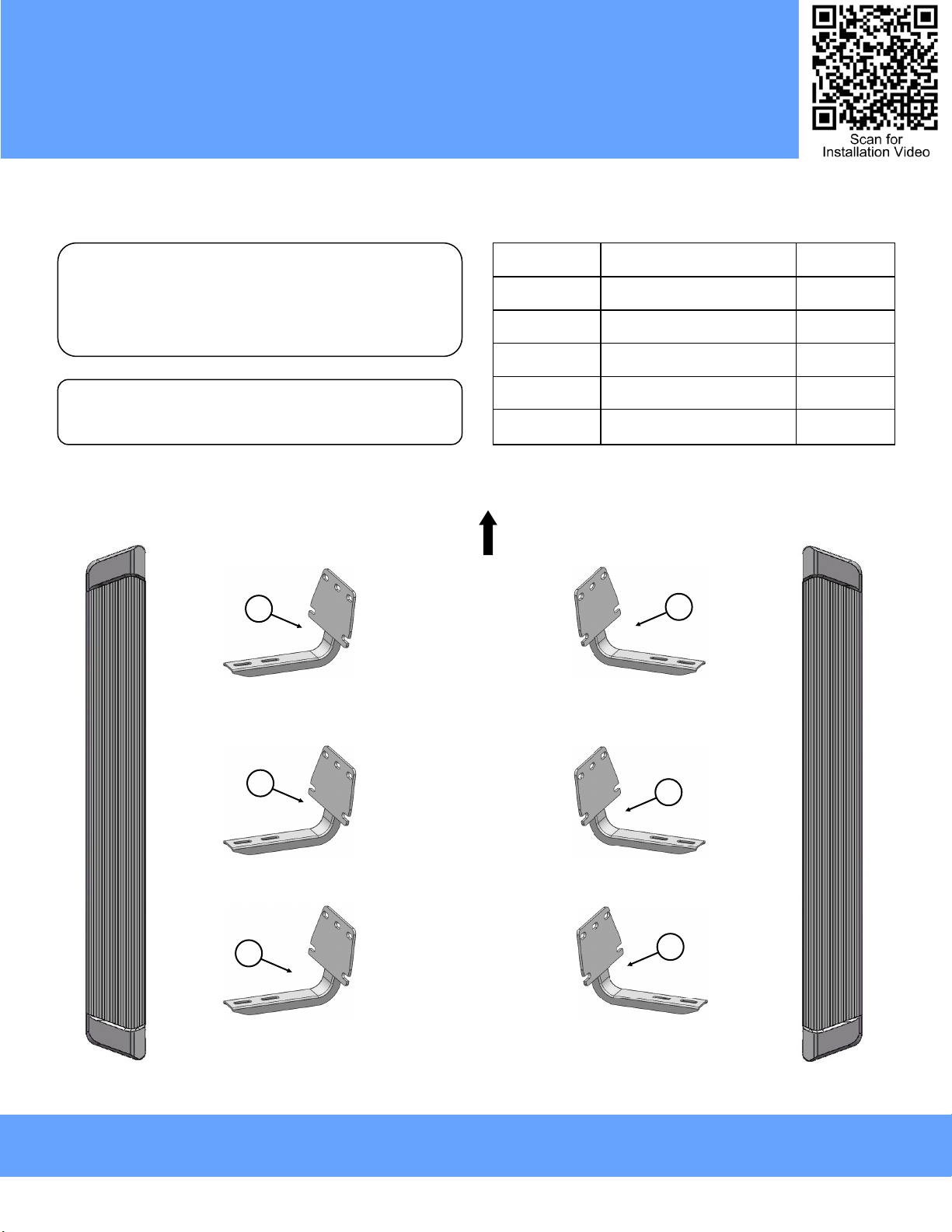

iBoard® by APS PART#: IB-R159/R258
READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
*NO DRILLING REQUIRED
Fastener Size Tightening Torque (ft-lbs) Required
6mm 6-7 √
8mm 16-18 √
10mm 31-32 X
12mm 56-58 X
14mm 92-94 X
Driver Passenger
Front
1# 1#
1# 1#
1# 1#
NOTE: All Mounting Brackets are universal.
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220601
2

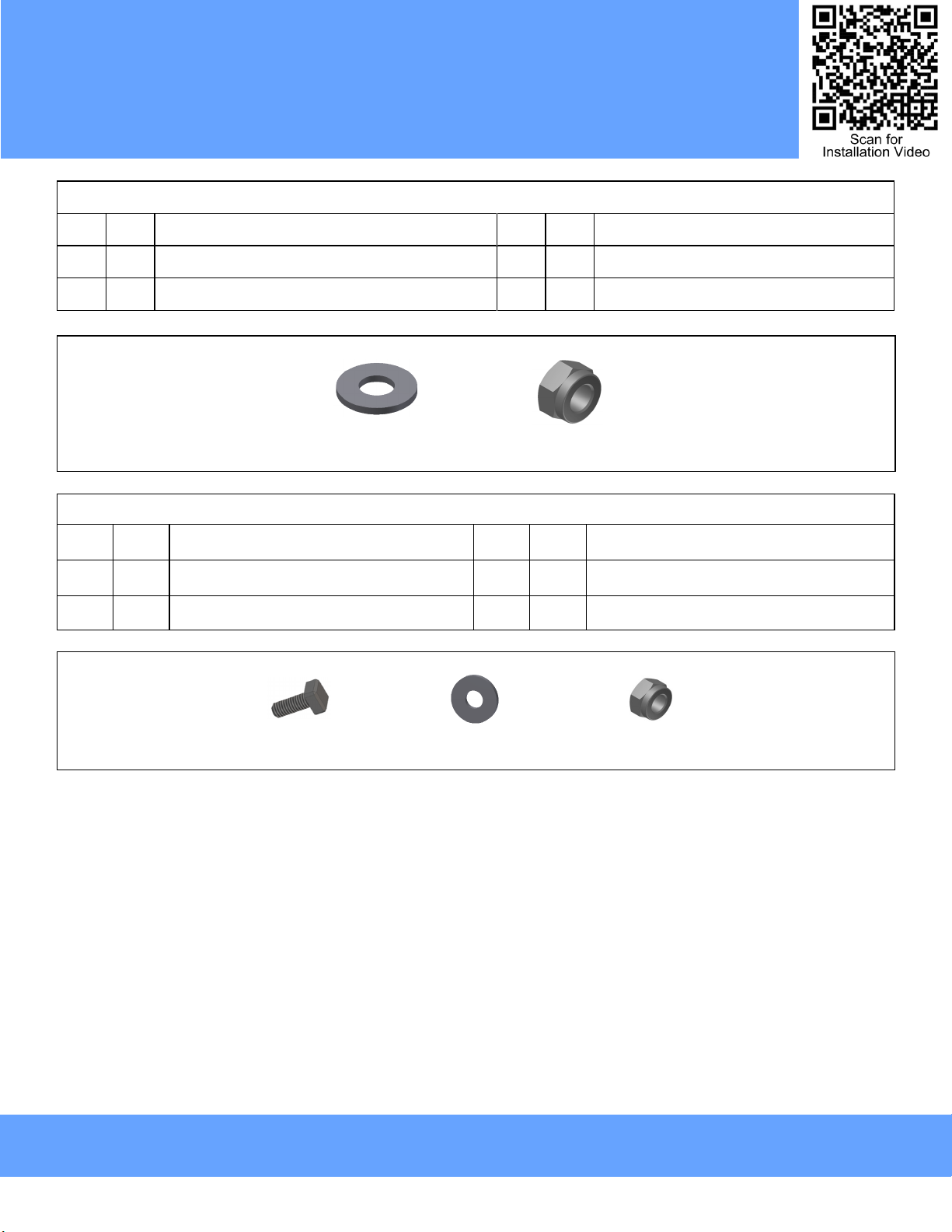

Hardware Package A (For Bracket Installation)
Item QTY Description Item QTY Description
1# 6Mounting Brackets 3# 18 M8X1.25 Nylon Lock Nuts
2# 18 M8 Large Flat Washers
2 # 3 #
2#
1# 3#
Hardware Package B (For Step Bar Installation)
Item QTY Description Item QTY Description
1# 12 M6X1-20mm Square Head Bolts 3# 12 M6 Nylon Lock Nuts
2# 12 M6 Large Flat Washers
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220601
3

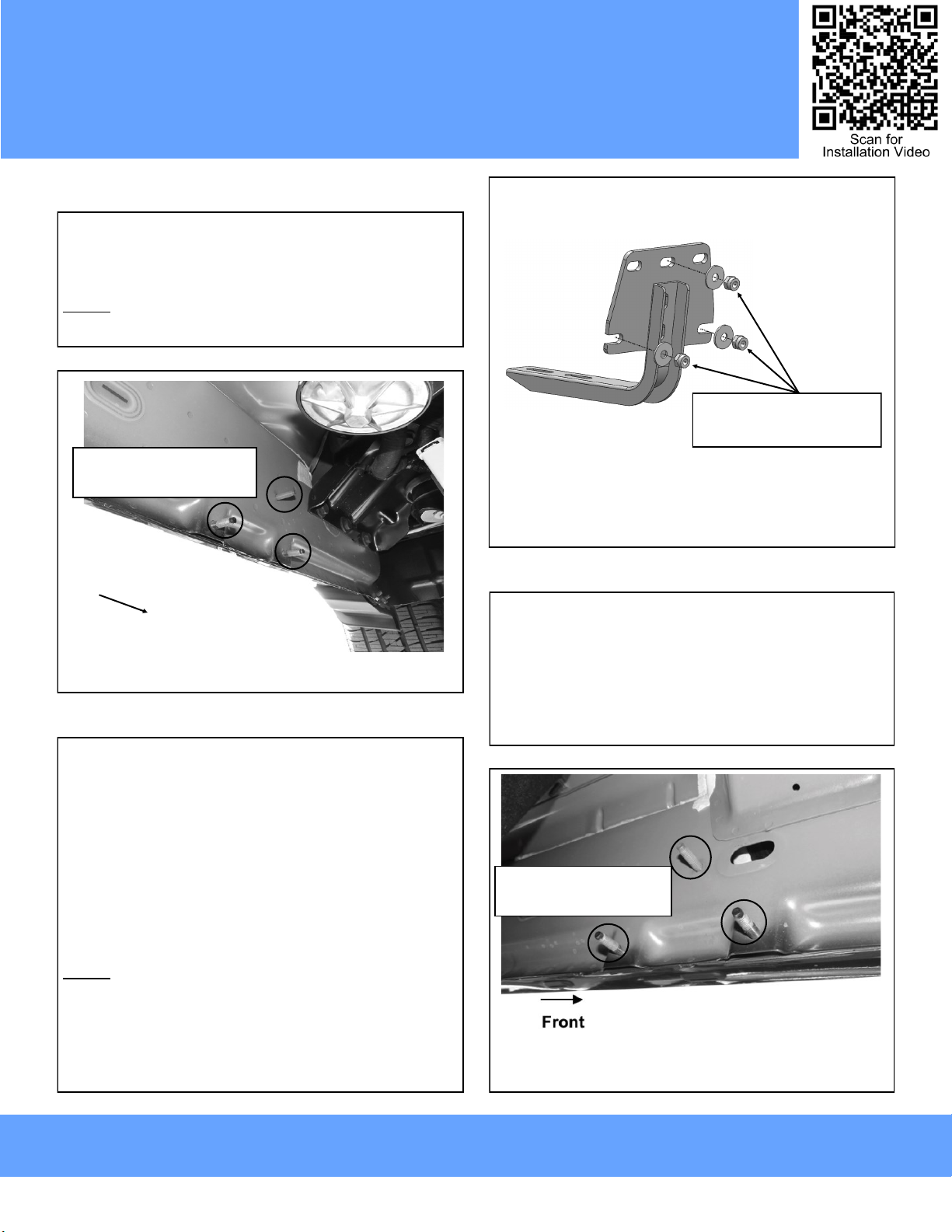

STEP 1
Start the installation under the driver side of the vehicle. Locate
the front (3) factory studs along the inner side of the body pan-
el, (Fig 1).
NOTE: Use a wire brush to remove paint on the threaded studs
if equipped.
(Fig 1) Driver Side Front Mounting Location
Front
STEP 2
Select (1) Mounting Bracket. Attach the Mounting Bracket to
the (3) factory studs on the Driver Side Front Mounting Bracket
Location with (3) M8 Large Flat Washers and (3) M8X1.25 Ny-
lon Lock Nuts, (Fig 2). Do not fully tighten the hardware at this
time.
NOTE: All (6) Mounting Brackets are universal .
(Fig 2) Driver Side Front Mounting Bracket Installation
Remove paint on the thread-
ed studs if equipped
Move to Driver side Center and Rear mounting locations, (Figs
3-4). Repeat Steps 1-2 to install Driver Center Mounting
bracket and Driver Rear Mounting bracket. Do not fully tighten
hardware at this time.
(Fig 3) Driver Side Center Mounting Location
STEP 3
Remove paint on the
threaded studs if equipped
(3) M8 Large Flat Washers
(3) M8Χ1.25 Nylon Lock Nuts
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220601
4

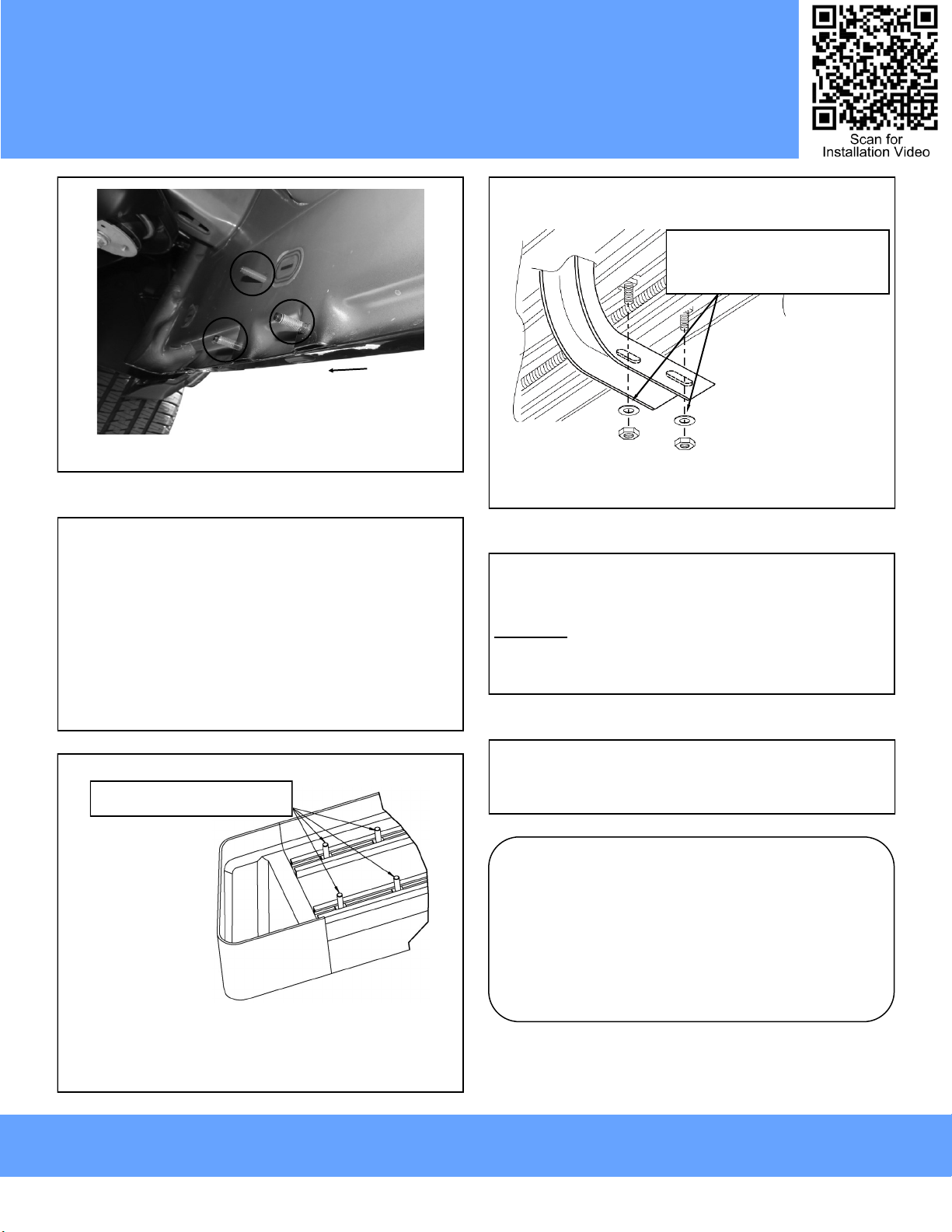

(Fig 4) Driver Side Rear Mounting Location
Rear
STEP 4
Once all (3) Mounting Brackets have been installed, select a
Running Board. Slip (3) M6X1-20mm Square Head Bolts into
each bottom channel (Fig 5). Carefully position the Running
Board onto the (3) Mounting Brackets. Attach the Running
Board to each Mounting Brackets with (2) M6X1-20mm Square
Head Bolts, (2) M6 Large Flat Washers and (2) M6 X1 Nylon
Lock Nuts (Fig 6). Do not fully tighten at this time.
IMPORTANT: Do not slide the Running Board on the Brackets
or the bottom surface of the board will be damaged.
M6X1-20mm Square Head Bolts
(Fig 5) Slip M6X1-20mm Square Head Bolts Into The
Bottom Channels
(Fig 6) Running Board Installed Onto Mounting Bracket
(2) M6X1-20mm Square Head Bolts
(2) M6 Large Flat Washers
(2) M6X1 Nylon Lock Nuts
STEP 5
Level and adjust the Running Board and fully tighten all hard-
ware.
Important: Please follow the recommended Tightening Tor-
ques shown in the table on page 1. Don’t over tighten, or
the nuts/bolts will be damaged.
STEP 6
Repeat Steps 1-5 for the other side Running Board installation.
The installation is completed .
Attention
Do periodic inspections to the installation to make sure
that all hardware is secure and tight.
In order to protect your bars/boards, please use mild
soap/non-abrasive products for cleaning only.
