APS IBoard Manuale utente

iBoard®

Customer Support: [email protected]

Rev. 20210301

PART#: IB-R048

READ INSTRUCTIONS CAREFULLY BEFORE

STARTING INSTALLATION. REMOVE CONTENTS

FROM BOX AND VERIFY ALL PARTS ARE PRE-

SENT. ASSISTANCE IS RECOMMENDED.

PART LIST Front

iBoard® by APS

Fastener Size Tightening Torque (ft-lbs)

6mm 6-7

8mm 16-18

10mm 31-32

12mm 56-58

14mm 92-94

*ROCKER PANEL MOUNT

*DRILLING IS REQUIRED

Note: *(6) Support Brackets Are Universal

Driver/Passenger Front Mounting

Bracket (DFM/PFM)

Support Bracket

Driver/Passenger Center Mounting

Bracket (DCM/PCM)

Driver/Passenger Rear Mounting

Bracket (DRM/PRM)

DFS/PFS

Driver/Passenger

Front Support

Bracket (DFS/PFS)

Support Bracket

iBoard®

Customer Support: [email protected]

Rev. 20210301

STEP 1

M6 Nylon Lock

Nut

X16

M6 Large Flat

Washer

X16

M6X1-20mm

Square Head Bolt

X16

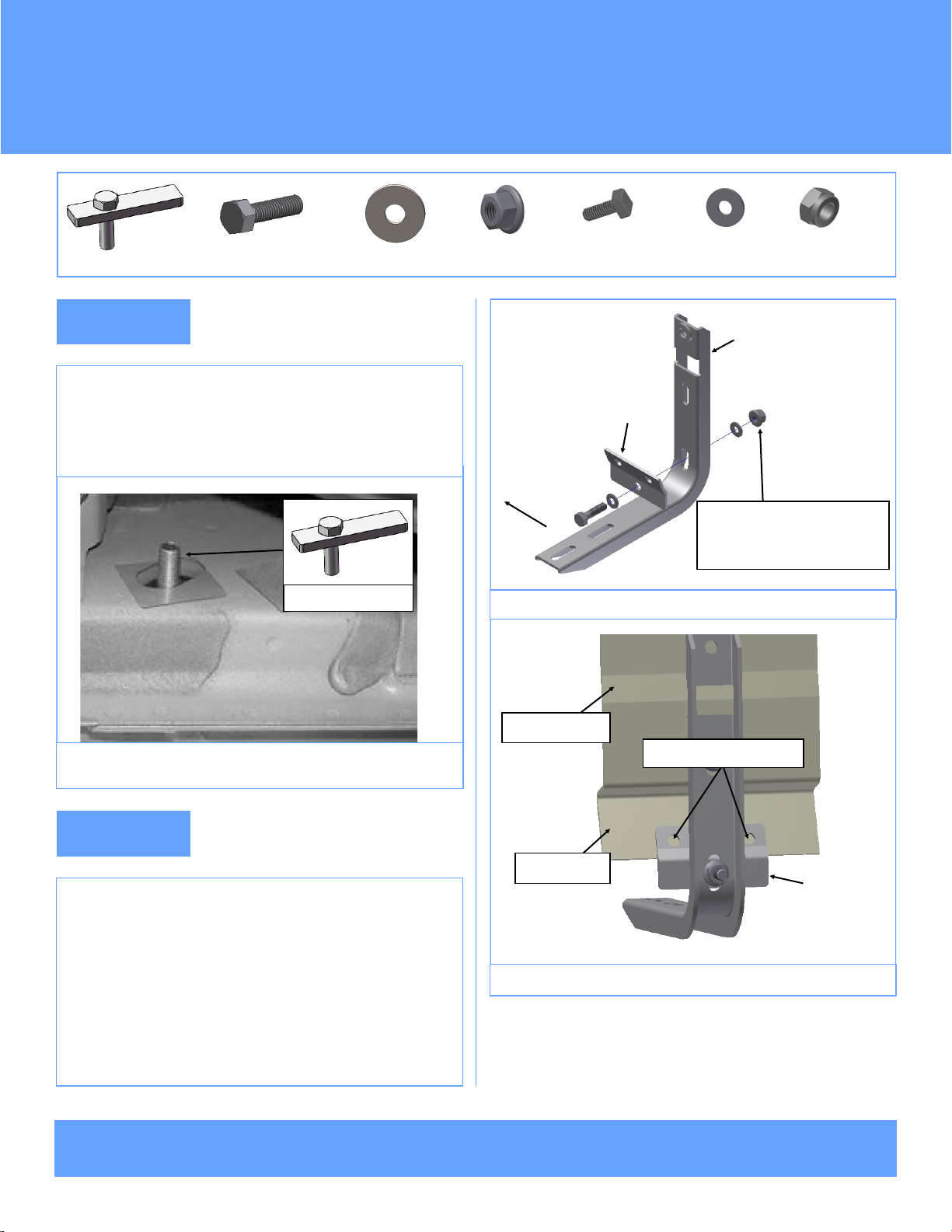

Start installation from the driver side of the vehicle. Locate (8)

mounting positions along the rocker panel.

Insert (4) M8 Bolt Plates into the oval holes (Use the 2nd, 4th,6th

and 8th holes), (Fig 1).

M8 Flat Washer

X24

(Fig 1) Insert the M8 Bolt Plate

(Use the 2nd, 4th,6th, 8th holes)

M8 Bolt Plate

STEP 2

Assemble Driver Front Mounting Bracket (DFM/PFM) and the

Driver Front Support Bracket (DFS/PFS) with (1) M8X1.25-

20mm Hex Bolt, (2) M8 Flat Washers and (1) M8 Hex Flange

Nut. Don’t fully tighten at this time, (Fig 2).

Attach the assembled Driver Front Mounting Bracket onto the

rocker panel. According to the position of Driver Front Support

Bracket (DFS/PFS), mark and drill 2 holes on the pinch weld,

(Fig 3).

(Fig 2) Driver Side Front Mounting Bracket Assembly

(1) M8X1.25-20mm Hex Bolt

(2) M8 Flat Washers

(1) M8 Hex Flange Nut

DFM/PFM

DFS/PFS

Front

(Fig 3) Mark And Drill 2 Holes on The Pinch Weld

Mark and Drill 2 Holes

Pinch Weld

Rocker Panel

DFS/PFS

M8X30 Bolt Plate

M8X1.25-20mm Hex Bolt

X24

M8 Hex

Flange Nut

X32

iBoard®

Customer Support: [email protected]

Rev. 20210301

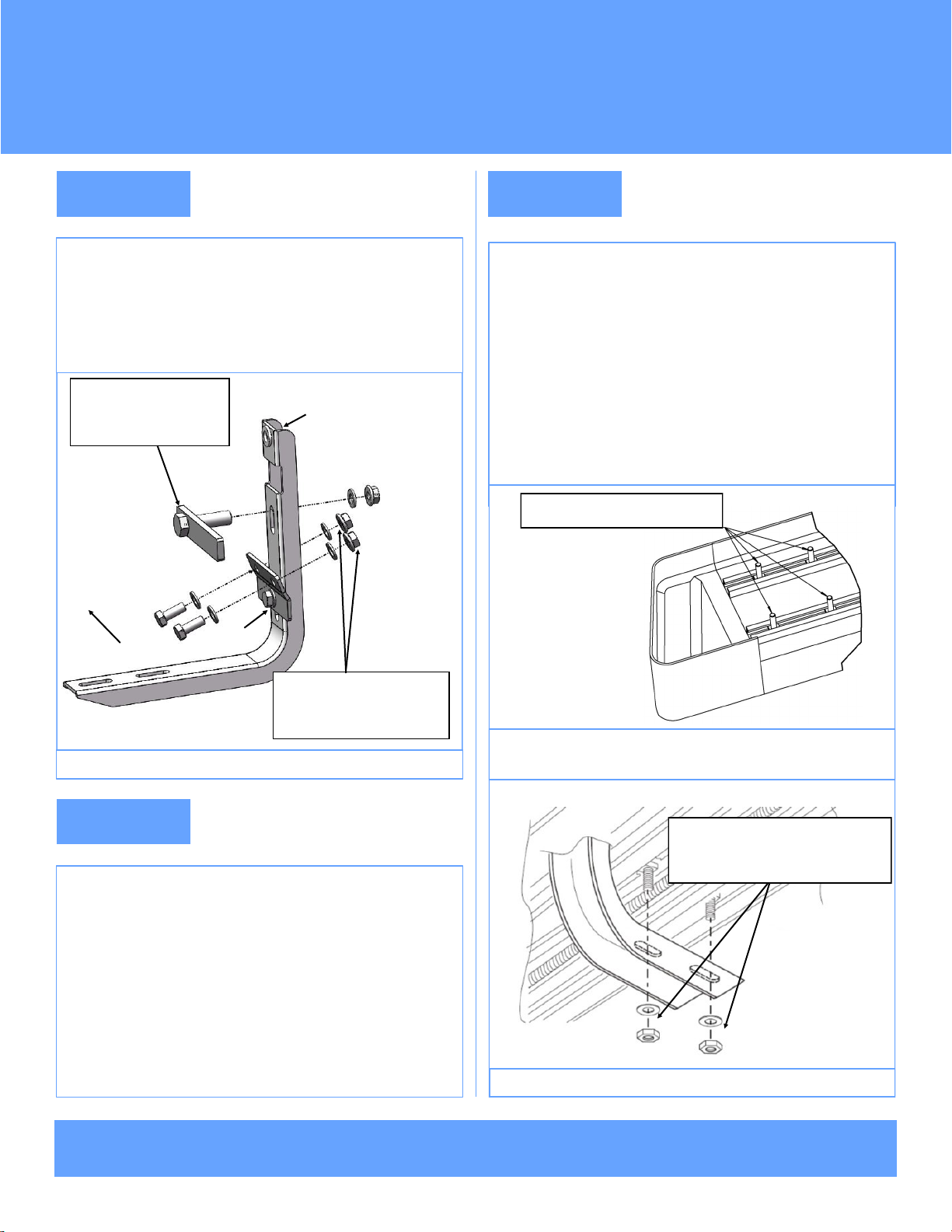

STEP 3

STEP 4

Move to the driver side 4th & 6th & 8th of the vehicle. Repeat

Steps 1-3 for (2) Driver Center Mounting Brackets (DCM/PCM),

(1) Driver Rear Mounting Bracket (DRM/PRM) and (3) Support

Brackets assembly and installation. Do not fully tighten at this

time.

Note: (6) Support Brackets are universal.

Install the assembled Driver Front Mounting Bracket on the

rocker panel and pinch weld with (1) M8 Bolt Plate, (2)

M8X1.25-20mm Hex Bolts, (5) M8 Flat Washers, (3) M8 Hex

Flange Nuts, (Fig 4). Do not fully tighten at this time.

(Fig 4) Driver Side Front Mounting Bracket Installed

DFM/PFM

DFS/PFS

Front

(1) M8 Bolt Plate

(1) M8 Flat Washer

(1) M8 Hex Flange Nut

STEP 5

Select a Running Board. Slip (4) M6x1-20mm Square Head

Bolts into each bottom channel (Fig 5). Carefully position the

Running Board onto the (4) Mounting Brackets.

IMPORTANT: Do not slide the Running Board on the Brackets

or the bottom surface of the board will be damaged. Attach the

Running Board to each Mounting Bracket with (2) M6x1-20mm

Square Head Bolts, (2) M6 Large Flat Washers and (2) M6 Ny-

lon Lock Nuts (Fig 6). Do not fully tighten at this time.

(Fig 5) Slip M6X1-20mm Square Head Bolts Into The Bottom

Channels

M6X1-20mm Square Head Bolts

(Fig 6) Running Board Installed Onto Mounting Bracket

(2) M6X1-20mm Square Head Bolts

(2) M6 Large Flat Washers

(2) M6 Nylon Lock Nuts

(2) M8X1.25-20 Hex Bolts

(4) M8 Flat Washers

(2) M8 Hex Flange Nuts

iBoard®

Customer Support: [email protected]

Rev. 20210301

STEP 7

Repeat Steps 1-4 for the other side Running Board installation.

The installation is completed.

Attention

Do periodic inspections to the installation to make sure

that all hardware is secure and tight.

In order to protect your bars/boards, please use only

mild soap/non-abrasive products for cleaning.

STEP 6

Level and adjust the Running Board and fully tighten all hard-

ware.

Important: Please follow the recommended Tightening Tor-

ques shown in the table on page 1. Don’t over tighten, or

the nuts/bolts will be damaged.
