iBoard

®

Customer Support: info@iboardauto.com

Rev. 20220301

1

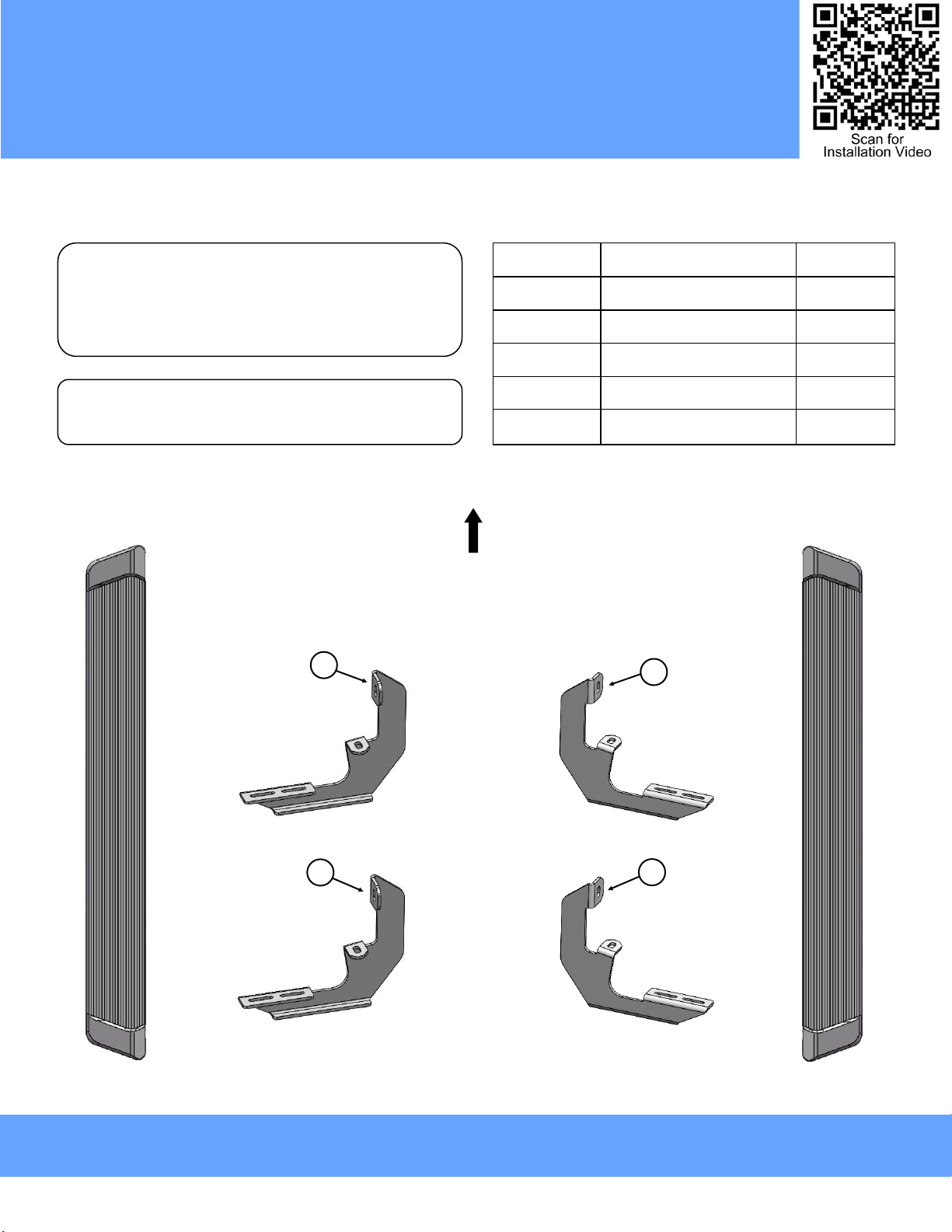

iBoard® by APS PART#: IB-R296

READ INSTRUCTIONS CAREFULLY BEFORE START ING

INSTALLATION. REMOVE CONTENTS FROM BOX AND

VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS

RECOMMENDED.

*ROCKER PANEL MOUNT

*NO DRILLING REQUIRED

Fastener Size Tightening Torque (ft-lbs) Required

6mm 6-7 √

8mm 16-18 √

10mm 31-32 X

12mm 56-58 X

14mm 92-94 X

Front

1# 1#

1#

1#

Driver Passenger

iBoard

®

Customer Support: info@iboardauto.com

Rev. 20220301

2

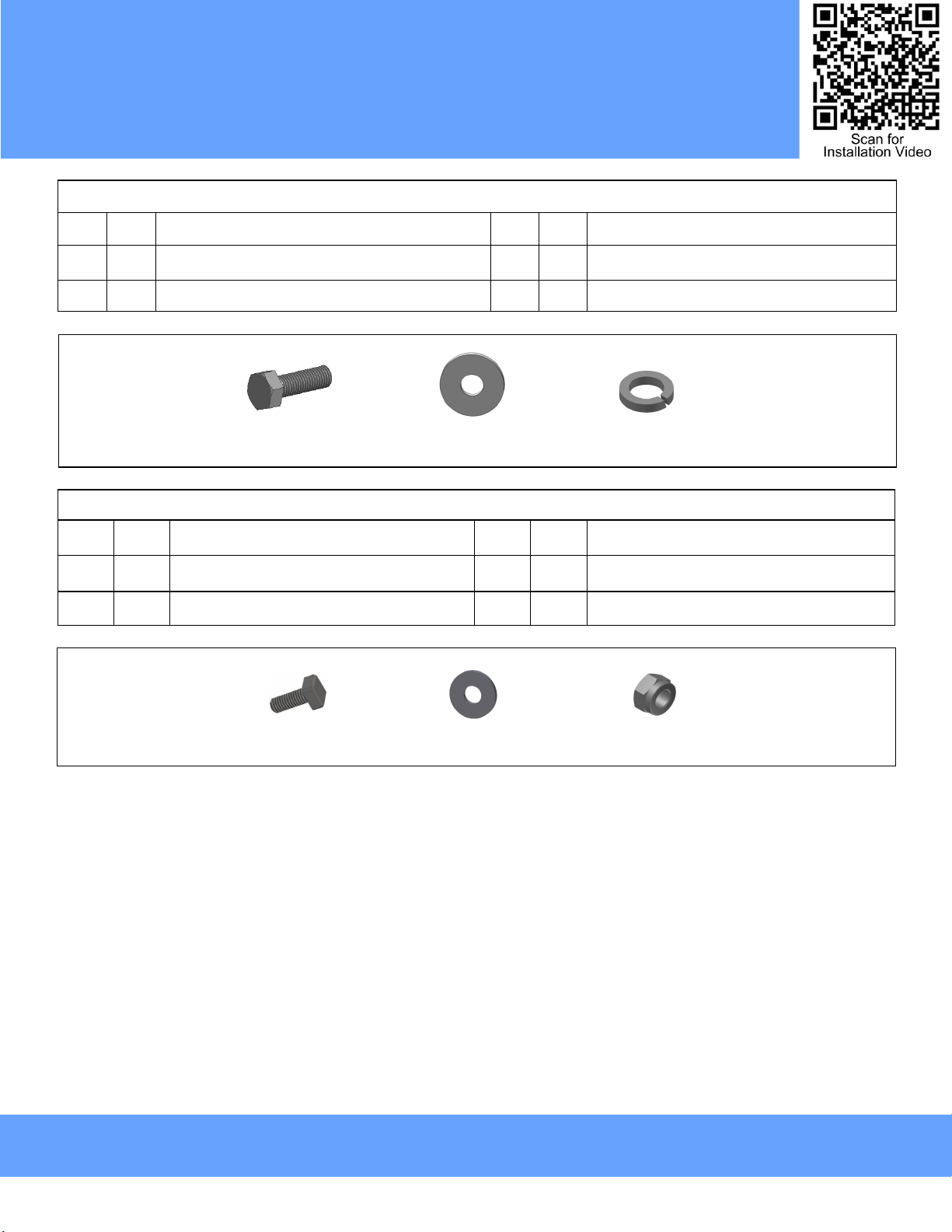

Hardware Package A (For Bracket Installation)

Item QTY Description Item QTY Description

1# 4Mounting Brackets 3# 8M8 Large Flat Washers

2# 8M8X1.25-30mm Hex Bolts 4# 8M8 Lock Washers

2 # 4 #3 #

2#

1# 3#

Hardware Package B (For Step Bar Installation)

Item QTY Description Item QTY Description

1# 8M6X1-20mm Square Head Bolts 3# 8 M6 Nylon Lock Nuts

2# 8M6 Large Flat Washers

iBoard

®

Customer Support: info@iboardauto.com

Rev. 20220301

3

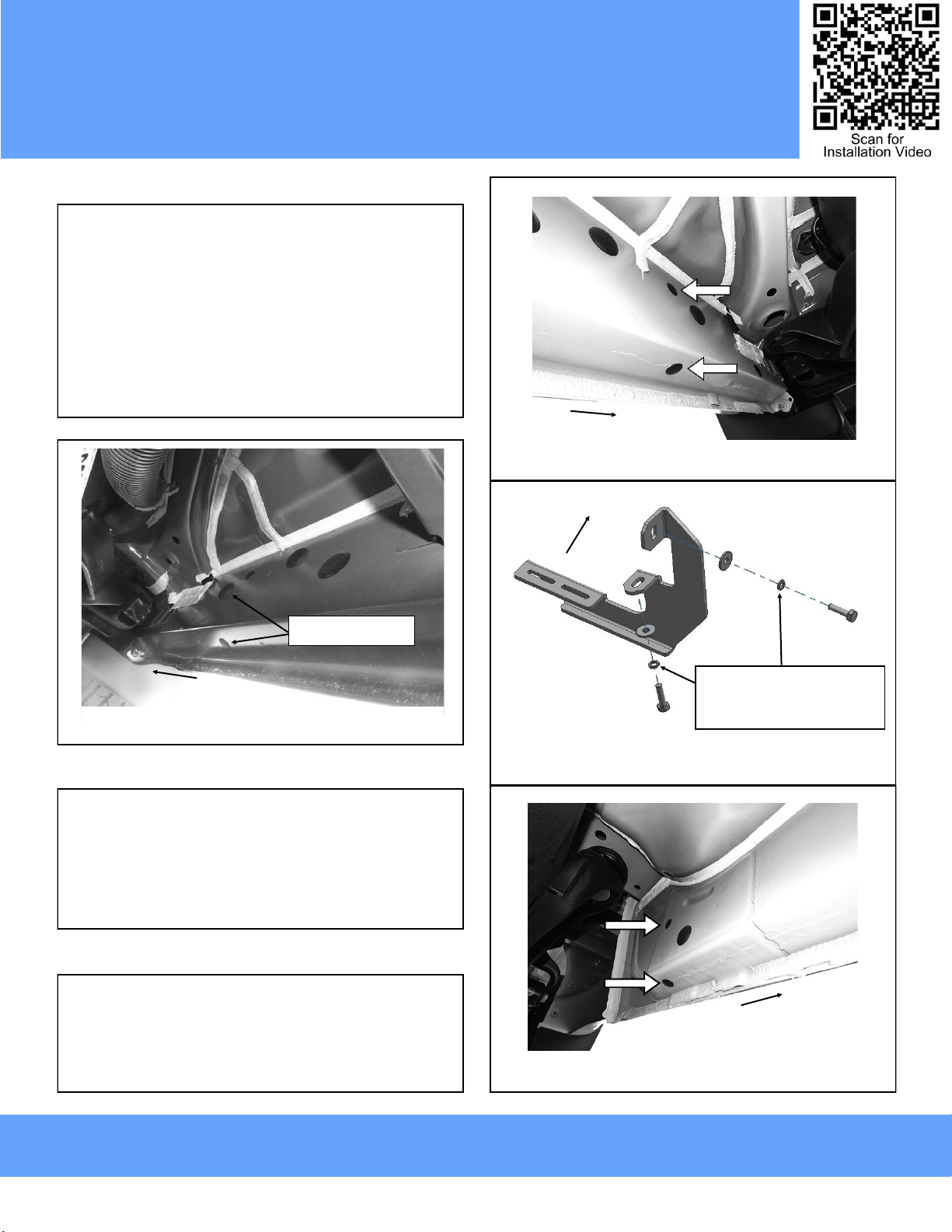

STEP 1

Start installation from the driver side front of the vehicle. Locate

the plastic plugs along the bottom edge of the body, (Fig 1).

Remove the plastic plugs from the front mounting location. Di-

rectly above each threaded insert is a top mounting location on

the side of the body panel. Hold a Bracket up in place to help

determine the correct mounting holes to use along the body.

NOTE: Thread an M8 Hex Bolt into the threaded inserts to

clear paint as required.

STEP 2

Start from the driver front mounting location, (Fig 2). Select (1)

Mounting Bracket. Bolt the Mounting Bracket to the factory

threaded holes with (2) M8X1.25-30mm Hex Bolts, (2) M8 Lock

Washers and (2) M8 Large Flat Washers, (Fig 3). Do not fully

tighten hardware at this time.

(Fig 1) Remove The Plastic Plugs

Remove Plugs

Front

STEP 3

Continue move to the driver side rear of the vehicle, (Fig 4).

Repeat Steps 1 –2 to install the remaining driver side Bracket

in the rear location.

Note: (4) Mounting Brackets are universal.

(Fig 2) Driver Front Mounting Location

Front

(Fig 3) Driver Side Front Mounting Bracket Installation

Front

(Fig 4) Driver Side Rear Mounting Location

Front

(2) M8X1.25-30mm Hex Bolts

(2) M8 Lock Washers

(2) M8 Large Flat Washers

iBoard

®

Customer Support: info@iboardauto.com

Rev. 20220301

4

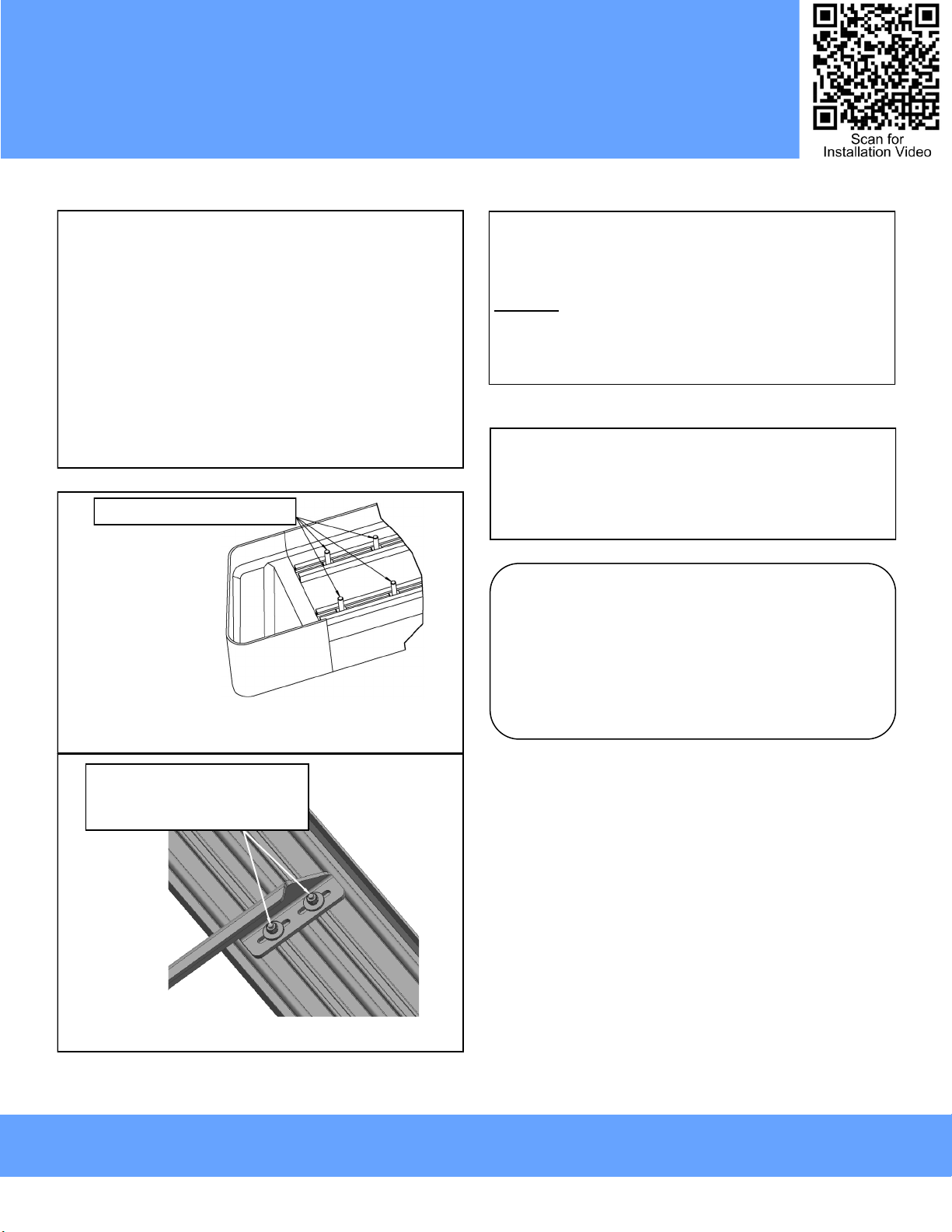

STEP 4

Once all (2) mounting brackets are installed. Select a Running

Board. Slip (2) M6X1-20mm Square Head Bolts into each bot-

tom channel (Fig 5). Carefully position the Running Board onto

the (2) Mounting Brackets. Attach the Running Board to each

Mounting Bracket with (2) M6X1-20mm Square Head Bolts, (2)

M6 Large Flat Washers and (2) M6 Nylon Lock Nuts (Fig 6).

Do not fully tighten at this time.

IMPORTANT: Do not slide the Running Board on the Brackets

or the bottom surface of the board will be damaged.

(Fig 6) Running Board Installed Onto Mounting Bracket

(2) M6X1-20mm Square Head Bolts

(2) M6 Large Flat Washers

(2) M6 Nylon Lock Nuts

(Fig 5) Slip M6X1-20mm Square Head Bolts Into The

Bottom Channels

M6X1-20mm Square Head Bolts

STEP 6

Repeat Steps 1-5 for the other side Running Board installation.

The installation is completed.

Attention

Do periodic inspections to the installation to make sure

that all hardware is secure and tight.

In order to protect your bars/boards, please use mild

soap/non-abrasive products for cleaning only.

STEP 5

Level and adjust the Running Board and fully tighten all hard-

ware.

Important: Please follow the recommended Tightening Tor-

ques shown in the table on page 1. Don’t over tighten, or

the nuts/bolts will be damaged.
