Driver Center Mounting
Bracket (DCM/PCM)
iArmor®by APS
PART#:IA‐S002
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
Fastener Size Tightening Torque (ft-lbs)
6mm 6-7
8mm 16-18
10mm 31-32
12mm 56-58
14mm 92-94
PART LIST
Driver Side Step Bar Passenger Side Step Bar
X1
Passenger Front Mount-
ing Bracket (PFM)
X1
Passenger Rear Mount-
ing Bracket (PRM)
X1
Driver Rear Mounting
Bracket (DRM)
Passenger Center Mount-
ing Bracket (DCM/PCM)
X1
Driver Front Mounting
Bracket (DFM)
X1
Front
X1 X1
X1
iArmor®
Rev. 20201201
2

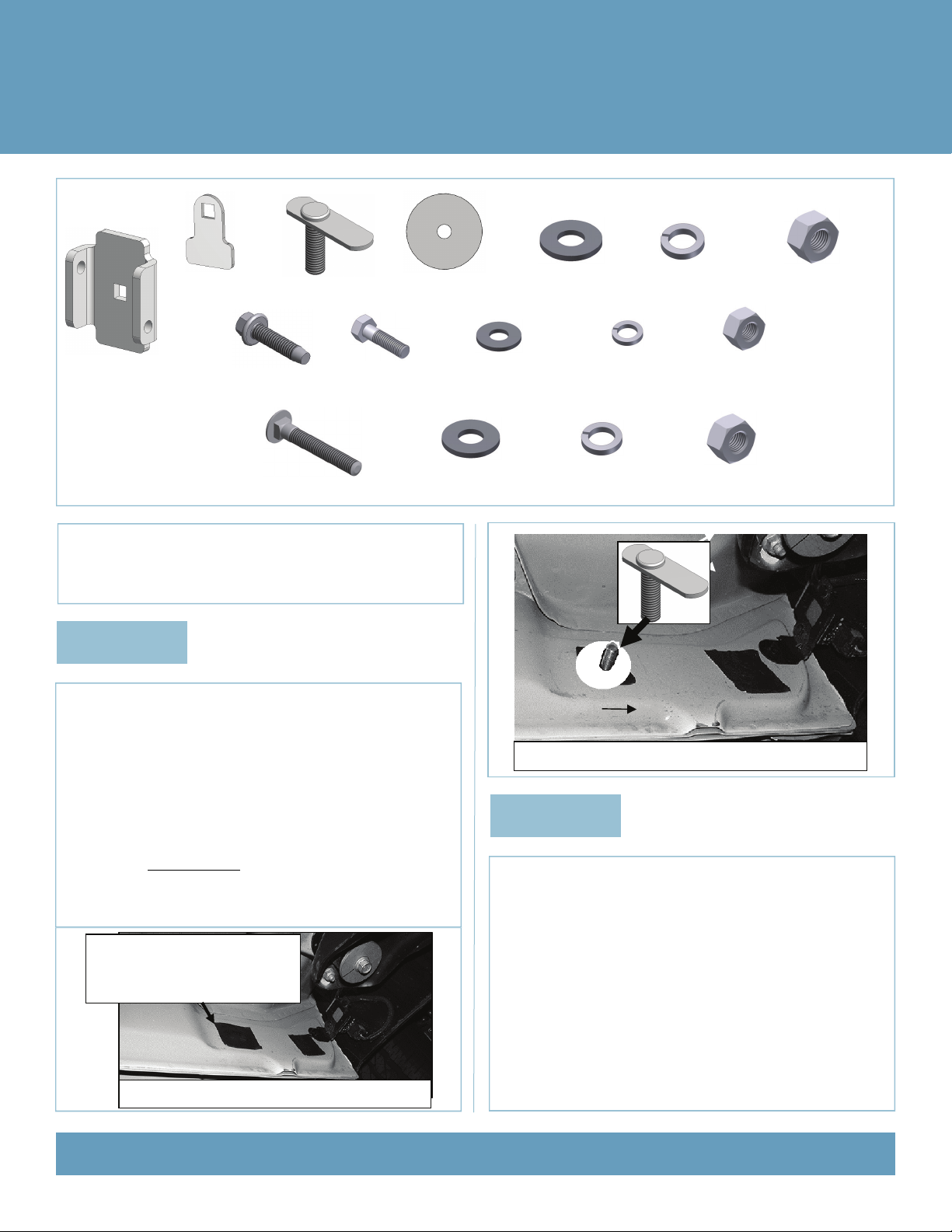

Starting toward the front of the driver side, locate the (2) oval
holes in the inner body panel. Remove the tape covering the
second factory hole (Fig 1). Thread (1) M10 Plastic Washer
onto (1) M10X35 Bolt Plate, insert the Bolt Plate into the factory
hole on the rocker panel (Fig 2). Hold the Bolt Plate in place
with one hand and continue to thread the M10 Plastic Washer
down against the sheet metal until it holds the Bolt Plate in
place (Fig 2). IMPORTANT: The M10 Plastic Washer is de-
signed to prevent the Bolt Plate from falling into the body
panel and to aid Bracket installation.
STEP 1
The instruction here is for your reference only. We strongly
recommend the professional installer for best result. We are not
responsible for any damage caused by the installation.
U Bracket
X6 X12
Spacer M10 Flat Washer
X6
X6
M6X1-25 Hex Bolt
M10 Lock Washer
X6
M8X1.25-55 Carriage Bolt
X6
M6 Flat Washer
X12
M6X1 Hex Nut
X6
X6
M10X35 Bolt Plate M10X1.5 Hex Nut
X6
ST6.3X25 Self
Tapping Screw
X6
M6 Lock Washer
X6
X6
M8 Large Flat Washer M8 Lock Washer
X6
M8X1.25 Hex Nut
X6
Remove sealing tape to uncover
mounting hole. Insert M10X35
Bolt Plate W/M10 Plastic Washer
(Fig 1) Driver Side Front Mounting Location
(Fig 2) Insert Bolt Plate into the Oval Hole
Front
Along the inner body panel, identify the Driver Side Center and
Rear Mounting Location (Fig 3 & 4). Repeat STEP 1, insert the
M10X35 Bolt Plates into the oval holes on the mounting loca-
tions. Thread the M10 Plastic Washers down against the sheet
metal to hold the Bolt Plates in place.
STEP 2
M10 Plastic Washer
X6
iArmor®
Rev. 20201201
3
STEP 4
Attach the Driver Front Mounting Bracket to the Bolt Plate, and
secure the mounting bracket as shown on Fig 6. Don’t fully
tighten at this time.
(Fig 6) Driver Front Mounting Bracket Installed
(Fig 4) Driver Side Rear Mounting Location
Front
(Fig 3) Driver Side Center Mounting Location
Front
STEP 3
Attach the Driver Front Mounting Bracket onto the M10X35 Bolt Plate
on the Driver Side Front Mounting Location with (1) M10 Flat Washer,
(1) M10 Lock Nut & (1) M10X1.5 Hex Nut. Mark holes. Remove the
bracket and Drill holes as shown (Fig 5).
NOTE: Be sure to use the correct drill bit size for each hole.
(1)M8X1.25-30 Hex Bolt
(2)M8 Flat Washers
(1)M8 Lock Washer
(1)M8X1.25 Hex Nut
Front
(1)M10 Flat Washer
(1)M10 Lock Washer
(1)M10X1.5 Hex Nut
(1) ST6x25 Self Tap-
ping Screw
STEP 5
Repeat Steps 3-4 to install Driver Center and Rear Mounting
Brackets. Don’t fully tighten at this time.
STEP 6
Once all (3) driver side mounting brackets are installed, select
and attach the Driver Side Step Bar onto the Mounting Brackets
with (3) U Brackets, (6) Spacers, (3) M8X1.25-55 Carriage
Bolts, (3) M8 Large Flat Washers, (3) M8 Lock Washers and (3)
M8X1.25 Hex Nuts (Fig 7). Do not fully tighten hardware at this
time.
(Fig 5) Driver Side
Front Mounting Holes
Mark and Drill
(1)M10 Flat Washer
(1)M10 Lock Washer
(1)M10X1.5 Hex Nut
DFM
Front
Hole size: 3/16”
Hole size: 5/16”
iArmor®
Rev. 20201201
4
(Fig 7) Driver Side Step Bar Installed
Front
STEP 7
Properly level and adjust the Step Bar and fully tighten all hard-
ware.
STEP 8
Move to the passenger side of the vehicle. Repeat Steps 1-7 to
install passenger side step bar.
Installation completed (Fig 8).
Attention
Do periodic inspections to the installation to make sure
that all hardware is secure and tight.
In order to protect your bars/boards, please use only
mild soap/non-abrasive products for cleaning.
DFM
DCM
DRM
NOTE: Torque all M8 X1.25-55 Car-
riage Bolts to 16~18 Ib-ft. Don't over
tighten, or the aluminum square bars
will be damaged by the brackets
Front
M8X1.25-55
Carriage Bolt
U Bracket
Spacers
M8 Large Flat Washer
M8 Lock washer
M8X1.25 Hex Nut
(Fig 8) Installation Completed
