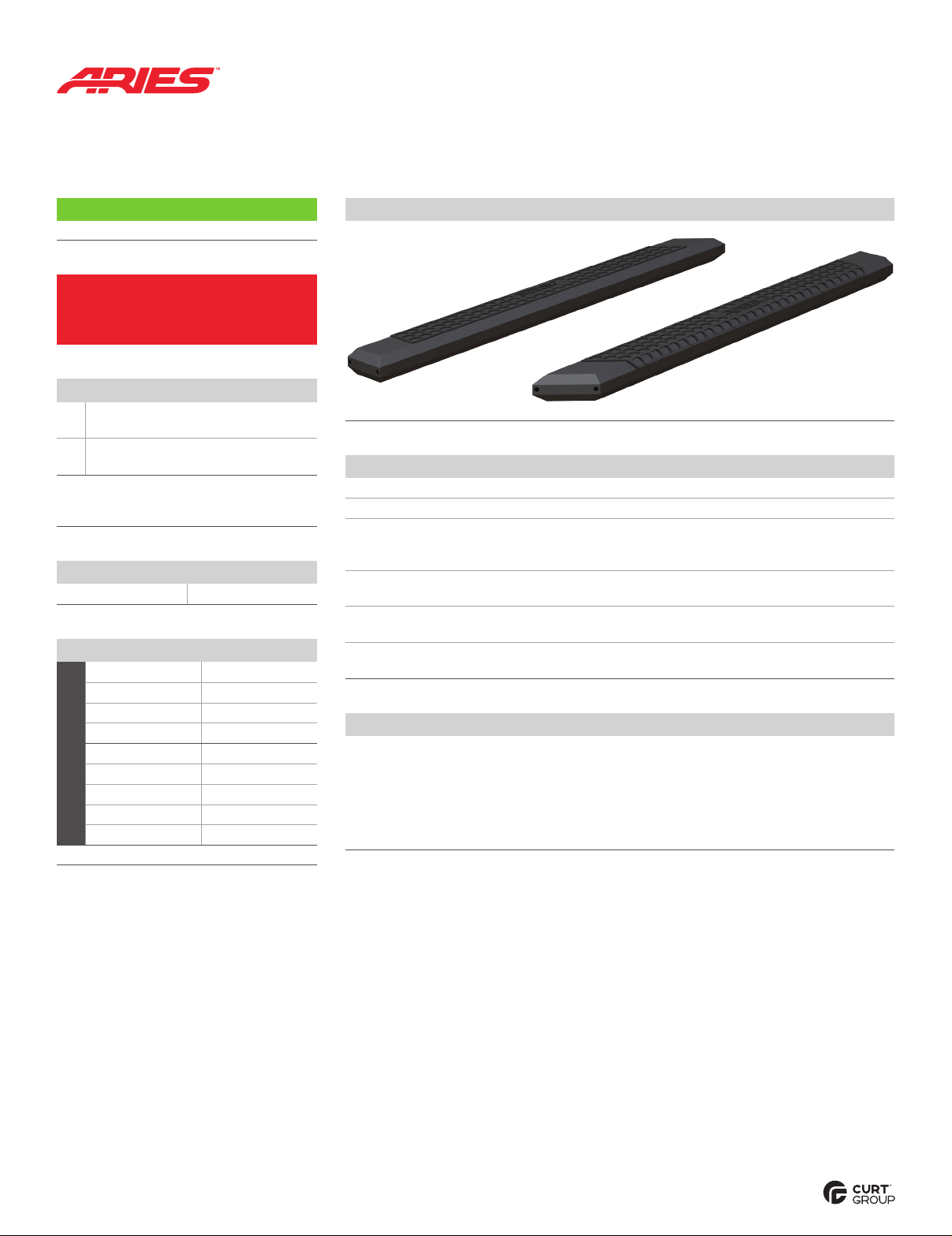

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •877.287.8 634 •2055975-INS-RA •PAGE 1

INSTALLATION MANUAL 2055975

Level of Difﬁculty

Easy

This is the second of two manuals

required to complete this installation.

The first manual is included with

your mounting brackets.

Parts List

1Driver / left

AdvantEDGE™side bar

1Passenger / right

AdvantEDGE™side bar

Attachment hardware is supplied with the

mounting brackets. Hardware quantities will

vary depending on the vehicle application.

Torque Speciﬁcations

Metric

M6 bolt 3 ft-lbs.

M8 bolt 7 ft-lbs.

M10 bolt 16 ft-lbs.

M12 bolt 28 ft-lbs.

SAE

1/4" bolt 3 ft-lbs.

5/16" bolt 7 ft-lbs.

3/8" bolt 16 ft-lbs.

7/16" bolt 20 ft-lbs.

1/2" bolt 28 ft-lbs.

Use above torque setting unless otherwise noted

Tools Required

Ratchet set Torque wrench

This is the second of two manuals

required to complete this installation.

The first manual is included with

your mounting brackets.

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To protect the product, wax after installing. Regular waxing is recommended

to add a protective layer over the finish. Do not use any type of polish or wax

that may contain abrasives that could damage the finish.

For polished, gloss and other smooth finishes,

polish may be used to clear small scratches and scuffs on the finish.

Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive

cleaners, abrasive pads, wire brushes or other similar products that may damage the ﬁnish.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Product Photo

Front

Rear

Product Registration

CURT Group stands behind our products with industry leading warranties.

You can help us continue to improve our product line and help us understand

your needs by registering your purchase by visiting:

warranty.curtgroup.com/surveys

At CURT Group, customer is king. We value your feedback and we use that information to make

improvements on our products. Please, take a minute and let us know how we are doing.

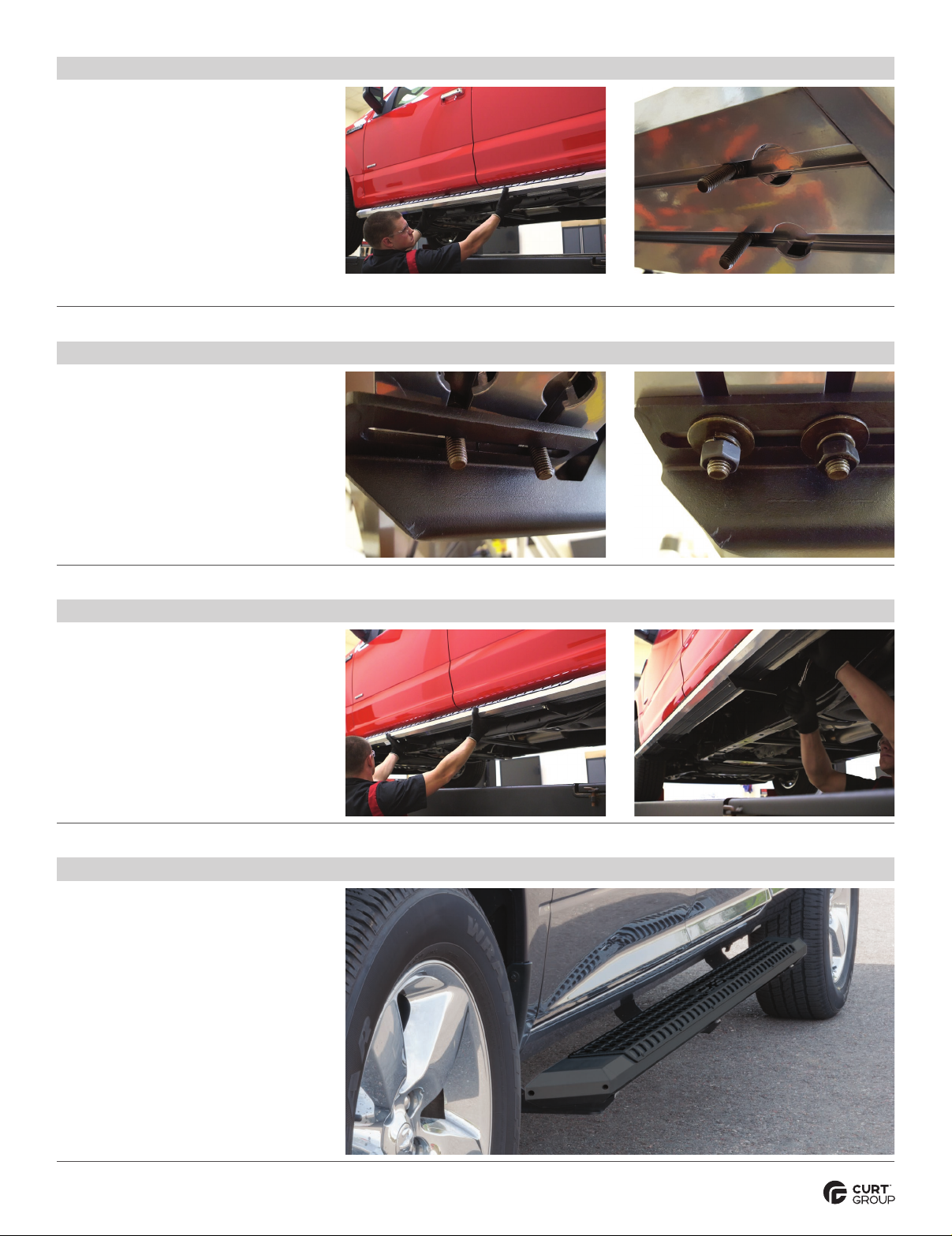

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •877.287.8 634 •2055975-INS-RA •PAGE 2

Step 1

Carefully place the side bar onto the

mounting brackets. Ensure the outer edge

of the side bar is lined up with the outer

edge of the mounting brackets.

Locate the round slots on the bottom of the

side bar. Insert a black M8 hex bolt into each

slot and slide the pair of bolts to the front

mounting bracket.

Repeat until two hex bolts are positioned for

each mounting bracket. Note: The number

of mounting brackets may vary based on

application.

Step 2

Carefully lift the side bar up and adjust

the bolts as necessary until they are in line

with the slots on the mounting brackets.

Secure the side bar to the brackets using

two black flat washers, lock washers and

M8 hex nuts per mounting bracket.

Snug the hardware, but do not fully tighten.

Step 3

At this time, adjust the side bar

to the desired location.

With the side bar in position, it is recommended

to tighten all brackets to the vehicle first,

followed by the side bar connections.

For recommended torque specifications,

refer to the table on page 1.

Step 4

Repeat all steps for the

passenger side of the vehicle.

Congratulations on the installation of

your new ARIES AdvantEDGE™side bars.

With the side bars installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on the

first page of this installation manual.

Representative Image
