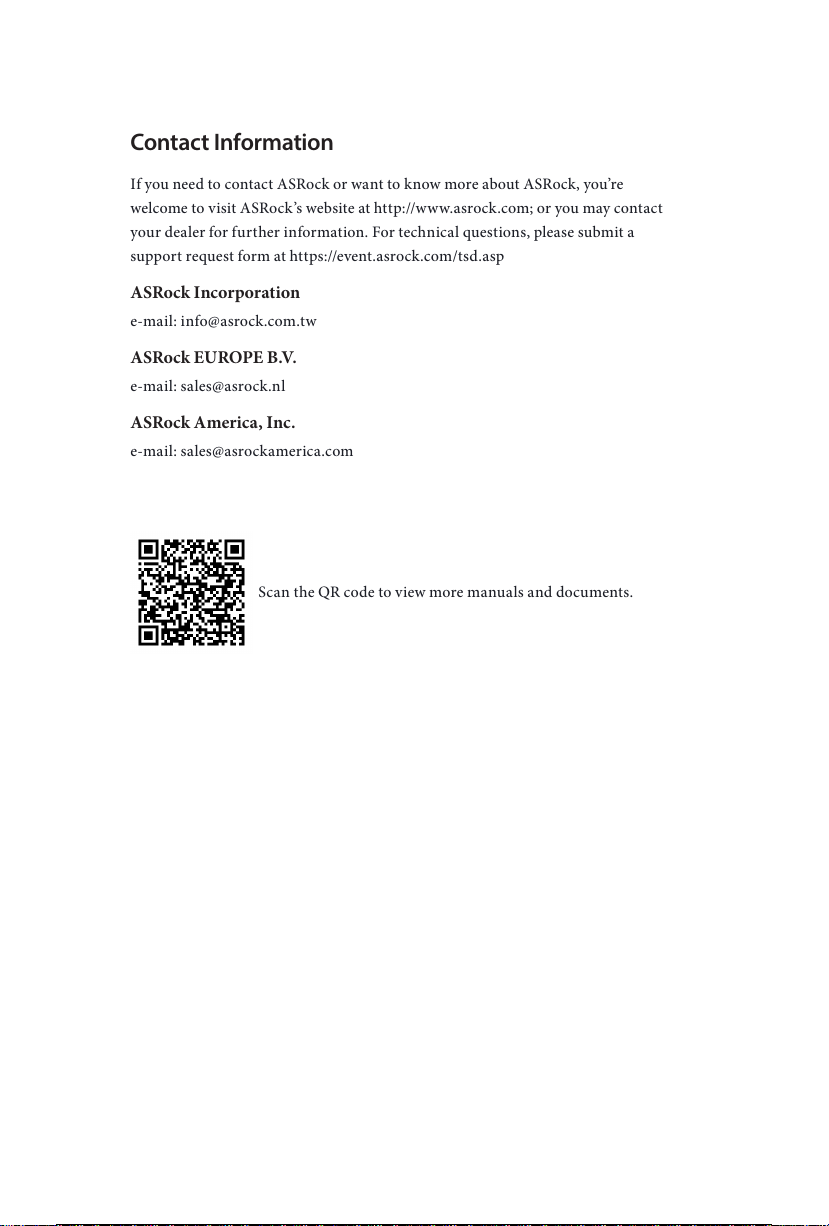

Contact Information

If you need to contact ASRock or want to know more about ASRock, you’re

welcome to visit ASRock’s website at http://www.asrock.com; or you may contact

your dealer for further information. For technical questions, please submit a

support request form at https://event.asrock.com/tsd.asp

ASRock Incorporation

e-mail: info@asrock.com.tw

ASRock EUROPE B.V.

e-mail: sales@asrock.nl

ASRock America, Inc.

e-mail: sales@asrockamerica.com

Scan the QR code to view more manuals and documents.

3 / 73

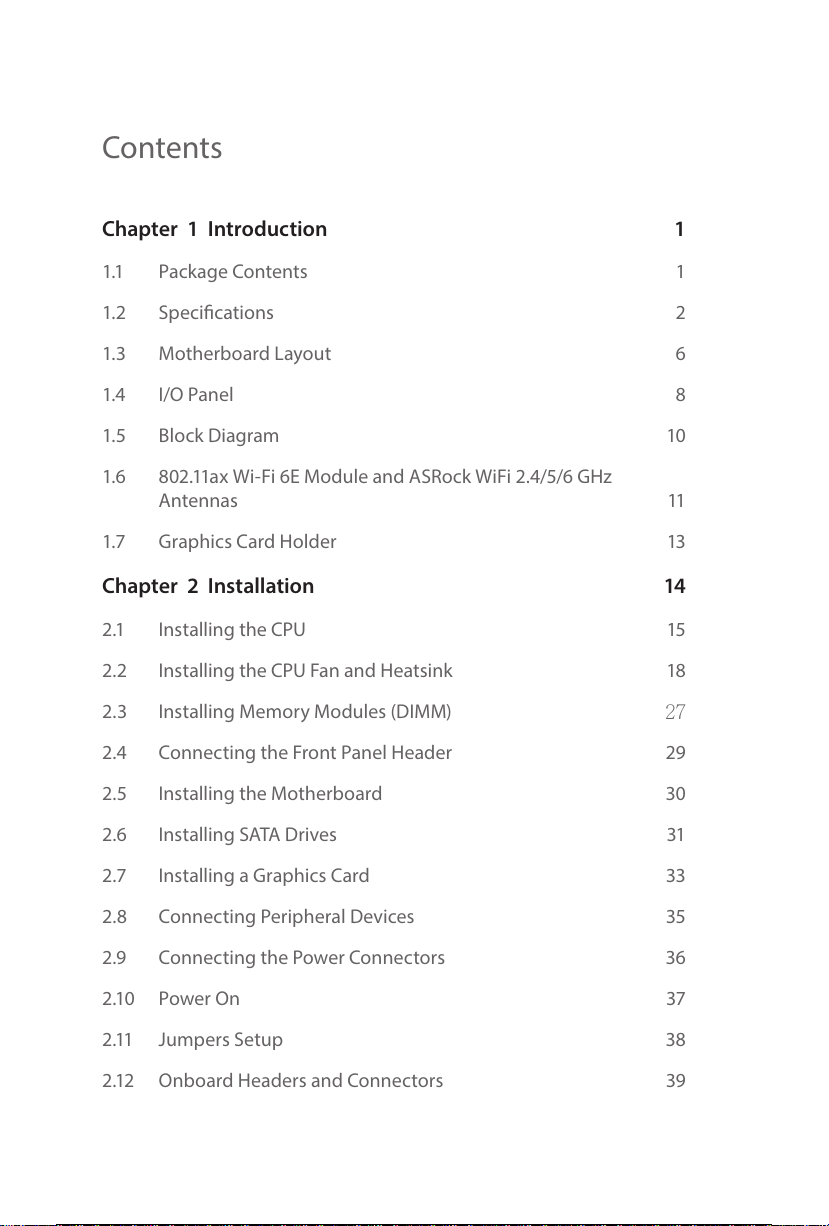

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 6

1.4 I/O Panel 8

1.5 Block Diagram 10

1.6 802.11ax Wi-Fi 6E Module and ASRock WiFi 2.4/5/6 GHz

Antennas 11

1.7 Graphics Card Holder 13

Chapter 2 Installation 14

2.1 Installing the CPU 15

2.2 Installing the CPU Fan and Heatsink 18

2.3 Installing Memory Modules (DIMM) 27

2.4 Connecting the Front Panel Header 29

2.5 Installing the Motherboard 30

2.6 Installing SATA Drives 31

2.7 Installing a Graphics Card 33

2.8 Connecting Peripheral Devices 35

2.9 Connecting the Power Connectors 36

2.10 Power On 37

2.11 Jumpers Setup 38

2.12 Onboard Headers and Connectors 39

4 / 73

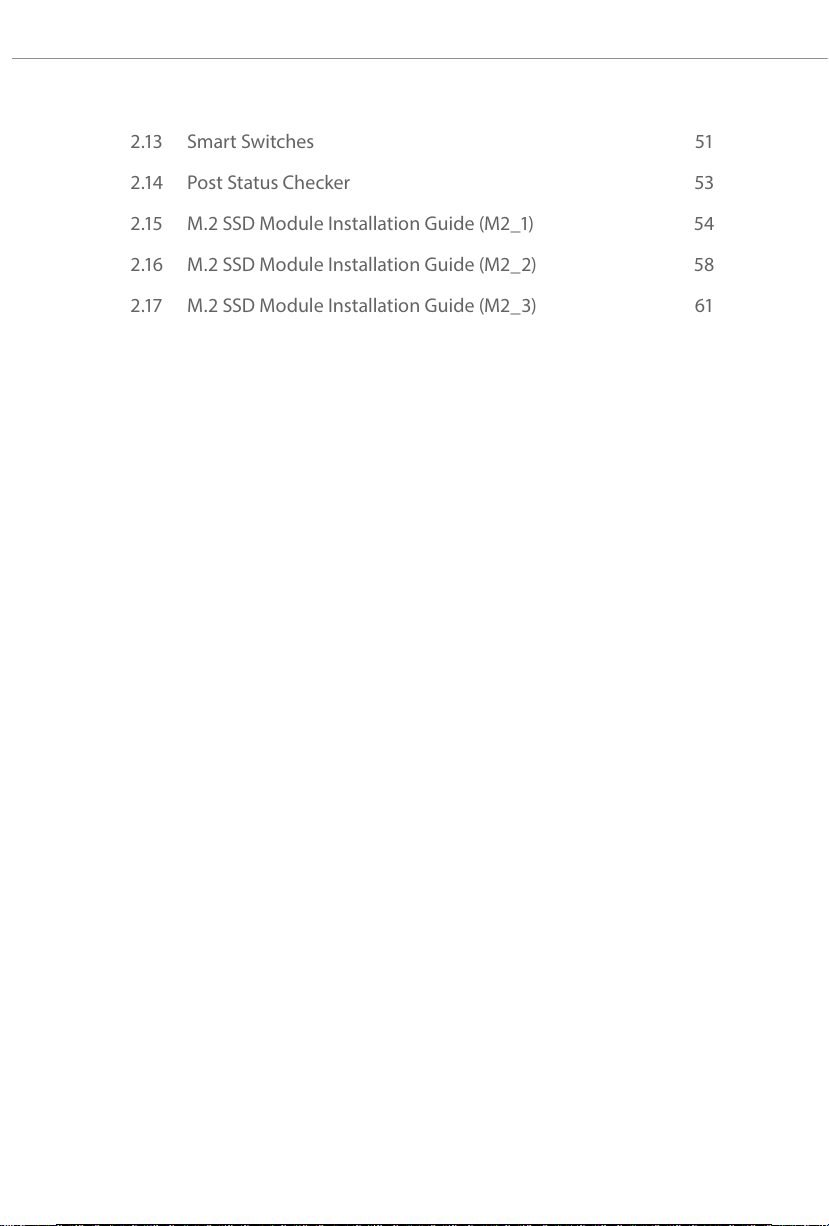

2.13 Smart Switches 51

2.14 Post Status Checker 53

2.15 M.2 SSD Module Installation Guide (M2_1) 54

2.16 M.2 SSD Module Installation Guide (M2_2) 58

2.17 M.2 SSD Module Installation Guide (M2_3) 61

5 / 73

English

B650E PG Riptide WiFi

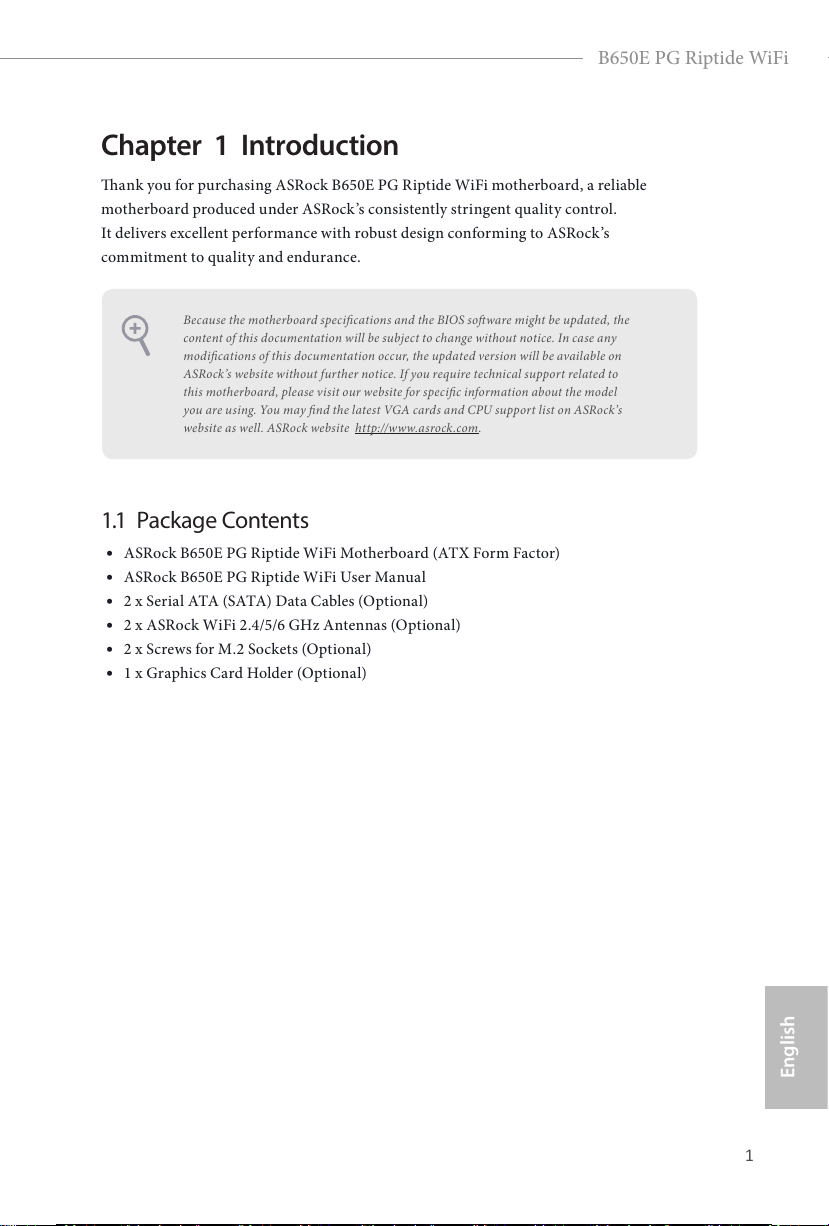

Chapter 1 Introduction

ank you for purchasing ASRock B650E PG Riptide WiFi motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock B650E PG Riptide WiFi Motherboard (ATX Form Factor)

• ASRock B650E PG Riptide WiFi User Manual

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 2 x ASRock WiFi 2.4/5/6 GHz Antennas (Optional)

• 2 x Screws for M.2 Sockets (Optional)

• 1 x Graphics Card Holder (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

6 / 73

English

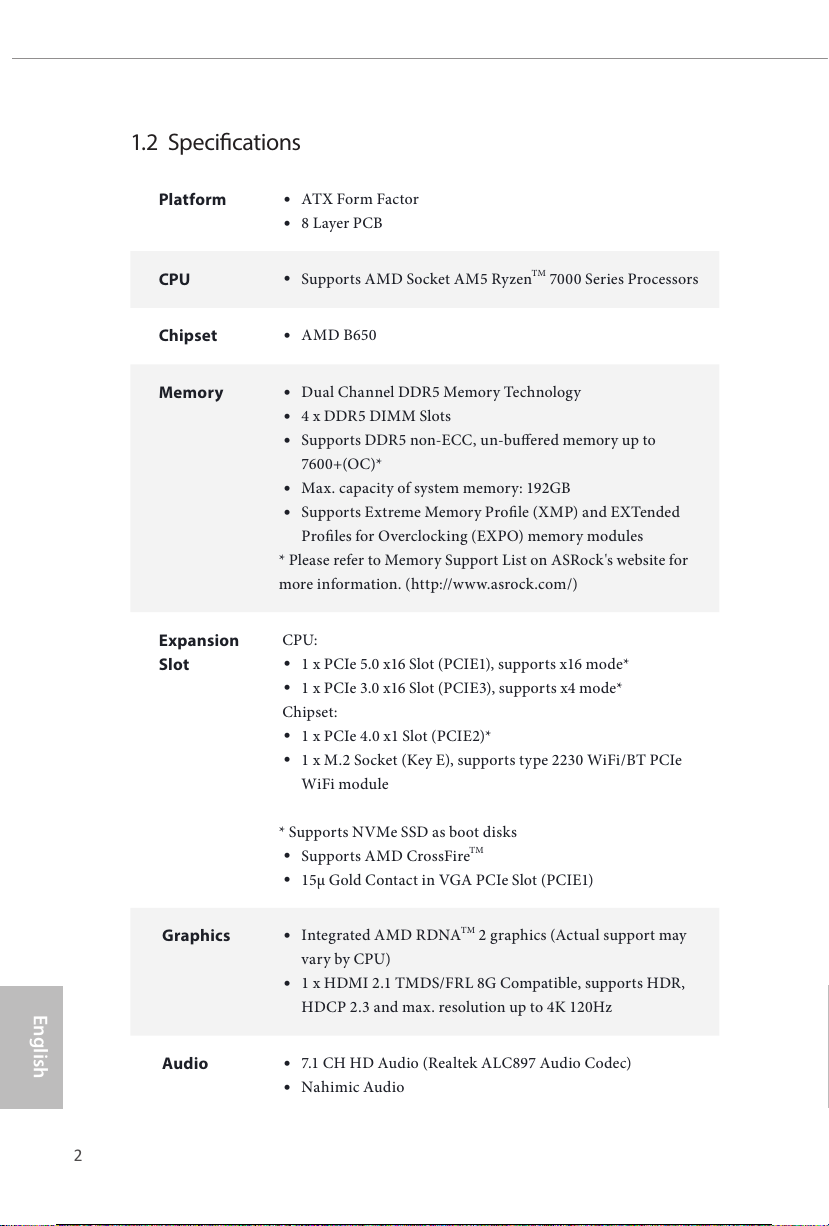

1.2 Specications

Platform • ATX Form Factor

• 8 Layer PCB

CPU • Supports AMD Socket AM5 RyzenTM 7000 Series Processors

Chipset • AMD B650

Memory • Dual Channel DDR5 Memory Technology

• 4 x DDR5 DIMM Slots

• Supports DDR5 non-ECC, un-buered memory up to

7600+(OC)*

• Max. capacity of system memory: 192GB

• Supports Extreme Memory Prole (XMP) and EXTended

Proles for Overclocking (EXPO) memory modules

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

Expansion

Slot

CPU:

• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

• 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*

Chipset:

• 1 x PCIe 4.0 x1 Slot (PCIE2)*

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe

WiFi module

* Supports NVMe SSD as boot disks

• Supports AMD CrossFireTM

• 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Graphics • Integrated AMD RDNATM 2 graphics (Actual support may

vary by CPU)

• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR,

HDCP 2.3 and max. resolution up to 4K 120Hz

Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• Nahimic Audio

7 / 73

English

B650E PG Riptide WiFi

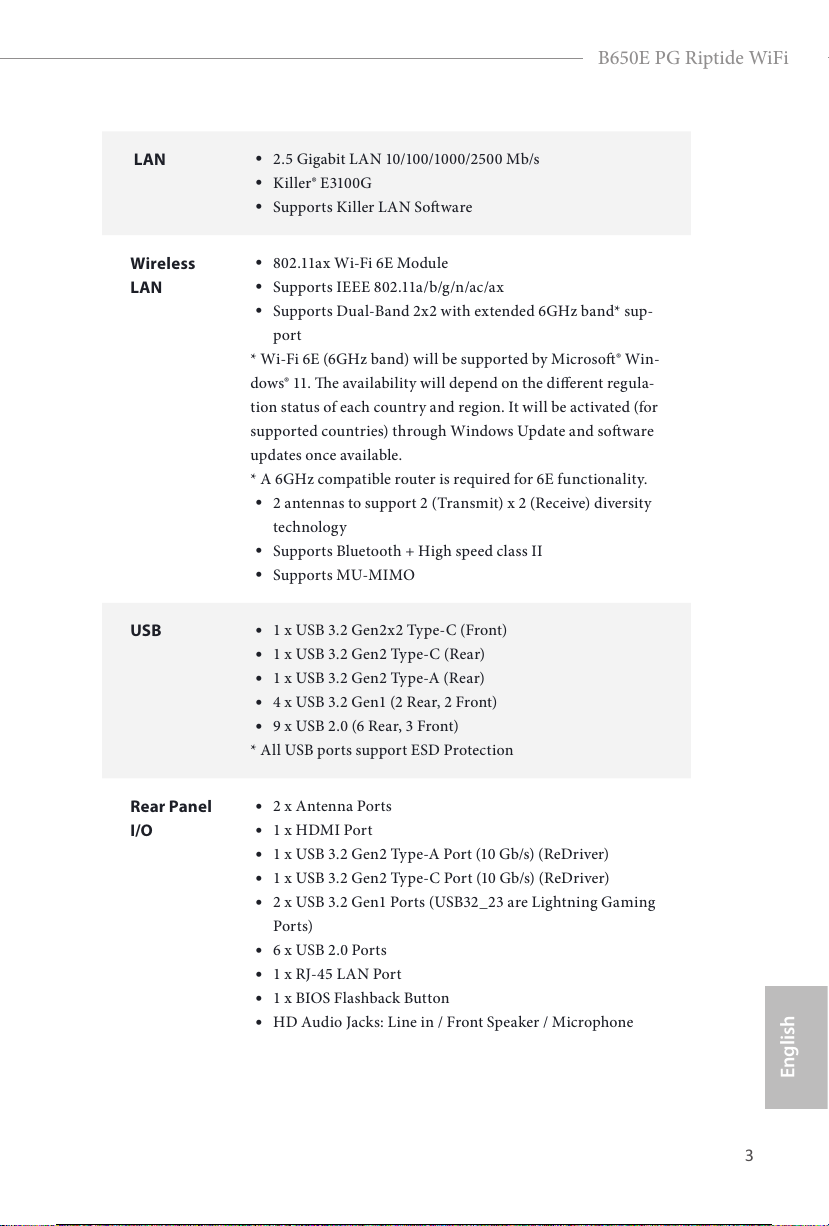

LAN • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

• Killer® E3100G

• Supports Killer LAN Soware

Wireless

LAN

• 802.11ax Wi-Fi 6E Module

• Supports IEEE 802.11a/b/g/n/ac/ax

• Supports Dual-Band 2x2 with extended 6GHz band* sup-

port

* Wi-Fi 6E (6GHz band) will be supported by Microso® Win-

dows® 11. e availability will depend on the dierent regula-

tion status of each country and region. It will be activated (for

supported countries) through Windows Update and soware

updates once available.

* A 6GHz compatible router is required for 6E functionality.

• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity

technology

• Supports Bluetooth + High speed class II

• Supports MU-MIMO

USB • 1 x USB 3.2 Gen2x2 Type-C (Front)

• 1 x USB 3.2 Gen2 Type-C (Rear)

• 1 x USB 3.2 Gen2 Type-A (Rear)

• 4 x USB 3.2 Gen1 (2 Rear, 2 Front)

• 9 x USB 2.0 (6 Rear, 3 Front)

* All USB ports support ESD Protection

Rear Panel

I/O

• 2 x Antenna Ports

• 1 x HDMI Port

• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)

• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)

• 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming

Ports)

• 6 x USB 2.0 Ports

• 1 x RJ-45 LAN Port

• 1 x BIOS Flashback Button

• HD Audio Jacks: Line in / Front Speaker / Microphone

8 / 73

English

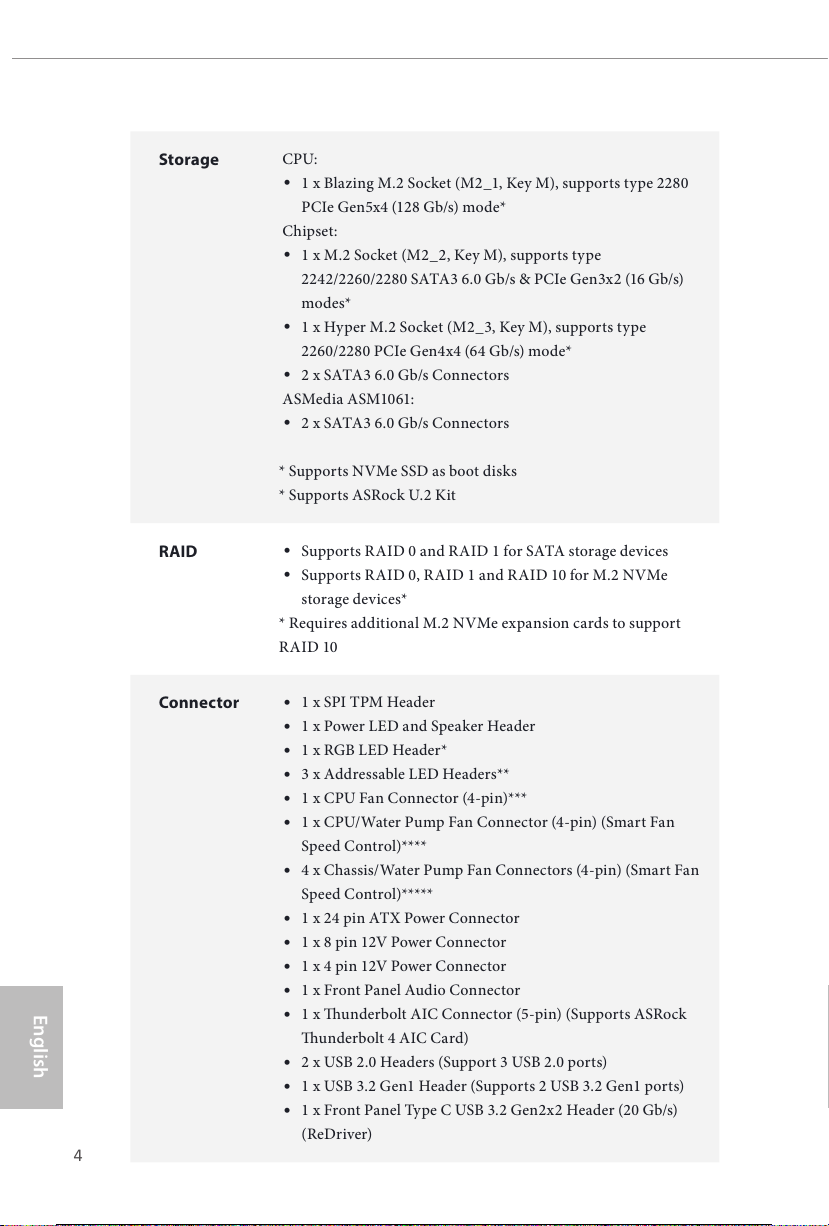

Storage CPU:

• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280

PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

• 1 x M.2 Socket (M2_2, Key M), supports type

2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s)

modes*

• 1 x Hyper M.2 Socket (M2_3, Key M), supports type

2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

• 2 x SATA3 6.0 Gb/s Connectors

ASMedia ASM1061:

• 2 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks

* Supports ASRock U.2 Kit

RAID • Supports RAID 0 and RAID 1 for SATA storage devices

• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe

storage devices*

* Requires additional M.2 NVMe expansion cards to support

RAID 10

Connector • 1 x SPI TPM Header

• 1 x Power LED and Speaker Header

• 1 x RGB LED Header*

• 3 x Addressable LED Headers**

• 1 x CPU Fan Connector (4-pin)***

• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan

Speed Control)****

• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan

Speed Control)*****

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x 4 pin 12V Power Connector

• 1 x Front Panel Audio Connector

• 1 x underbolt AIC Connector (5-pin) (Supports ASRock

underbolt 4 AIC Card)

• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

(ReDriver)

9 / 73

English

B650E PG Riptide WiFi

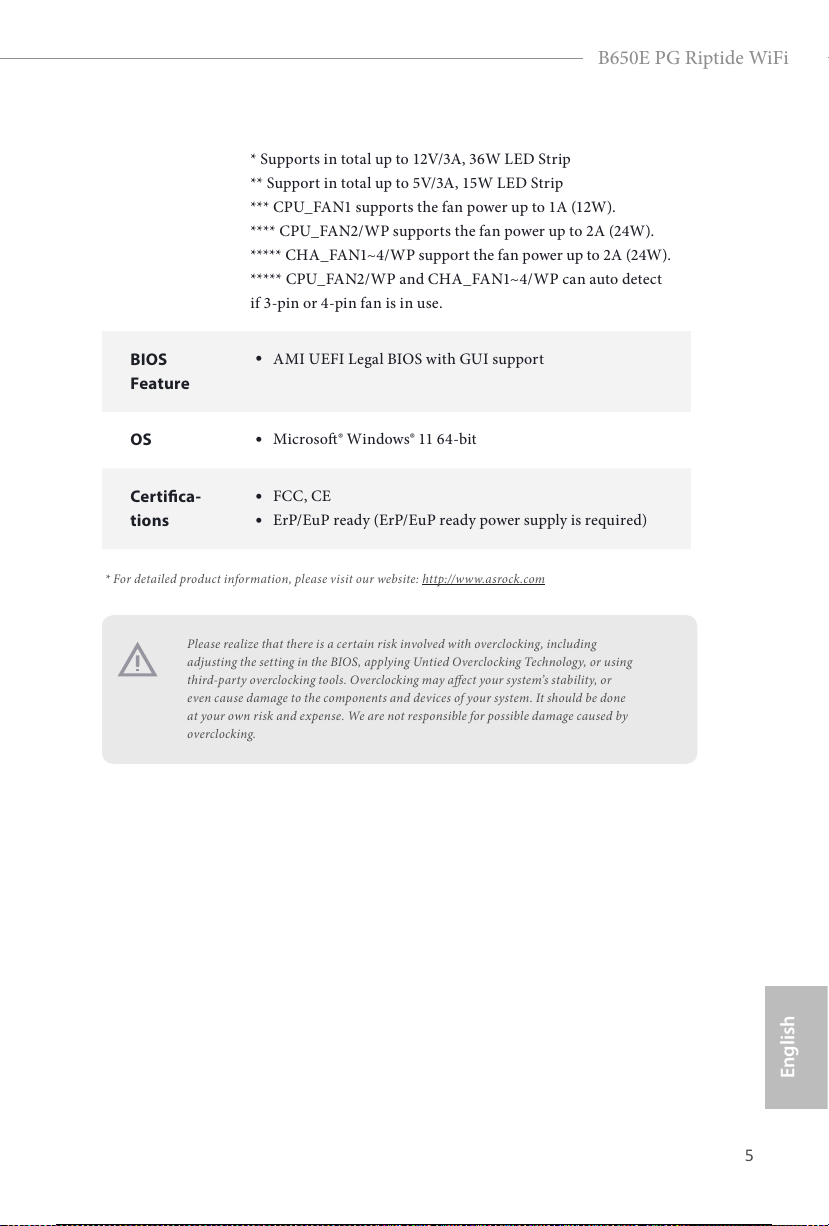

* Supports in total up to 12V/3A, 36W LED Strip

** Support in total up to 5V/3A, 15W LED Strip

*** CPU_FAN1 supports the fan power up to 1A (12W).

**** CPU_FAN2/WP supports the fan power up to 2A (24W).

***** CHA_FAN1~4/WP support the fan power up to 2A (24W).

***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect

if 3-pin or 4-pin fan is in use.

BIOS

Feature

• AMI UEFI Legal BIOS with GUI support

OS • Microso® Windows® 11 64-bit

Certica-

tions

• FCC, CE

• ErP/EuP ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

third-party overclocking tools. Overclocking may aect your system’s stability, or

even cause damage to the components and devices of your system. It should be done

at your own risk and expense. We are not responsible for possible damage caused by

overclocking.

* For detailed product information, please visit our website: http://www.asrock.com
