Before you begin........................................1

Parts checklist.............................................1

Battery installation & charging................2

Registering the handset............................3

Belt clip & optional headset ....................4

Quick reference guide..............................5

ATT-580-1CIB-d2.qxd 1/17/2004 6:12 PM Page 2

Before you begin

This cordless telephone operates with

the maximum power allowed by the

Federal Communications Commission

(FCC). Even so, the handset and base

can communicate over only a certain

distance — which can vary with the

locations of the base and handset, the

weather, and the construction of your

home or office. For best performance,

keep the base antenna fully upright.

If you receive a call while you are

out of range, the handset might not

ring — or if it does ring, the call might

not connect when you press PHONE.

Move closer to the base, then press

PHONE to answer the call.

If you move out of range during a

phone conversation, you might hear

noise or interference. To improve

reception, move closer to the base.

If you move out of range without

pressing OFF, your phone will be left

“off the hook.” To hang up properly,

walk back toward the telephone base,

periodically pressing OFF until the call

is disconnected.

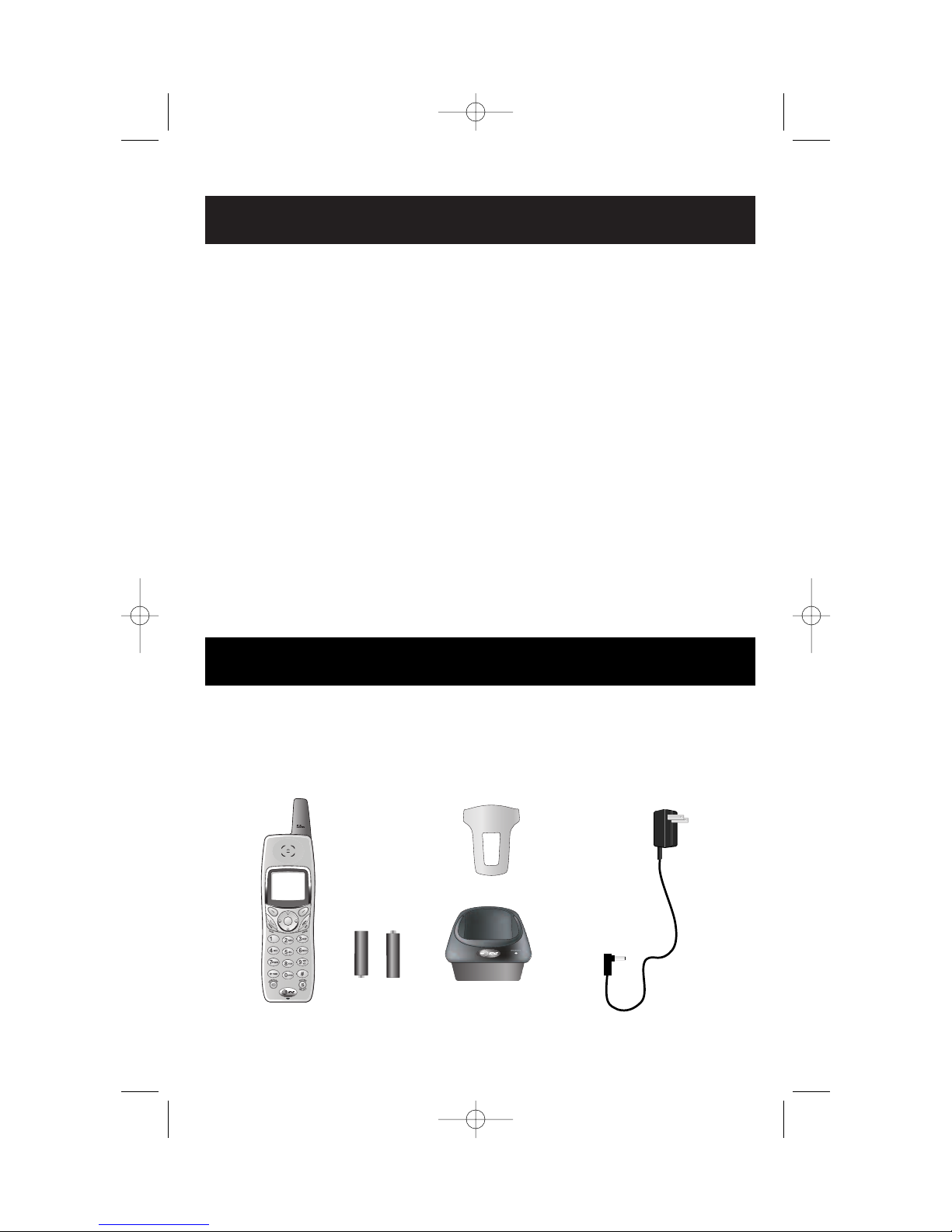

Parts checklist

Remember to save your sales receipt and original packaging in case you ever need to

ship your telephone for warranty service. Check to make sure the telephone package

includes the following:

Handset charger

Telephone

handset

Power

adapter

Belt clip

Batteries

ATT-580-1CIB-d2.qxd 1/17/2004 6:12 PM Page 1

LOW BATTERY

REDIAL CID LOG

2:10 PM

Battery installation & charging

After installation, place the handset in the charger and allow batteries to charge for 12

hours before use. You can keep batteries charged by returning the handset to the charger

after each use. When battery power is fully depleted, a full recharge takes about 8 hours.

Press coin into slot on

base of handset to

release latch, then

remove battery cover.

Insert supplied

batteries.

Place handset in charger to charge

for 12 hours before first use.

Light remains on while batteries

are charging.

Low battery indicator

Return handset to charger to recharge

when this symbol flashes. (Handset

will beep when battery is low.)

Insert top

tab first.

To replace battery cover

Press down to

click in place.

Plug power cord into jack on underside

of charger, then plug transformer into

electrical outlet.

Caution: Use only the supplied

NiMH battery (80-5461-00-00) or

AT&T model 2AA NiMH replace-

ment battery (SKU 26820). Do not

use alkaline batteries.

ATT-580-1CIB-d2.qxd 1/17/2004 6:13 PM Page 2

Registering the handset

Before using your new handset, you must register it with

the base. During registration, you must enter the 15-digit

ID number of the telephone base. To find this number, go

to the base, press MENU, scroll down to select DISPLAY

BASE ID, then press OK.

The handset provided with your telephone is automatically

registered as Handset 1. Additional handsets will be

assigned numbers in the order they are registered (2, 3, 4,

etc.) up to a maximum of eight.

Handset 1 Handset 2 Handset 3

CALLS LOG

BASE SETTINGS

DISPLAY BASE-ID

CALLS LOG

BASE SETTINGS

DISPLAY BASE-ID

123456789012345

ATT-580-1CIB-d2.qxd 1/17/2004 6:13 PM Page 3

Belt clip & optional headset

Install belt clip as shown below if desired.

For hands-free telephone conversations, you can use any industry standard 2.5 mm

headset (purchased separately). For best results use an AT&T 2.5 mm headset.

Snap belt clip into notches on

side of handset. Rotate and pull

to remove.

Plug 2.5 mm headset

into jack on side of

handset (beneath

small rubber cap).

ATT-580-1CIB-d2.qxd 1/17/2004 6:14 PM Page 4

Quick reference guide

For complete instructions, please refer to the manual provided with your telephone.

NavKey

Press center button to display menus.

Press NavKey buttons to navigate

through menus. Press center button to

select menu item highlighted.

Speaker

Press to activate handset speaker-

phone. Press again to switch call back

to earpiece.

Softkeys

Press a softkey to select a menu item

displayed just above the key.

Off/Cancel

During a call, press to hang up.

While using menus, press to cancel an

operation, back up to the previous menu,

or exit the menu display.

Phone/Flash

Press to begin a call, then dial a number.

During a call, press to receive an incoming

call, if Call Waiting is activated.

Sound Select

Press to customize speaker sound for

clear speakerphone conversations.

Intercom

Vibrate Ringer Control Ringers

Low Batt Tone Keypad Tone Range Tone

Clock On/Off Set Time Contrast

Phone Setup Language Reset Settings

Directory Calls Log Pictures Sounds&Alerts Settings

Main menu

Sounds & Alerts menu Settings menu

Left Right

Select

Down

ATT-580-1CIB-d2.qxd 1/17/2004 6:15 PM Page 5

AT&T and the Globe Design are trademarks of AT&T Corp.,

licensed to Advanced American Telephones. Printed in China. Issue 1.2 AT&T 1/19/04.

www.telephones.att.com
