AT&T and the globe symbol are registered trademarks ofAT&T Corp.licensed toAdvancedAmericanTelephones.

© 2000AdvancedAmericanTelephones. All rights reserved.

Printed in China. 850004607 Issue 1AT&T 7/00

USER’S MANUAL

Part 2

1

Expansion Handset 2400

Fold open this manual for information

about this product’s installation

and operation. Please also

read Part 1 — Important

Product Information.

BEFORE YOU BEGIN

1

About Handset Registration

• You must register this (and any other) handset with the base,

following the directions in“REGISTER THE HANDSET.” This handset is

compatible with telephone models 2430,2440,and 2455.

• The original handset that came with the base is automatically

registered as Handset 1.

• Additional handsets will be assigned Handset 2,Handset 3,and

Handset 4.

• Whenever you install a handset battery pack,the handset will display

SEARCHING FOR BASE (if it’s registered) or ENTER BASE ID (if it’s

not registered).

About Softkeys

• Press the softkey below the operation displayed on the screen to

select that operation.

• For example,to enter the menu,press the center softkey,as shown.

Softkeys

Screen

display of

operations to

be selected

with softkeys.

CHARGE THE BATTERY

2

1Install the handset battery pack.

•When you install the battery pack the first time,the handset will

display ENTER BASE ID.

2 Charge the handset battery.

•Place the handset in the base (or a remote charging stand,

purchased separately).

• Charge the battery at least 12 hours. After the first charge,the

battery will quick charge in only eight hours.

b) Place the battery pack in

the handset. Align the

metal contacts on the

battery with the contacts

in the battery

compartment.

c) Replace cover

by sliding it on

its track up

over battery

case until it

snaps firmly

into place.

a) Remove

battery

compartment

cover by

pressing on

indentation

and sliding

downward.

REGISTER THE HANDSET

1Make sure to charge the handset battery pack at least 12 hours.

2Use the softkey to select NEW.

3Enter the 15-digit Base Unit ID Code located on the underside of your

Model 2430,2440,or 2455 base.

4Use the softkey to select OK. The screen displays PLEASE WAIT!!.

5After about 15 seconds,the screen displays FOUND BASE. If the

handset displays BASE BUSY TRY LATER,the base is in use.

For complete operation instructions,

refer to the manual that came with

your original handset.

3

INSTALLATION

4

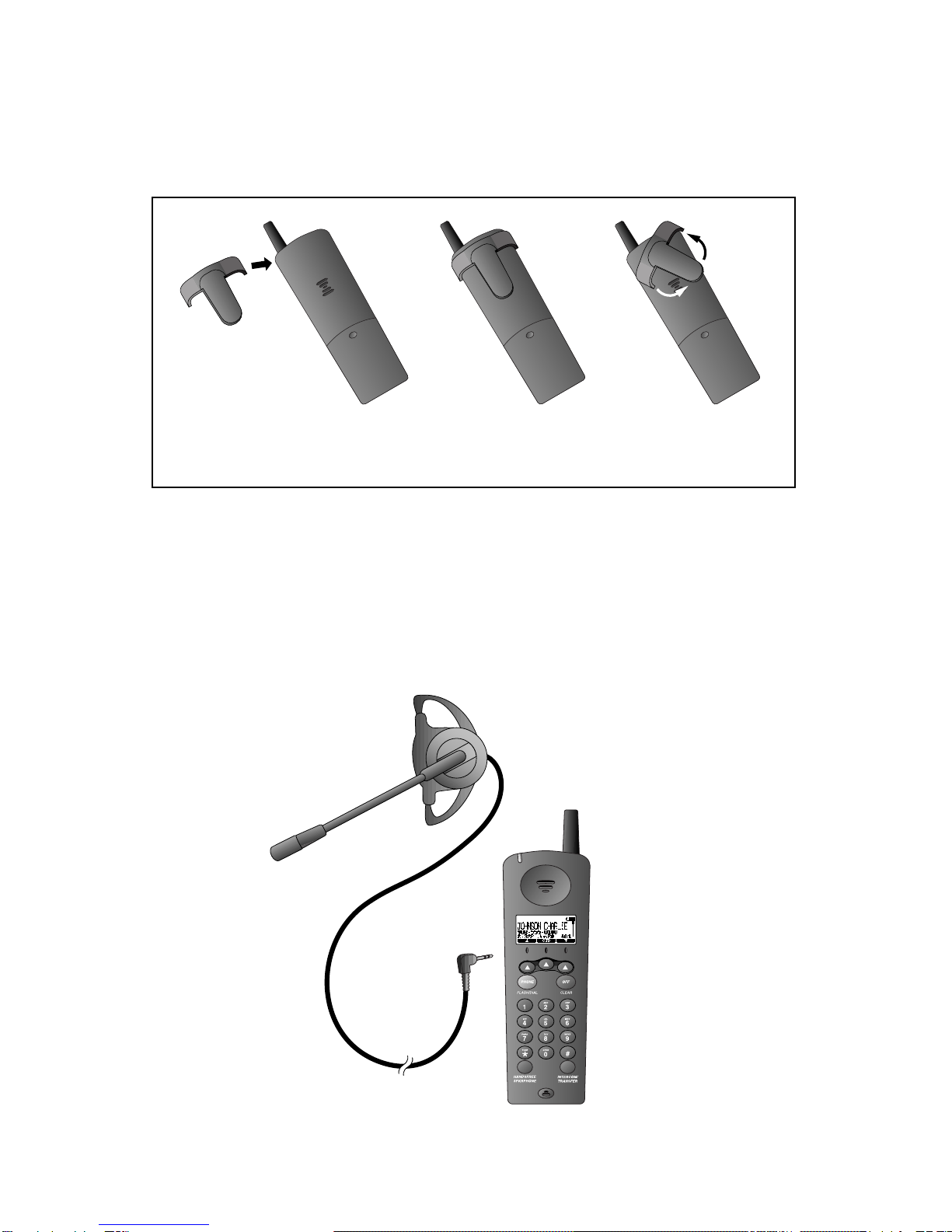

Belt Clip

Attach the belt clip (optional).

Headset

You can use this telephone hands-free when you install a 2.5 mm headset,

purchased separately.

Plug the headset into the jack located on the left side of the handset

(under the small rubber flap). Do not force the connection,but make sure

the plug fits securely.

a) Slide down into

grooves to attach. b) Push up and away

to remove.

5

CAUTION: To reduce the risk of fire or injury to persons or

damage to the telephone,read and follow these instructions

carefully:

• Use only Replacement Battery 2401,SKU# 91077.

• Do not dispose of the battery in a fire. The cell might explode.

Check with local codes for special disposal instructions.

• Do not open or mutilate the battery. Released electrolyte is

corrosive and may cause damage to the eyes or skin. It may be

toxic if swallowed.

• Exercise care in handling batteries in order not to short the

battery with conducting materials such as rings,bracelets,and

keys. The battery or conductor may overheat and cause harm.

• Charge the battery provided with or identified for use with this

product only in accordance with the instructions and limitations

specified in this manual.

• Observe proper polarity orientation between the battery and

battery charger.

Nickel-Metal Hydride Batteries. Dispose of batteries in a safe manner.

Consult your local waste disposal company for disposal information. Do

not burn or puncture. Like other batteries of this type,if burned it could

explode and if punctured it could release corrosive material which could

injure the skin or eyes and which may be toxic.
