AUDAC KYRA Series Guida

KYRA6/12

User & Installation

Manual

www.audac.eu

Introduction

Design column speakers

The KYRA column speakers range is the elegant result of research in the field of phased

array acoustics. The selection of the highest quality materials including aluminum cone

2” drivers guarantee an extraordinary detail and clarity for music and speech, which is

uncommon for any kind of column speaker available from the market. It makes them

perfectly lend themselves to a wide variety of applications in acoustic difficult environ-

ments such as churches, auditoriums, presentation and meeting rooms where audibility

and intelligibility of music and speech have the highest importance.

They are housed in slim and elegant constructed enclosures made out of aluminum

materials and finished with finely perforated grilles. An included mounting bracket with

minimum distance to the wall allows swivelling and down-tilting for perfect directional

placement.

They come in three different models (KYRA6, KYRA12 and KYRA24) in terms of length

and driver count, all are constructed with the identical high-quality aluminum cone full

range drivers. Each of them with their specific pattern in terms of dispersion and throw

distance. They offer solutions for uniform acoustic performance in any type of system

in reverberant venues, while reducing echo and microphone feedback to optimizes the

intelligibility of music & speech.

A multi-tapping line transformer allows them to be connected to 70V/100V public address

systems with various power tapping settings, while connections in low impedance (12Ω)

systems are also possible.

Precautions

READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY

• ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER

THROW THEM AWAY

• ALWAYS HANDLE THIS UNIT WITH CARE

• CLEAN ONLY WITH DRY CLOTH

• HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS

• NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR

SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON

TOP OF THIS DEVICE

• DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS

OR OTHER APPARATUS THAT PRODUCE HEAT

• DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A HIGH LEVEL OF DUST,

HEAT, MOISTURE OR VIBRATION

• THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS

• ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE

MANUFACTURER.

• ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN STRUCTURALLY

SUPPORT THE WEIGHT OF THE SPEAKER. IGNORING THIS CAN BRING THE

SPEAKER DOWN.

• DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO MOUNT THE

SPEAKER. IF EXTREME FORCE IS APPLIED TO THE SPEAKER, IT COULD FALL

DOWN

• ATTACH A SAFETY WIRE TO THE SPEAKER WHEN IT IS MOUNTED HIGH UP.

ONLY USE INDUSTRY-ACCEPTED RIGGING TOOLS AND METHODS

• CAREFULLY CHECK THE UNIT’S CONDITION AFTER UNPACKING.

IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE UNIT ITSELF,

INFORM YOUR VENDOR IMMEDIATELY.

CAUTION

• USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER

• USE CABLES WITH CLEAR COLOR CODING INDICATING THE POLARITY AND

MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM.

• ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE.

EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES.

AVOID EXPLOSIONS: DO NOT USE THE SPEAKER AROUND GASOLINE,

THINNER OR OTHER COMBUSTIBLES

• AVOID ELECTRIC SHOCKS: SWITCH OFF THE AMPLIFIER WHEN CONNECTING

THE LOUDSPEAKER

• DO NOT USE THE LOUDSPEAKER FOR AN EXTENDED PERIOD OF TIME AT

DISTORTED SOUND. THIS COULD CAUSE PERMANENT DAMAGE.

CAUTION - SERVICING

This product contains no user serviceable parts. Refer all servicing

to qualified service personnel. Do not perform any servicing

(unless you are qualified to do so.)

EC DECLARATION OF CONFORMITY

This product conforms to all the essential requirements and further

relevant specifications described in following directives: 2014/30/

EU (EMC) and 2014/35/EU (LVD)

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

The WEEE marking indicates that this product should not be

disposed with regular houshold waste at the end of its product

life. This regulation is created to protect both the environment

and human health.

This product is developed and manufactured with high quality

materials and components which can be recycled and/or reused.

Please dispose this product to your local collection point or

recycling centre for electrical and electronic waste. This will

make to sure that it will be recycled on an environmentally friendly

manner, and will help to protect the environment in which we all

live.

Installing the KYRA

Mounting the speaker

Every KYRA speaker comes delivered with a two-way revolving bracket, making it

possible to install the speaker at each position and focusing it into the desired direction.

The metal constructed bracket ensures a solid and secure mounting of the loudspeaker

to any possible location.

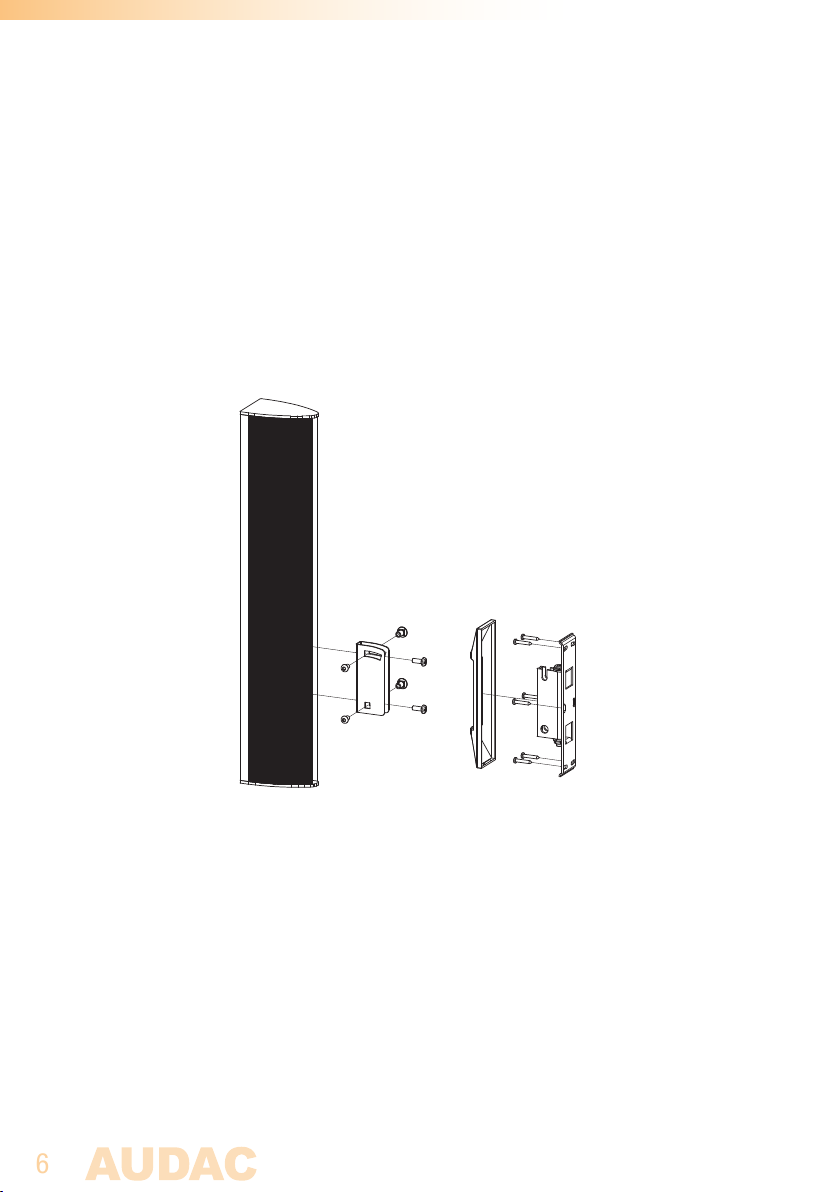

It consists of two different parts, whereof the first part should be installed to the rear side

of the loudspeaker. It can be assembled on different heights on the rear of the speaker,

depending on the mounting possibilities and required installation height. It is fixated to

the loudspeaker cabinet by inserting the 2 supplied mounting screws into the pre-drilled

and threaded holes at the back of the speaker cabinet.

The second part is a wall plate which has to be fixed to the wall by at least four screws

(preferably six). The type of used fasteners shall be chosen according to the most

suitable type for the mounting surface (brick, concrete, wood, ...). The mounting holes

are provided according to the positions indicated in the following drawing.

87,5

Once both speaker part and wall part are safely attached to their positions, the protective

finishing cover can be assembled over the wall plate by clicking it. Afterwards the speaker

can be assembled to the wall bracket by bringing both parts together and tightening them

through the button head bolt and nuts together through an hex drive key. The upper one

can be used for adjusting the tilt-angle of the speaker.

13°

42°

Once installed, the speaker can be can be panned and tilted, focussing the loudspeaker

into the desired listening direction. This is useful when the installation height on the wall

is limited or the speaker is mounted from the side. The maximum downward tilt is 13°

and the maximum pan in both directions is 42°.

Connecting the speaker

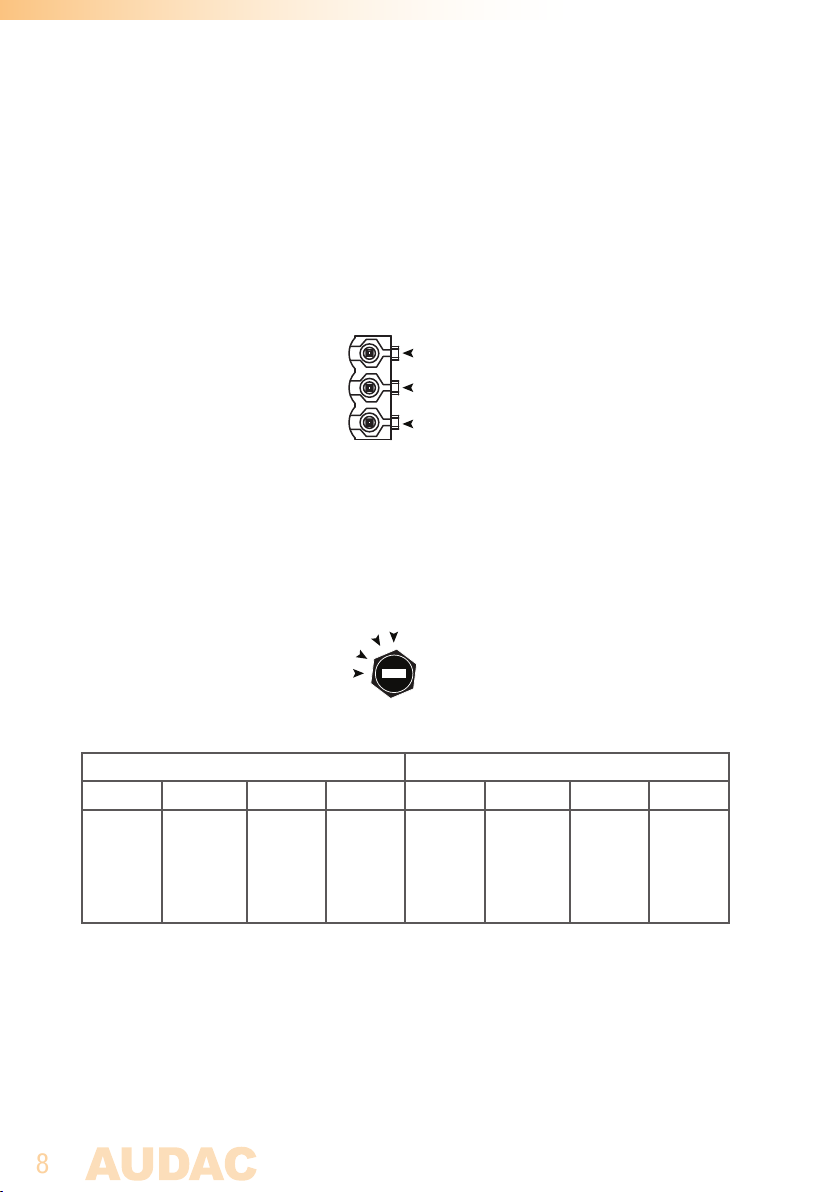

For connecting the KYRA, the wires coming from the amplifier shall be connected to

the 3-pin terminal block connector on the rear of the speaker. Depending whether the

speaker will be used in a low impedance (12 Ω) system or a constant voltage (70V/100V)

system, the appropriate terminals of the connector should get connected as indicated

in the below drawing.

COM

12 Ω

70V/

100V

When using in constant voltage 70V/100V systems, the power taps can be adjusted

in 4 steps of impedance through a rotary selector switch on the rear side of the unit.

The switch can be rotated in 4 positions A, B, C & D. Each position corresponds with

a specific impedance / power setting indicated on a label attached to the speaker, and

in the table below.

COM

12 Ω

70V/

100V

KYRA6

KYRA12

Tapping 100V 70V Imp. Tapping 100V 70V Imp

Do not use

20 W 250 ΩA

Do not use

40 W 125 Ω

B20 W 10 W 500 ΩB40 W 20 W 250 Ω

C10 W 5 W 1000 ΩC20 W 10 W 500 Ω

D5 W 2.5 W 2000 ΩD10 W 5 W 1000 Ω

Additional Information

Technical specifications

KYRA6 KYRA12

Max Power 120 Watt 240 Watt

RMS Power 60 Watt 120 Watt

Nominal impedance 12 Ohm 12 Ohm

Line transformer taps 250 Ω– 70V/20W 125 Ω– 70V/40W

500 Ω– 100V/20W - 70V/10W 250 Ω– 100V/40W - 70V/20W

1k Ω– 100V/10W - 70V/5W 500 Ω– 100V/20W - 70V/10W

2k Ω– 100V/5W - 70V/2.5W 1k Ω– 100V/10W - 70V/5W

Drivers 6 x 2” Alu cone full range 12 x 2” Alu cone full range

Cross-over network Passive built-in (low-cut filter) Passive built-in (low-cut filter)

Connectors 3-pin Terminal block (5.08 mm) 3-pin Terminal block (5.08 mm)

Mounting bracket 2-Way revolving metal bracket 2-Way revolving metal bracket

Construction Alu extrusion + plastic caps Alu extrusion + plastic caps

Front finish Fine perforated steel grill Fine perforated steel grill

Ingress protection IP3x IP3x

Operation temperature range -20°C to +50°C -20°C to +50°C

Incline angle Horizontal 0 ~ 42° left & right 0 ~ 42° left & right

Vertical 0° ~ 13° down tilt 0° ~ 13° down tilt

Colour White KYRA6/W (RAL9003) KYRA12/W (RAL9003)

Black KYRA6/B (RAL9005) KYRA12/B (RAL9005)

Dimensions (W x H x D) 70 x 546 x 101 mm (excl bracket) 70 x 1006 x 101 mm (excl bracket)

Weight 2.26 Kg 4.30 Kg

Packaging Carton box Carton box

Shipping weight & Volume 3.35 Kg - 0.021 Cbm 5.8 Kg - 0.032 Cbm

Accessories included 3-pin terminal block connector 3-pin terminal block connector

2-Way revolving metal bracket 2-Way revolving metal bracket

Cable guiding accessories Cable guiding accessories

Notes
