AUDAC WX802/W Istruzioni per l'installazione e il funzionamento
PROFESSIONAL AUDIO EQUIPMENT
Wall Speaker WX802
User Manual &
Installation Guide
W
all Speaker
WX802
AUDAC
1
Warning
Only use the correct amplifier output voltage and impedance. Exceeding these limits could
cause fire or other failures.
Avoid explosions: do not use the speaker around gasoline, thinner or other combustibles.
Only install the speaker in locations that can structurally support the weight of the speaker.
Not doing so may result in the speaker falling down.
Do not use any other method than specified to mount the speaker. If extreme force is applied
to the speaker, the speaker could fall down.
Attach a safety wire to the speaker when it’s mounted high above the ground. Failure in doing
so could cause the speaker to fall down for any reason.
Avoid mounting the speaker in locations exposed to constant vibrations. The mounting points
can be damaged by excessive vibrations, potentially causing the speaker to fall down.
Caution
Avoid electric shocks: switch off the amplifier power when connecting the speaker.
Avoid installing the speaker in locations exposed to solvents, acids, smoke and heaters, as
excessive exposure to these factors could result in speaker failure, fire or electric shocks.
Do not operate the speaker for an extended period of time at distorted sound. This could
cause (irreparable) damage to the speaker.
Do not stand or sit on, nor hang down from the speaker as this may cause failure of the
speaker.
2
Installing the WX802
Mounting the loudspeaker
The loudspeaker can be mounted both horizontally and vertically by means of the supplied
mounting bracket. For mounting the loudspeaker on the desired mounting location, the mounting
bracket should be removed from the loudspeaker. This can be done by loosening the screws on
either side of the loudspeaker.
After this is done, the mounting holes should be indicated. For a stable mounting of the
loudspeaker it should always be fastened by two screws. The position of the mounting holes
depends of the mounting position, horizontally or vertically with a spacing of 248 mm in between.
After this, the bracket can be mounted on the desired location. Always use the proper fasteners
depending of the mounting surface.
Once the bracket is mounted on the desired location, the loudspeaker can be fixed to the bracket.
Connecting the loudspeaker
Two connection terminals are provided on the rear side to connect the loudspeaker to the
amplifier output. Always connect the black connection terminal to the COM output of the
amplifier and the red connection terminal to the positive terminal of the amplifier output.
Mind the polarity markings when wiring the loudspeaker cables.

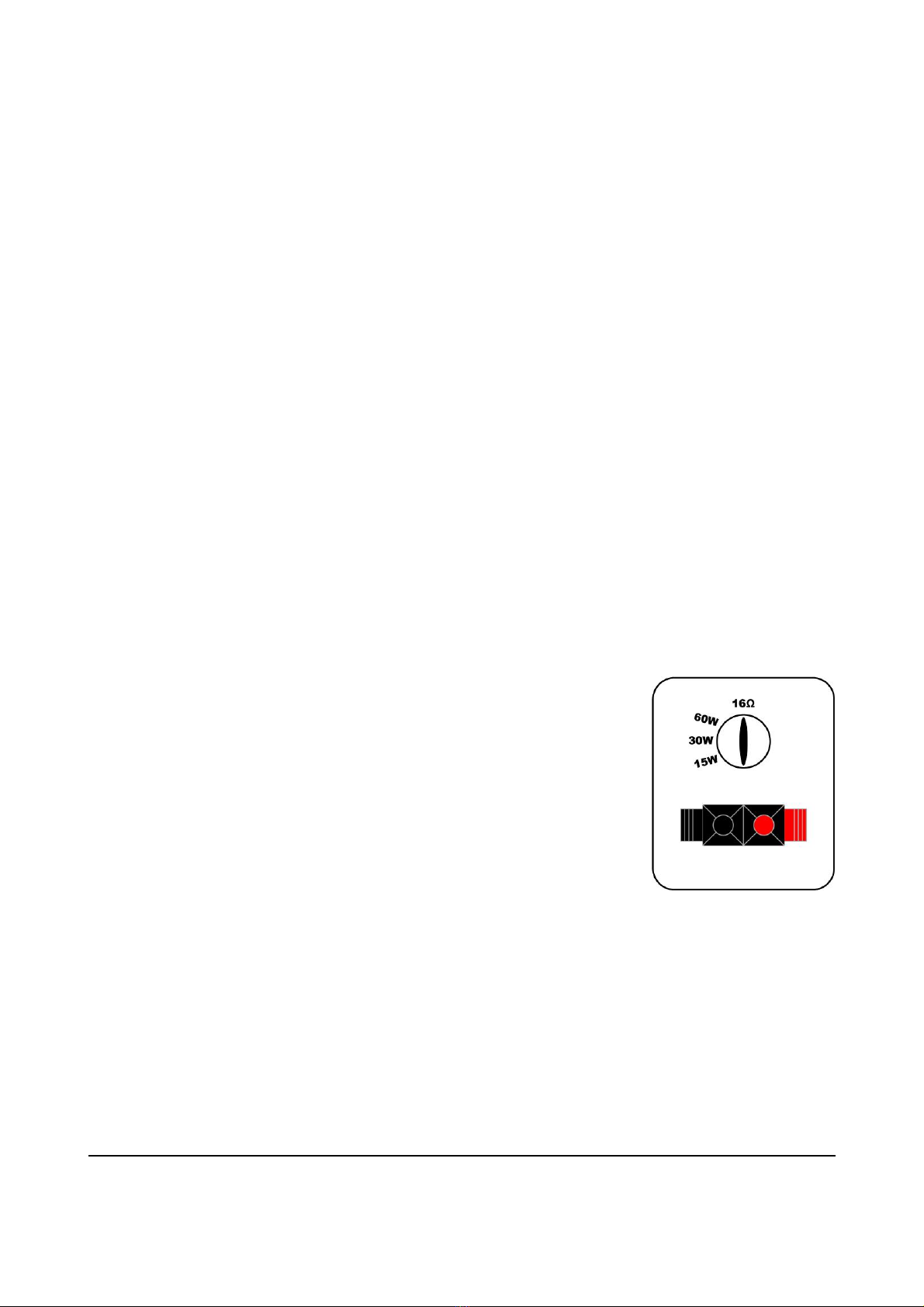

Power settings
On the rear side of the WX802 loudspeaker a recessed adjuster
screw is provided. Using this adjuster screw the power /
impedance of the loudspeaker can be set in 3 adjustable steps of
impedance for 100V (60 Watt, 30 Watt, 15 Watt) and 1 step for
16 Ohm standard low impedance applications.
1) 16 Ohm / 70 Watt
2) 60 Watt / 167 Ohm
3) 30 Watt / 333 Ohm
4) 15 Watt / 667 Ohm
When the loudspeaker is connected to 70.7V facilities, the power indicated in the table above
will be reduced to half the power, and when connected to 50V facilities, the power will be
reduced to a quarter.
When the desired power tap is selected, the loudspeaker is ready to be used.
3
Additional information WX802
Technical specifications:
RMS Power 70 W
Max Power 140 W
Nominal Impedance 16 Ohm
Line transformer power tappings 165 Ohm / 60 W
330 Ohm / 30 W
660 Ohm / 15 W
Sound pressure 1W / 1m 89 dB
Sound pressure max W / 1 m @ 8 Ohm 108 dB
Sound pressure max W / 1 m @ 100V 106 dB
Frequency response -3 dB 60 Hz - 18 kHz
Frequency response -10 dB 50 Hz - 20 kHz
Cross-over frequency 2400 Hz
Horizontal coverage 110°
Vertical coverage 110°
Drivers 1” HF + 8” LF
Dimensions (W x H x D) 270 x 360 x 215 mm
Weight 7,5 Kg
Construction ABS
Accessories included Wall bracket
Colours Black
White
Silver
