Belling 152A Guida alla risoluzione dei problemi
Cookcenter
Dual Fuel Cooker
Electric ovens & Gas hob
Users & Installation Guide
Model number 152A
This model is supplied for use with Natural gas, and is convertible to
LPG (Propane) with the kit supplied.
08 27095 00- 152A CC 14/6/04 10:59 am Page 1
08 27095 00- 152A CC 14/6/04 10:59 am Page 2
CONTENTS
1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
For your safety - always . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
For your safety - never . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Know your cooker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Know your timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Using your electronic timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Griddle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Warming zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Oven temperature chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Fan Oven - Cookery notes & charts . . . . . . . . . . . . . . . . . . . . . . . 28
Conventional oven - Cookery notes & charts . . . . . . . . . . . . . . . . 32
Slow cook / Warming oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Care & Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Is there something wrong? - Troubleshooting . . . . . . . . . . . . . . . . 39
Service information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
08 27095 00- 152A CC 14/6/04 10:59 am Page 3
INTRODUCTION
2
Thank you for buying this Belling
appliance. We hope that you find it
to be a stylish and attractive addition
to your kitchen, and enjoy cooking
with it.
Your Belling Cooker
There are the following features:
la fanned oven,
l a conventional oven,
la slow cook/warming oven,
l a separate grill,
l a seven burner gas hob with a
warming area
l a removable griddle plate.
There is also a clock /timer with a
minute minder and automatic oven
switch on and off.
Getting help
Should you need any help installing,
operating or cooking with this appli-
ance, please check these instructions
thoroughly to make sure you have not
missed anything. If you still require
advice or assistance please contact:
When making a call for advice
please quote the cookers model num-
ber and serial number. These num-
bers can be found on the left hand
side of the oven frame. These num-
bers can be written in the box provid-
ed on this page.
Warning!
For your own safety, please make
sure these instructions on installation,
use and maintenance are followed.
We advise that you keep these
instructions in a safe place for future
reference. If you sell, or transfer
ownership of this appliance, please
pass on these instructions to the new
owner.
Unpacking your appliance
Please make sure that you have
removed all packaging, wrapping,
labels and stickers from the appliance
before use.
Model
Number
Serial
Number
08 27095 00- 152A CC 14/6/04 10:59 am Page 4
INSTALLATION INSTRUCTIONS
3
Gas Safety (Installation & Use)
Regulations.
This appliance must be installed by an
authorised person in accordance with
the manufacturers installation instruc-
tions, local gas fitting regulations, the
AGA Gas Installations, the Australian
Gas Installation Code AG601
/AS5601 and any other re l e v a n t
statutory regulations. Particular atten-
tion should be given to re l e v a n t
requirements regarding ventilation.
Space for fixing
The cooker can be close fitted below
hotplate level. This requires a mini-
mum distance of 1085mm between
the cupboard units of hotplate height.
The wall behind the cooker between
the hotplate and 450mm above and
across the width of the cooker, must be
an incombustible material such as
ceramic wall tiles.

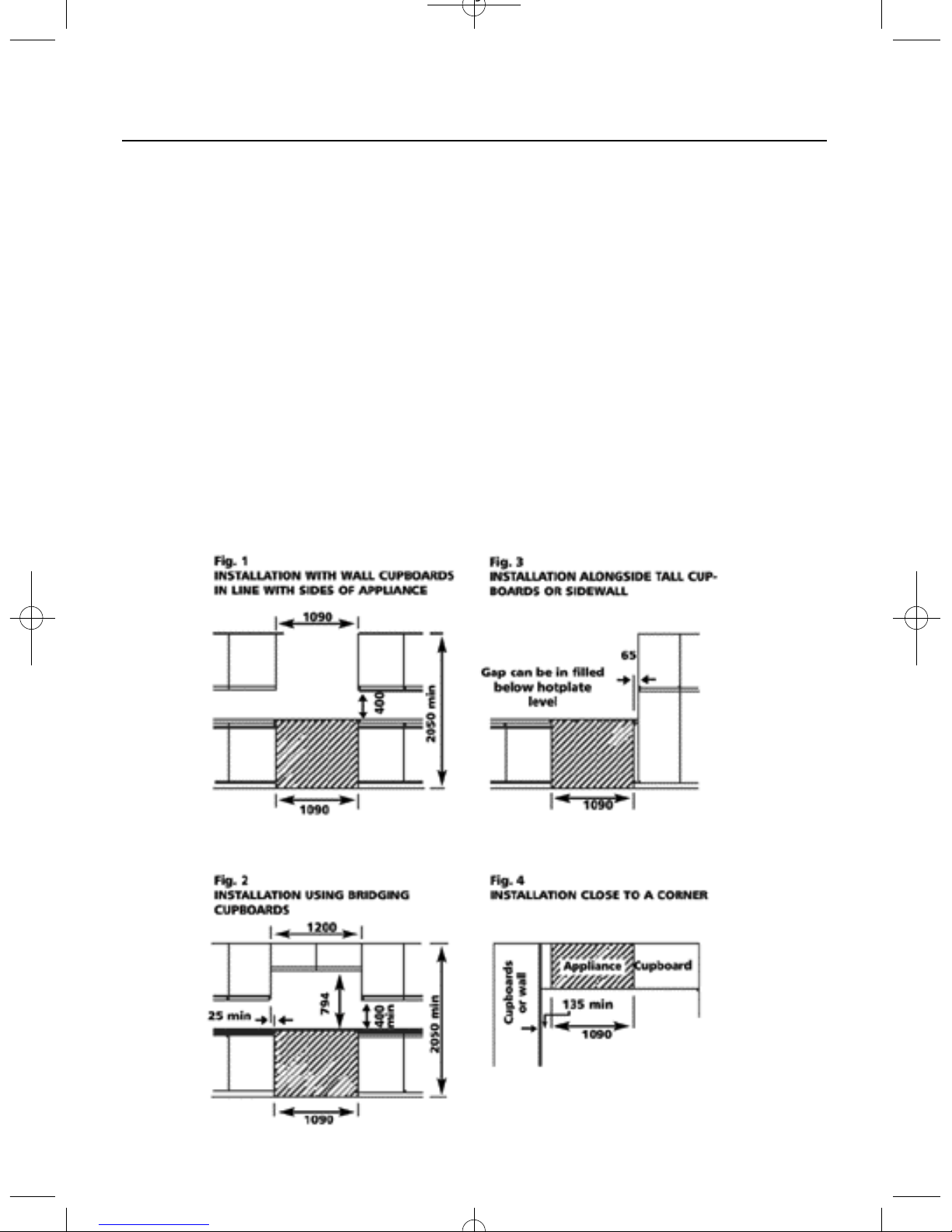

Follow the diagrams provided for
guidance on fitting. Take note of all
dimensions.
W h e r e this appliance is
installed in Marine craft or car-
avans - it shall not be used as a
space heater.
08 27095 00- 152A CC 14/6/04 10:59 am Page 5
INSTALLATION INSTRUCTIONS
4
Technical Data
Dimensions
Height 900 - 915mm
Width 1090mm
Depth 600mm (excluding handles)
General
Gas connection:
RP1/2 (1/2 BSP Female)
Burner pressure:
Natural gas - 1.0kPa
LPG gas (propane) 2.75 kPa
Pressure test point:
Gas regulator or middle rear hob
b u r n e r. (see “Checking Burn e r
Pressure”)
Gas rate adjustment: none
Aeration adjustment: none
Electrical connection: 6mm2cable
230 - 240 v a.c. 50Hz
Total heat Input (Gas):
Natural gas 59.40MJ/h
LPG gas (propane) 55.30 MJ/h
Total heat Input (electric):
7.35 - 8.00 kW
Fan oven bottom left:
2.30 - 2.50kW
Grill top left: 2.38 - 2.60kW
Conventional oven (top right):
2.20 - 2.40kW
Slow cook / Warming oven:
0.20 - 0.22kW
Warming zone: 0.23 - 0.25kW
Natural Gas LPG - Propane
Burner Heat Input Injector Heat Input Injector
Front Middle (Ultra
Rapid)/ Wok.
12.60MJ/h 1.65mm 12.60MJ/h 0.95mm
Rear Left
(Rapid)
11.52MJ/h 1.55mm 10.80MJ/h 0.87mm
Front Left / Rear Middle
(Semi-rapid)
7.74MJ/h 1.25mm 6.66MJ/h 0.69mm
Front & Rear Right
(Auxiliary)
4.14MJ/h 0.90mm 3.89MJ/h 0.53mm
08 27095 00- 152A CC 14/6/04 10:59 am Page 6
INSTALLATION INSTRUCTIONS
5
Unpacking the cooker
Unpack the components from inside
the grill and the oven. Please make
sure that you remove everything from
inside the cavities.
Check that the following are present:
l Grill pan and grid
l Pansupports (3)
l Main oven shelves (4)
l Meat pan
l Literature
l Griddle
Levelling
Two rear wheels and two front feet are
fitted which can be adjusted up or
down to set the height (900mm -
915mm) and level the cooker.
l The rear wheels can be raised or
lowered from the back of cooker by
adjusting the levelling screws ‘A’ in the
plinth.
l The front feet can simply be screwed
in or out to lower or raise the front of
the cooker.
Caution:
Some soft floor coverings may get
damaged if the cooker is not moved
carefully.
08 27095 00- 152A CC 14/6/04 10:59 am Page 7
INSTALLATION INSTRUCTIONS
6
Stability bracket
The cooker must be fitted a stability
device firmly secured to the fabric of
the building. The back of the cooker
has a slot for attaching the stability
bracket, which can be obtained from
your cooker supplier. The leaflet
included with the bracket should be
read in conjunction with the following
instructions:
l Push the cooker to its intended
position
l Draw pencil lines on the floor in
line with the front and left side of the
plinth.
l Remove the cooker.
l Position the stability bracket in
accordance with the diagram (Fig 1).
l Measure the height from floor level
to the bottom of the slot in the back of
the cooker.
l Add 3mm to the dimension and
assemble the stability bracket to that
height (i.e. from the floor level to the
underside of the top member)
08 27095 00- 152A CC 14/6/04 10:59 am Page 8
CONNECTING TO THE GAS SUPPLY
7
The cooker is designed to match the
depth of standard 600mm worktops.
An adaptor backplate should, there-
f o r e, be fitted within the 400 x
250mm shaded area shown to allow
the cooker to be pushed fully to the
wall.
If a forward facing backplate is used,
it must be chased to the wall.
Means of isolation shall be provided
at the shut off point by either an
approved quick connect device or a a
Type 1 manual shut off valve. The out-
let of the quick connect device shall be
at, or below, the horizontal position
Connection to the cooker should be
made using an AGA certified hose
assembly and regulator (Natural Gas
only).
Note:
Maximum length of hose = 900mm.
The temperature rise of areas at the
rear of the cooker that are likely to
come into contact with with the flexible
hose do not exceed 70˙C.
08 27095 00- 152A CC 14/6/04 10:59 am Page 9
CONNECTING TO THE GAS SUPPLY
8
A restraining chain or wire of ade-
quate strength is to be fixed to the
appliance and the wall within 50mm
of each connection point. The length
of the chain or wire is not to exceed
80% of the length of the hose assem-
bly. The restraining chain or wire is to
prevent stress being imparted onto the
hose assembly when the cooker is
moved out of its normal operating
position.
After installation check for soundness.
The burner pressure is tested at the
pressure regulator or rear middle hob
burner.
With reference to the users instruc-
tions:
l Check that the hotplate burners
ignite correctly and burn with a steady
flame.
l Check for a steady flame at the
lowest setting (small flame symbol).
Finally, instruct the user on the opera-
tion of the cooker and give them this
book for reference.
08 27095 00- 152A CC 14/6/04 10:59 am Page 10
