Berkel 829A Manuale utente
829A & 839A SERVICE MANUAL • 3
829AMEATTABLE AND CARRIAGE ASSEMBLY
1
2
3
4
5
6
7
8
910
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
20 27 28
29
26
30

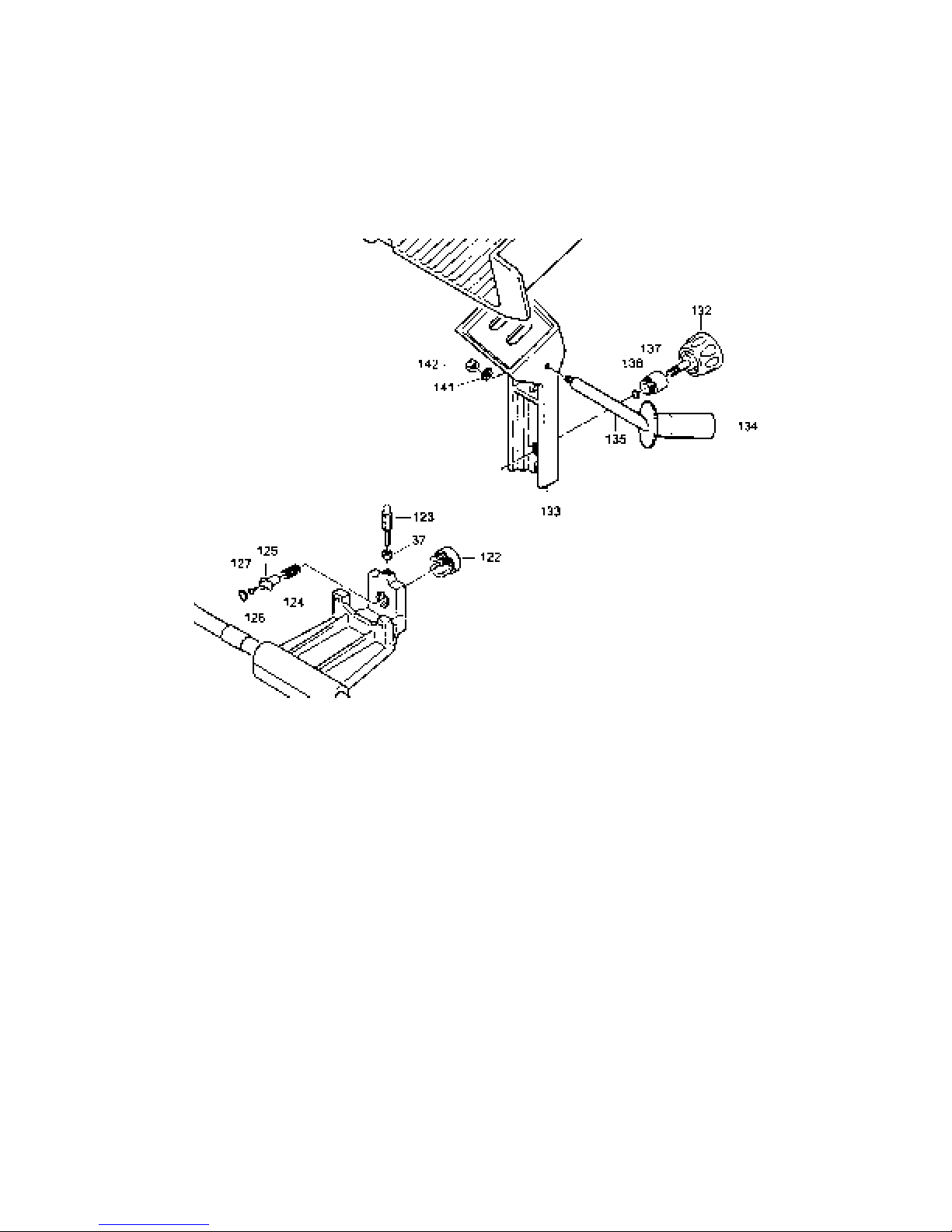

GAUGE PLATE INTERLOCK COMPONENTS
Item Description Part Number
37 Nut 827-00033
122Bushing 829A-00602
123 Stand Off 829A-00603
124 Spring 829A-00604
125 Bushing 829A-00605
126 Nylon Screw 829A-00606
127 Circlip 829A-00600
132 Knob 829A-00607
134 Handle 829A-00608
135 Extension 829A-00609
137 Bushing 829A-00610
138 Circlip 829A-00601
141 Washer 829A-00611
142 Nut CU-00008
4 • 829A & 839A SERVICE MANUAL
829AMEATTABLE AND CARRIAGE ASSEMBLY
Item Description Part Number
1Handle,Pusher 827-00080
2Pusher,Complete 829-00009
3Bushing 827-00079-N
4Pusher Slide Rod 829-00084
5RubberSpacer 829-00083
6Product Table 829-00008
7Grub Screw 827-00086
8Plate 827-00131
9Screw 827-00089
10 Washer 2101-08515
11 Screw 825-00122
12 Knob, Carriage 827A-00040
13 Handle, Carriage 827A-00037-A
14 Plate 829-00092
15 Square Rail 829-00014
16 Washer 3301-03812
17 Screw 827-00021
18 Screw 829-00050
19 Round Rail 829-00013
20 Spring,Long 829-00020
21 Carriage Assembly Complete 829-00012
22 Bolt 829-00017
23 Bearing 827-00015
24 Flat Washer 827-00016
25 Nylon Screw 827-00129
26 Product Table Support 829-00007
27 Oil Screw 829-00099
28 Oil Plate 827-00097
29 Rivet 827-00096
30 NylonPlug 829-00082
829A & 839A SERVICE MANUAL • 5
829AKNIFE AND GAUGE PLATE ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11 12
13
14
15
16
17
18
19 20
21 22
23 24
25
26
27
28
29
30
31
32
33
34
35
13
36
37
38
6 • 829A & 839A SERVICE MANUAL
829AKNIFE AND GAUGE PLATE ASSEMBLY
Item Description Part Number
1Center Plate Pin 829-00038
2Center Plate 829-00002
3Screw, Upper Guard 829-00400
4UpperGuard 829-00258
5Gauge Plate 829-00003
6Gauge Plate Support 829-00004
7Washer 3301-03812
8Screw 825-00005
9Knife 829-00073
10 RingGuard 829-00257
11 Screw 829-00087
12 RubberRing 827-00209
13 Bearing Spacer 827-00070
14 Bearing 2375-00103
15 Bearing 2375-00103
16 Circlip 825-00071
17 Circlip 825-00072
18 Center Plate Knob 829-00075
19 Washer 823-00114
20 Screw 827-00032
21 Plate 827-0026
22 Spring 829-00024
23 Bushing 827-00219
24 Screw 825-00021
25 Cam 829-00025
26 Spring Washer 825-00095
27 Washer 829-00401
28 Nut 827-00033
29 Cam Pin 827-00027
30 Support 829-00022
31 Set Screw 827-00031
32 Screw 827-00028
33 Nut 827-00029
34 Nylon Pin 825-00030
35 Knife Bearing Complete 829-00067
36 Bushing 827-00219
37 Screw 827-00074
38 Insert 827-00135
829A & 839A SERVICE MANUAL • 7
829AHOUSING AND ELECTRICAL
1
2
35
6
7
9
10
11
12
13
14
15
16
17 18
19
4
8
20
21
22
23
24
25
24
27
28
24
27
31
32
33
27
35
36
37
29
26
78
34
30
8 • 829A & 839A SERVICE MANUAL
829AHOUSING AND ELECTRICAL
Item Description Part Number
1Housing N/A
2Grub Screw 827-00086
3Nut, Slice Deflector 827-00146
4Slice Deflector 829-00011
5Screw, Slice Deflector 827A-00091
6Index Knob 829-00035
7Nut 827-00146
8Grub Screw 827-00086
9Pilot Light 825-00041
10 Screw 827A-00400
11 Plate, Switch 827A-00039-B02
12 Screw 827A-00401
13 Knob,Switch 827A-00036-02
14 Rubber Foot 827-00093
15 Cord Clamp 3675-00224
16 Screw 825-00087
17 Nut, Capacitor 2101-07041
18 Washer 825-00006
19 Washer 829-00402
20 Spacer 829-00128
21 Capacitor 829-00042
22 Washer 825-00006
23 Screw 825-00021
24 Washer 2275-03071
25 Screw 827-00058
26 Cord Clamp 827-00127
27 Nut 2101-07041
28 Plate, Motor 829-00055
29 Power Cord 4175-00031
30 Cover 825-00405
31 Threaded Rod 829-00053
32 Screw 827-00062
33 Nut 827-00029
34 Switch, Complete 827A-00039-02
35 RibbedBelt 829-00066
36 Motor 829-00048
37 Tie Rod, Motor 829-00060
829A & 839A SERVICE MANUAL • 9
829AAND 839ASHARPENER ASSEMBLY
1
2
34
567
8
10
11
12
13
14
15
16
17
18
820
21
22
23
24
25
26
27
16
14
30
31
32
33
34
35
32
37
38 39
40 41
42
37
19
36
28 29
9
49
10 • 829A & 839A SERVICE MANUAL
829AAND 839ASHARPENER ASSEMBLY
Item Description Part Number
1Flag I2062RED
2Cover, Sharpener 829-00010
3Washer 829-00403
4Nut 827-00033
5Joint, Sharpener 829-00404
6Screw 829-00405
7Pin, Threaded 829-00406
8Set Screw 829-00407
9Screw 825-00032
10 Screw 825-00021
11 Washer 825-00006
12 Stone,Sharpening 829-00408
13 Spindle 829-00109
14 Ball 829-00110
15 BearingHousing 829-00111
16 Circlip 829-00112
17 Spring 829-00113
18 Pin,Knurled 829-00114
19 Spacer, Plastic 829-00115
20 Pin 829-00116
21 JointSupport 829-00117
22 Washer 2275-03071
23 Support,Sharpener 829-00118
24 Set Screw 829-00119
25 Screw 825-00122
26 Spring 829-00120
27 Washer 829-00121
28 Circlip 829-00112
29 Lever, Sharpener 829-00122
30 BearingHousing 829-00123
31 Spring 829-00124
32 Set Screw 829-00125
33 Pin, Roll 829-00126
34 Handle,Sharpener 829-00127
35 Bushing 829-00129
36 Nut 827-00146
37 Pin 829-00130
38 Knob 829-00131
39 Spindle 829-00132
40 Stone,Deburring 829-00409
41 Washer 829-00133
42 Screw 827-00074
829A & 839A SERVICE MANUAL • 11

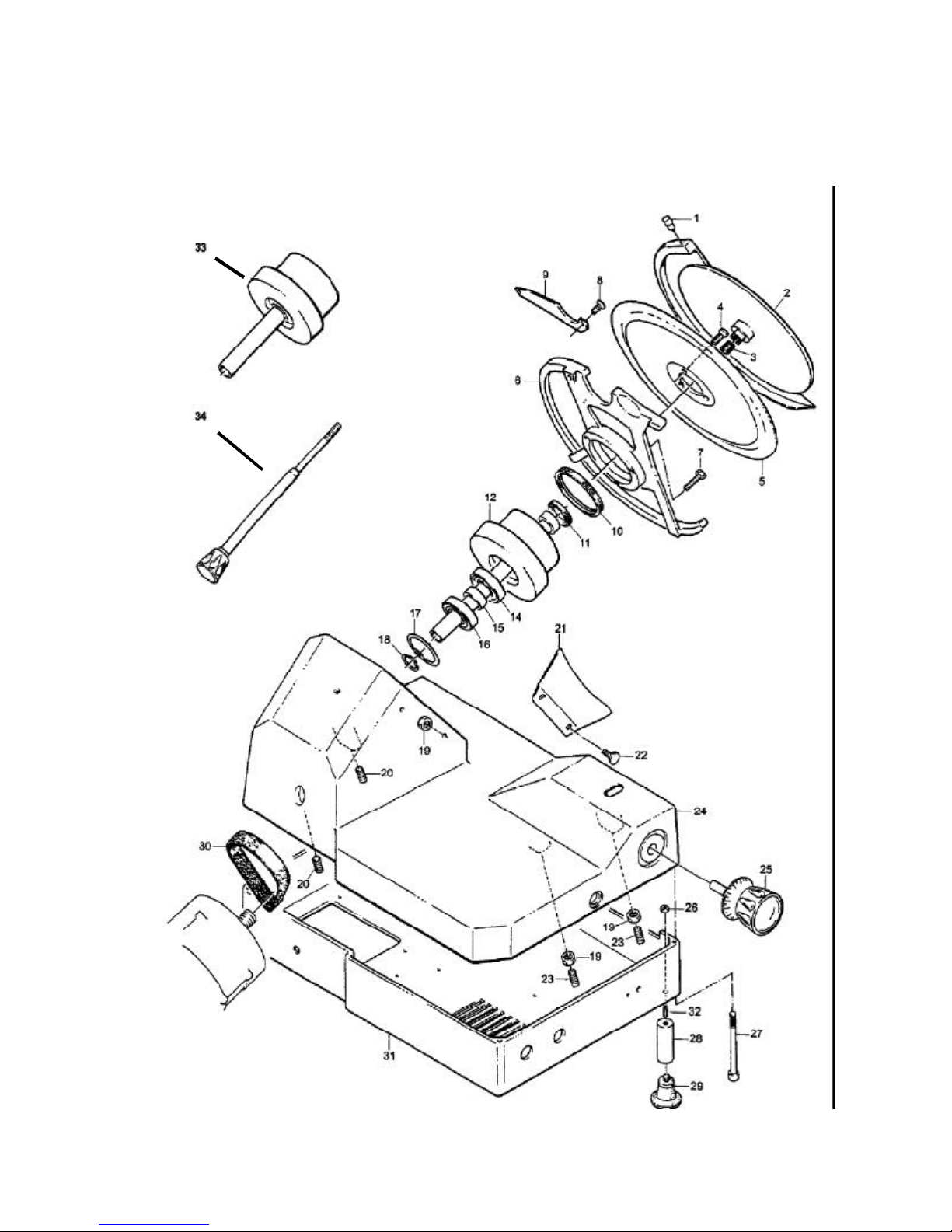

839ABASE TRANSMISSION AND BLADE
