Berkel 829E Manuale utente

X13 Service Manual Form SMZ13-0507R

NOTICIA IMPORTANTE

Este manual contieneimportantes instrucciones

de seguridad que deben ser seguidas el pie de la

letra cuando utilice esta maquina.

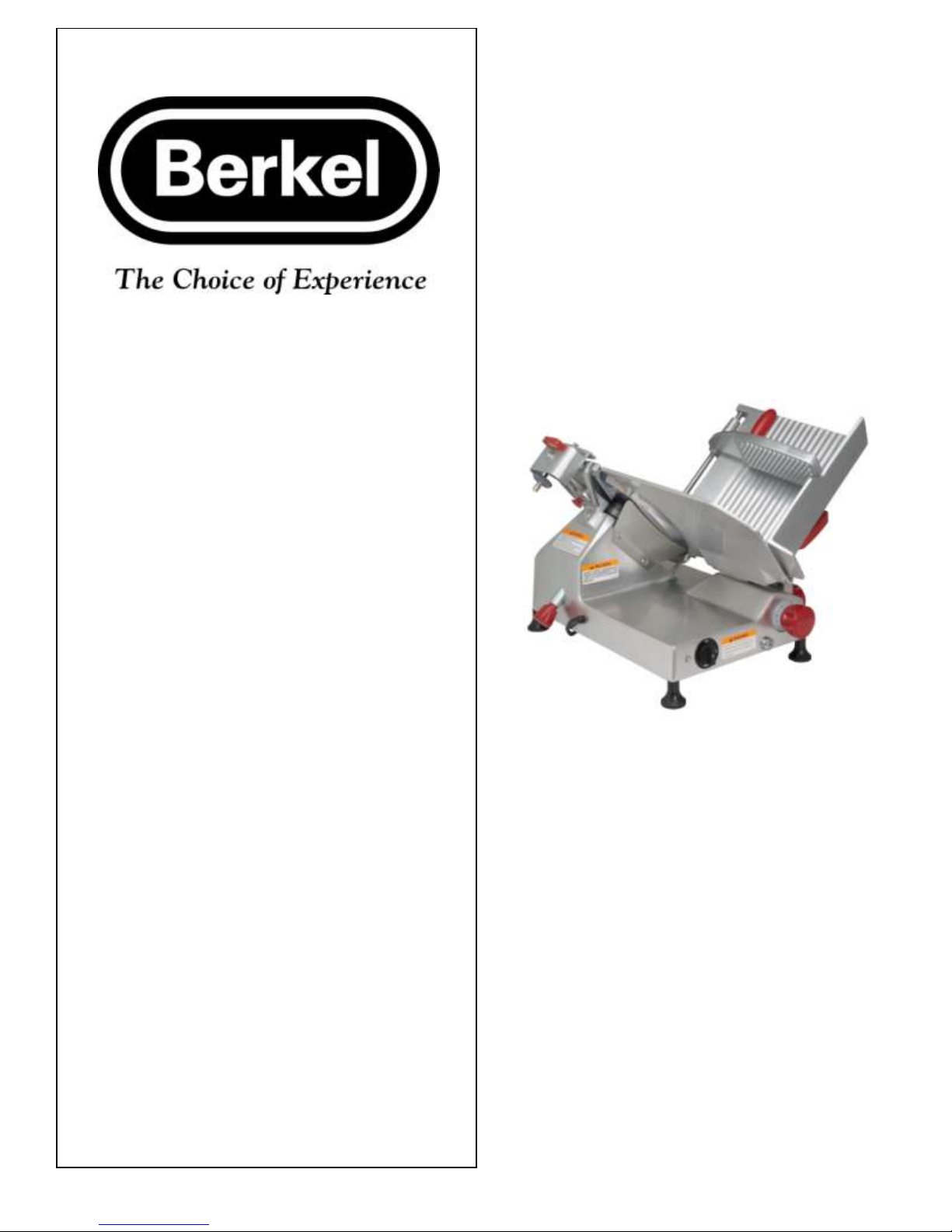

Service Manual

Model 829E

IMPORTANT NOTICE

This manual contains important safety

instructions which must be strictly

followed when using this equipment.

829E Service Manual - 1 - Form SM829E-1007

TABLE OF CONTENTS

INTENDED USES……….………………………………………… 2

EXPLODED VIEWS

1) SHARPENER ASSY………..…………….……………………… 3

2) INDEX ASSY…………………………….………………………. 5

3) MEAT TABLE & CARRIAGE ASSY….………………………... 7

4) HOUSING & ELECTRICAL……………………………………... 9

5) KNIFE ASSY…………………………………………………….. 11

829E Service Manual - 2 - Form SM829E-1007

I. INTENDED USES

1. The 829E slicer is designed for slicing the following types of food products:

A) All types of beef and sausage

B) All types of ham, bacon and pork

C) Rolled meats, cheese and fish

D) Fruits and vegetables

2. The following items are not suitable to be sliced on the 829E slicer:

A) Non-food products

B) Frozen products

C) Products on or with bones

829E Service Manual - 3 - Form SM829E-1007

829E Service Manual - 4 - Form SM829E-1007

ITEM DESCRIPTION 829E

1 Screw 825-00122

2 Washer 823-00123

3 Cover 825A-00010

4 Screw 825-00118

5 Lg. PushButton 823-0041

6 Ball 2375-00150

7 Spring 825-00117

8 Washer 3301-03812

9 Screw 2101-02109

10 Washer 3301-03812

11 Sharpener Frame 825-00108

12 Shaft 825-00110

13 Stone 825-00112

14 Washer 3301-03812

15 Nut 2101-07008

16 Small Push Button 825-00115

17 Shaft 825-00109

19 Nut 2101-07041

20 Shaft 829E-00104

21 Screw 825-00101

22 Knob 827-00103-A

23 Sharpener Support 829E-00100

24 Flag 12062RED

N/S Screw for Flag V6371

SHARPENER ASSEMBLY

829E Service Manual - 5 - Form SM829E-1007

829E Service Manual - 6 - Form SM829E-1007

ITEM DESCRIPTION 829E

1 Gauge Plate 829E-00003

2 Gauge Plate Support 827A-00004

3 Washer 827A-00006

4 Screw 827A-00005

5 Bushing 827-00219

6 Spring 827A-00024

8 Carriage Support 827A-00022

9 Plate 827-00026

10 Screw 827-00032

11 Set Screw 827-00031

12 NylonPin 825-00030

13 Nut 2101-07041

14 Brass Screw Part of #8

15 Cam Pin 827-00027

16 Nut 827-00033

17 Cam 827-00025

18 Screw 825-00021

19 Spring Washer 827-00095

20 Bushing 827-00219

21 IndexKnob 827-00035-A

INDEX ASSEMBLY

829E Service Manual - 7 - Form SM829E-1007

829E Service Manual - 8 - Form SM829E-1007

ITEM DESCRIPTION 829E

1 Bushing 827-00079-N

2 Pusher w/Bushing 829-00009

3 NylonPlug 829E-00082

4 Pusher Handle 827-00080

5 Pusher Shaft 829-00084

6 Spacer (if used) 829-00085

7 Set Screw 827-00086

8 Product Table 829-00008

9 Carriage Knob 827A-00040

10 Carriage Handle 827-00037-A

11 Product Table Support 829E-00007

12 Screw 825-00089

13 Washer 2101-08515

14 Washer 827-00131

15 Screw 825-00122

16 Wear Strip 827-00092

17 Square Rail 827A-00014

18 Screw 827-00017

19 Nut CU-00008

20 Bearing 827-00015

21 Washer 2101-08010

22 Round Rail Screw 827-00050

23 Round Rail 827-00013

24 Spring 827-00020

25 Bushing 827-00218

26 Spring 827-00020

27 Oil Screw Complete 827-00099

30 Screw 827-00129

31 Carriage 827-00012

MEAT TABLE AND CARRIAGE ASSEMBLY

829E Service Manual - 9 - Form SM829E-1007
