PARTS LIST

ELECTRIC MODULAR SKILLETS

BLODGETT MODELS: BCH-30E

BCH-40E

Revised April 6, 2007

BLODGETT OVEN CO ▪44 lakeside Ave ▪Burlington, VT 05446

Tel. 800-331-5842 ▪Fax 802-860-3732 ▪www.blodgett.com

PARTS LIST, ELECTRIC MODULAR UNITS, MODELS BCH-30, BCH-40

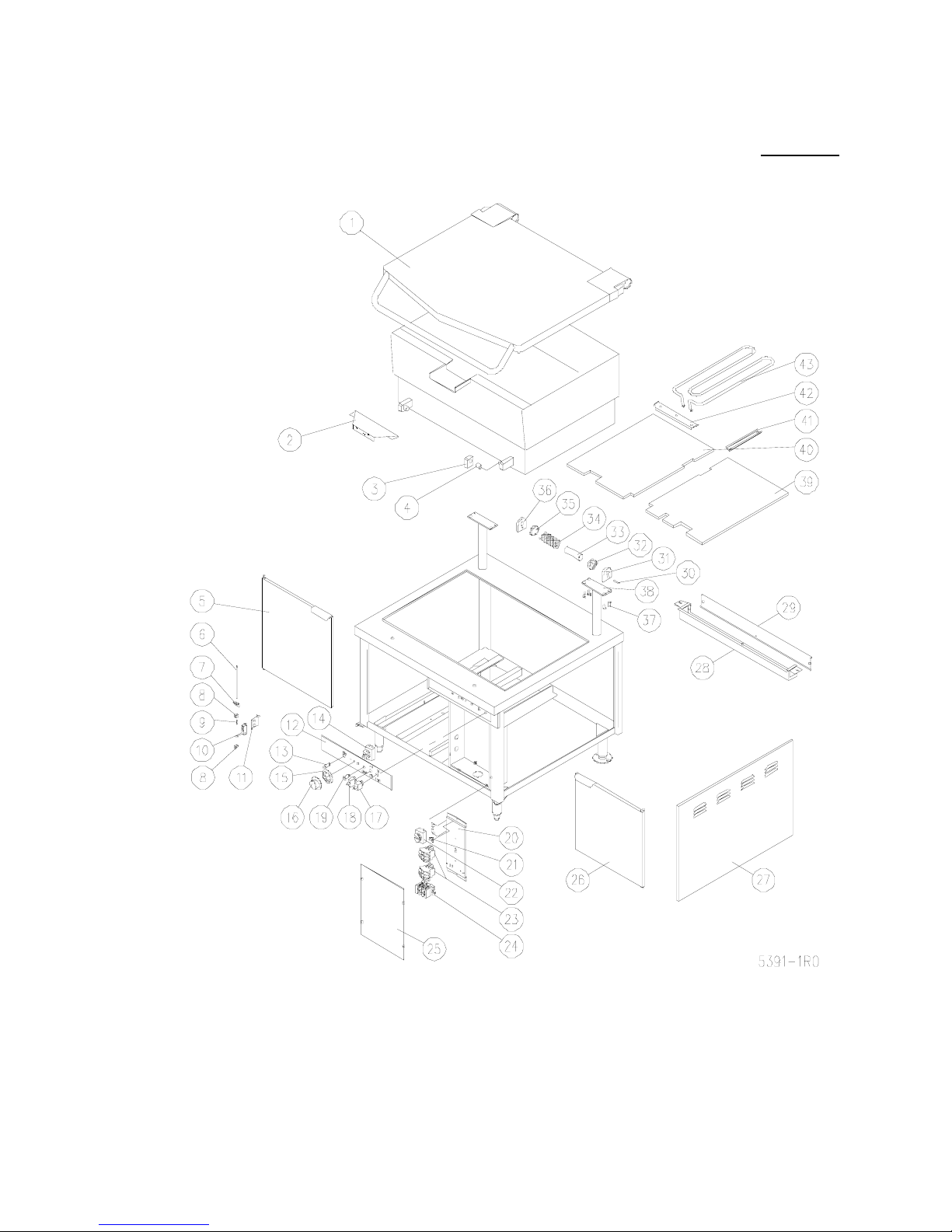

FIGURE 1

QUANTITY

ITEM Part No. DESCRIPTION 30 40

1 41308 Pan Cover 1

41309 Pan Cover 1

2 42224 Pour Lip Strainer 1 1

3 42480 Tilt Bracket 2 2

4 40452 Bushing 2 2

5 40347 Left Hand Door 1

40380 Left Hand Door 1

* 41140 Magnetic Catch 2 2

6 42372 Actuator Rod 18" 1 1

7 42374 Actuator Rod Guide 1 1

8 42294 Lock Collar 2 2

9 42377 Spring 1 1

10 40936 Limit Switch 1 1

11 40487 Limit Switch Bracket 1 1

12 42363 Control Panel Decal 1

42364 Control Panel Decal 1

13 40951 Pilot Light - Red 1 1

14 41005 Thermostat 1 1

15 40994 Bezel 1 1

** 16 41006 Dial 1 1

* 40849 Dial (C) 1 1

* 40848 Dial (F) 1 1

17 41883 Power Switch 1 1

18 41884 Up/Down Switch 1 1

19 40949 Pilot Light - Amber 1 1

20 43373 Panel Sub Assembly 1 1

21 40840 Ground Lug 1 1

PARTS LIST, ELECTRIC MODULAR UNITS, MODELS BCH-30, BCH-40

QUANTITY

ITEM Part No. DESCRIPTION 30 40

22 41004 High Limit Thermostat 1 1

** 23 40941 Contactor 208V 2 2

40941 Contactor 240/380/415/480V, 600V 2 2

24 40734 Terminal Block Section (220/380V,

240/415V)

40734 Terminal Block Section, (208, 220, 240, 380,

415, 480, 600V)

40733 End Section 1 1

25 43374 Component Box Cover 1 1

26 40373 Right Door 1

40381 Right Hand Door 1

27 42476 Side Panel 2 2

28 40277 Element Enclosure box 1

42476 Element Enclosure Box 1

29 40183 Box Cover 1

40184 Box Cover 1

30 41543 Lock Pin 2 2

31 41546 End Lock Plate 2 2

32 43106 Stationary Disc 2 2

33 41100 Core 2 2

34 41526 Spring 2 2

35 43107 Rotary Disc 2 2

36 41520 End Stop Plate 2 2

37 40098 Cap Screws 1/4 - 20 x 3/4 8 8

38 43299 Hinge Support Assembly 2

43300 Hinge Support Assembly 2

39 41165 Right Hand Element Insulation Cover 1

40223 Right Hand Element Insulation Cover 1

40 41166 Left Hand Element Insulation Cover 1

43375 Left Hand Element Insulation Cover 1

QUANTITY

ITEM Part No. DESCRIPTION 30 40

41 40428 Thermostat Bulb Enclosure 1 1

42 43178 Element Clamp 9

40185 Element Clamp 9

** 43 41945 Element 208V, 4 kW 3

41946 Element 277V, 4 kW, (480V) 3

41947 Element 220V, 4 kW, (220/380V) 3

41948 Element 347V, 4 kW (600V) 3

41949 Element 240V, 4 kW (240/415V) 3

41949 Element 208V, 5 kW 3

42280 Element 240V, 5 kW, (240/415V) 3

42273 Element 220V, 5 kW, (220/380V) 3

42274 Element 277V, 5 kW, (480V) 3

42279 Element 347V, 5 kW, (600V) 3

42272 Element 208V, 6 kW, (Optional) 3

** 43 42275 Element 240V, 6 kW, (240/415V), (Optional) 3

42276 Element 220V, 6 kW (220/380V), (Optional) 3

42277 Element 277V, 6 kW, (480V), (Optional) 3

42278 Element 347V, 6 kW (600V), (Optional) 3

* ** 44 41767 Fuse 3 A, 600V, (380, 415, 480V), (Optional) 2 2

* ** 45 41769 Fuse Holder, (380, 415, 480V), (Optional) 2 2

* ** 46 40977 Transformer 380/240V, 100VA, (Optional) 1 1

40984 Transformer 415/240V, 100VA, (Optional) 1 1

40980 Transformer 480/240V, 100VA, (Optional) 1 1

40985 Transformer 600/240V, 100VA, (Optional) 1 1

* NOT SHOWN.

** SELECT AS REQUIRED.

PARTS LIST, ELECTRIC MODULAR UNITS, MODELS BCH-30, BCH-40

FIGURE 2

ITEM Part No. DESCRIPTION QUANTITY

1 40786 Hose Assembly 2

2 40787 Flow Control 2

3 40788 Elbow 2

** 4 40649 Motor ½ HP 115/208/230/1/60 1

40650 Motor ½ HP 380/480V, (Optional) 1

40651 Motor ½ HP, 220/50, (Optional) 1

5 40652 Directional Valve 1

6 43376 Pump complete with Integral Relief

Valve

7 40793 Manifold 1

8 41930 Breather 1

9 41929 Tank 1 Gallon 1

10 43377 Pin complete with Clips 1

11 40657 Street Elbow 2

12 40660 Cylinder 1

42255 Cylinder Kit

13 41932 Pin 1

14 41931 Clevis 1
