General instructions
Copyright
This document is subject to
copyright. Duplication or reprinting,
even in part as well as
reproduction of the illustrations,
even if modified, is only permitted
with written consent of the
manufacturer.
The packaging materials used can
be recycled. When no longer
required, dispose of the packing
materials according to local
environmental regulations.
This product may not be disposed
of in the European Union via the
normal household refuse. Dispose
of the device via communal
collection points.
Liability disclaimer
All technical information, data and instructions contained
in these operating instructions for startup, operation and
care correspond to the latest requirements at the time of
printing. The manufacturer assumes no liability for
damage or injury resulting from failure to observe the
operating instructions, use for other than the intended
purpose, unprofessional repairs, unauthorized
modifications or use of non-approved spare parts and
accessories, tools and lubricants.

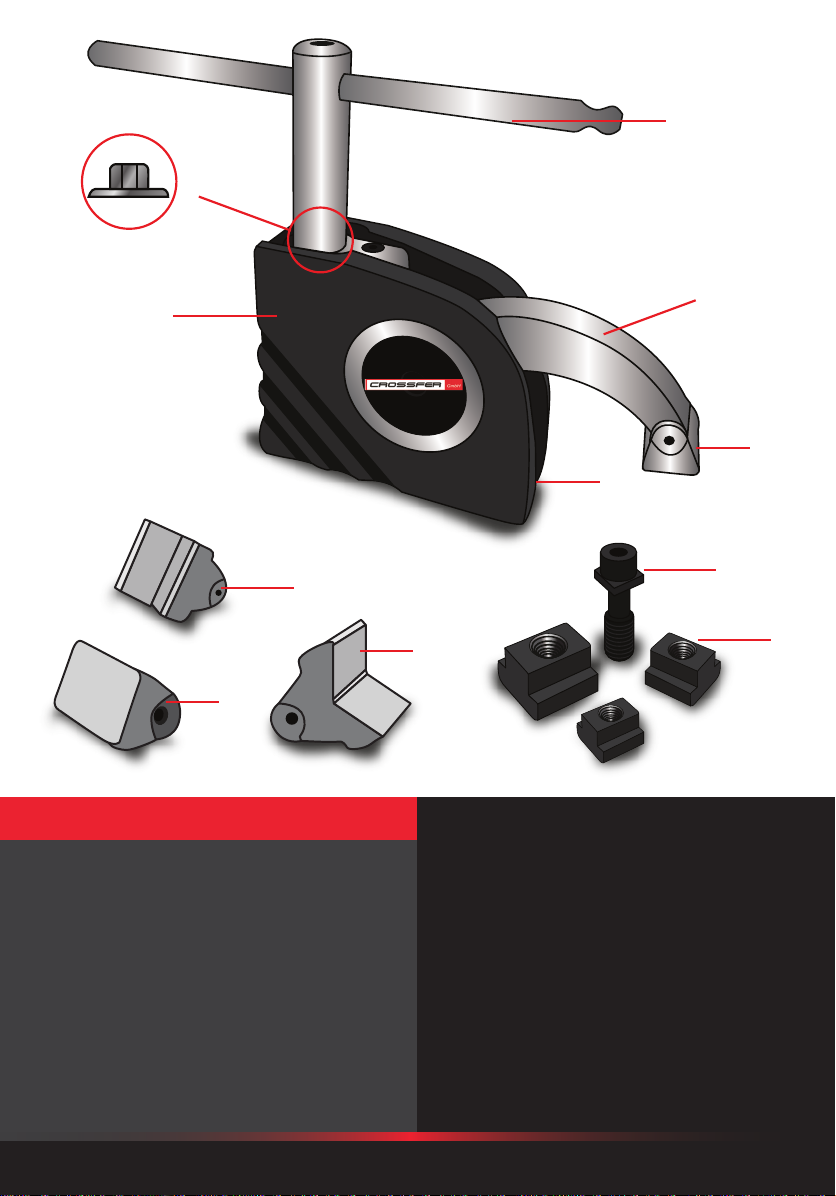

Intended use
The clamp is intended solely for clamping parts on drilling machine tables and milling machine
tables. Any use other than previously stated is considered as improper use.
The clamp must never be subject to maximum ambient temperature of 110°C (230°F)
The required clamping force is applied vertically to the clamped face by a self-locking worm gear
system.
The tightening of the clamp must be with a maximum torque of 90 Nm to achieve the clamping
force up to 17000 N.
Do not use any extra extension or tool other than the Multipurpose Key provided to tightening the
Main Screw (B) because the use of any extra extension or tool other may cause higher tightening
torque which will damage the clamp.
Use suitable stops during drilling / milling operations to absorb the lateral forces created
The clamp must only be used on flat surfaces and should be tightened perfectly with the help of
T-Nuts provided with the clamps.
When used a riser clock (RiserBLOCK), it must be attached vertically on top of each other. The
riser blocks must never be attached like steps/stairs.
No claims of any kind will be accepted for damage resulting from use of the system for other than
its intended purpose. The risk must be borne solely by the user.
Version 1.0 ENGLISH3
