CTA PAD-HGTSB Manuale utente

Heavy-Duty Security

Gooseneck Clamp Stand

PAD-HGTSB

INSTRUCTION - MANUAL

CONTENTS:

INSTALLATION:

888-733-4448

1A. Align VESA Gooseneck (A) with screw on clamp (B) and turn it in

clock-wise as shown. **Use Top screw for horizontal surfaces and side screw for

vertical surfaces.

1. Setting Up Clamp to VESA Gooseneck : 2. Attaching Enclosure to VESA

2A. Align holder VESA holes (C) to VESA plate holes (A). Insert washers

and screws (E, D) and turn it in clock-wise into threaded holes in holder

using provide tool (F) until securely tightened. Shown above.

M4 x 8

M5 Allen Key

x4

x1 x1

A

B

D

FG

x1

C

Washer

x4

E

x1

B

x1

A

A

CED

F

X4

X4

888-733-4448

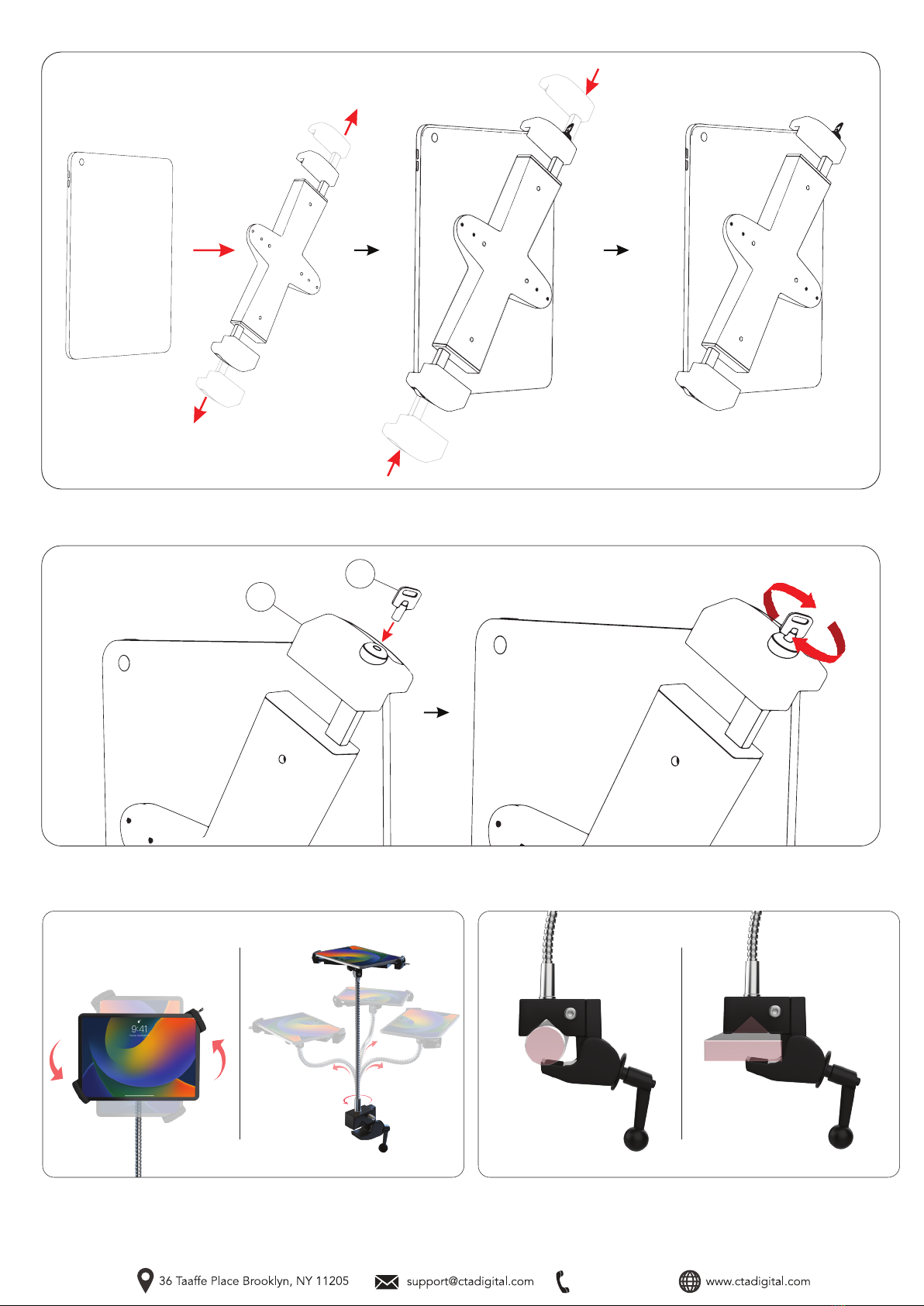

3A. While holder is unlocked, extend tablet holder arms, and insert tablet device into holder. Then, adjust holder arms to fit your tablet device. Shown above.

4A. Insert key (G) into holder key slot (C) and rotate, then remove the key to keep it locked in place. Shown above.

5A. Hold and turn holder

into portrait or landscape

mode as needed.

5B. Move holder gooseneck freely

to desired positon. Shown above.

3. Inserting Tablet into Holder :

4. Locking & Unlocking Holder :

5. Adjusting Angles and Orientation :

**Tablet shown for

illustration and

NOT INCLUDED.

**Tablet shown for

illustration and

NOT INCLUDED.

**Tablet shown for

illustration and

NOT INCLUDED.

G

C

6A.Remove triangle component

when using on tubes or pipes

shaped mounting.

6B.Place triangle component in

place when using on flat surfaces

as tables or countertops. Shown

above.

6. Clamp Modes :
