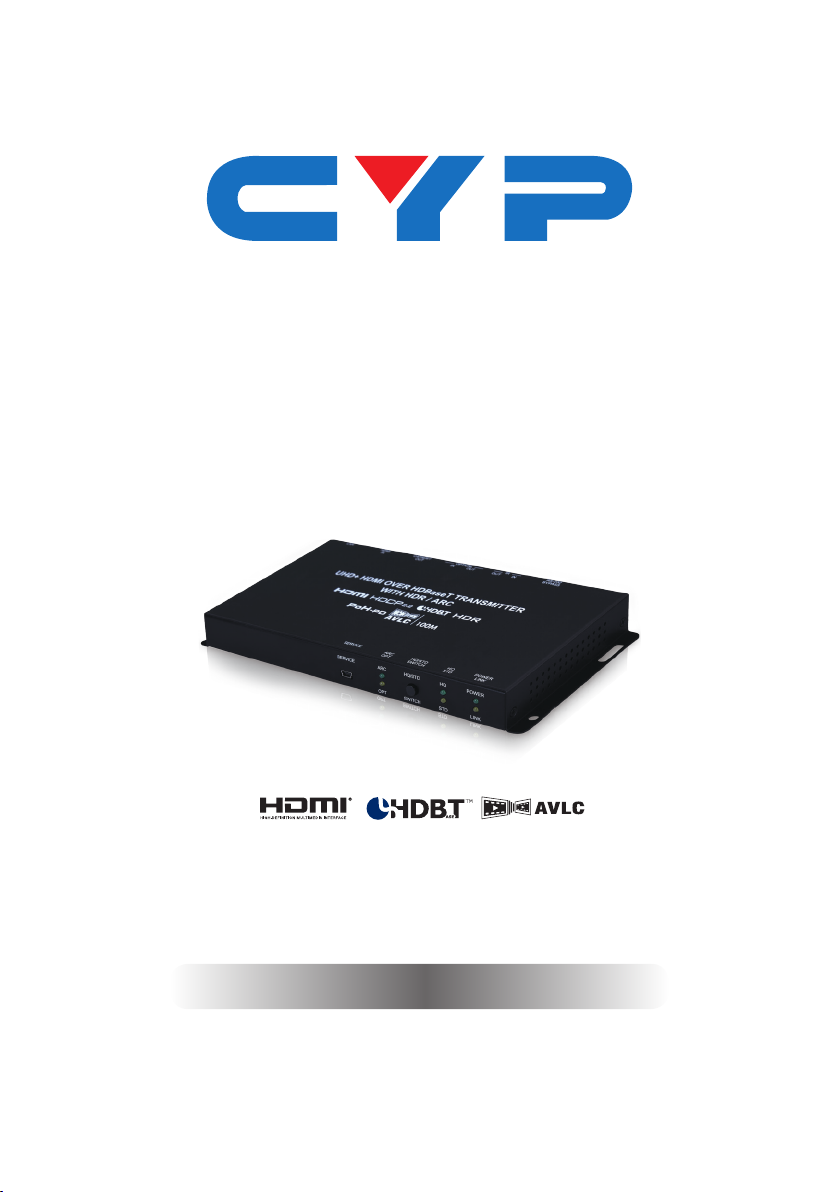

CYP CH-2605TXV Manuale utente

CH-2605TXV

4K UHD+ HDMI over HDBaseT 2.0 Transmitter (PD)

with HDR/ARC

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document are

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

• Please completely disconnect the power when the unit is not in

use to avoid wasting electricity.

VERSION HISTORY

REV. DATE SUMMARY OF CHANGE

VS1 2018/12/20 Final technical review

CONTENTS

1. Introduction......................................................1

2. Applications.....................................................1

3. Package Contents ..........................................2

4. System Requirements......................................2

5. Features............................................................2

6. Operation Controls and Functions.................4

6.1 Front Panel ................................................. 4

6.2 Rear Panel.................................................. 5

6.3 IR Cable Pinouts ........................................ 6

6.4 RS-232 Bypass Pinout................................. 6

6.5 Serial Control (Via USB Port) ..................... 6

6.6 Serial Commands (Via USB Port) ............. 7

7. Connection Diagram ......................................8

8. Specications ..................................................9

8.1 Technical Specications .......................... 9

8.2 Video Specications............................... 10

8.3 Audio Specications............................... 11

8.4 Cable Specications .............................. 12

8.5 HDBaseT Features.................................... 13

9. Acronyms .......................................................13

1. INTRODUCTION

This HDBaseT 2.0 Transmitter provides for the extension of 4K video

with HDR and high bitrate audio over a single Cat.6a/7 cable at

distances of up to 100m (328 feet). This Transmitter complies with the

advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting

the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s

10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and

including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR,

are able to be processed and extended by the use of AVLC (Adaptive

Visually Lossless Compression) when connected to a compatible

AVLC Receiver. This Transmitter can also pass RS-232, IR, Ethernet, and

multiple audio streams across the same cable that carries the video

signal.

The bi-directional optical audio feature allows optical audio to be

exchanged bi-directionally between the Transmitter and Receiver.

Rounding out the feature set is automatic HDBaseT clock stretching

and TMDS re-clocking support. This Transmitter is powered directly

by the connected Receiver, via 48V PoH (Power over HDBaseT),

eliminating the need for a separate power supply for the Transmitter.

2. APPLICATIONS

• Household entertainment sharing and control

• Lecture room display and control

• Showroom display and control

• Meeting room presentation and control

• Classroom display and control

3. PACKAGE CONTENTS

• 1×HDMI over HDBaseT 2.0 Transmitter (PD) with HDR/ARC

• 1×3.5mm to IR Blaster Cable

• 1×Shockproof Feet (Set of 4)

• 1×Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI source equipment such as a media player, video game

console or set-top box.

• A compatible HDBaseT Receiver with 48V PoH (PSE) support is

required.

• An HDBaseT 2.0 Receiver equipped with AVLC support is strongly

recommended.

• The use of “Premium High Speed” HDMI cables, and industry

standard Cat.6, Cat.6a or Cat.7, is highly recommended.

5. FEATURES

• HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible

• HDCP 2.2 and HDCP 1.x compliant

• Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input

and output

• Supports Deep Color input and output up to 12-bit

• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output

• Supports CEC bypass

• HDBaseT output transmits video, audio and data over a single

Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K

when using Cat.6a/7

• HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet,

48V PoH (PD), bi-directional optical audio and Control (bi-directional

IR/RS-232 pass-through)

• Integrated AVLC (Adaptive Visually Lossless Compression) activates

when the bandwidth requirements of the source are beyond

10.2Gbps (340MHz) allowing for sources up to 18Gbps (600MHz) to

be sent to a compatible Receiver with no loss of visual quality

• The AVLC feature allows manual selection between High Quality

Mode (Full bandwidth) and Standard Mode (Lower bandwidth,

useful for longer cable runs with 4K sources)

• Bi-directional optical audio extension support

• Supports HDMI DDC bus clock stretching for improved compatibility

with certain Blu-ray players

• Performs TMDS re-clocking and signal re-generation for improved

signal integrity

• Powered via 48V PoH from Receiver to Transmitter

Note: A compatible PSE Receiver providing 48V PoH is required to

power this Transmitter. Receivers from other brands may not be

compatible.

6. OPERATION CONTROLS AND FUNCTIONS

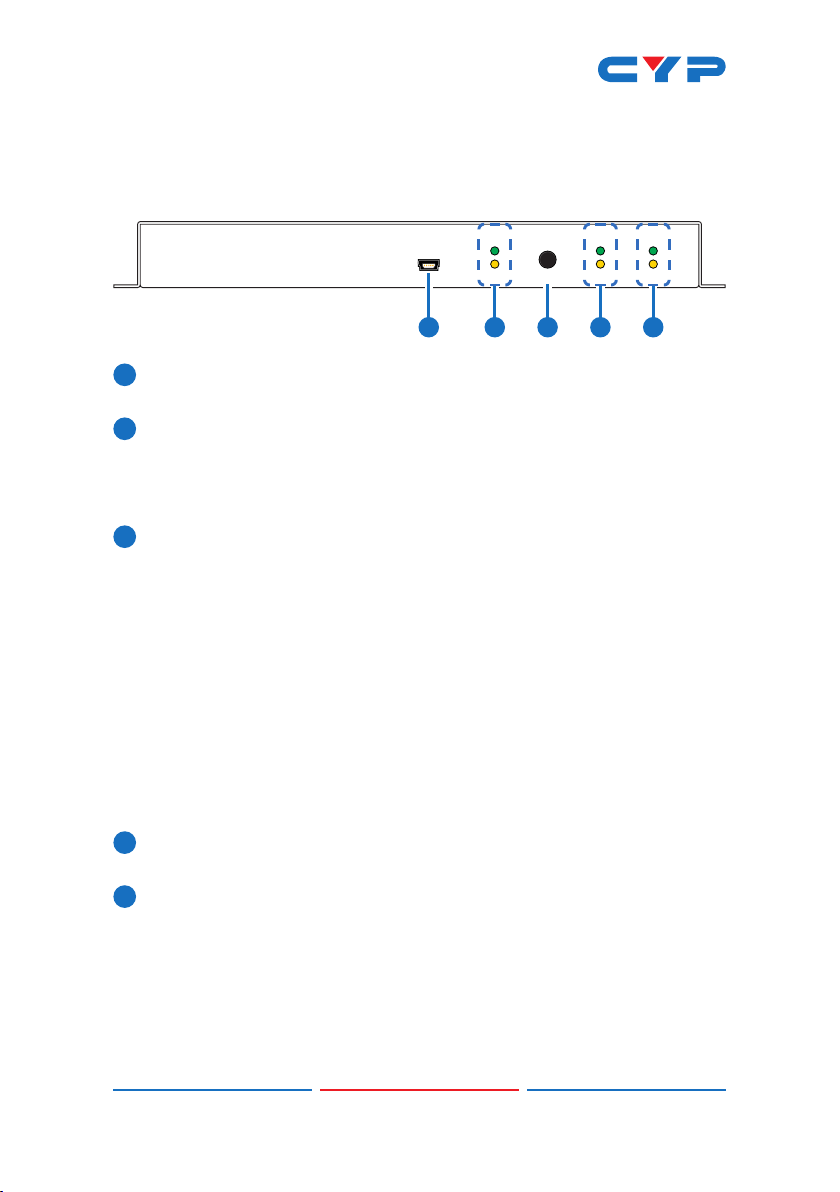

6.1 Front Panel

SERVICE ARC

OPT

STD

POWER

LINK

HQ/STD

SWITCH

1 2 3 4 5

1SERVICE Port: This port is reserved for rmware update and serial

control use only.

2ARC & OPT LEDs: These LEDs illuminate to indicate if the optical

output source is coming from the optical input or ARC on the

connected Receiver.

Note: Selecting ARC as a source requires a compatible Receiver.

3HQ/STD SWITCH Button: This switch allows the user to select which

compression mode to use when AVLC is required. A single press

toggles between modes.

HQ (High Quality) mode uses the least amount of compression and

provides the highest possible visual quality (perceptually identical

to the original). In this mode, AVLC compression activates for any

signal requiring more than 9Gbps.

STD (Standard Quality) mode applies additional signal reduction

methods to lower the bandwidth requirements even further,

improving transmission reliability at the cost of some visual delity.

In this mode, AVLC compression activates for any signal requiring

more than 7.5Gbps.

4HQ/STD LEDs: These LEDs illuminate to indicate which AVLC mode

is selected: HQ (High Quality) or STD (Standard Quality).

5POWER LED: This LED will illuminate to indicate the unit is on and

receiving power.

Note: A compatible 48V PSE Receiver is required to power this

Transmitter.

LINK LED: This LED will illuminate solidly when a live connection with

a compatible Receiver is active.

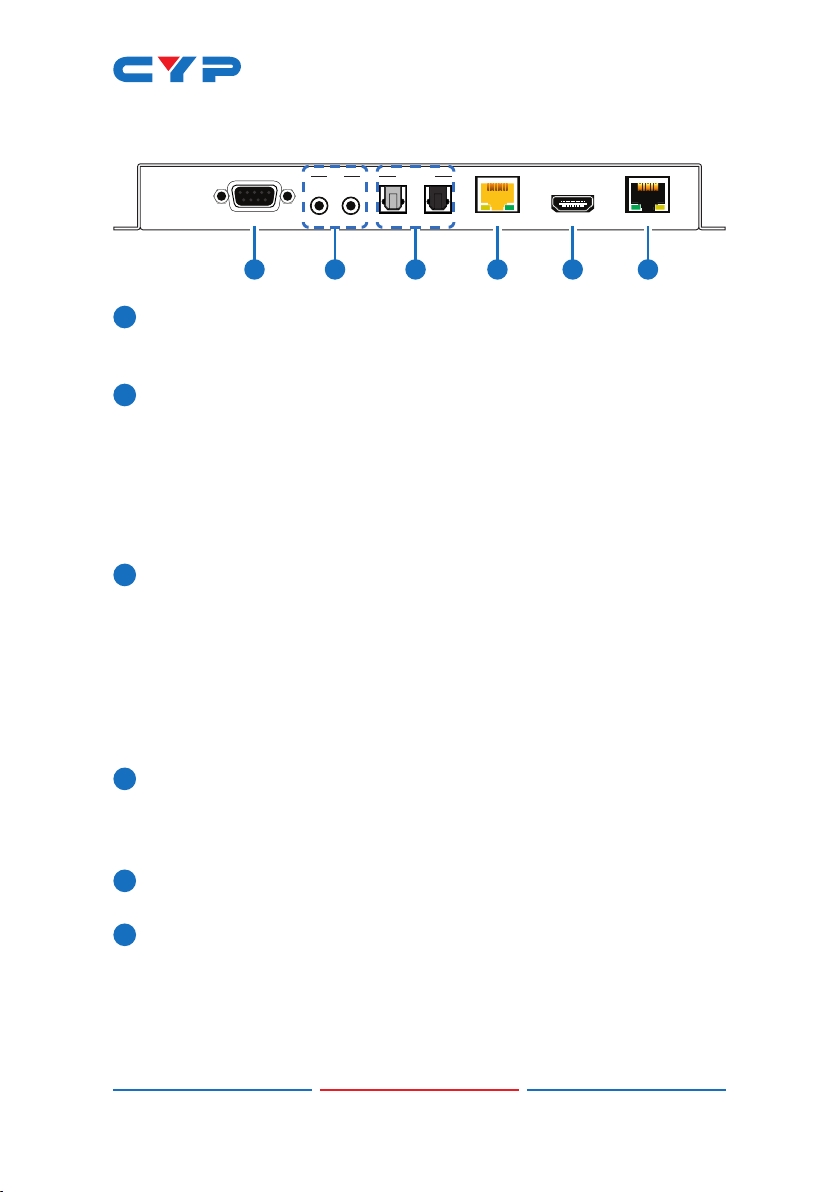

6.2 Rear Panel

LANHDMI ININOUT

RS-232

BYPASS

IR OPTICAL

CAT5e/6/7 OUTOUT IN

1 2 3 4 5 6

1RS-232 BYPASS Port: Connect to a PC, laptop or serial controllable

device for the extension of RS-232 signals between both ends of

the HDBaseT connection.

2IR OUT Port: Connect to the provided IR Blaster to transmit IR signals

from the other end of the HDBaseT connection to devices within

direct line-of-sight of the IR Blaster.

IR IN Port: Connect to an IR Extender to extend the IR control

range of devices connected to the other end of the HDBaseT

connection. Ensure that the remote being used is within direct line-

of-sight of the IR Extender.

3OPTICAL OUT Port: Connect to powered speakers or an amplier

for digital audio output using an appropriate optical cable. The

audio is sourced from either the Optical Audio Input port or ARC of

a connected compatible Receiver.

OPTICAL IN Port: Connect to the optical audio output of a device

such as a media player or game console using an appropriate

optical cable. Audio is sent to the Optical Audio Output on a

connected compatible Receiver.

4CAT5e/6/7 OUT Port: Connect to a compatible HDBaseT Receiver

with a single Cat.5e/6/7 cable for transmission of all data signals.

48V PoH will also be supplied when connected to a compatible

PSE Receiver.

5HDMI IN Port: Connect to HDMI source equipment such as a media

player, game console or set-top box.

6LAN Port: Connect to an Ethernet supporting device or to your

local network, as appropriate, to extend the network to both ends

of the HDBaseT connection.
