Danby Silhouette DWC516BLS Manuale utente

OWNER’S MANUAL

GUIDE DU PROPRIÉTAIRE

MANUAL DEL USUARIO

CAUTION:

Read and Follow All Safety Rules and

Operating Instructions Before First

Use of This Product.

SAVE THESE INSTRUCTIONS!

ATTENTION :

Avant de faire fonctionner cette

machine, lisez et suivez toutes les

consignes de sécurité de ce guide en

premier lieu.

SAUVEGARDEZ CES

INSTRUCTIONS!

ATENCIÓN:

Lea y Siga Todas las Indicaciones de

Seguridad y de Operación Antes de

Utilizar Este Producto.

¡CONSERVE ESTAS

INSTRUCCIONES!

Table of Contents . . . . . . . . . . . . . . . . . . . . 1

Table des matières . . . . . . . . . . . . . . . . . . . 13

Índice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Danby Products Limited, Guelph, Ontario Canada N1H 6Z9

Danby Products Inc., Findlay,Ohio USA 45840

Version 1.09.06

DWC516BLS

Important Safety Information

Safety Precautions 3

Grounding Instructions 4

Operating Instructions

Features of Your Wine Cooler 5

The Controls of Your Wine Cooler 6

Setting the Temperature 6

Wine Storage 7

Shelf Instructions 7

Installation Instructions

Tools You Will Need 8

Preparing the Enclosure 8

Door Swing Reversal 9

Care and Cleaning

Helpful Hints 10

How to Clean the Inside 10

How to Clean the Outside 10

Trouble Shooting

Before You Call For Service 11

Warranty 12

TABLE OF CONTENTS

WELCOME

NEED HELP?

Welcome to the

Danby family. We’re

proud of our quality

products and we

believe in dependable

service.

You’ll see it in this

easy-to-use manual

and you’ll hear it in the

friendly voices of our

consumer service

department.

Tel:1-800-26-

Best of all, you’ll

experience these

values each time you

use your wine cooler.

That’s important,

because your new

appliance will be part

of your family for a

long time.

Before you call for service,

there are a few things you

can do to help us serve

you better...

Read this manual

It contains instructions to

help you use and maintain

your wine cooler properly.

If you received a

damaged appliance

Immediately contact the

dealer (or builder) that sold

you the wine cooler.

Save time and money

Check the Trouble Shooting

section before calling. This

section helps you solve

common problems that may

occur.

If you do need service, you

can relax knowing help is

only a phone call away.

Tel: 1-800-26-

Write down the model and serial

numbers here. They are on a label

located on the back of the wine

cooler.

Model number DWC516BLS

Serial number ______________

Date purchased ______________

Staple your receipt to the inside

back cover of this manual. You will

need it to obtain service under

warranty.

Start Here!…Before using your Wine Cooler

READ ALL SAFETY INFORMATION BEFORE USING

IMPORTANT SAFETY INFORMATION

WARNING

SAFETY

PRECAUTIONS

•This appliance is intended

for household use only. Do

not attempt to operate or

store this appliance out-

doors.

•This appliance must be

grounded. Connect only to a

properly grounded outlet.

See “Grounding Instructions”

section on page 4.

•Do not operate this appliance

if it has a damaged power cord

or plug, if it is not working

properly, or if the appliance has

been damaged or dropped.

•Do not splice the power cord

that is equipped with this appli-

ance.

•Keep power cord away from

heated surfaces.

•Do not immerse power cord,

plug or the appliance itself in

water.

•Do not use this product near

water-for example, in a wet

basement, near a swimming

pool or near a sink.

•Do not use corrosive

chemicals or vapors in this

appliance.

•Use this appliance only for

it’s intended use, asdescribed

in this manual.

•Do not store perishable food

items such as (but not limited

to) meats and dairy products

in your wine cooler.

•Store wine in sealed bottles

only.

•See door surface cleaning

instructions in the Care and

Cleaning section(s) of this

manual.

•Do not cover or block any

openings on the appliance.

•This appliance should be

serviced only by qualified serv-

ice personnel. Contact the

nearest authorized service

facility for examination, repair

or adjustment.

SAVE THESE INSTRUCTIONS!

DANGER, RISK OF CHILD ENTRAPMENT!

An empty wine cooler is a very dangerous attraction to children. Remove either the gasket,

latches, lids, lock and/or doors from unused or discarded appliances, or take some other action

to guarantee it harmless.

DON’T WAIT, DO IT NOW!

Toreduce the risk of fire, burns, electric shock, or injury to persons when using your appliance,

follow basic precautions, including the following sections;

This appliance must be

grounded. In the event of an

electrical short circuit, ground-

ing reduces the risk of electric

shock by providing an escape

wire for the electric current.

This appliance is equipped

with a power cord having a

grounding wire with a ground-

ing plug. The plug must be

plugged into an outlet that is

properly installed and ground-

ed.

Consult a qualified electrician

or service technician if the

grounding instructions are not

completely understood, or if

doubt exists as to whether the

appliance is properly ground-

ed.

If the outlet is a standard 2-

prong wall outlet, it is your per-

sonal responsibility and obliga-

tion to have it replaced with a

properly grounded 3-prong

wall outlet.

For best operation, plug this

appliance into its own electri-

cal outlet to prevent flickering

of lights, blowing of fuse or

tripping of circuit breaker.

Do not under any circum-

stances cut or remove the

third (ground) prong from the

power cord.

Do not use an adapter plug

with this appliance.

Do not use an extension

cord with this appliance. If the

power cord is too short, have

aqualified electrician or serv-

ice technician install an outlet

near the appliance.

GROUNDING

INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

WARNING

Improper use of the

grounding plug can result

in a risk of electric shock.

Operating Instructions

1. Tempered Glass Door: Tinted for UV

protection while still allowing for easy interior

viewing.

2. Electronic Controls: For regulating

the temperature of the wine cooler.

3. Magnetic Door Gasket: Tight fitting

seals retain all the cooling power and humid-

ity levels.

4.Shelves: Partially slide out for easy

access to your wine.

5. Child Proof Lock

6. Front Mounted Exhaust: Allows for

integrated (built-in) applications.

7. Interior Light Toggle Switch: To

manually illuminate/extinguish the interior

lights, while door remains closed.

8. Leveling Legs

9. Interior Lights (

not shown

Illuminates the compartment when the door

is opened.

Features of your

Wine Cooler

Operating Instructions

2345

Setting the

Temperature

•To switch the display

between the Fahrenheit (°F)

and Celsius (°C) scale,

depress the ‘Set Upper’ and

‘Set Lower’ control buttons

simultaneously for approximate-

ly five (5) seconds.

•The temperature range can

be set as low as 39°F(4°C) or

as high as 64°F(18°C) to suit

your specific wine storage

requirements. Each depres-

sion of the ‘Set Upper’ or ‘Set

Lower’ button will allow you to

adjust the temperature in 1°

degree increments within the

aforementioned range.

•You may view your ‘set’ tem-

perature at any time by briefly

depressing either the ‘Set

Upper’ or ‘Set Lower’ button.

The

set

temperature will flash

in the display area for 5 sec-

onds before the display

resumes showing the

current

cabinet temperature.

Please note: In the event of a

power failure or interruption,

all modified settings are lost

and the default settings are

used once power resumes.

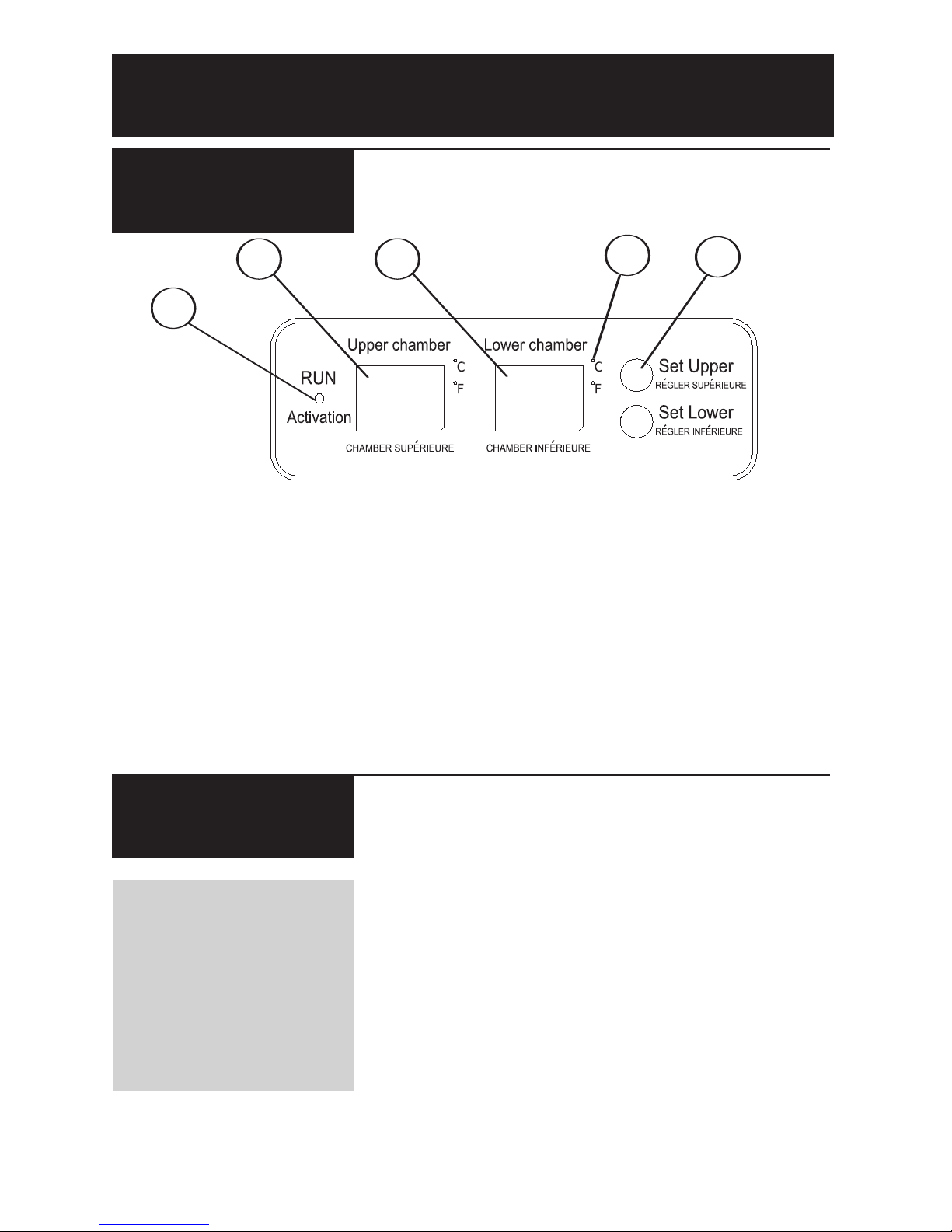

The Controls of

your Wine Cooler

1. Run: Indicator light illuminates to signify

the cooling mode is currently in opera-

tion.

2. Upper Chamber Display: Display

screen shows current cabinet tempera-

ture and set temperature of the upper

zone.

3. Lower Chamber Display: Display

screen shows current cabinet tempera-

ture and set temperature of the lower

zone.

4. C° / F°

Adjacent indicator light denotes which

scale of temperature is displayed.

5. ‘Set Upper’ Button - Used to set the

temperature in the upper zone (see

‘Setting the Temperature below).

‘Set Lower’ Button - Used to set the

temperature in the lower zone (see

‘Setting the Temperature below).

When you plug in your

wine cooler for the first

time, the temperature will

automatically be set to

45°F (7°C) and 54°F (12°C)

in the lower and upper

compartments respective-

ly,and will be displayed

in the Fahrenheit scale

Operating Instructions

Inorder to achieve the maxi-

mum storage capacity of fifty-

one (51) bottles, it will be

necessary to position the bot-

tles alternately on the upper

five (5) shelves, as shown in

Fig A.This will allow for the

storage of nine (9) 750 ml

bottles per shelf in each of

the top five shelves, and six

(6) bottles on the bottom shelf

(Fig B)for a total storage

capacity of fifty-one (51) wine

bottles.

If humidity conditions are low,

it will be necessary to use the

humidors. Fill the humidors

about 3/4 full with fresh water,

and place one humidor on the

bottom shelf of each section.

Check the water level occa-

sionally and refill as necessary.

NOTE: The use of the hum-

diors will reduce the storage

capacity of the shelves on

which they are placed on by

Wine

Storage

The *

maximum

capacity of

the DWC516 is 51 (750ml)

wine bottles.

When stocked as per

instructions and when the

humidors are not in use.

Fig A Fig B

Shelf Instructions

Lock

Screw Shelf

Stopper

To remove a shelf from it’s

locked position, remove the

shelf stoppers located on

either side of the shelf as

shown in Fig C, and pull out-

ward.

To re-install, ensure the shelf

is resting securely on the

support brackets and push

the shelf in completely, then

re-install the shelf stoppers.

Please Note: The bottom

shelf is not secured in place

(locked). Do not attempt to

pull on the shelf when it is

stocked.

IMPORTANT!

Do not cover shelves with

aluminum foil or any other

material that will prevent

adequate air circulation

within the cabinet.

Fig C

Installation Instructions - Integrated Application

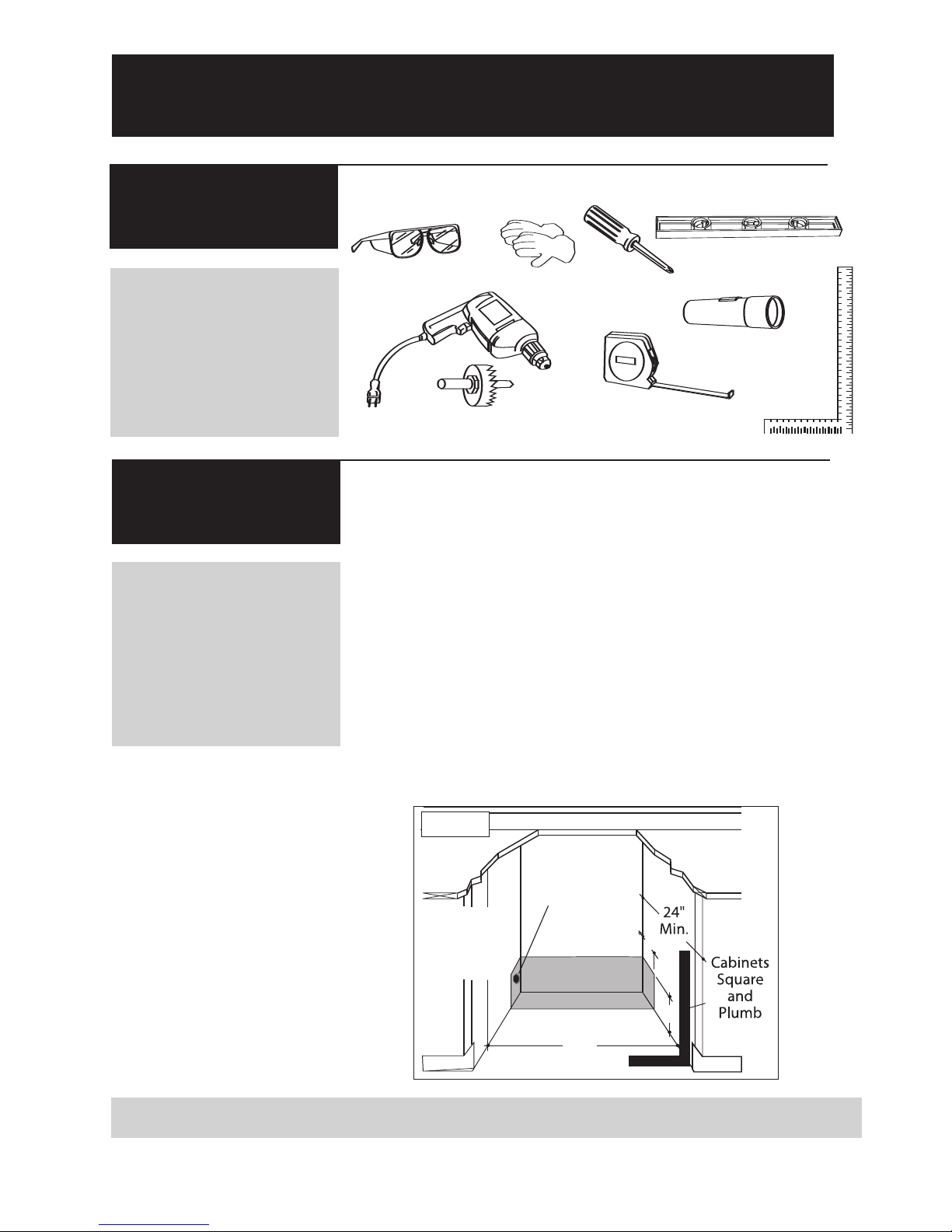

Preparing the

Enclosure

FOR YOUR SAFETY:

While performing

installations described in

this section, gloves, safety

glasses or goggles should

be worn.

34-½" From

Underside of

Countertop to

Floor

Electrical Access

1-½" dia. hole

*If electrical

outlet is in

adjacent

cabinetry *

24"

Tools You Will

Need

Carpenter’s

Square

Measuring

Tape

Level

Drill & Hole Saw set

Gloves

Safety Glasses

Flashlight

Electrical Requirements:

The appliance must be

connected to an individual

properly grounded electrical

outlet, protected by a 15

ampere circuit breaker or

time delay fuse.

Important: It is recommended

that you install the wine cooler in

alocation that allows the door to

have a greater then 45° opening

swing. Alimited door swing will

prevent the shelves from sliding

out as intended, and may lead

to damaging the door gasket.

•The rough cabinet opening

must be on a level floor area

and at least 24” deep*by 12-1/2”

wide. The opening should also

have a height of at least 34-1/2”.

•The electrical outlet may be

positioned from within either

side of the adjacent cabinetry,or

the rear of the shaded area (as

shown in Fig C.).

Note: If the electrical outlet is

surface mounted (not flush) within

the enclosure, the

depth

requirment for the installation

will be affected.

•If the electrical outlet is located

inside the adjacent cabinetry,cut

a1-1/2” diameter hole to admit

the power cord.

Fig C

*The listed depth requirment for the installation is assuming that the electrical outlet is located in the adja-

cent cabinetry or is flush mounted in the rear wall, not surface mounted in the enclosure.

Philips

Screwdriver

Installation Instructions - Door Swing Reversal

FIG 1A

1. Unplug the unit from electrical oulet (if connect-

ed) and lay it on it’s back.

2. Open the door until the screws securing the

lower door support bracket are exposed on the

bottom of the door (Fig 1B).

3. Remove the screw that is closest to the hinge assem-

bly and gently close the door to remove the remaining

screw from the support bracket.

4. Swing the door slightly towards the left side in

order to remove the support bracket from the door

and the lower hinge assembly.

5. Pull the door downward to remove it from the

cabinet of the wine cooler.

6. Remove the cap from the top left side of the

door (Fig 1D)and reinstall it on the top right side.

7. Remove the three (3) screws supporting the

top hinge (Fig 1A)and the three (3) screws sup-

porting the bottom

hinge.

8. Remove the plastic caps from the left side of

the frame (Fig 1C)and reinstall them on the right

side of the frame (the previous hinge location).

9. Install the new left hand hinge assembly (sup-

plied with unit) on the left side of the frame.

10. Insert the lower door support into the left side

bottom hinge.

11. Carefully reposition the door firstly into the left

side upper hinge assembly then onto the lower

door support bracket.

12. While the door remains closed install the first

screw into the lower support bracket.

13. Open the door and install the screw that is

closest to the hinge assembly.

14. Close the door and return the unit into it’s

upright position (wait 60 mins before reconnect-

ing power to the wine cooler), verify the door

alignment and proper seal against the cabinet.

FIG 1C Plastic Caps (3)

Upper Hinge

FIG 1D

Door Plug

Lower Hinge Assembly

and Door Support Bracket

FIG 1B

Indice

Lingue:

Altri manuali Danby Elettrodomestico da cucina

Danby

Danby Designer DWC3509EBLS Istruzioni per il montaggio

Danby

Danby Silhouette DWC1534 Manuale utente

Danby

Danby DWC114KD1BSS Manuale utente

Danby

Danby DBC045L1SS Manuale utente

Danby

Danby DWC172BLPDB Manuale utente

Danby

Danby DWC123BLSDD Istruzioni per il montaggio

Danby

Danby Designer DBC434A1BSSDD Manuale utente

Danby

Danby Silhouette PROFESSIONAL DBC031D3BSSPR Istruzioni per il montaggio

Danby

Danby Designer DBC434A1BSSDD Manuale utente

Danby

Danby Silhouette DBC031D4BSSPR Manuale utente

Danby

Danby DWC310BLA Istruzioni per il montaggio

Danby

Danby DWC040D2BSSDB Manuale utente

Danby

Danby DBC045L1SS Manuale utente

Danby

Danby DBC120CBLS Manuale utente

Danby

Danby Designer DWC114BLSDD Manuale utente

Danby

Danby Silhouette SBC051D1BSS Manuale utente

Danby

Danby DWC93BLSDB Manuale utente

Danby

Danby DBC128BLS Istruzioni per il montaggio

Danby

Danby DWC040A3BSSDD Manuale utente

Danby

Danby DBC93BLSDD Manuale utente

Danby

Danby Maitre'D DWC1646BL-SC Manuale utente

Danby

Danby DWC120KD1BSS Manuale utente

Danby

Danby Silhouette Professional DBC056D4BSSPR Istruzioni per il montaggio

Danby

Danby DBC121A1BLP Manuale utente

Manuali Elettrodomestico da cucina popolari di altre marche

Tayama

Tayama TYG-35AF Manuale utente

AEG

AEG 43172V-MN Manuale utente

REBER

REBER Professional 40 Guida utente

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuale utente

Presto

Presto fountain popper Manuale utente

Westmark

Westmark 1035 2260 Manuale utente

Zanussi

Zanussi ZCG64396XA Manuale utente

HOFFEN

HOFFEN SM-9302M Manuale utente

Philips

Philips HD3133 Manuale utente

Ronco

Ronco Beef Jerky Manuale utente

Hendi

Hendi 470411 Manuale utente

Livoo

Livoo MEN386 Manuale utente

Vogue

Vogue D446 Manuale utente

croydon

croydon WR-10313-700 Manuale utente

ADE

ADE AUTOMATIC-L Manuale utente

Chefman

Chefman RJ43-SQ Series Manuale utente

Vacmaster

Vacmaster VP680 Manuale utente

Jetmaster

Jetmaster 900HG Manuale utente
