Dell PowerEdge C8000 Manuale utente

Dell PowerEdge C8000XD

Hardware Owner’s

Manual

Regulatory Model: B06B

Regulatory Type: B06B002

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

____________________

Information in this publication is subject to change without notice.

Reproduction of these materials in anymanner whatsoever without the written permissionof Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.

Intel is a registered trademark of Intel Corporation in the United States or other countries.

Othertrademarksandtradenamesmaybeusedinthispublicationtorefertoeithertheentitiesclaiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Regulatory Model B06B

Regulatory Type: B06B002

2012 - 07 P/N XXXXX Rev. A00

Contents 3

Contents

1 About Your System . . . . . . . . . . . . . . . . . . 7

Front-Panel Features and Indicators . . . . . . . . . . . 7

Hard-Drive Features . . . . . . . . . . . . . . . . . . . . 9

Hard-Drive Bay Numbering. . . . . . . . . . . . . . 9

Hard-Drive Indicator Patterns . . . . . . . . . . . 10

SAS Connectors Features . . . . . . . . . . . . . . . . 14

Expander Configuration Mode . . . . . . . . . . . 15

Service Tag. . . . . . . . . . . . . . . . . . . . . . . . 20

Other Information You May Need . . . . . . . . . . . . 21

2 Installing System Components . . . . . . . . 23

Safety Instructions. . . . . . . . . . . . . . . . . . . . 23

Recommended Tools. . . . . . . . . . . . . . . . . . . 24

Inside the System . . . . . . . . . . . . . . . . . . . . 25

Sled. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Opening the Sled . . . . . . . . . . . . . . . . . . 26

Closing the Sled. . . . . . . . . . . . . . . . . . . 26

Removing a Sled . . . . . . . . . . . . . . . . . . 27

Installing a Sled. . . . . . . . . . . . . . . . . . . 28

4Contents

Sled Blank . . . . . . . . . . . . . . . . . . . . . . . . 28

Removing a Sled Blank . . . . . . . . . . . . . . . 28

Installing a Sled Blank . . . . . . . . . . . . . . . 29

Hard-Drives. . . . . . . . . . . . . . . . . . . . . . . . 29

Hard-Drive Configuration . . . . . . . . . . . . . . 29

Hard-Drive Installation Guidelines . . . . . . . . . 30

Standard Hard-Drive Carrier . . . . . . . . . . . . 31

Removing a Standard Hard-Drive Carrier . . . . . 31

Installing a Standard Hard-Drive Carrier . . . . . . 32

Removing a 3.5-inch Hard-Drive From

a Standard Hard-Drive Carrier . . . . . . . . . . . 33

Installing a 3.5-inch Hard-Drive Into

a Standard Hard-Drive Carrier . . . . . . . . . . . 35

Flexible Hard-Drive Carrier . . . . . . . . . . . . . 35

Removing a Flexible Hard-Drive Carrier . . . . . . 35

Installing a Flexible Hard-Drive Carrier . . . . . . 37

Removing a 2.5-inch Hard-Drive From

a Flexible Hard-Drive Carrier . . . . . . . . . . . . 37

Installing a 2.5-inch Hard-Drive Into

a Flexible Hard-Drive Carrier . . . . . . . . . . . . 39

Expansion Hard-Drive Carrier . . . . . . . . . . . 39

Removing an Expansion Hard-Drive Carrier . . . . 39

Installing an Expansion Hard-Drive Carrier. . . . . 41

Removing a SSD Hard-Drive Carrier . . . . . . . . 41

Installing a SSD Hard-Drive Carrier . . . . . . . . 42

Removing a 2.5-inch SSD Hard-Drive

From a SSD Hard-Drive Carrier . . . . . . . . . . . 43

Installing a 2.5-inch SSD Hard-Drive

Into a SSD Hard-Drive Carrier . . . . . . . . . . . 44

Removing a SSD Hard-Drive Carrier

From an Expansion Hard-Drive Carrier . . . . . . . 45

Installing a SSD Hard-Drive Carrier

Into an Expansion Hard-Drive Carrier . . . . . . . 46

Contents 5

Removing the Hard-Drive Backplane

From an Expansion Hard-Drive Carrier. . . . . . . 47

Installing a Hard-Drive Backplane

Into an Expansion Hard-Drive Carrier . . . . . . . 48

3 Troubleshooting . . . . . . . . . . . . . . . . . . . 51

Safety First—For You and Your System . . . . . . . . . 51

Installation Problems . . . . . . . . . . . . . . . . . . 51

Troubleshooting External Connections . . . . . . . . . 52

Troubleshooting a Sled . . . . . . . . . . . . . . . . . 52

Troubleshooting a Hard-Drive . . . . . . . . . . . . . . 52

Hard-Drive Not Recognized . . . . . . . . . . . . 53

Hard-Drive Indicator Does Not Light . . . . . . . . 53

Troubleshooting the SAS Expander Board . . . . . . . 54

Troubleshooting the External SAS Connection . . . . . 54

Troubleshooting the Hard-Drive Backplane . . . . . . 55

Troubleshooting the Node Power Distribution

Board . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Checking the Expander Firmware Version . . . . . . . 56

4 Jumpers and Connectors . . . . . . . . . . . . 57

Hard-Drive Backplane Connectors . . . . . . . . . . . 57

SAS Expander Board Connectors . . . . . . . . . . . . 60

Node Power Distribution Board Connectors . . . . . . 61

6Contents

5 Getting Help . . . . . . . . . . . . . . . . . . . . . . 63

Contacting Dell . . . . . . . . . . . . . . . . . . . 63

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

About Your System 7

About Your System

Front-Panel Features and Indicators

Figure 1-1. Front-Panel Features and Indicators

Item Indicator, Button, or

Connector

Icon Description

1 Handle Hold to pull the hard-drive cage from the

sled.

910

8About Your System

2 External mini-SAS

connector A1

Connects to a compute sled’s host bus

adapter (HBA) or RAID HBA. When you

configure zoning for the storage sled, the

external mini-SAS connector becomes

zone group 0.

3 External mini-SAS

connector A2

Connects to a compute sled’s host bus

adapter (HBA) or RAID HBA. When you

configure zoning for the storage sled, the

external mini-SAS connector becomes

zone group 1.

4, 8 Sled power/status

indicator

The power/status indicator lights green

when the sled power is on and power is

applied to the SAS expander board.

The power/status indicator alternately

lights green and blinks amber when a

critical event occurs.

5, 9 Sled identification

indicator

Lights blue to identify a particular mini-

SAS connector and sled.

6 External mini-SAS

connector B1

Connects to a compute sled’s host bus

adapter (HBA) or RAID HBA. When you

configure zoning for the storage sled, the

external mini-SAS connector becomes

zone group 2.

7 External mini-SAS

connector B2

Connects to a compute sled’s host bus

adapter (HBA) or RAID HBA. When you

configure zoning for the storage sled, the

external mini-SAS connector becomes

zone group 3.

10 Sled release tab Press to release the sled from the

enclosure.

11 Hard-drive cage release

latch

Press to release the hard-drive cage from

the sled.

Item Indicator, Button, or

Connector

Icon Description

About Your System 9

Hard-Drive Features

The C8000XD storage sled is available with 12-drive or 24-drive option. All

hard-drives are mounted in special hard-drive carriers and connect to the

hard-drive backplane inside the sled.

• Standard hard-drive carrier supports 3.5-inch SAS/SATA/SSD hard-drive.

• Flexible hard-drive carrier supports 2.5-inch SAS/SATA/SSD hard-drive.

• Expansion hard-drive carrier supports two 2.5-inch SSD hard-drives.

The 12-drive configuration installs 12 standard or flexible hard-drive carriers.

The 24-drive configuration installs 12 expansion hard-drive carriers. See

"Hard-Drive Indicator Patterns" on page 10 for information on the hard-drive

indicators on the sled. Different patterns are displayed as drive events occur

in the sled.

Hard-Drive Bay Numbering

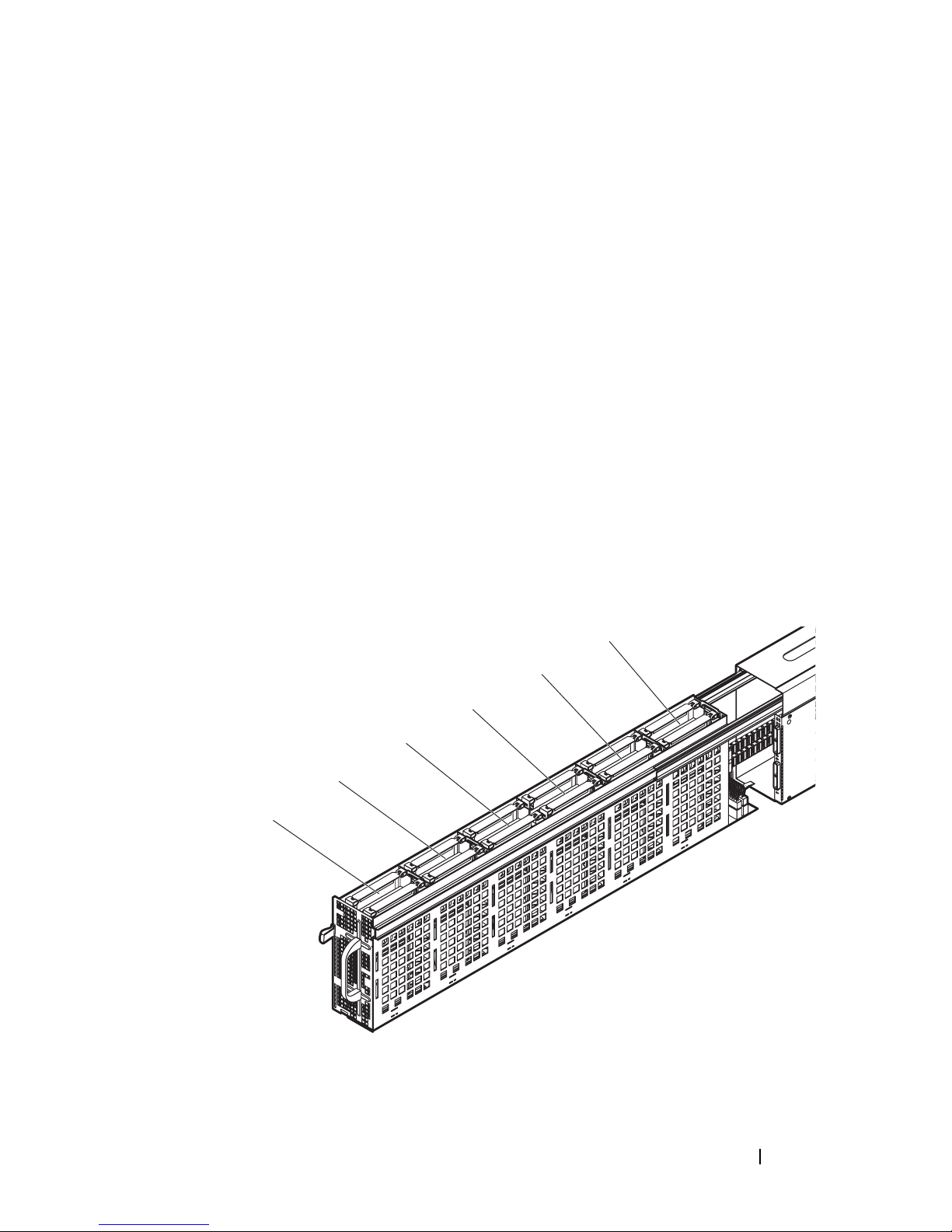

Figure 1-2. 12-Drive Bay Numbering

11, 10

1, 0

9, 8

7, 6

5, 4

3, 2

10 About Your System

Figure 1-3. 24-Drive Bay Numbering

Hard-Drive Indicator Patterns

The C8000XD sled hard-drive backplanes include a hard-drive activity LED

and two bi-colored hard-drive status and fault LEDs per drive. The state of

the hard-drive backplane indicators alerts you to the condition of the hard-

drives in the sled. You can view the status of the hard-drive indicators on the

backplane by opening the sled (See "Opening the Sled" on page 26). The

hard-drive indicators are visible on both sides of the bottom edge of the hard-

drive cage.

The following illustrations show the location of the hard-drive indicators in a

12-drive or 24-drive bay sled.

23, 22, 21, 20

3, 2, 1, 0

19, 18, 17, 16

15, 14, 13, 12

11, 10, 9, 8

7, 6, 5, 4
