Desoutter 6158129960 Manuale utente

www.desouttertools.com

Part no 6159923640

Issue no 02

Date 07/2017

Page 1 / 40

Geoloc tag holder

User manual

Model Part number

Geoloc tag holder for EABC-eLINK 6158129960

Geoloc tag holder for EPBC 6158129970

For models Part number

EABC15-900-eLINK 6151660500

EABC26-560-eLINK 6151660510

EABC32-410-eLINK 6151660520

EABC45-330-eLINK 6151660530

EABC50-450-eLINK 6151660540

EABC60-370-eLINK 6151660550

EABC75-300-eLINK 6151660560

EABC95-240-eLINK 6151660570

For models* Part number

EPBC8-1800-10S 6151659040

EPBC8-1800-4Q 6151659000

EPBC14-900-10S 6151659790

EPBC14-900-4Q 6151659800

EPBC17-700-10S 6151659020

EPBC17-700-4Q 6151659060

* from Series F

6159923640_02

2 / 40 07/2017

Find more information and your Desoutter contacts on:

Software and documentation available at:

www.desouttertools.com

http://resource-center.desouttertools.com

6159923640_02

3 / 4007/2017

TECHNICAL DATA

Model Part number 2.67 Weight *

kg lb

EABC15-900-eLINK + Geoloc tag holder 6151660500 1.80 3.97

EABC26-560-eLINK + Geoloc tag holder 6151660510 1.85 4.08

EABC32-410-eLINK + Geoloc tag holder 6151660520 1.66 3.66

EABC45-330-eLINK + Geoloc tag holder 6151660530 1.97 4.34

EABC50-450-eLINK + Geoloc tag holder 6151660540 2.23 4.92

EABC60-370-eLINK + Geoloc tag holder 6151660550 2.55 5.62

EABC75-300-eLINK + Geoloc tag holder 6151660560 3.14 6.92

EABC95-240-eLINK + Geoloc tag holder 6151660570 3.18 7.01

EPBC8-1800-10S + Geoloc tag holder 6151659040 1.21 2.67

EPBC8-1800-4Q + Geoloc tag holder 6151659000 1.21 2.67

EPBC14-900-10S + Geoloc tag holder 6151659790 1.21 2.67

EPBC14-900-4Q + Geoloc tag holder 6151659800 1.21 2.67

EPBC17-700-10S + Geoloc tag holder 6151659020 1.21 2.67

EPBC17-700-4Q + Geoloc tag holder 6151659060 1.21 2.67

* without battery pack

Battery pack 36V 1.3Ah: 560 g

6159923640_02

4 / 40 07/2017

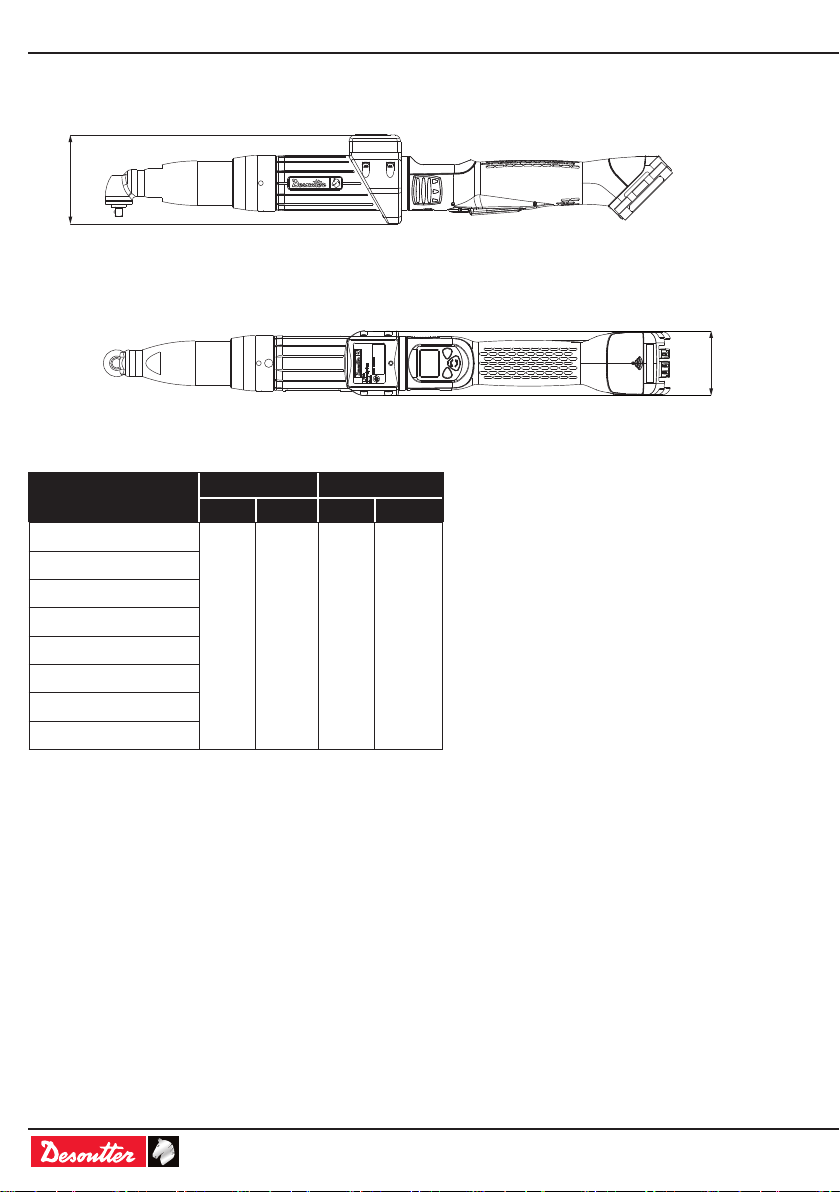

DIMENSIONING - EABC-eLINK equipped with Geoloc tag holder

Model A B

mm in. mm in.

EABC15-900-eLINK

74 2.91 54 2.13

EABC26-560-eLINK

EABC32-410-eLINK

EABC45-330-eLINK

EABC50-450-eLINK

EABC60-370-eLINK

EABC75-300-eLINK

EABC95-240-eLINK

6159923640_02

5 / 4007/2017

DIMENSIONING - EPBC equipped with Geoloc tag holder

Model A B C

mm in. mm in. mm in.

EPBC8-1800-10S

227 8.94 215 8.46 52 2.05

EPBC8-1800-4Q

EPBC14-900-10S

EPBC14-900-4Q

EPBC17-700-10S

EPBC17-700-4Q

6159923640_02

6 / 40 07/2017

INSTALLATION

AInserting the tag module

for EABC-eLINK tools for EPBC tools

Assy

by Hand

Assy

by Hand

1 Nm

+/- 15%

1 Nm

Assy

by Hand

Assy

by Hand

1 Nm

+/- 15%

1 Nm

Write by hand the MAC address

of the Ubisense tag module.

6159923640_02

7 / 4007/2017

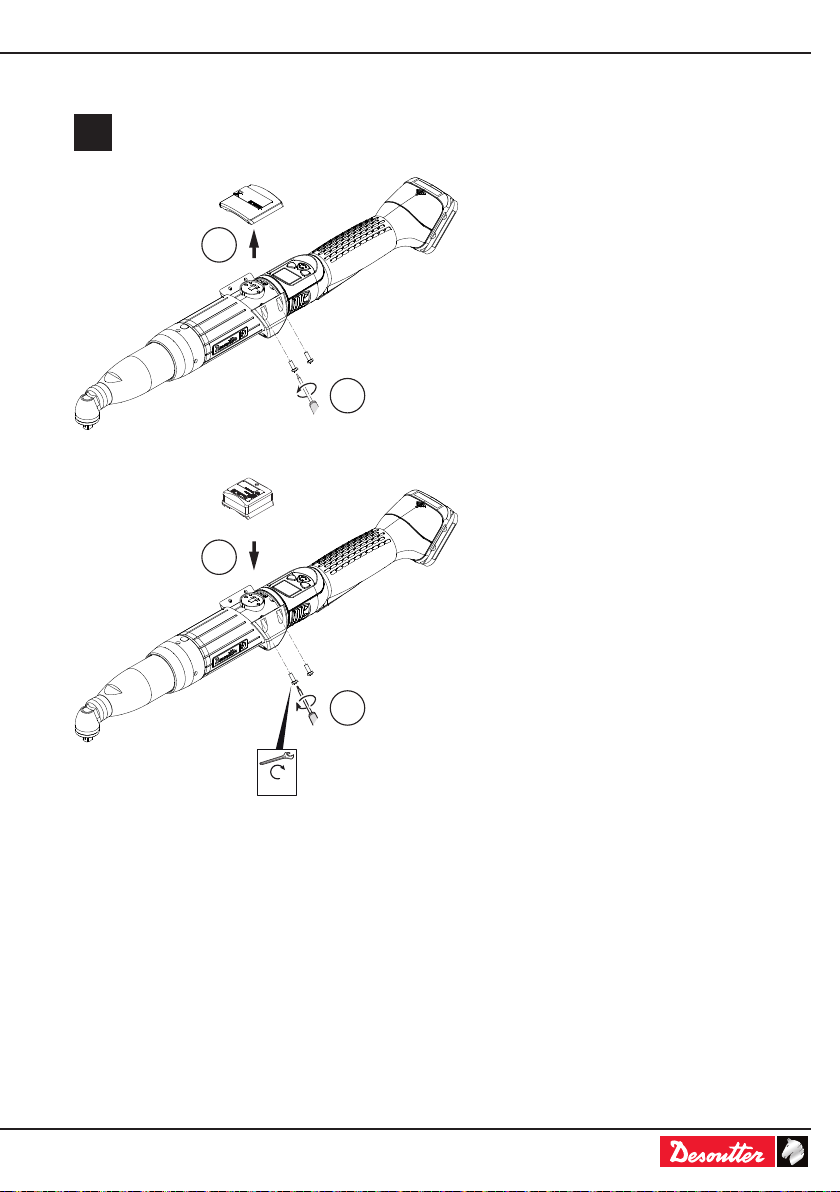

BMounting the tag holder on EABC-eLINK tools

INSTALLATION

1.2 Nm

6159923640_02

8 / 40 07/2017

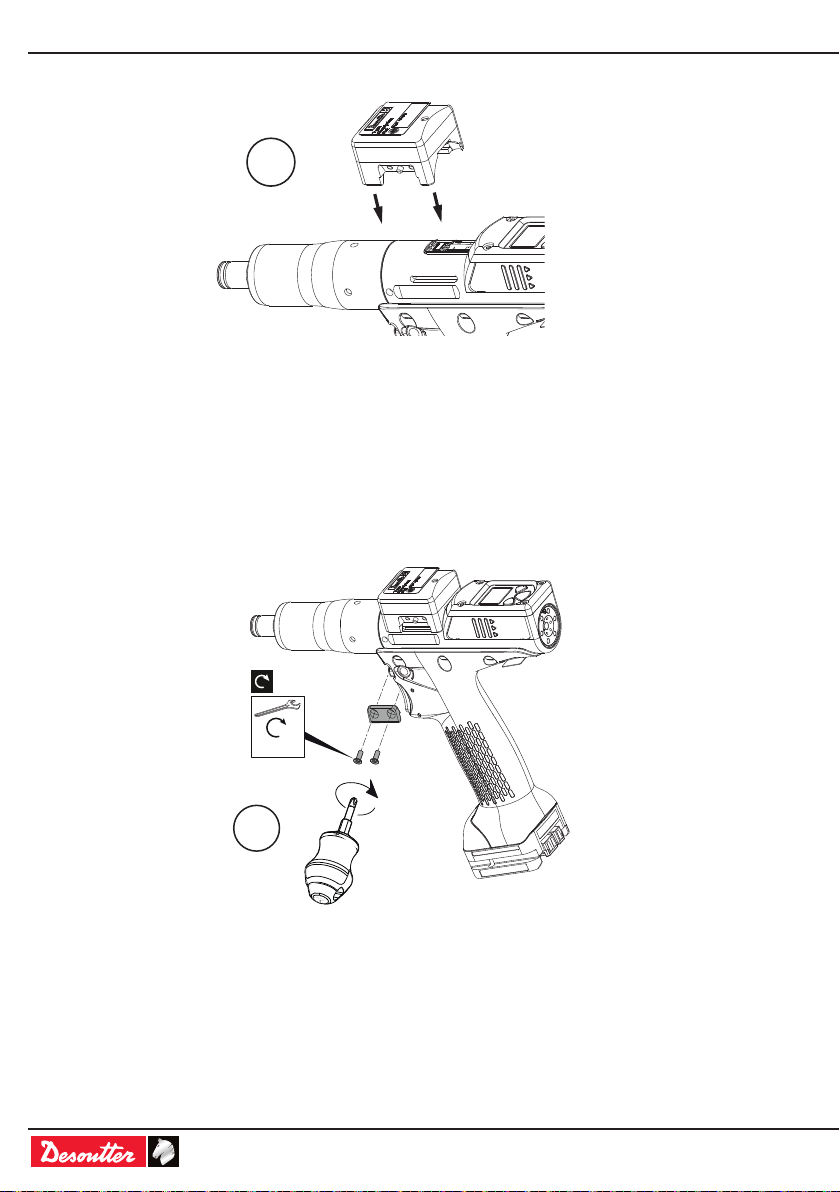

CMounting the tag holder on EPBC tools

INSTALLATION

Compatible with EPBC tools

from series F

6159923640_02

9 / 4007/2017

+/- 15%

0.8 Nm

6159923640_02

10 / 40 07/2017

+/- 15%

1 Nm
