Dynojet Power Commander 3 Manuale utente

330-411 www.powercommander.com 06-08 Suzuki M109R- 1

2006-2008 SUZUKI M109R / C109R

Installation Instructions

Parts List

1 Power Commander

1 Installation Guide

1 USB cable

1 CD-ROM

1 Power adapter

2 Dynojet decals

2 Power Commander decals

2 Velcro® Strip

1 Alcohol Swab

1 Port plug set

You can also download the

Power Commander software and

latest maps from our web site at:

www.powercommander.com

THE IGNITION MUST BE TURNED OFF BEFORE INSTALLATION!

PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION

Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993

FIG #

1 Remove the main seat and both side

covers.

2 Remove the fuel tank.

3 Remove the air box.

There are several hoses going into the

air box. We recommend referring to the

service manual for proper removal and

installation.

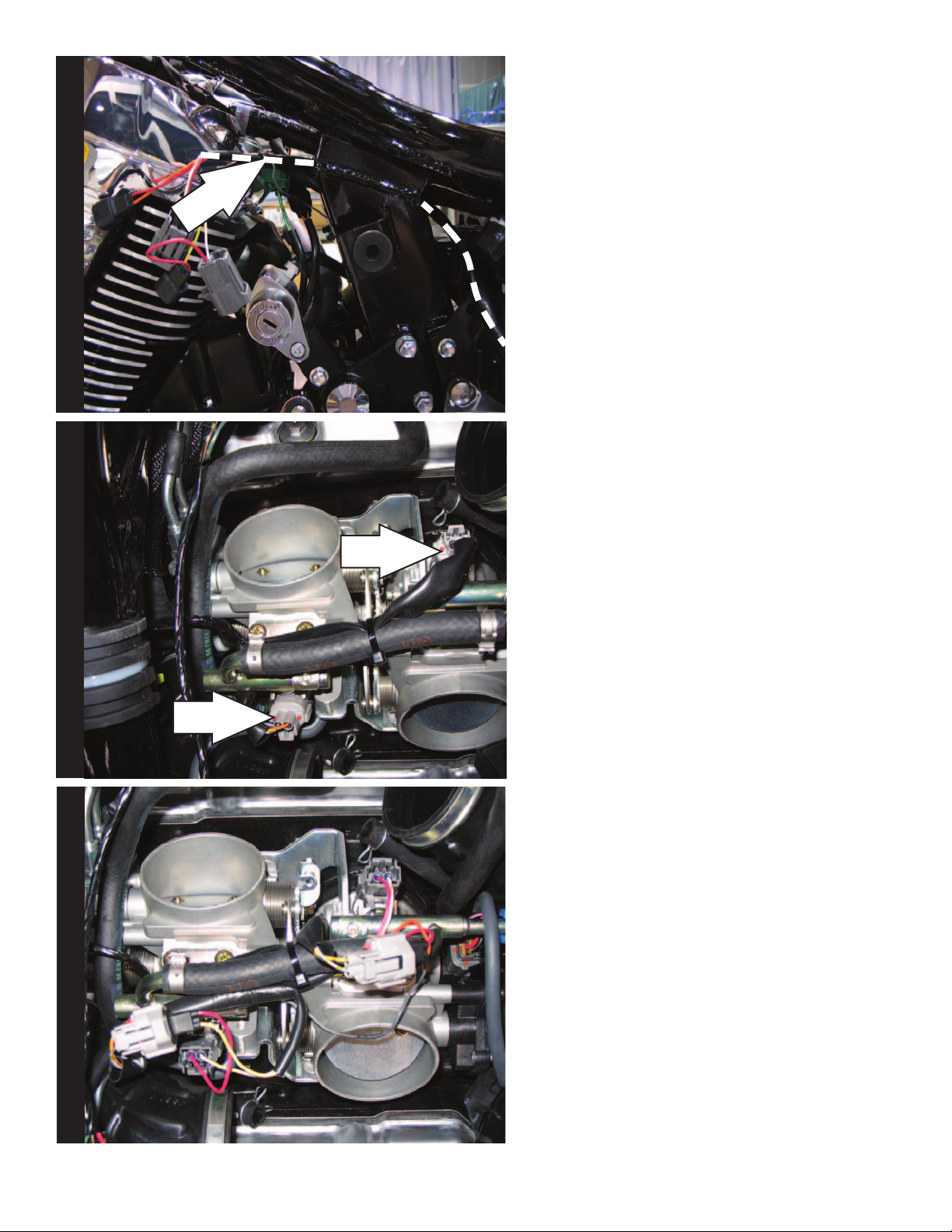

4 Route the wiring harness from the PCIII

behind the left hand side of the frame and

go towards the throttle bodies (Fig. A).

FIG A

5 Unplug the stock wiring harness from each

injector (Fig. B).

FIG B

FIG C

6 Plug the connectors from the PCV inline

of the stock injectors and the stock wiring

harness (Fig.C).

Orange - cylinder 1- front

Yellow - cylinder 2 - rear

PCV harness

Unplug

330-411 www.powercommander.com 06-08 Suzuki M109R - 3

FIG D

FIG E

FIG F

9 Route the ground wire from the PCIII thru

the front hole in the battery box.

10 Attach the ground wire from the PCIII to the

negative side of the battery (Fig. E).

11 Install the PCIII under the left hand side

cover. Zip tie the unit to the metal brace

near the ECU (Fig. F).

12 Reinstall air box and fuel tank.

7 Unplug the Throttle Position Sensor

connector (Fig. D).

This connector is located on the right hand

side of the throttle bodies and is GREY in

color.

8 Plug the PCIII connectors in-line of the

stock wiring harness and TPS

Unplug

Ground

330-411 www.powercommander.com 06-08 Suzuki M109R - 4

13 Plug the Dynojet O2 eliminator into the

stock wiring harness.

14 Route the O2 eliminator harness to the

inside of the frame near the thermostat

housing (Fig. G).

FIG G

15 Ground the other end of the Dynojet O2

eliminator to the bolt of the thermostat

housing (Fig. H).

FIG H

O2 eliminator

Ground

FIG J

16 Secure the PCIII in the tail section using

the supplied velcro. Make sure to use the

alcohol swab to clean both surfaces before

attaching.

17 Bolt the fuel tank back into place. Reinstall

the fairing and seats.
