Dynojet Power commander V Manuale utente
22-076 www.powercommander.com 2016 Yamaha Kodiak 700 - PCV F/I - 1
PARTS LIST
1 Power Commander
1 USB Cable
1 Installation Guide
2 Power Commander Decals
2 Dynojet Decals
2 Velcro strips
1 Alcohol swab
THE LATEST POWER COMMANDER
SOFTWARE AND MAP FILES CAN BE
DOWNLOADED FROM OUR WEB SITE AT:
www.powercommander.com
2016 Yamaha Kodiak 700
Installation Instructions
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
THE IGNITION MUST BE TURNED
OFF BEFORE INSTALLATION!
2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
FUEL AND IGNITION
22-076 www.powercommander.com 2016 Yamaha Kodiak 700 - PCV F/I - 2

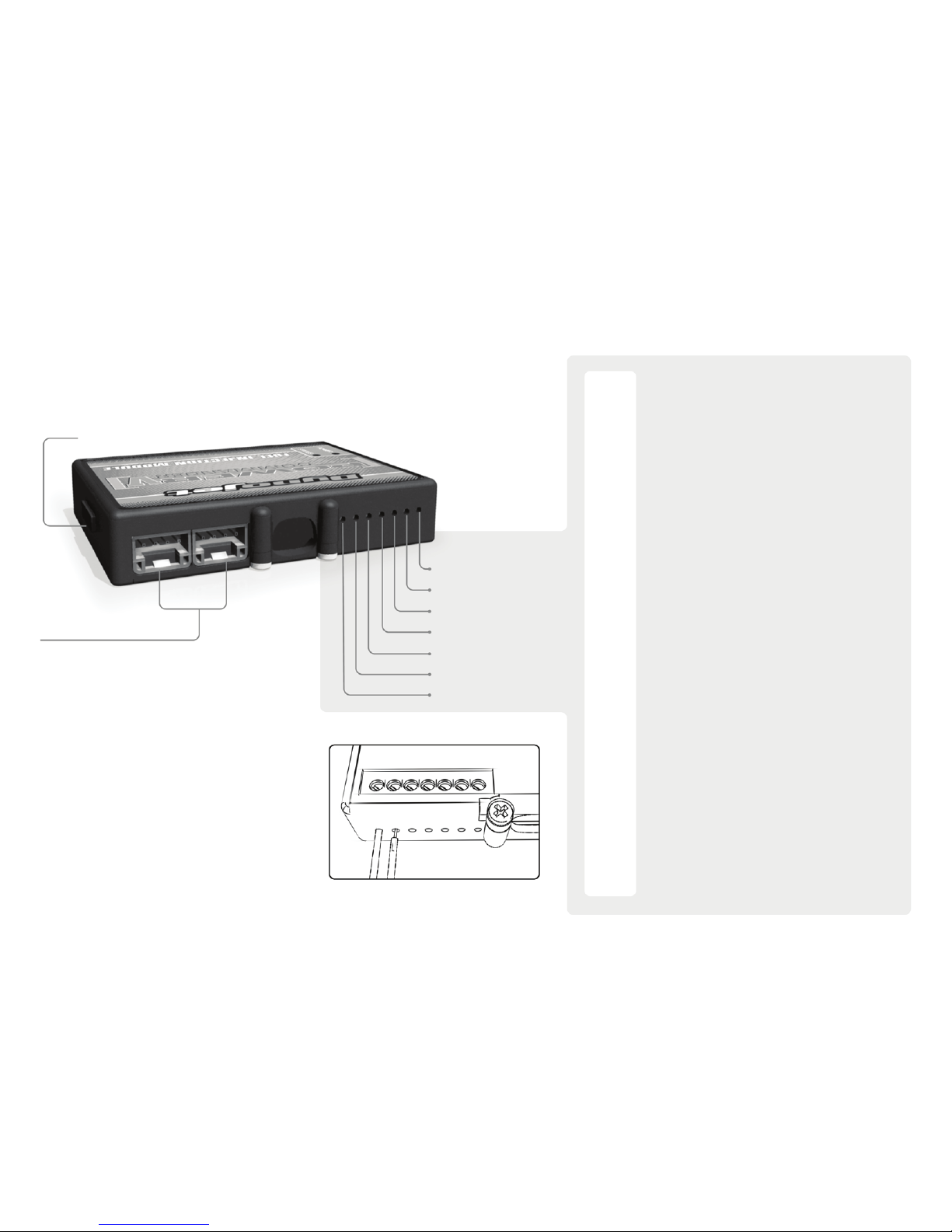

EXPANSION PORTS 1 & 2
Optional Accessories such as
POD-300 unit or Auto-tune kit.
POWER COMMANDER V
INPUT ACCESSORY GUIDE
Map - (Input 1 or 2) The PCV has the ability to hold
2 different base maps. You can switch on the
fly between these two base maps when you
hook up a switch to the MAP inputs. You can
use any open/close type switch. The polarity
of the wires is not important. When using the
Autotune kit one position will hold a base map
and the other position will let you activate the
learning mode. When the switch is “CLOSED”
Autotune will be activated. (Set to Switch
Input #1 by default.)
Shifter- (Input 1 or 2) These inputs are for use with the
Dynojet quickshifter. Insert the wires from the
Dynojet quickshifter into the SHIFTER inputs.
The polarity of the wires is not important. (Set
to Switch Input #2 by default.)
Speed- If your application has a speed sensor then
you can tap into the signal side of the sensor
and run a wire into this input. This will allow
you to calculate gear position in the Control
Center Software. Once gear position is setup
you can alter your map based on gear position
and setup gear dependent kill times when
using a quickshifter.
Analog- This input is for a 0-5v signal such as
engine temp, boost, etc. Once this input
is established you can alter your fuel curve
based on this input in the control center
software.
Crank- Do NOT connect anything to this port unless
instructed to do so by Dynojet. It is used to
transfer crank trigger data from one module to
another.
ACCESSORY INPUTS
Wire connections:
To input wires into the PCV first remove the rubber
plug on the backside of the unit and loosen the
screw for the corresponding input. Using a 22-24
gauge wire strip about 10mm from its end. Push the
wire into the hole of the PCV until is stops and then
tighten the screw. Make sure to reinstall the rubber
plug.
NOTE: If you tin the wires with solder it will make
inserting them easier.
CRANK
ANALOG
SPEED
INPUT 1 (Grnd)
INPUT 1
INPUT 2 (Grnd)
INPUT 2
USB CONNECTION
22-076 www.powercommander.com 2016 Yamaha Kodiak 700 - PCV F/I - 3

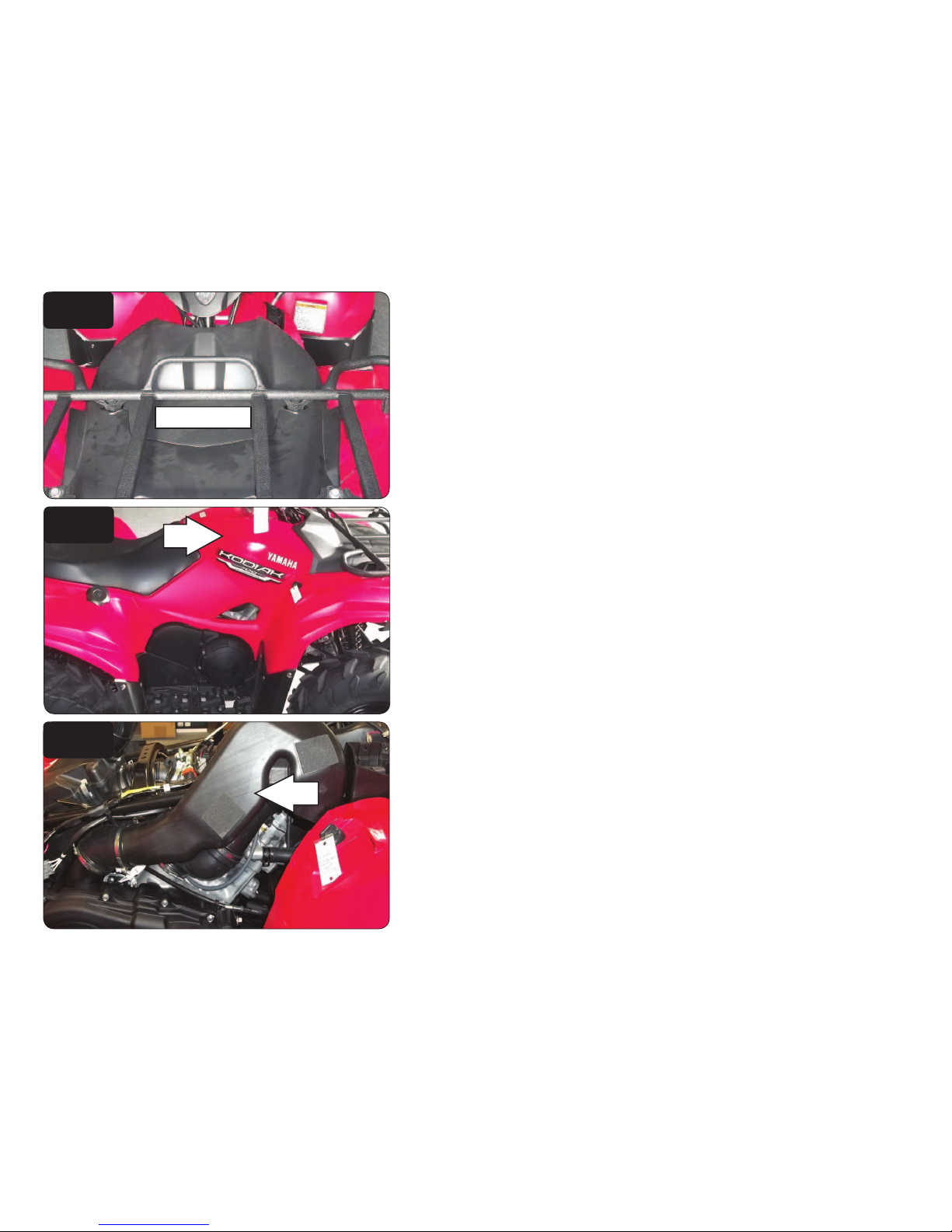

1 Remove the seat.
2 Remove the front covers (Fig. A).
3 Remove the right, top, and left side covers around the engine (Fig. B).
4 Remove the cargo box.
5 Remove the intake tube for the CVT clutch on the right hand side of the quad
(Fig. C).
This allows access to the Crank Position Sensor connectors.
6 Place the PCV in the battery area temporarily.
7 Route the PCV harness down the right hand side of the quad towards the
throttle body.
FIG.A
FIG.B
Remove this cover
Remove
Remove
FIG.C
22-076 www.powercommander.com 2016 Yamaha Kodiak 700 - PCV F/I - 4

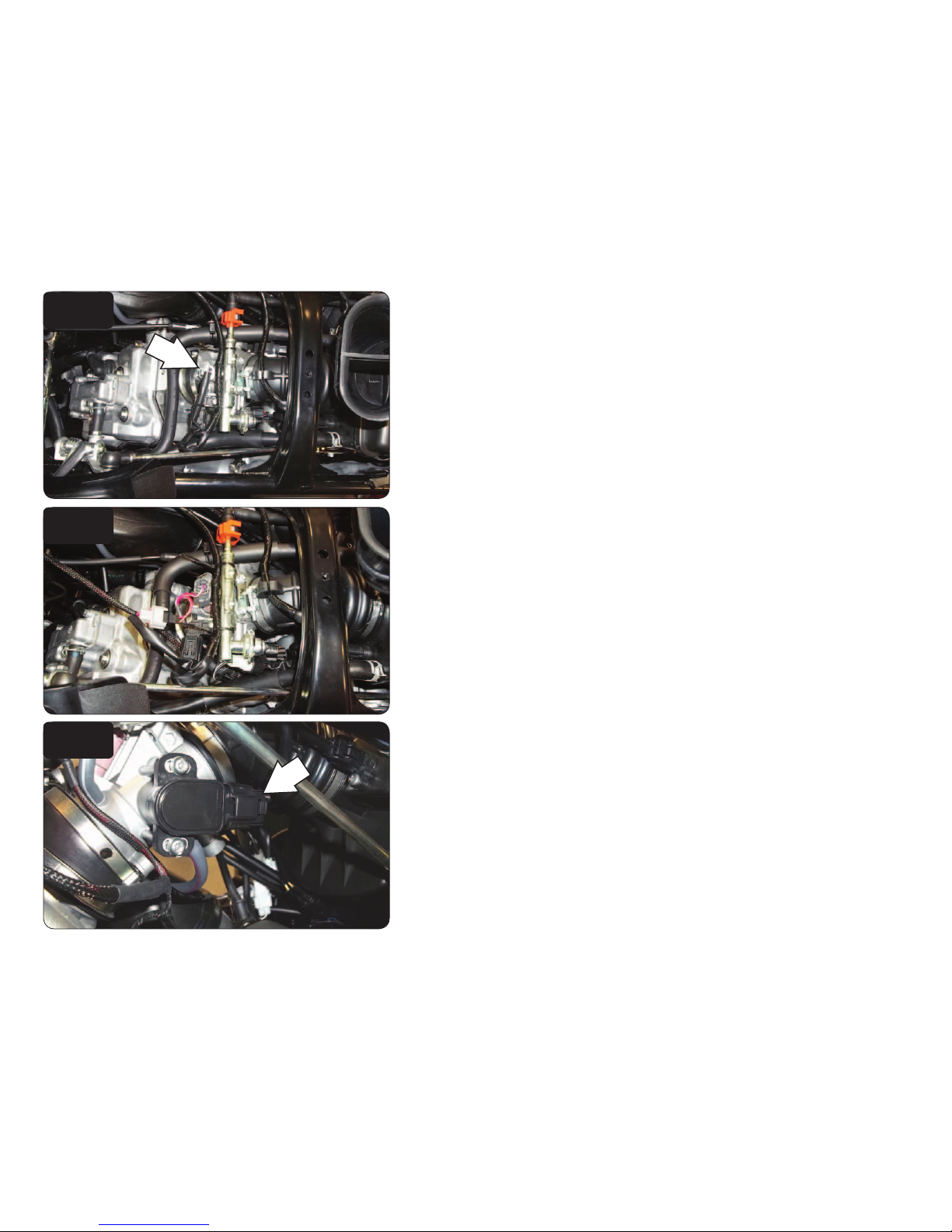

8 Unplug the stock wiring harness from the Fuel Injector (Fig. D).
The Fuel Injector is directly on top of the throttle body.
FIG.D
9 Plug the pair of PCV connectors with ORANGE colored wires in-line of the
stock wiring harness and the Fuel Injector (Fig. E).
FIG.E
FIG.F
10 Locate and unplug the stock wiring harness from the Throttle Position Sensor
(Fig. F).
The TPS is located on the left side of the throttle body.
Unplug
Unplug
22-076 www.powercommander.com 2016 Yamaha Kodiak 700 - PCV F/I - 5

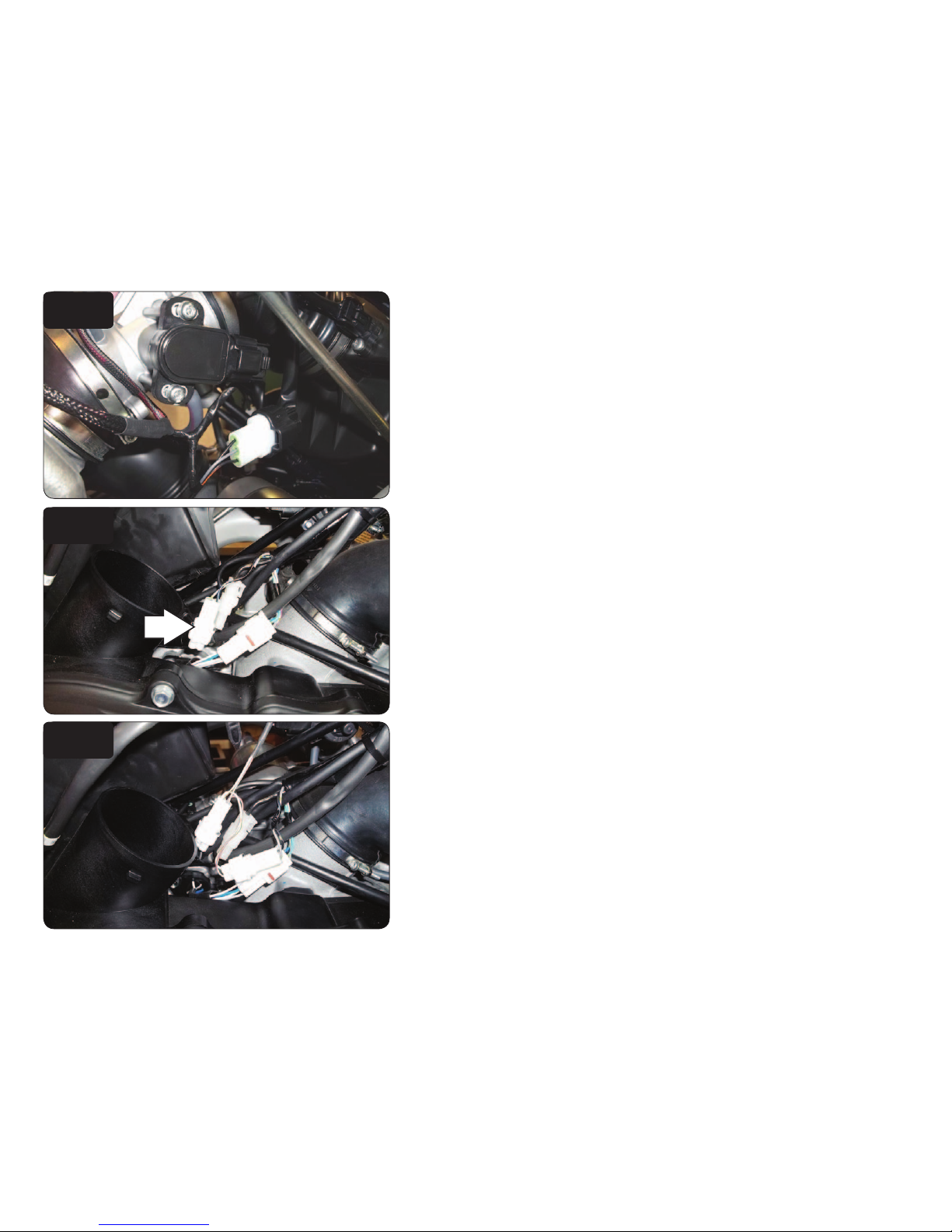

11 Plug the pair of 3-pin connectors of the PCV in-line of the Throttle Position
Sensor and the stock wiring harness (Fig. G).
FIG.G
12 Locate and unplug the stock connectors from the Crank Position Sensor
(Fig. H).
This is a pair of WHITE 2-pin connectors on the right side of the engine, just
above the CVT clutch belt housing.
FIG.H
FIG.J
13 Plug the WHITE 2-pin connectors from the PCV wiring harness in-line of the
stock Crank Position Sensor connectors (Fig. J).
Unplug
22-076 www.powercommander.com 2016 Yamaha Kodiak 700 - PCV F/I - 6

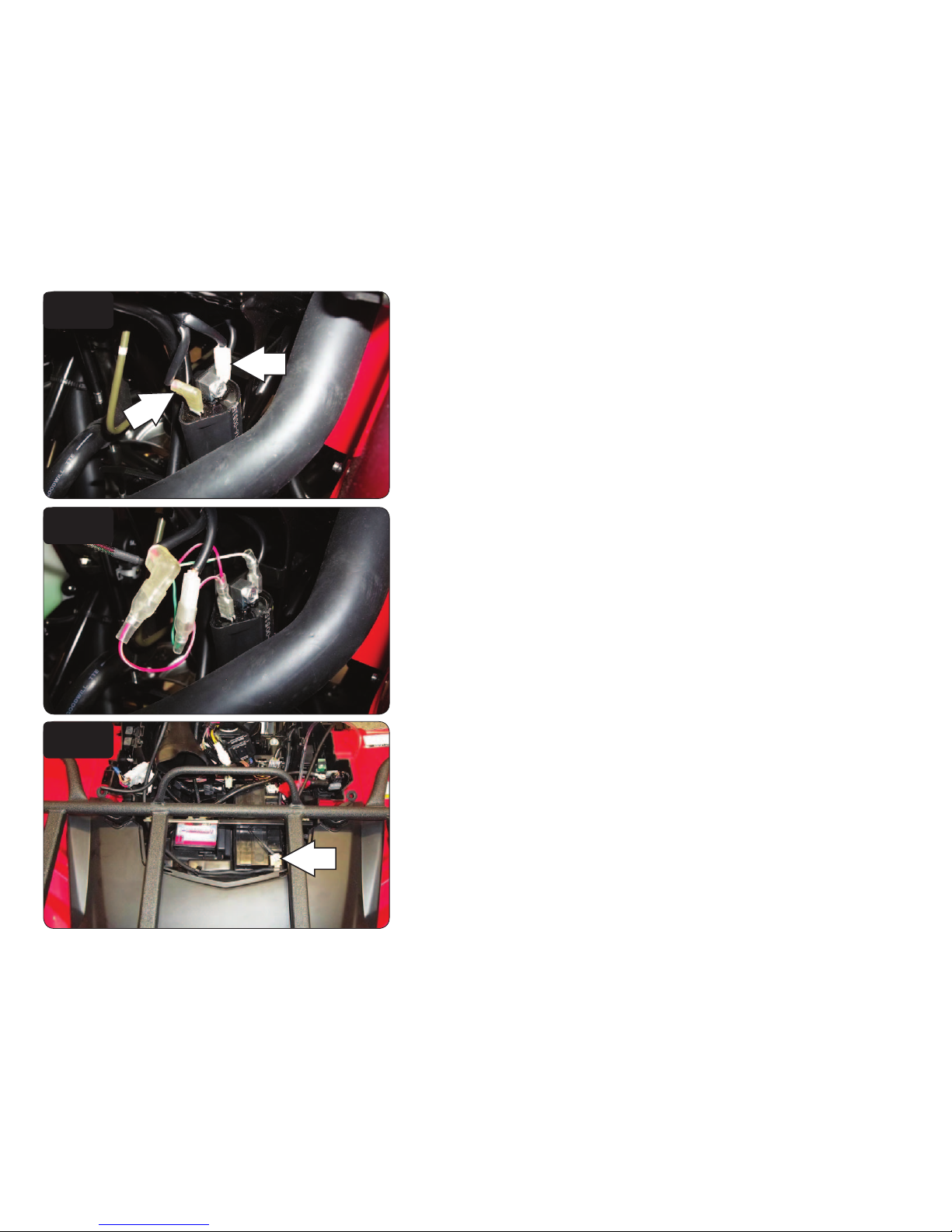

17 Attach the ground wire from the PCV to the negative side of the battery.
18 Install the included port covers onto your PCV.
19 Secure the PCV near the battery using the supplied Velcro (Fig. M).
Make sure to use the alcohol swab to clean both surfaces before attaching.
20 Reinstall the intake tube for the CVT clutch, the cargo box, the bodywork, the
and the seat.
FIG.M
Ground
14 Locate the Ignition Coil on the right side of the quad forward of the engine and
unplug the 2 stock coil wires (Fig. K).
The coil has 1 RED/BLACK wire and 1 ORANGE wire.
FIG.K
15 Plug the GREEN and WHITE/GREEN wires of the PCV wiring harness in-line
of the coil and the stock ORANGE wire.
16 Plug the RED/WHITE wires of the PCV wiring harness in-line of the coil and
the stock RED/BLACK wire (Fig. L).
FIG.L
Unplug
Unplug
