Dynojet POWER COMMANDER III Manuale utente

i209-411i209-411 www.powercommander.com 2003-2007 Kawasaki VN1600 - PCIII USB - 1

2003-2007 Kawasaki VN1600

Installation Instructions

Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com

Parts List

1Power Commander

1USB Cable

1CD-ROM

1Installation Guide

1Power Adapter

2Power Commander Decals

2 Dynojet Decals

2 Velcro®Strip

1Alcohol Swab

You can also download the Power

Commander software and latest maps

from our web site at:

www.powercommander.com

The ignition MUST be turned

OFF before installation!

PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION

Button Adjustment Display

Faceplate Buttons

USB Port

Expansion Port

1 Remove the main seat and the

passenger seat.

2Remove the fuel tank

Note: The installation can be done

without removing the fuel tank

but it may be easier to have it

removed

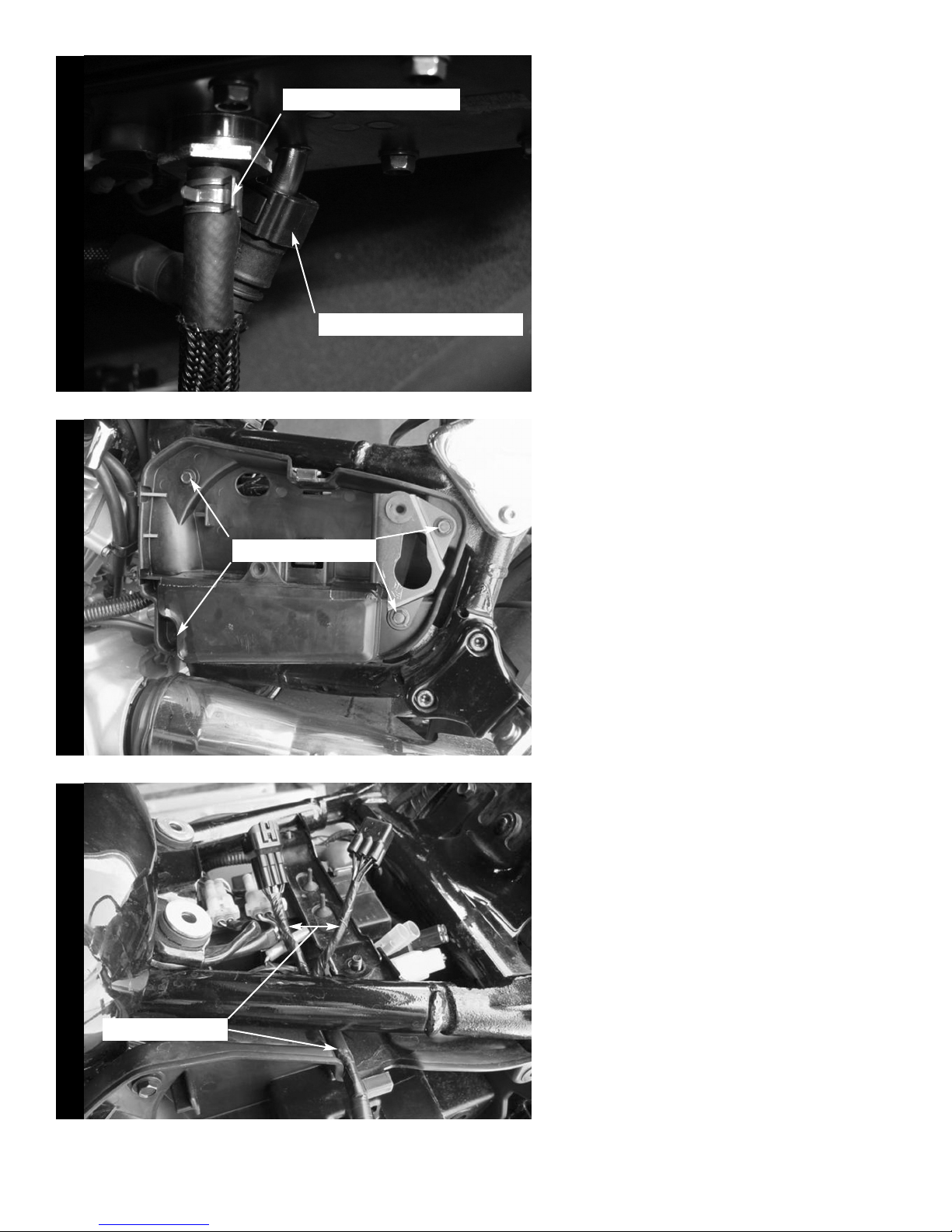

3 To remove the fuel line squeeze

the sides of the connector

(Fig. A). Disconnect the two

electrical connectors.

4Loosen the four bolts holding on

the left hand side cover (Fig. B).

5Route the PCIII harness between

the tray and the frame (Fig. C).

Fig. AFig. B

Fig. C

i209-411 www.powercommander.comi209-411 www.powercommander.com 2003-2007 Kawasaki VN1600 - PCIII USB - 2

Disconnect these lines

Squeeze this line to remove

Loosen these bolts

PCIII harness

6Continue routing the PCIII har-

ness towards the front of the

bike. Route underneath the

frame and towards the left hand

side of the rear cylinder

(Fig. D).

7Continue routing the PCIII har-

ness along the frame towards the

front of the bike. Locate the

stock connector for the throttle

bodies (Fig. E).

8Unplug this connector.

9Plug the connectors from the

PCIII in-line of the stock con-

nector (Fig. F).

Fig. DFig. E

Fig F

i209-411 www.powercommander.comi209-411 www.powercommander.com 2003-2007 Kawasaki VN1600 - PCIII USB - 3

Unplug this connector

PCIII harness

Stock connectors

PCIII connectors

10 Attach the ground wire from the

PCIII to the negative side of the

battery.

11 Install the PCIII under the left

hand side cover. You can use

the supplied velcro to attach it in

place.

Note: If you have a California model it

is best to velcro the unit to the

front portion of the side cover.

Fig. GFig. H

i209-411 www.powercommander.comi209-411 www.powercommander.com 2003-2007 Kawasaki VN1600 - PCIII USB - 4

PCIII ground wire

Fig. J
