Electrolux DTC50GA Manuale utente

Model DTC50GA

D T C 5 0 G A

Introduction

This gas appliance has been designed and manufactured to all the

necessary British Standards. It also carries the C.E. mark. The

appliance complies with European Council Directive 90/396/EEC.

It is important that you understand how to use and care for the appliance

properly before you use it for the first time.

We have written this booklet with your safety in mind. Read the booklet

thoroughly before you use the appliance. Keep the booklet in a safe

place so that anyone who uses the appliance can read it. Pass the

booklet on with the appliance if you give or sell it to someone else.

We have included several drawings to show the right and wrong way

of doing things.

The right way will have a smiling face by it.

A sad face shows something is wrong.

RATING PLATE

This is situated on the lower front frame of the appliance and can be

seen upon opening the door. Alternatively the rating plate may also be

found on the back or top of some models (Where applicable). Do not

remove the rating plate from the cookers as this may invalid at

the guarantee.

For your safety

This appliance is not intended to be operated by means of an

external timer or separate remote control system.

This appliance is designed for domestic use to cook food. You

must not use it for any other purpose. It is not designed for

commercial use.

Keep children, babies and toddlers away from the appliance at all

times.

The installation instructions that came with the appliance tell you

how and where it can be fitted. If the appliance is already

installed you must make sure that all instructions have been

followed. If you are in any doubt ask a registered person.

D T C 5 0 G A

Lighting the appliance 4

The grill 7

The hotplate 10

The ovens 13

Oven cooking chart - main oven 16

- second oven 19

The electronic minute minder 22

Slow cooking 24

Care and cleaning 26

Installing the appliance 32

General information 34

What is wrong and why? 36

Servicing 38

Installation Instructions 40

Technical Data 41

Safety requirements/ventilation 42

Location of appliance 43

Installation 44

Testing 46

Guarantee Conditions 49

D D O 6 1 G A

Contents

Contents Page

Lighting the appliance

The system works by means of an electric spark system. Details about

the plug are given in 'General Information'.

Hotplate

To light

1. Lift up the lid. You cannot use the hotplate when the lid is down.

2. Push in the control knob and turn it to the large flame symbol

(highest setting), and press the ignition button immediately. When

the burner has lit release the button.

Warning: If the ignition button is not pressed a build up of gas may

cause the flame to spread.

Please note: If you have any trouble lighting a hotplate burner turn all

the hotplate control knobs off and make sure the hotplate burner parts

have been replaced correctly.

D D O 6 1 G A

For your safety

If you close the lid of the appliance while any of the hotplate

burners are lit the gas will go out. This is because it would be

dangerous if the burners stayed on when the lid was closed.

Always use the control knob to turn off a burner. Do not use

the lid as a cut-off device. This will only cut off the gas when

the lid is closed. The gas will flow again when the lid is

opened.

Lighting the appliance

For your safety

In the event of the burner flames being accidentally extinguished,

turn off the burner control and do not attempt to re-ignite the burner

for at least 1 min.

Grill/second oven

The grill and the second oven are operated by the same control so you

cannot use them both at the same time.

Grill

To light:

1 Open the door.

2 Push in the control knob and turn it to the right to the highest setting.

This is shown by a large flame symbol. Press the ignition button.

When the burner has lit release the button.

3 Leave the grill door open when you are using the grill.

Warning : If the ignition button is not pressed immediately a build up of

gas may cause the flame to spread.

Second oven

To light:

1 Open the oven door.

2 Push in the control knob and turn it to the left to gas mark 1. Press

the ignition button. When the burner has lit release the button. There

will only be small flames at first.

3 Now turn the control knob to the gas mark

you want.

4 Wait until the burner is showing large

flames.

5 Close the oven door.

Important: Remember to remove the grill pan handle before you use the

second oven.

D D O 6 1 G A

For your safety

Never cover the grill pan or grid with foil as this can lead to grill

fires

Lighting the appliance

Main oven

To light:

1 Set the time of day on the clock.

2 Open the oven door.

3 Push in the control knob and turn it to gas mark 9. After a few

seconds the oven will light automatically and the oven light will

illuminate.

4 Now turn the control knob back to the gas

mark you want.

5 Wait until the burner is showing large

flames

6 Close the oven door.

If there is an electrical power failure (such as

a power cut) you cannot use the main oven.

You can use the second oven.

To turn off any burner

1 Push in the control knob and turn it to the off position. This is shown

by a large dot.

Oven light

The main oven light will come on when the oven burner is alight. If you

need to replace the oven light bulb, follow the instructions in 'General

Information'.

D D O 6 1 G A

For your safety

When you are lighting any burner check that it has lit before you

leave the appliance.

When you are turning off a burner, do not leave the appliance until

the flame has gone out.

Lighting the appliance

The grill

The grill is a high-speed grill. The instructions below tell you how to vary

the heat setting and how to change the height of the grid to suit the food

you are cooking. You should remember to turn the food regularly.

You should not use the grill to keep food warm as it will continue to

cook the food.

Prior to using the grill

We suggest that you operate the grill for approximately 5 - 10 mins to

burn off any residue from the surface. During this period a slight odour

may be emitted, it is therefore advisable to open a window for ventilation.

When you first operate the grill you may hear some sounds as the

burner heats up, this is quite normal and is not a fault on the appliance.

Heat control

The grill control has two heat settings.

The control knob turns to the right

from 'OFF' to 'LOW' and then to

'HIGH'. Use the high setting for fast

cooking such as toast. Use the low

setting to cook thicker food such as

chicken after you have browned it on

the high setting.

D D O 6 1 G A

The grill

For your safety

The grill pan and handle must be in place before igniting the grill.

You must keep the grill door open when the grill burner is lit.

Accessible parts may be hot when the grill is used. Young

children should be kept away.

Never cover the grill pan or grid with foil as this can lead to grill

fires.

Cooking positions

There is only one position for the grill shelf

(Position 2). Positions are counted from the top

downwards.

Most food should be cooked on the grid in

the grill pan. You can turn the grid over to suit

different thicknesses of food.

You can place some dishes straight on to

the grill shelf. This is useful when you are

browning the top of food such as cauliflower

cheese.

General

The shelf in the grill/second oven is different from the shelves in the main

oven. It is important that you do not swap them over. Only use the shelf

with the solid metal plate underneath it in the grill/second oven.

When you are not using the grill you should remove the handle and store

the pan on the shelf in the grill. Turn the grill burner off before you store

the pan. Remember that the pan will get hot when you are using the

main oven.

You can use the grill compartment to warm plates when you are

using the main oven.

Preheating

You don't usually need to preheat the grill. You may wish to preheat it for

a couple of minutes when you are cooking steak or browning food.

Positioning food on the grid

Place food such as toast, tea-cakes and

muffins towards the centre of the grid.

Place food which needs a gentle heat,

such as tomatoes and mushrooms towards

the edge of the grid.

Arrange meat, meat products and fish to

suit their thickness and how you like them

cooked.

D D O 6 1 G A

The grill

The grill pan and handle

The grill pan is supplied with a removable handle.

To attach the handle, place the wirework under the cut out in the pan so

that the metal plate hooks over the top of the grill pan.

Slide the handle to the left and over the central bump on the grill pan.

Ensure the handle is correctly located. It is not necessary to

remove the grill pan handle during grilling.

Place the grill pan on the shelf so that the pan is positioned centrally

beneath the grill.

To remove the handle, slide the handle to the right and lift the handle

away from the cut out on the grill pan.

Note

If you require an additional handle for your grill pan, this can be ordered

from your local Service Force Centre by quoting part number

311479800\6.

D D O 6 1 G A

The grill

The hotplate

You can only use the hotplate when the lid is open. If you have any

trouble lighting a hotplate burner turn all hotplate control knobs off and

make sure the hotplate burner parts have been replaced correctly.

Heat control

The hotplate control knobs turn

anticlockwise from 'OFF' to 'HIGH'

and then to 'LOW'. You can adjust

the heat by turning the control

between the highest and lowest

settings. These are shown as a

large and a small flame symbol.

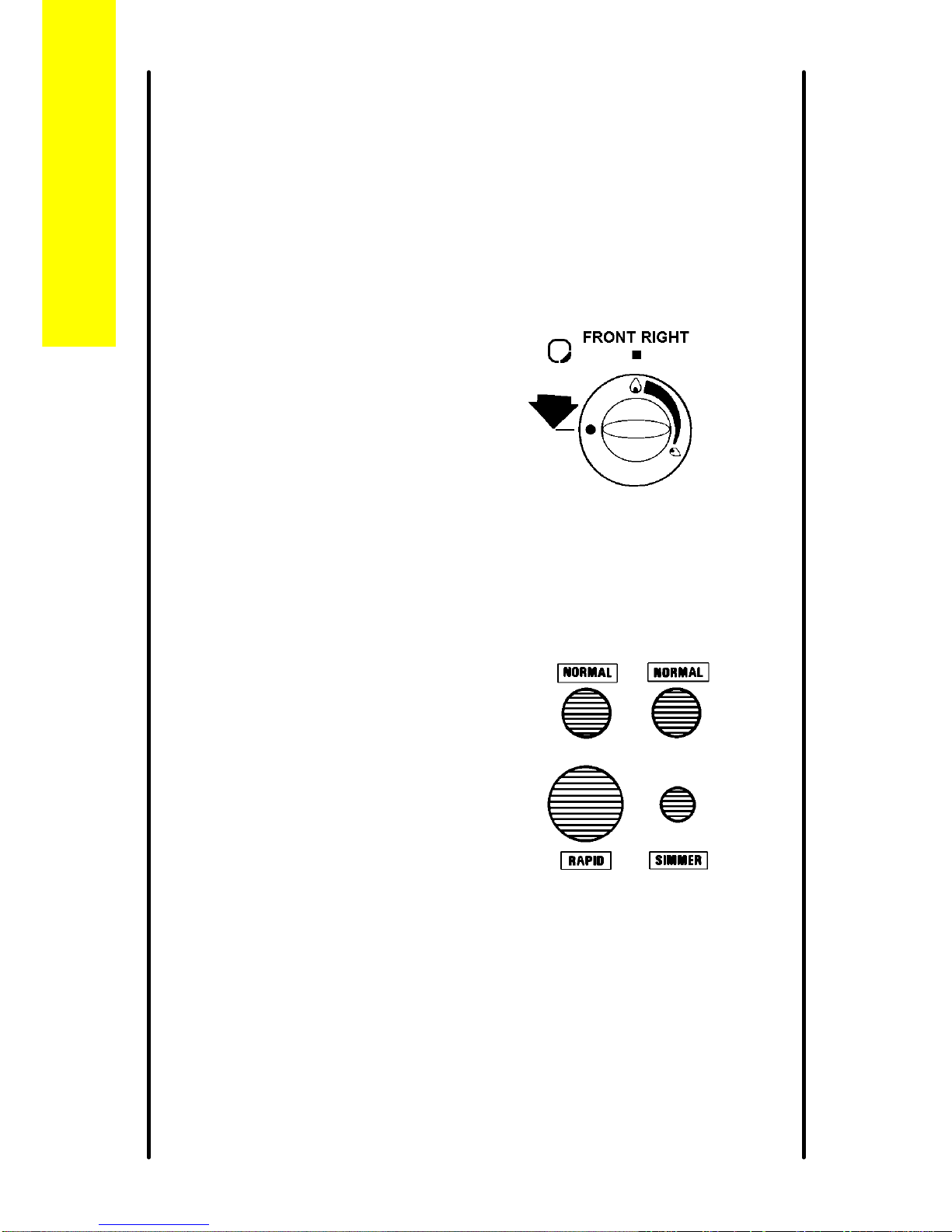

Burner sizes

The hotplate has three burner sizes

to suit different types of cooking:

Largest burner (Rapid) - use a large

pan for food such as chips.

Medium burners (Normal) - use for

everyday cooking.

Small burner (Simmer) - use for

simmering food such as soups and

stews.

The largest pan which you should use on any burner is 230mm (9").

The base of the smallest pan should not measure less than 100mm (4").

D D O 6 1 G A

The hotplate

Altri manuali per DTC50GA

Indice

Altri manuali Electrolux Elettrodomestico da cucina

Electrolux

Electrolux 584143 Manuale utente

Electrolux

Electrolux EKM 70150 Manuale utente

Electrolux

Electrolux 40036VI Manuale utente

Electrolux

Electrolux Dito MSV30G Manuale utente

Electrolux

Electrolux EKM 90310 X Manuale utente

Electrolux

Electrolux Dito TRK55VV Manuale utente

Electrolux

Electrolux EVEP916 Manuale di istruzioni

Electrolux

Electrolux S 75267-1 KG Manuale utente

Electrolux

Electrolux PHILCO PHSA 3500 Manuale utente

Electrolux

Electrolux EKI6450AO Manuale utente

Electrolux

Electrolux Insight 349095801 Manuale utente

Electrolux

Electrolux AEG MS 100 Manuale utente

Electrolux

Electrolux EKK61500O Manuale utente

Electrolux

Electrolux EKD60760 Manuale utente

Electrolux

Electrolux EKG913A4OX Manuale utente

Electrolux

Electrolux LV300R Manuale del proprietario

Electrolux

Electrolux Elco 900 Series Manuale utente

Electrolux

Electrolux 601576 (DSL10) Manuale utente

Electrolux

Electrolux SafeBox Hold Manuale utente

Electrolux

Electrolux Insight EKC6044 Manuale utente

Electrolux

Electrolux Dito 601577 Manuale utente

Electrolux

Electrolux EKC607601 Manuale utente

Electrolux

Electrolux EHM4 Series Manuale utente

Electrolux

Electrolux Dito 601161 Manuale utente

Manuali Elettrodomestico da cucina popolari di altre marche

Tayama

Tayama TYG-35AF Manuale utente

AEG

AEG 43172V-MN Manuale utente

REBER

REBER Professional 40 Guida utente

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuale utente

Presto

Presto fountain popper Manuale utente

Westmark

Westmark 1035 2260 Manuale utente

Zanussi

Zanussi ZCG64396XA Manuale utente

HOFFEN

HOFFEN SM-9302M Manuale utente

Philips

Philips HD3133 Manuale utente

Ronco

Ronco Beef Jerky Manuale utente

Hendi

Hendi 470411 Manuale utente

Livoo

Livoo MEN386 Manuale utente

Vogue

Vogue D446 Manuale utente

croydon

croydon WR-10313-700 Manuale utente

ADE

ADE AUTOMATIC-L Manuale utente

Chefman

Chefman RJ43-SQ Series Manuale utente

Vacmaster

Vacmaster VP680 Manuale utente

Jetmaster

Jetmaster 900HG Manuale utente
