5224XL & 5224XLBMC (Air Purge)
Heat Exchanger Cleaner
Tube ID 3/8” to 1” (9.5mm to 25.4mm)
Operating and Maintenance Instructions
TABLE OF CONTENTS
Introduction .......................................................................................................... 4
Safety Guidelines ................................................................................................. 5
General Information.............................................................................................. 7
Operation Instructions.......................................................................................... 8
Technical Information ........................................................................................... 9
Parts List & Diagrams......................................................................................... 10
Shafting & Couplings.......................................................................................... 12
Maintenance Instructions ................................................................................... 13
Troubleshooting.................................................................................................. 14
Warranty ............................................................................................................. 15
4 5224XL & 5224XLBMC
INTRODUCTION
Thank you for purchasing this Elliott product. More than 100 years of experience have been employed
in the design and manufacture of this control, representing the highest standard of quality, value and
durability. Elliott tools have proven themselves in thousands of hours of trouble-free eld operation.
If this is your rst Elliott purchase, welcome to our company; our products are our ambassadors.
If this is a repeat purchase, you can rest assured that the same value you have received in the past
will continue with all of your purchases, now and in the future.
The 5224XL & 5224XLBMC Heat Exchanger Cleaners are designed to provide high-torque for cleaning
hard scale, coke, gummy, oily, or rubbery deposits from straight tubes. Ideal tools for sugar, pulp,
paper mills, chemical plants, and oil reneries.
Model 5224XL is water-ush operation- convenient for ushing away heat transfer deposits.
Model 5224XLBMC is an air purge unit, for use where water-ush cannot be used.
If you have any questions regarding this product, manual or operating instructions, please call Elliott
at +1 800 332 0447 toll free (USA only) or +1 937 253 6133, or fax us at +1 937 253 9189
for immediate service.
5224XL & 5224XLBMC 5
WARNING
!
SAFETY GUIDELINES
Read and save all instructions. Before use, be sure everyone using this machine reads and
understands this manual, as well as any labels packaged with or attached to the machine.
• Know Your Elliott Tool. Read this manual carefully to learn your tool’s application and
limitations as well as the potential hazards specic to this tool.
• Keep Work Area Clean and Well Lit. Cluttered, dark work areas invite accidents.
• Dress Properly. Do not wear loose clothing or jewelry. Wear a protective hair covering
to contain long hair. It is recommended that the operator wear safety glasses with
side shields or a full face shield eye protection. Gloves and water repellent, nonskid
footwear are also recommended. Keep hands and gloves away from moving parts.
• Use Safety Equipment. Everyone in the work area should wear safety goggles or
glasses with side shields complying with current safety standards. Wear hearing
protection during extended use, respirator for a conned space and a dust mask for
dusty operations. Hard hats, face shields, safety shoes, respirators, etc. should be
used when specied or necessary. Keep a re extinguisher nearby.
• Keep Bystanders Away. Bystanders should be kept at a safe distance from the work
area to avoid distracting the operator and contacting the blade.
• Use The Right Tools. Do not force a tool or attachment to do a job or operate at a
speed it was not designed for.
• Use Proper Accessories. Use Elliott accessories only. Be sure accessories are properly
installed and maintained.
• Check for Damaged Parts. Inspect guards and other parts before use. Check for
misalignment, binding of moving parts, improper mounting, broken parts or any other
conditions that may affect operation. If abnormal noise or vibration occurs, turn the
When using electric tools, certain safety precautions
are required to reduce the risk of electrical shock
and personal injury.
WARNING
!
To reduce the risk of injury, always unplug your
machine before performing any maintenance. Never
disassemble the machine or try to do any wiring on
the electrical system. Contact Elliott for all repairs.
Continued On The Next Page
6 5224XL & 5224XLBMC
tool off immediately and have the problem corrected before further use. Do not use a
damaged tool. Tag damaged tools “Do Not Use” until repaired. A damaged part should
be properly repaired or replaced by an Elliott service facility. For all repairs, insist on
only identical replacement parts.
• Keep Hands Away from All Moving Parts.
• Do Not Overreach. Maintain Control. Keep proper footing and balance at all times.
• Stay Alert. Watch what you are doing, and use common sense. DO NOT use a
tool when you are tired, distracted or under the inuence of drugs, alcohol or any
medication causing decreased control.
• Unplug Tool. Unplug tool when it is not in use, before changing accessories or
performing recommended maintenance.
• Maintain Tool Carefully. Keep tools sharp and clean for best and safest performance.
Follow instructions for lubrication, maintenance and changing accessories. For
more information see “Maintenance” section. Periodically inspect the tool cord and
extension cords for damage. Have damaged parts repaired or replaced by an Elliott
service facility.
• Store Idle Tools. When not is use, store your tool in a dry, heated, secured place. For
more information see “Maintenance” section.
• Maintain Labels and Nameplates. These carry important information and will assist you
in ordering spare and replacement parts. If unreadable or missing, contact an Elliott
service facility for a replacement.
SAFETY GUIDELINES
5224XL & 5224XLBMC 7
GENERAL INFORMATION
A clean lubricated air supply must be available at 90 to 125 psi (6.2 to 8.6 Bar), and not less than 45
cfm (1.3 M3/min.), at the point of connection to the motor. A shut-off valve should be provided at
the air supply connection source. If there is any doubt about the cleanliness of the air supply, a lter
should be installed at the supply connection.
Proper lubrication of the unit is a must for peak performance; therefore, a lubricator (preferably a lter/
lubricator) should be installed in the airline immediately downstream of the shut-off valve. A lter-
lubricator (PN 901717P) is available from Elliott Tool Technologies. For best results, use 10W/NR Lube
Oil (PN 900082P), also available from Elliott Tool Technologies in 16 oz. (0.5 L) cans.
A clean water supply must be provided (preferably city water). Water pressure should not exceed 125
psi (8.6 Bar). A ow rate of at least 30 gpm (114 L/min.) should be available. A shut-off valve should
be at the point of connection of the hose whip to the water source. (IMPORTANT: Never operate
Model 522400XL tube cleaner without water supply. Running this tool without water will damage the
shaft seal assembly and cause immediate tool failure.)
Swivel connections are provided on both of the hose whips to provide for easy hookup and eliminate
kinks in the hoses. Connect each hose whip to its corresponding connection on the motor and to its
supply source. Service ends of the hose whips are furnished with female thread connections; 1/2”
NPT (Air) and 1/4” NPT (Water). (Note: Only one hose whip connection is required for the 5224XLBMC
air-purge motor.)
8 5224XL & 5224XLBMC
OPERATION INSTRUCTIONS
Set-Up
1. Open the air & water supply valves (air only if air-purge). Holding the motor with the
threaded shaft end away from you, slowly depress the trigger. The threaded shaft (31)
should rotate & water (or air if air-purge) should exit the opening in the threaded shaft.
The ow of the water (or air) should increase as the motor RPM increases. If this does not
occur, recheck hose connections, or refer to “Troubleshooting” on page 14.
2. After attaching the motor coupling, the motor shafting, the extension shafting (if req’d.),
and the cleaning attachment (drill or brush), insert the shaft into the tube I.D.. (NOTE: DO
NOT activate the motor while the shaft end is outside the tube. Doing so could result
in serious injury.) Maximum length of shafting outside of the tube during the cleaning
process is 5 ft. (1.5M).
(NOTE: If tubes are completely blocked by deposit close to the tube sheet, it is recommended that
only a 5 ft. (1.5M) motor shaft be used to clean all of the blocked tubes. Additional 5 ft. (1.5M) shaft
extensions can be added for deeper cleaning requirements. Operating the cleaner in completely
blocked tubes with a shaft length extending outside of the tube greater than 5 ft. (1.5M) from the tube
sheet can result in excessive whipping of the shaft, which could cause serious injury to the operator
and/or bystanders.) If a length of shafting exceeding 5 ft. (1.5M) must be used then support must be
provided for the shafting.
(NOTE: DO NOT support shafting with your hands. Keep hands & clothing clear of rotating shaft &
components to avoid serious injury.) An acceptable means of support for the shafting would be a tube
guide that is supported by a height-adjustable stand.
5224XL & 5224XLBMC 9
TECHNICAL INFORMATION
Motor Specications
Operating Pressure 90 to 125 PSI (6.2 to 8.6 bar)
Air Consumption 45 cfm (1.3M3 /min) @ 90 PSI (6.2 bar)
Water Pressure (5224XL ONLY) Max: 125 PSI (8.6 bar)
Water Flow Rate 30 gpm (114 L/min)
Operating Speed 1500 RPM
Maximum HP 1HP @ 700 RPM
Maximum Torque 7 ft. lbs. (9.5Nm) @ 700 RPM
Approximate Weight 8lbs (3.6 Kg)
Overall Length 9” (228.6mm)
10 5224XL & 5224XLBMC

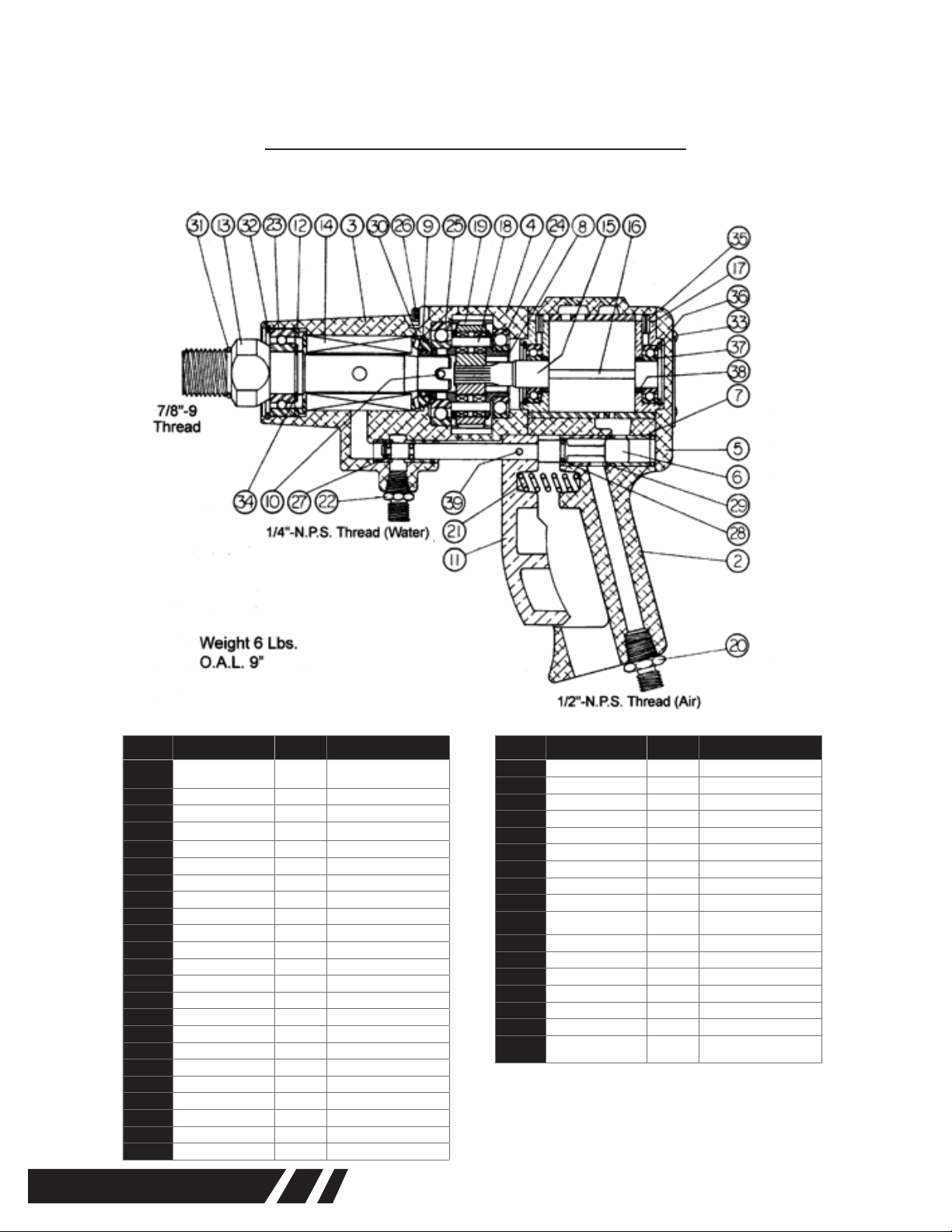

PARTS LISTS & DIAGRAMS
5224XL Heat Exchanger Cleaner
Item # Item Name Qty Part Number
1Motor with water feed
attachment 1 522400XL
2Motor Case 1 5224XLA
3Seal Case 1 5224XLC
4Gear Case 1 5224XLE
5Motor Cap 1 5224XLB
6Plunger 1 5224XLG
7Rear Bushing 1 5224XLH
8Gear Case 1 5224XLK
9Rear Seal 1 5224XLR
10 Drive Pin 1 5224-7
11 Trigger 1 5224D
12 Spacer 1 5224H
13 Shaft 1 5224R
14 Shaft Seal Assembly 1 P5224-5
15 Rotor 1 901005
16 Paddle Set 1 901008P-5
17 End Plate 2 901009
18 Pin 2 901017P
19 Planet Gear & Bearing 2 901020
20 Adapter 1 901178-P
21 Spring 1 P512521
22 Adapter 1 P5370M
23 Bearing 1 P8305B
Item # Item Name Qty Part Number
24 Bearing 1 P8559-12
25 Bearing 1 P8588E
26 Socket Head Cap 4 P8302-72
27 “O” Ring 2 P8309-3
28 “O” Ring 1 P8309-6
29 “O” Ring 2 P8309-8A
30 “O” Ring 1 P8309-13
31 “O” Ring 1 P8309-15
32 Retaining Ring 1 P8368-165
33 Button Head Socket
Screw 4 P8597-11
34 Retaining Ring 1 P8286-78
35 Dowel Pin 2 P8383-6
36 Retaining Ring 2 P8587-106
37 Bearing 2 901011P
38 Rotor Spacer 2 901007
39 Dowel Pin 1 P8381-8
40 Side Handle
(not shown) 1 5224F
