Fitel S218R-Plus Manuale utente

FTS-B553-04

S218R-Plus Hot Stripper

Operating Instructions

•Please read entire manual prior to usage.

•Please keep this manual with the S218R-Plus.

Issue 03

Apr. 2019

FTS-B553-04

Contents

Contents ...........................................................................................................1

1Safety Instructions.....................................................................................2

2Components..............................................................................................5

2.1 Standard Components............................................................................5

2.2 Optional Components.............................................................................5

3Specifications............................................................................................5

4Unit Description.........................................................................................6

5Preparation ...............................................................................................7

5.1 Battery setting ........................................................................................7

5.2 Charging the Battery...............................................................................8

6Operating Instruction.................................................................................9

7Adjusting temperature...............................................................................9

8Setting power save mode..........................................................................9

9Recharging Battery .................................................................................10

10 Confirming Battery Remaining.................................................................10

11 Maintenance ...........................................................................................10

12 Replacing the blade ................................................................................10

12.1 Replacing the lower blade ....................................................................10

12.2 Replacing the upper blade....................................................................11

12.3 Upper blade adjustment........................................................................11

13 Others.....................................................................................................12

13.1 The usage of the Adjusters (spacer).....................................................12

13.2 Mounting the Stand (Optional parts) for the unit ...................................13

13.3 Single fiber adapter (Optional parts) installation. ..................................13

13.4 Storage for the S944 Battery Pack .......................................................14

14 Holding period for spare parts.................................................................14

15 Contacts..................................................................................................14

FTS-B553-04

1 Safety Instructions

This manual contains the complete operating and maintenance instructions for S218R Hot Stripper.

Please review this manual carefully before operating the S218R Hot Stripper.

The following safety instructions must be observed whenever this product is operated, serviced or

repaired. Failure to comply with any of these instructions or with any precaution or warning contained

in this manual is in direct violation of the standards of the design, the manufacture and the intended

use of the instrument. FURUKAWA ELECTRIC CO., LTD. assumes no liability for the customer’s

failure to comply with these requirements.

Safety Instructions

WARNING

Failure to comply with any of the instructions, which

are indicated by this symbol, may cause serious

injury or death.

CAUTION

Failure to comply with any of the instructions, which

are indicated by this symbol, may cause serious

injury or damage to the AC/DC Power Supply and

other materials.

Please contact FURUKAWA ELECTRIC CO., LTD. with any questions relating to the description of

this manual.

In no case will FURUKAWA ELECTRIC CO., LTD. be liable to the buyer, for any consequential or

indirect damage which is caused by product failure, malfunction, or any other problem.

WARNING

•Avoid soaking the AC/DC Power Supply, Battery or Battery recharger with water. Doing so

may cause fire, electrical shock or malfunction.

•Do not use inappropriate input voltage. Doing so may cause fire, electrical shock or

malfunction.

•Do not use any AC/DC Power Supply other than the attached one. Do not use the attached

AC/DC Power Supply as a power supply other than for the S218R-Plus. Doing so may cause

fire or malfunction.

•Avoid direct skin contact with the heating portion. This may cause burn or injury.

•If smoke, abnormal sounds, extra high temperature or strange smells are observed, power off

and disconnect the S218R-Plus from the power source and contact FURUKAWA ELECTRIC

CO., LTD. or your local representative. Continuing to operate under these conditions may

cause fire, electrical shock or malfunction.

•Do not use a damaged power cord with the inner cable is exposed or is severed. Doing so

may cause fire or electrical shock.

•If water spilled into the S218R-Plus, power off and disconnect the S218R-Plus from AC outlet.

Continuing to operate under these conditions may cause fire or electrical shock.

•If the S218R-Plus is dropped and damaged, disconnect the power source. Continuing to

operate under these conditions may cause fire or electrical shock.

•Do not operate the S218R-Plus at temperatures less than 0ºC or above 40ºC. Do not expose

to high temperatures. Doing so may cause fire, electrical shock or malfunction.

•Do not short-circuit the DC plug. Doing so may cause fire or electrical shock or malfunction.

FTS-B553-04

The S944 Battery is made of Li-ion battery cells. Refer to following safety instructions on handling and

operating the Battery safety.

WARNING

•Do not dispose the Battery in fire, or leave the Battery near a high-temperature object. Doing

so may cause fire or explosion.

•Do not short-circuit the recharging connector or the output terminal for splicer. Doing so may

cause fire by generation of heat.

•Charge the S944 Battery by the S218R/S218R-Plus. If charging by other equipment that is

not suitable for charging S944, it may cause fire.

•Avoid soaking the Battery with water. Doing so may cause fire or electrical shock.

•Do not disassemble the Battery. Avoid damage by dropping or heavy shock. Doing so may

cause fire or electrical shock. If inner cells rupture and electrolytic solution leaks outside, it

may cause inflammation to your skin or eyes.

•Disposal of used Battery must be carried out according to disposal established by Law. For

instructions, contact Furukawa electric Co., Ltd. or your local representative.

CAUTION

•Do not disassemble the S218R-Plus. The S218R-Plus contains no user serviceable parts.

Warranty on this product will be invalidated if any part of the S218R-Plus is disassembled.

•Do not use in a humid, dirty or vibration site. Doing so may cause fire, electrical shock or

malfunction.

•Do not place the S218R-Plus on an unstable or inclined surface. The S218R-Plus may fall and

cause injury.

•Disconnect all cords when using DC cord and moving the S218R-Plus. Doing so may damage

the cords which may cause fire or electrical shock.

•Do not place the S218R-Plus around any heating instrument. Doing so may damage the cords

which may cause fire or electrical shock.

•Do not connect or disconnect cord with wet hands. Doing so may cause fire or electrical

shock.

•Do not pull the cord to disconnect. Doing so may damage the cord which may cause fire or

electrical shock. Hold the plug portion and disconnect the cord.

•Do not put heavy items on the cords. Doing so may damage the cords which may cause fire

or electrical shock.

•Use only the cord attached to the S218R-Plus. Connecting inappropriate cords or extending

the cords may cause them to heat up abnormally and may cause fire.

•Do not modify the cords and do not over-bend, over-twist or over-stretch the cords. Doing so

may cause fire or electrical shock.

•Ensure that the cords are disconnected, when storing the S218R-Plus.

FTS-B553-04

Notes

This symbol mark is for EU countries only.

This symbol mark is according to the directive 2006/66/EC Article 20 Information for

end-users and Annex II.

This symbol means that batteries and accumulators, at their end-of-life, should be

disposed of separately from your household waste.

If a chemical symbol is printed beneath the symbol shown above, this chemical symbol

means that the

battery or accumulator contains a heavy metal at a certain concentration. This will be

indicated as follows:

Hg: mercury (0.0005%), Cd: cadmium (0.002%), Pb: lead (0.004%)

In the European Union there are separate collection systems for used batteries and

accumulators.

Please, dispose of batteries and accumulators correctly at your local community waste

collection/recycling centre.

Please, help us to conserve the environment we live in!

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

FCC CAUTION

Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

This Class A digital apparatus complies with CAN ICES-003(A).

Cet appareil numérique de la classe A est conforme à la norme NMB-003(A)..

FTS-B553-04

2 Components

2.1Standard Components

Name

Code

Quantity

Remarks

Main Body

S218R-Plus

Battery Pack

S944

Li-Ion Rechargeable Battery

AC adaptor

S952

AC→DC Converter

Allen key set

S218X-07

Tools used for replacing blade

Case

S218X-04

Protection Case

Strap

Cleaning brush

Operating Manual

FTS-B553

2.2Optional Components

Name

Code

Quantity

Remarks

Single Fiber Adapter

S218X-03

The adapter for stripping single fiber

Blade for S218R-Plus

S218X-88

1(set)

See manual in 11 Replacing the blade

Battery Pack

S944

Li-Ion Rechargeable Battery

AC adaptor

S952

AC→DC Converter

Adjuster

S218X-22

It is used for adjusting removing length of

fiber.

Stand

S218X-23

Unit frame supporter.

3 Specifications

Description

Minimum

Typical

Maximum

units

Fiber cladding diameter

125

µm

Single fiber coating range

250

400

µm

Applicable fiber ribbons

Ribbon thickness

250

400

µm

Rollable ribbon thickness

200

250

µm

Electrical

Input terminals from AC supply

264

VAC

Power consumption

Watt

Dimension (W x D x H)

Main body (S218R-01)

S944 Battery Pack

S952 AC adaptor

48 x 125 x 41

39.5 x 55.8 x 20.9

62 x 99 x 26

Weight

Main body (S218R-01)

S944 Battery Pack

S952 AC adaptor

180

270

Environmental

Operating temperature

Storage temperature

Humidity (Non condensing)

-40

°C

%RH

FTS-B553-04

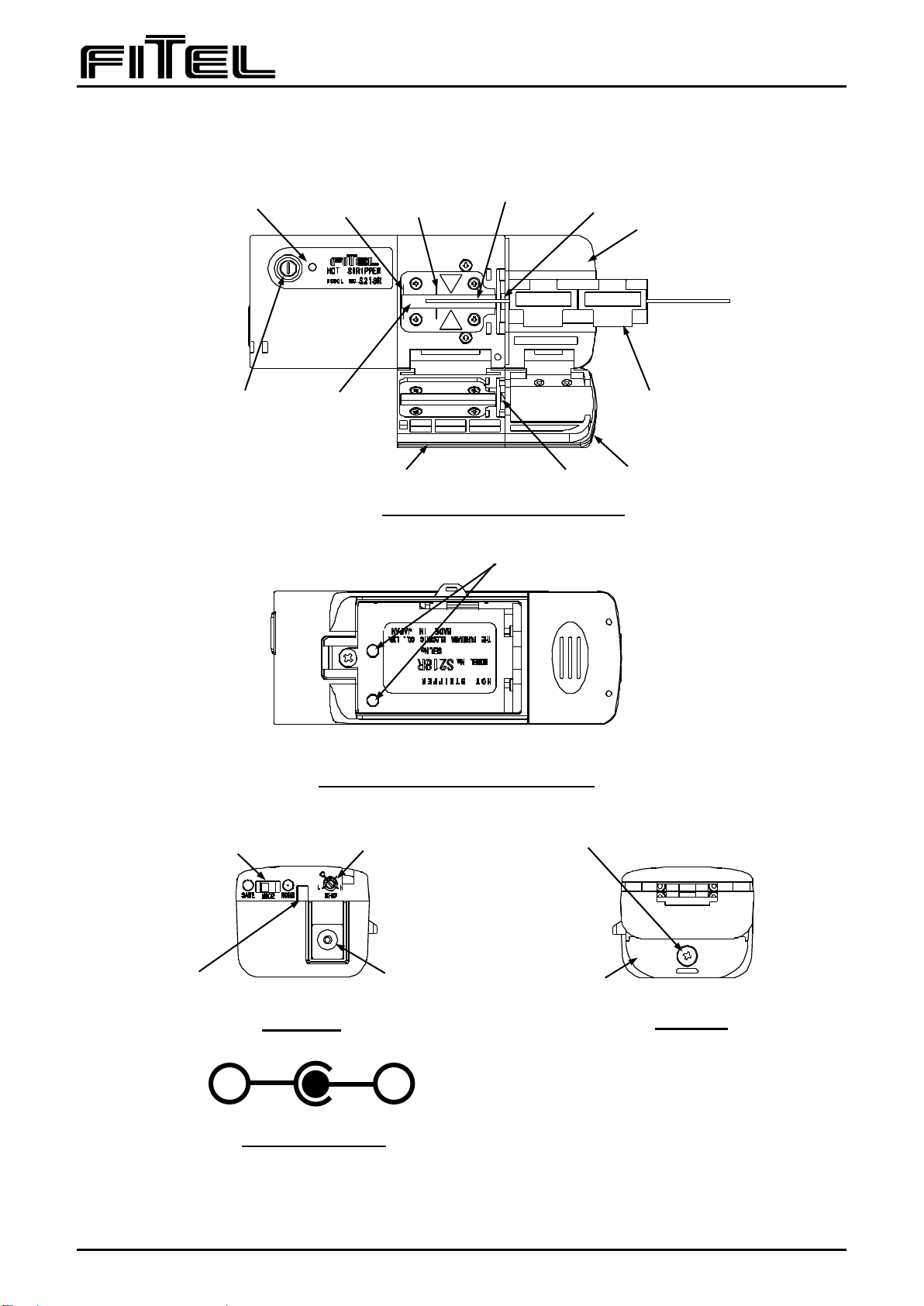

4 Unit Description

Holder clamp

Heater lid

Heater

Fiber ribbon

Min. line

(25mm)

Max. line

(35mm)

(LED)

Fiber holder

Holder clamp lid

Power Switch

Temperature Trimmer

Mode switch

Battery cover

Screw for the Battery cover

Rear side

Charge status LED

DC jack

Front side

Indication lamp

Blade

Top side (with the Fiber holder)

Bottom side (without Battery cover)

Contact

Blade

－

Polarity of DC jack

FTS-B553-04

5 Preparation

5.1Battery setting

Mount the S944 Battery Pack into the S218R before using it.

1）Loosen the screw of the Battery cover by using

an Phillips-head screwdriver.

2）Remove the Battery cover by pushing it to the

direction as shown at right.

3）Set the Battery Pack in the Main body to fit both

contacts.

4）Put the Battery cover back to the unit, then tighten

the screw.

Contact

S944 Battery pack

１）

２）

Remove the Battery cover

Contact

Set S944 Battery Pack

Screw the Battery Cover

FTS-B553-04

5.2Charging the Battery

1）Let S944 battery Pack be remained in S218R Hot Stripper.

2）Connect S952 AC adaptor to AC power outlet (85-264V, 50/60Hz) using AC power cord.

3）Connect S218R Main body to S952 AC adaptor using DC plug cable.

4）The orange charge LED will be illuminated and the battery will start to be charged.

It will take approximately 150 minutes to fully charge the Battery. When the Battery is fully charged,

the Charge status LED will turn off automatically.

S944 battery can be charged while the unit is being used, however, in such case, charging rate or

speed is tenth of the rate when the unit power is off.

If charging errors occur, the orange Charge status LED will be blinking.

Warning

If errors occur during charging process, please swiftly remove the

S944 Battery Pack from Main body, then contact your local

representative for assistant.

It is dangerous to continuously operate the unit under these

conditions, which may cause fire or electrical shock.

Charge status LED

DC jack

Front side

DC plug connected to S218R

FTS-B553-04

6 Operating Instruction

1) Connect to a power source with appropriate wiring (DC/DC converter only) and press power switch.

The Indication Lamp (LED) lights red to indicate power is being supplied to the S218R-Plus.

2) The LED color will change from red to green approximately 15 seconds later to indicate that the

S218R-Pkus is warmed up and ready to use.

3) Hold the fiber with a fiber holder, with approximately 30mm (25 –35mm) of fiber end protruding from

the holder. Open the Holder clamp lid and the Heater lid, and place the fiber holder firmly in the Holder

clamp.

4) Ensure that the fiber rests in the heating area and the fiber

end is within Min. and Max. line of the Heater. Refer to the

drawing.

5) Close the Heater’s lid first, and then the Holder clamp lid.

6) Firmly grasp the Heater lid and the Holder clamp’s lid, and

wait until flashing of the indication LED stops.

Then, pull the holder clamp away from the Heater slowly.

(In case of the rollable-ribbon, pull more slowly)

7) Open the Holder clamp lid and the Heater lid and remove the

fiber holder.

8) Remove coating material refuse from the Heater and clean the heating area.

CAUTION : Do not touch the Heater.

9) When finishing to working of S218R-plus, press power switch again.

If not used the S218R-Plus will auto power off after 10 minutes. (Auto Power OFF)

7 Adjusting temperature

The temperature can be changed by rotating

temperature trimmer. (Refer to right drawing.)

Each scale shows 20 degree C step.

8 Setting power save mode

Save mode saves consumption of electrical power.

The mode is set to Normal mode at shipping.

The mode can be changed by setting mode switch to “SAVE”

position.

In the save mode, S218R-Plus cuts heater power and reduces the power consumption to a few mA during

the waiting time.

So it will take more time to raise the heater temperature enough for use after leaving in this mode for a

few minutes.

Proper Placement

Improper Placement

MODE

NORM

SAVE

Save mode

Normal mode

TEMP

100℃

120℃

80℃

140℃

Indice

Altri manuali Fitel Utensili

Fitel

Fitel CS201 Manuale utente

Manuali Utensili popolari di altre marche

Martor

Martor SECUNORM 175 Manuale utente

ERKCO

ERKCO 1000 Manuale utente

jbc

jbc N4473 Manuale utente

FEINMETALL

FEINMETALL FZWZ-SET-001 Manuale utente

Worx Professional

Worx Professional Sonicrafter WU676 Manuale utente

Gage Bilt

Gage Bilt GB713SH Manuale utente

Hilti

Hilti DX 9-ENP Manuale utente

norbar

norbar NORTRONIC 34399 Manuale utente

BGS technic

BGS technic 8578 Manuale utente

Makita

Makita DHR241 Manuale utente

Motor Guard

Motor Guard JMB-1250 Manuale utente

Power Adhesives

Power Adhesives 805-12 Manuale utente

Clemco

Clemco 24189 Manuale utente

VVG

VVG VNG 903 Series Manuale utente

Hilti

Hilti FX 3-A Manuale utente

Grizzly

Grizzly H6472 Manuale utente

axing

axing BWZ 5-02 Manuale utente

Dh-Robotics

Dh-Robotics RGI-100 Come usare
