Front Runner TBMK009 Manuale utente

ENG

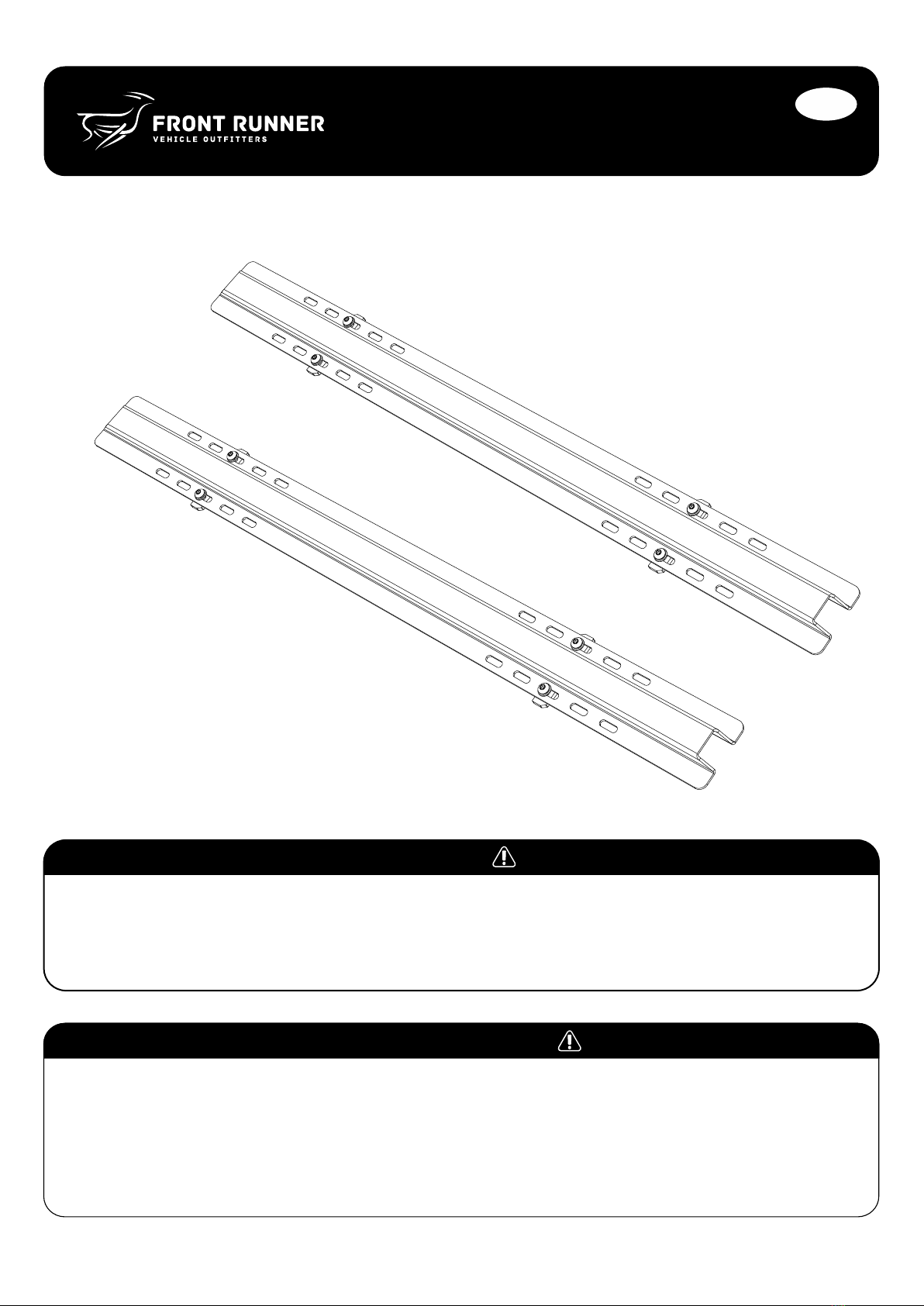

Hard Shell Tent

Support Channels

IMPORTANT WARNING!

Thank you for purchasing Front Runner Hard Shell Tent Support Channels.

Before you start, take a moment to familiarize yourself with this Fitting Instruction and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

TBMK009

READ ME !

FRONT RUNNER CAN NOT RECOMMEND A MAXIMUM LOAD CARRYING CAPACITY. PLEASE REFER TO YOUR VEHICLE MANUFACTURER'S RECOMMENDATIONS. IT IS CRITICAL

THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN

AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS

TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU

MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU

DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE

INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

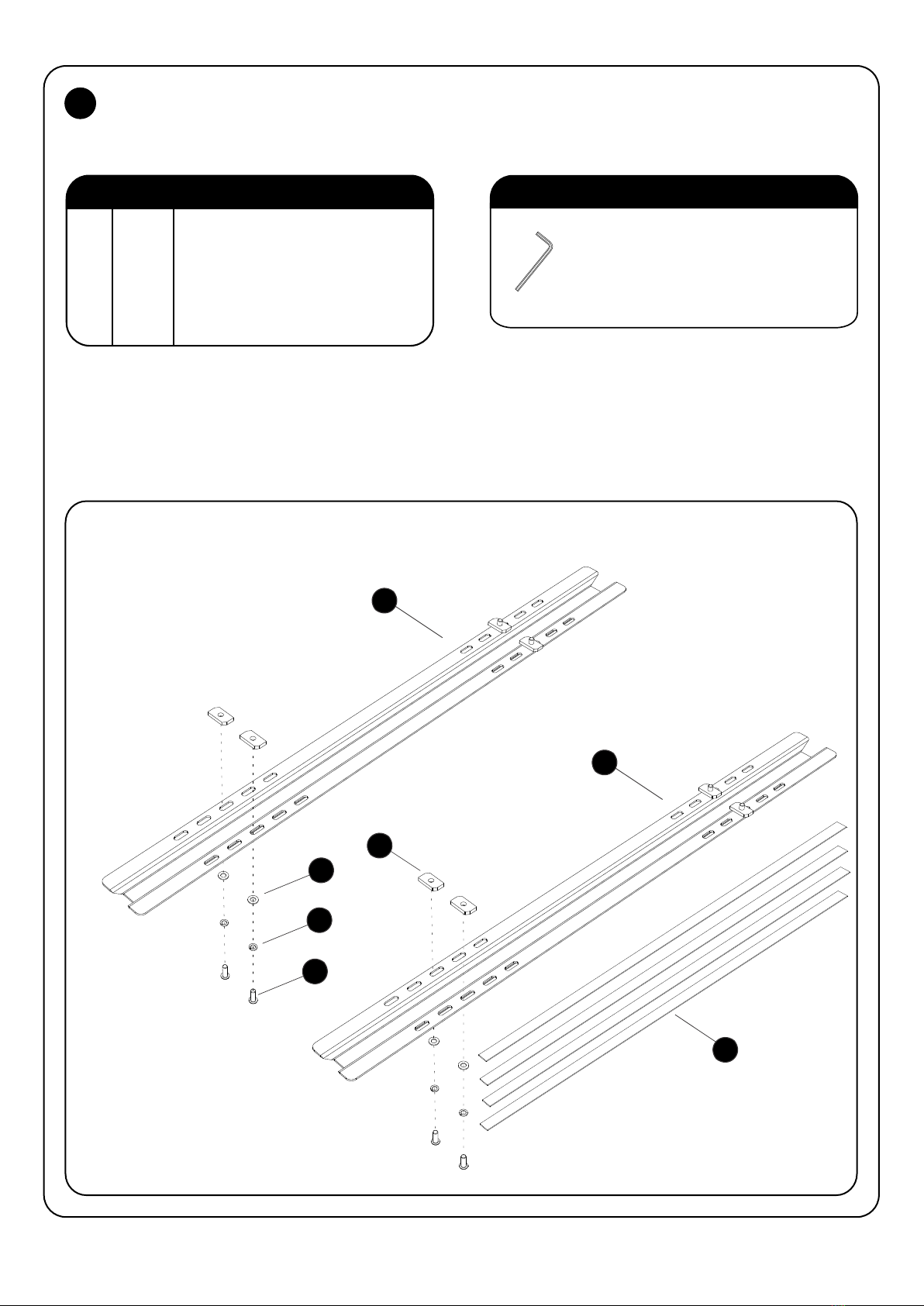

IN THE BOX

FIGURE 1.1

1 2 X Hard Shell Tent Channel Support

2 8 X M8 x 25 Button Head Bolt

3 8 X M8 SS Spring Washer

4 8 X M8 x 16 x 1.6 SS Flat Washer

5 8 X M8 Channel Nut

6 4 X Rubber Strip

IN THE BOX TOOLS NEEDED

IN THE BOX

1GET ORGANIZED

5mm

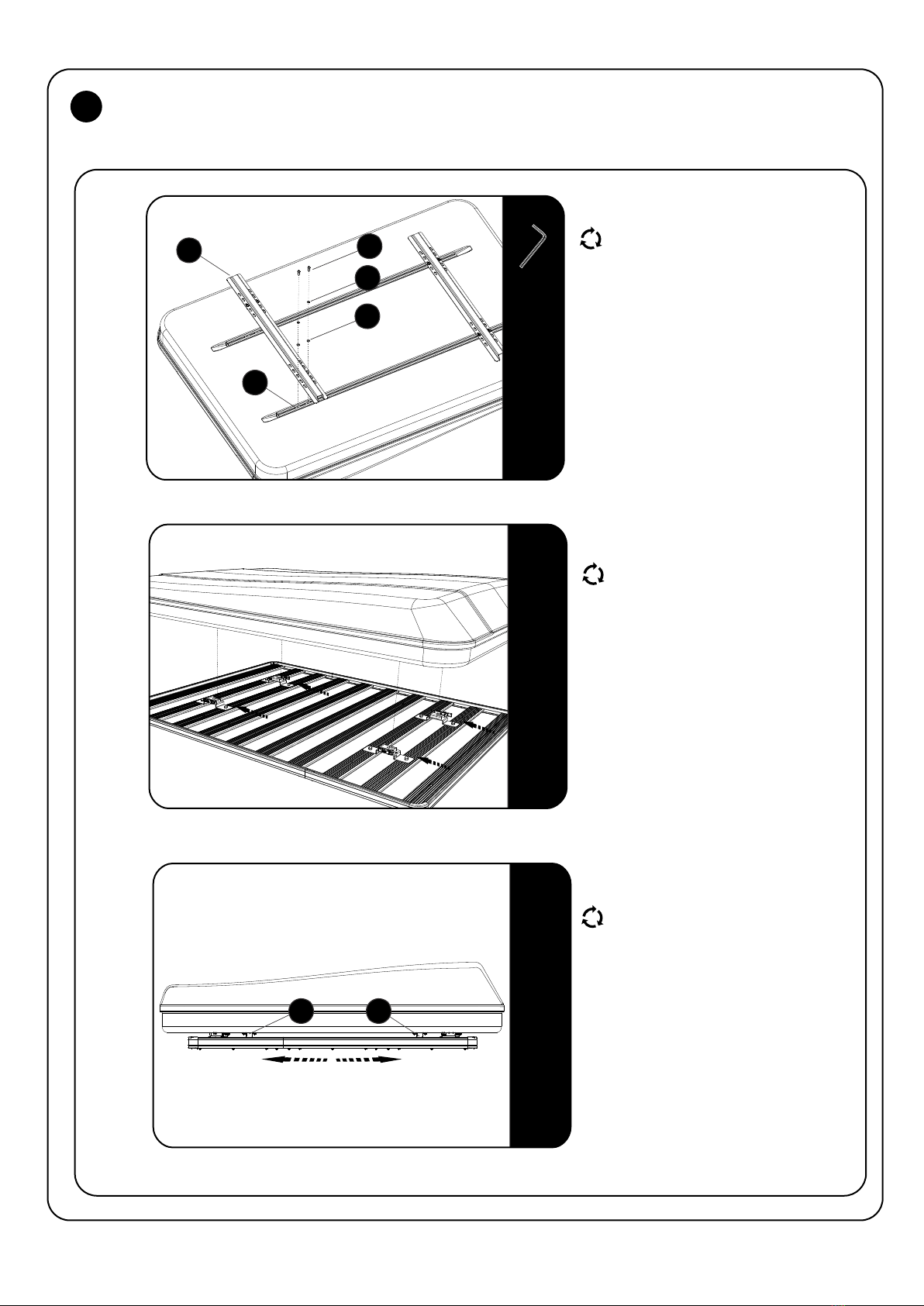

FIT AND SECURE

2.2

2.3

2.4

2.1

2.2

2.3

4MM

Slide four M8 Channels Nuts (Item 5) into

each of the tent mounting channels.

Apply the Rubber Strip (Item 6) to the Tent

Support Channels so that it sits between the

Channel and the tent.

Loosely ﬁt the Tent Support Channels to the

tent by using M8 x 25 Button Head Bolts,

M8 SS Spring Washers and M8 x 16 x 1.6SS

Flat Washers (Items 2, 3 & 4) as shown.

Fit your tent mounting system (TBMK012)

to the Rack.

Refer to TBMK012 ﬁtment guide for

instructions.

Move the Tent Support Channels (Item 1)

outward as shown to create sufﬁcient

support underneath the tent where needed.

Fully tighten the Tent Support Channels to

the tent.

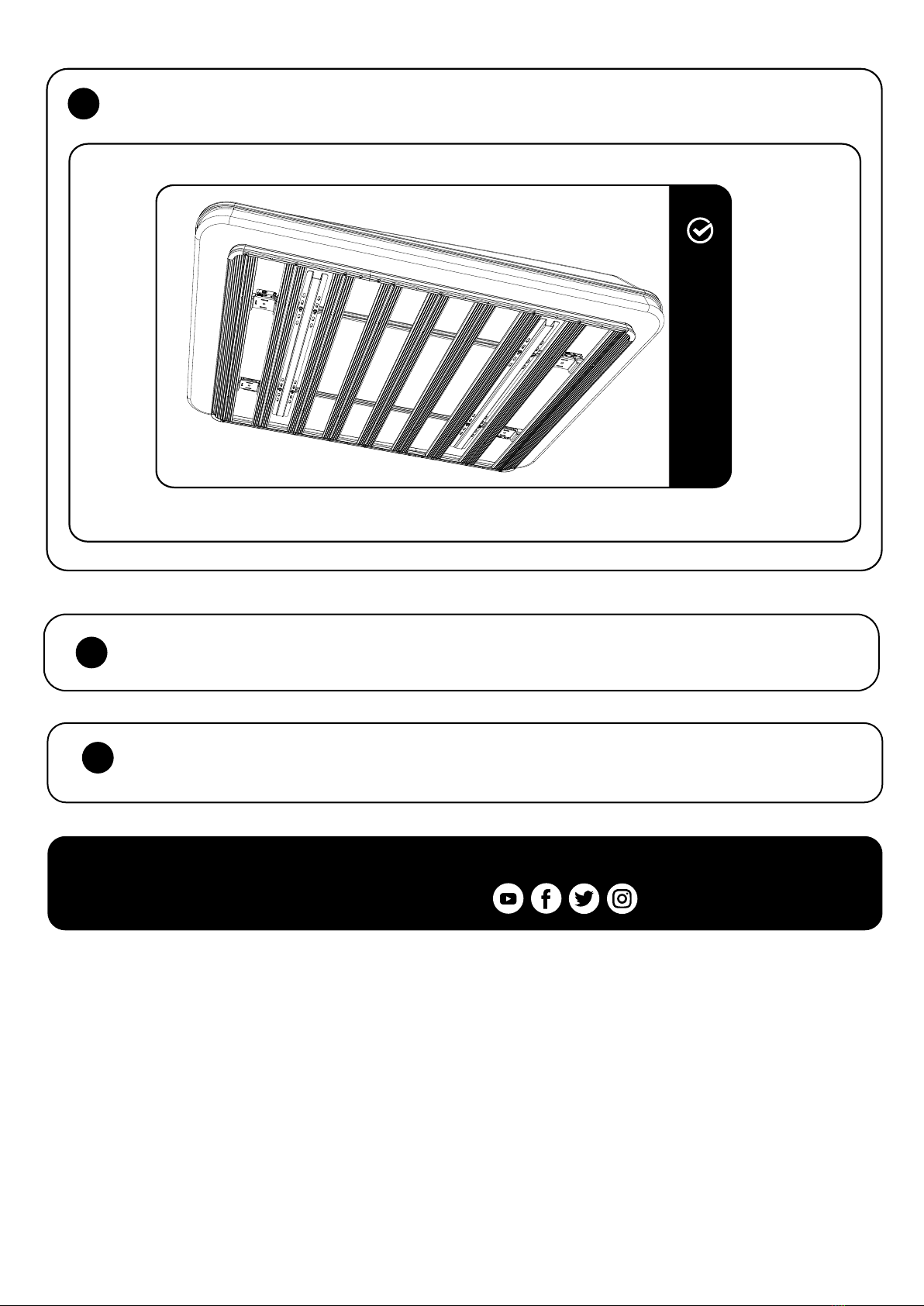

COMPLETION

3.1

Congratulations. You did it. Take a step back and admire your work!

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or Online.

Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.
