Geemarc PhotoPhone Manuale utente
GB
F
User guide
PhotoPHONE
Notice d’utilisation
Amplified desk telephone
with volume and tone control
Téléphone multifonctions
avec réglage du volume et de la tonalité
INDEX
Description 4
Setting up
- Connecting the telephone 6
- Ringer settings 6
- T/P switch 8
- Time break recall switch 8
- Wall mounting 8
- Desk support 10
Volume and tone adjustment
- Receiving volume and tone 11
- Sending volume level adjustment 12
Using the phone
- Answering incoming call 13
- Making a call 13
- Last number redial 13
- Recall, * & # buttons 14
- Mute button 14
- Storing telephone numbers 14
- Dialling stored number 16
General information 17
GB
2
SOMMAIRE
Description 18
Installation
- Raccordements 20
- Réglage de la sonnerie 20
- Multifréquences ou décimale 22
- Interrupteur 300ms/100ms 22
- Montage mural 22
- Position bureau 24
Réglage du volume et de la tonalité
- Volume et tonalité de réception 25
- Réglage du volume d’émission 26
Utilisation
- Recevoir un appel 27
- Appeler 27
- Rappel du dernier numéro 27
- Touches R, * & # 28
- Fonction secret 28
- Mémoriser un numéro de téléphone 28
- Appel d’un numéro en mémoire 30
Informations générales 31
F
3

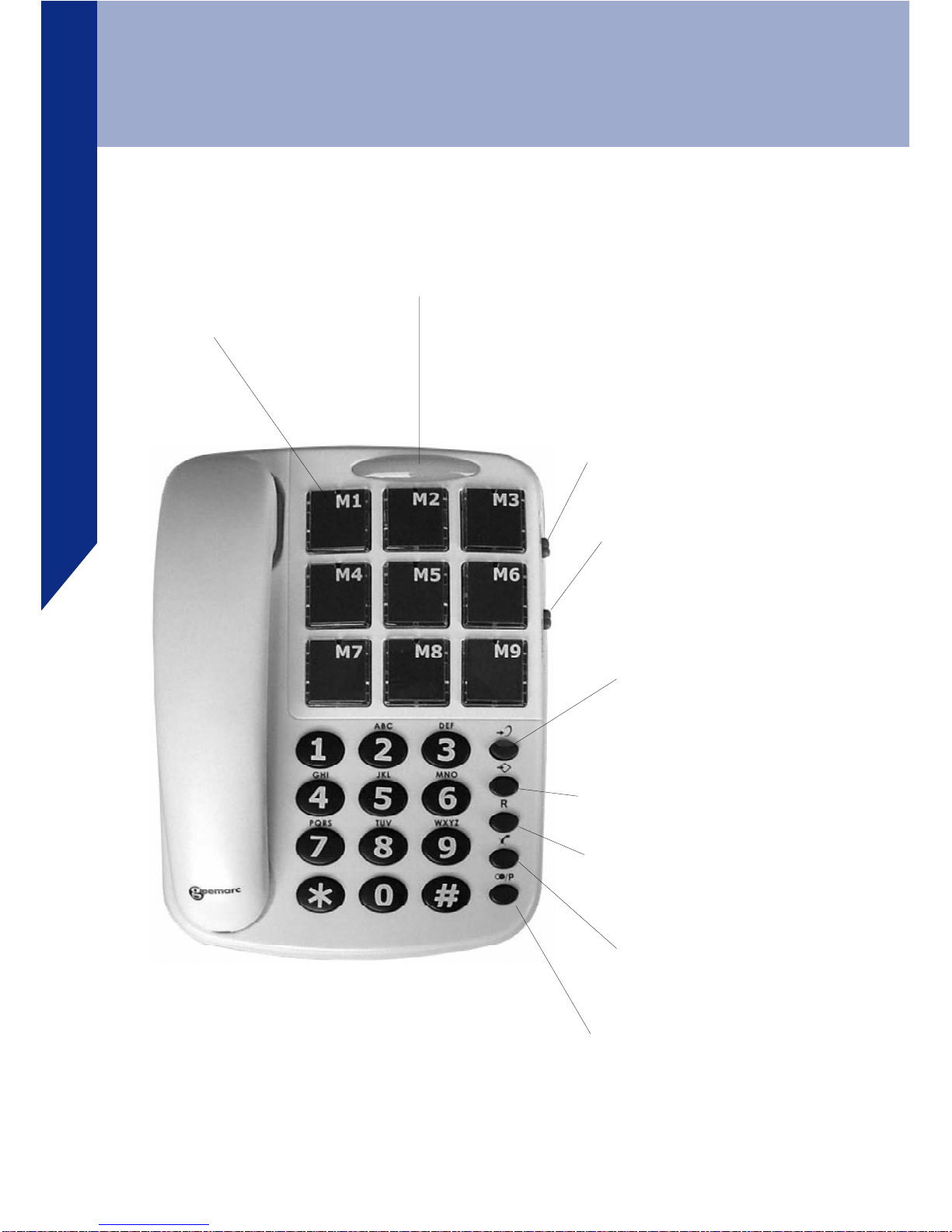

4
Tone reception
adjustment
Last number
redial
Memory storing key
Mute button
Flashing incoming ring
indicator
Direct
memory
buttons
Volume recep-
tion adjustment
Extra volume
and tone
activation
Time break recall
button
Description
5

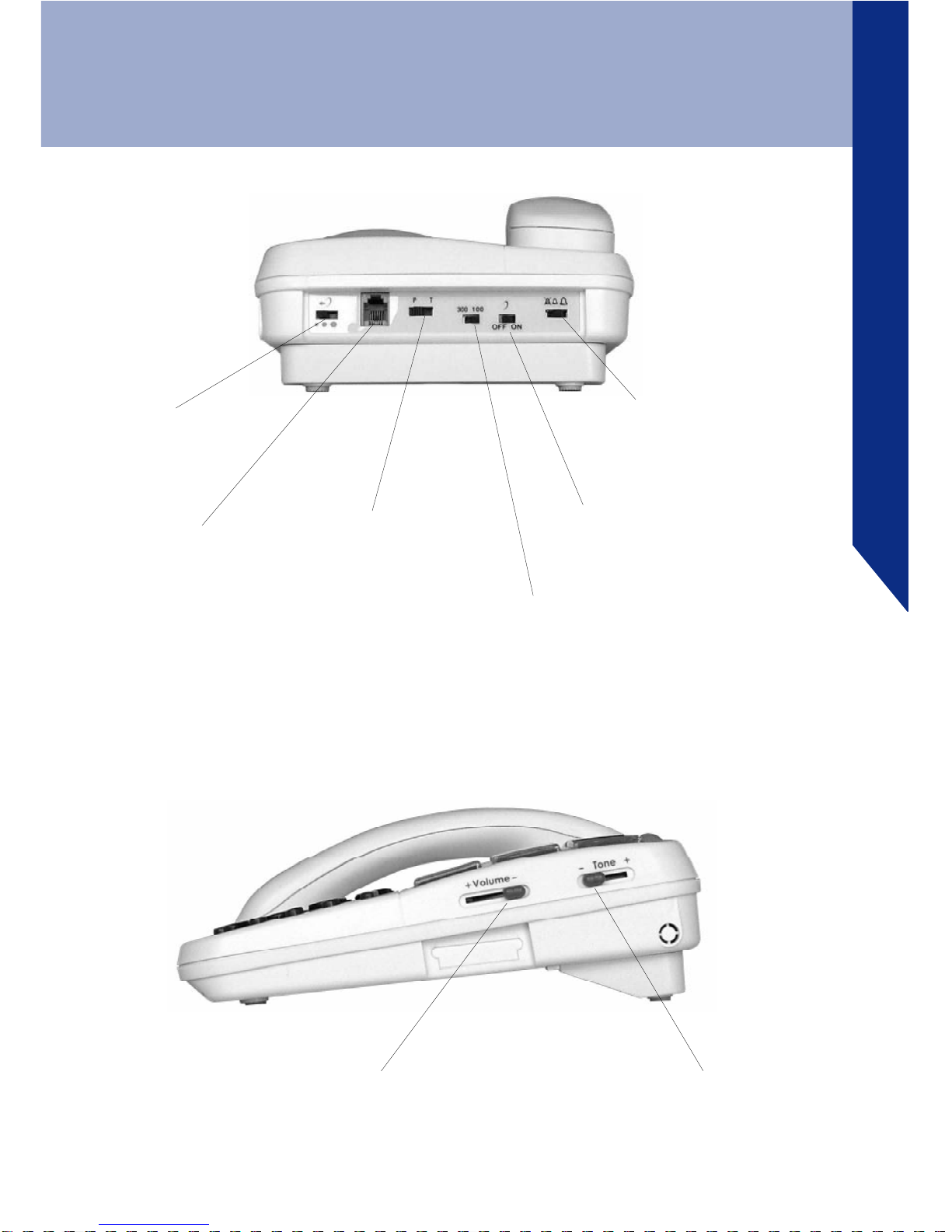

(*) Classified TNV-3 according to EN60950 standard.
Tone / Pulse
switch
Sending
level switch
Line socket*
Time break recall
switch
(R=100ms/300ms)
Volume & Tone
adjustment ON/OFF
switch
Ringer level
adjustment switch
Reception Tone
adjustment
Reception volume
adjustment
Description

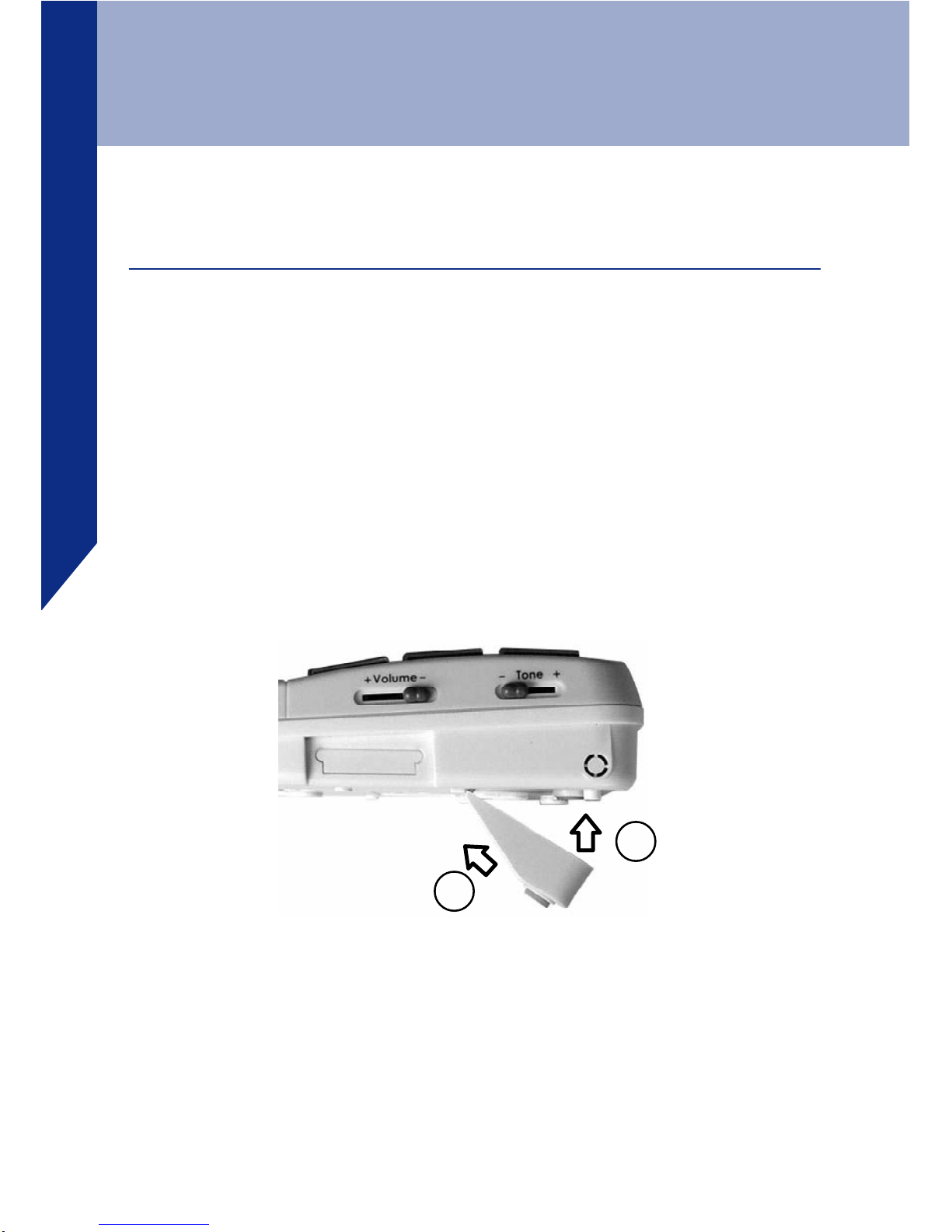

1-CONNECTINGTHETELEPHONE
- Connect the handset cord.
-Openthebatterycompartment.
Insert 4 alkaline batteries without mercury (Type
AAA1.5V,notsupplied)inthecompartment(*).Bat-
teriesarerequiredifyouwishtoincreasetheringer
level up to 10 dB.
Snap the battery door back in place.
- Connect the line cord plug to the line socket on
the base (*).
Connect the other end of the line cord to the
PTT socket. (*)
2-RINGER SETTINGS
A switch located on the upper side allows the
ringer to be switched HI,LOW,OFF:
: Off,
: Low,
: Hi
(*) Classified TNV-3 according to EN60950 standard.
Settingup
6
Setting up
Your phone comes with the ringer switched to
«High» and the melody set to «6»:
Low Mid High
Melody 1 1 2 3
Melody 2 4 5 6 (by default)
Melody 3 7 8 9
Ifyoudon’tliketheringermelody,youcanchoose
anewonebychangingthesettingsasperinstruc-
tionsbelow:
- Lift the handset.
- Press button.
- Press # button.
- Press any of the 1 - 9 dial keys.
The new ringer settings will be activated with the
nextincomingcall.
Note: The ringer level will be increased up to 10
dB if you insert batteries.
7
Setting up
3 - TONE/PULSE SWITCH (T/P)
The Tone/Pulse switch is factory pre-set to Tone
position (T). In UK, all telephone exchanges now
useTone dialling. If your phone does not dial out,
it is probably being used from an older private
switch- board (PBX). In this case, theTone/Pulse
switch must be moved to Pulse.
4 - TIME BREAK RECALL (TBR) SWITCH
For UK, the TBR switch should be set to 100 mS.
Itcanbeswitchedto300mSforotherlocationsor
PBX’s.
Note: If you are using your CL1100
with a hearing aid, set your hearing
aid to “T” position.

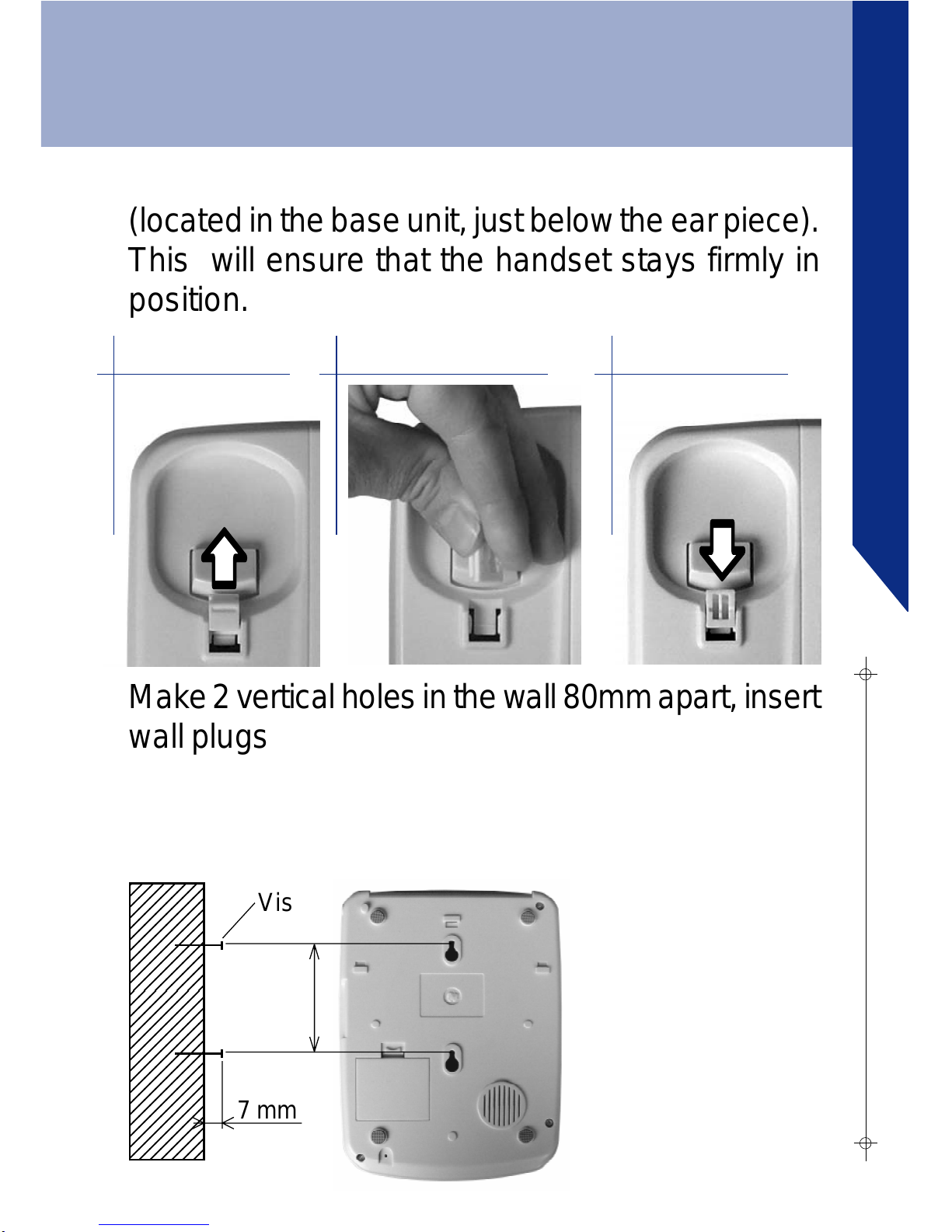

5 - WALL MOUNTING
To wall-mount your telephone, slide out the clip,
turnandslidebackintothewallmountingposition
8
Setting up
Wall mounting
80 mm
80 mm
1234567
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1234567
7 mm
Vis
(locatedinthebaseunit,justbelowtheearpiece).
This will ensure that the handset stays firmly in
position.
Make2verticalholesinthewall80mmapart,insert
wallplugsandwallmountingscrews.Thescrews
should protrude from the wall by 6-7 mm. Place
thephoneontothescrew-headsandslidedownto
secure.
Step 1 Step 2 Step 3
9
6 - DESK SUPPORT
Thephonecanbeusedontheflatpositionorraised
with the desk support. The desk support will give
you the best viewing angle.
Tofitthedesksupport,insertthetwoupperhooks
into the openings provided and push the support
firmlyhome.
Setting up
