3 Function
Intended use
– Single-room temperature control in KNX installations
– Load types: LED or electronic relay
– Mounting in appliance box with dimensions according to DIN 49073
Product characteristics
– Measurement of the room temperature and comparison with the setpoint tem-
perature
– Setpoint specification by selecting the operating mode
– Operating modes: comfort, standby, night operation, frost/heat protection
– Heating and cooling mode
– Heating and cooling with basic and additional level
– Dial for setpoint adjustment
– Presence button
– Status LED

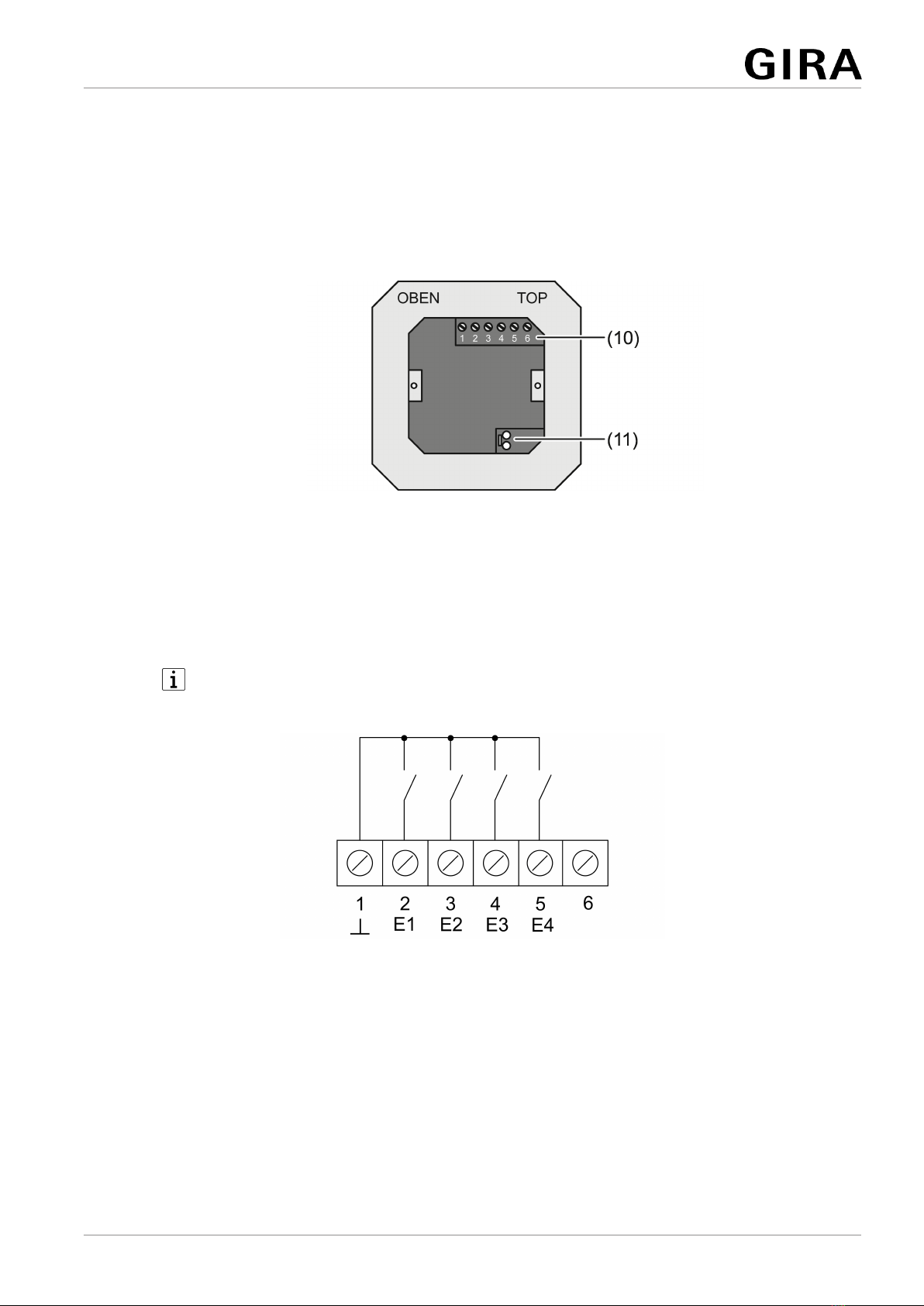

– Push-button interface with four inputs or two outputs and two inputs, e.g. for
window contacts, push-buttons, LEDs, etc.
– Function of the inputs: switching, dimming, shutter control, light scene exten-
sion unit, brightness or temperature value transmitter
– Optional: external temperature sensor, connectable (accessories)
Functional description
The controller compares the current room temperature with the setpoint temperature
and controls the heating and cooling devices according to the current demand. The
setpoint temperature is determined by the set operating mode and can be varied with
the adjustment dial (2). The selected operating mode and the current controller status

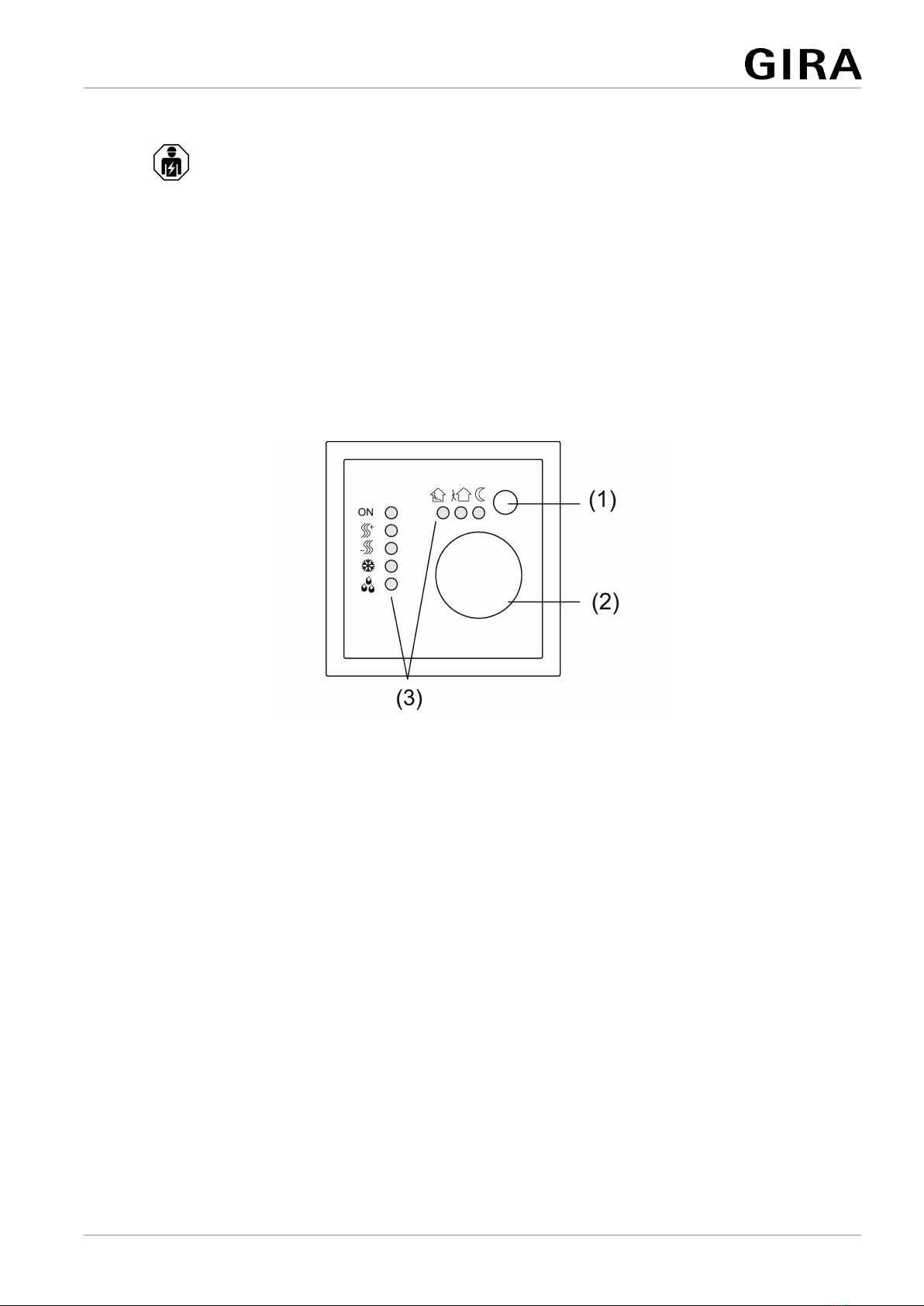

are indicated by the status LED (3) (see figure 1).
4 Operation
Operating modes and Status LED
Each heater requires a certain time to bring a cooled room to the desired temperat-
ure. For this reason, in the event of brief absence, the room temperature can be
lowered only slightly, e.g. by 2 K, and at night by somewhat more, e.g. 4 K. The con-
troller has various operating modes available for this.
Icons of the electronics cover:
0Comfort operating mode
1Standby operating mode
2Night operating mode
4 / 10
32561932 10871292 22.01.2024
Continuous regulator
