H3C PSR2400-54D Power Module
User Manual
New H3C Technologies Co., Ltd.
http://www.h3c.com
Document version: 6PW103-20181116
Copyright © 2014-2018, New H3C Technologies Co., Ltd.
and its licensors
All rights reserved
No part of this manual may be reproduced or transmitted in any form
or by any means without prior written consent of New H3C
Technologies Co., Ltd.
Trademarks
Except for the trademarks of New H3C Technologies Co., Ltd., any
trademarks that may be mentioned in this document are the property
of their respective owners.
Notice
The information in this document is subject to change without notice.
All contents in this document, including statements, information, and
recommendations, are believed to be accurate, but they are
presented without warranty of any kind, express or implied. H3C shall
not be liable for technical or editorial errors or omissions contained
herein.
Environmental protection
This product has been designed to comply with the environmental
protection requirements. The storage, use, and disposal of this
product must meet the applicable national laws and regulations.
Documentation feedback
You can e-mail your comments about product documentation to
We appreciate your comments
i
Contents
Overview ·················································· 1
Front panel ···································································· 2
LEDs············································································ 2
Technical specifications ··················································· 4
Power module configuration·············································· 4
Installing and removing the power module······· 6
Installing the power module··············································· 6
Installing the power module ·········································· 7
Connecting the power cord··········································· 9
Removing the power module············································10
Removing the power cord············································10
Removing the power module········································11
1
Overview
The PSR2400-54D DC-input and DC-output power module is hot
swappable and provides a maximum output of 2400 W.
Table 1 PSR2400-54D power module features
Feature Description
Protection
Protection against input under-voltage, input
over-voltage, output over-voltage, output short
circuit, output under-current, output
over-current, and overheat.
Redundancy The power modules can operate in N+1 or N+N
redundancy. For more information, see "Power
module configuration."
Hot swapping You can install or remove a power module
when the device is operating.
The power module shuts down automatically when its temperature
exceeds the acceptable range. When the temperature returns to the
acceptable range, the power module automatically restarts.
2
Front panel
Figure 1 Front panel
(1) Power input LED (2) Handle
(3) Screw hole for fastening the power cord connector
(4) Latch (5) DC-input receptacle
(6) Power output LED (7) Air vents
LEDs
The PSR2400-54D power module has two LEDs.
1 2 3
4567
3
Table 2 LED description
LED Mark Color Description
Power
input
LED INPUT OK Off
No DC power input.
Low DC input voltage. The
power module has entered
protected state.
Green Normal DC input.
Power
output
LED
OUTPUT
OK
Green Normal DC output.
Red
DC output failure. An
alarm condition occurs, for
example, output short
circuit, output over-current,
output over-voltage, output
under-voltage, or remote
shutdown. The power
module has entered the
protected state.
Orange High temperature.
NOTE:
A
fte
r
the circuit breaker of the power module is switched off, the
LEDs on the power module will remain on for a while.
4
Technical specifications
Table 3 Technical specifications
Item Specifications
Rated input voltage –48 V to –60 V
Rated output voltage 54 V
Maximum input current 80 A
Maximum output current 44.5 A
Maximum output power 2400 W
Dimensions (H × W × D) 41 × 100 × 332 mm (1.61 × 3.94
× 13.07 in)
Ambient
temperature
Operating
temperature –10°C to +50°C (–14°F to
+122°F)
Storage
temperature –40°C to + 70°C (–40°F to
+158°F)
Power module configuration
Follow these guidelines to configure power modules for the device:
•Determine the total number of power modules based on the
actual power consumption, the power module slot number, and
power redundancy design.
•Determine the power module redundancy design based on the
power source conditions.
{When two mains power inputs are provided, you can
configure the power modules in N+N redundancy. N+N must
be not greater than the total number of power module slots.
5
{When one mains power input is provided, you can configure
the power modules in N+1 or N+N redundancy. N+1 or N+N
must be not greater than the total number of power module
slots.
•For easy usage and maintenance, configure a circuit breaker for
each power input. The rated current of the circuit breaker must
be a minimum of 120 A.
6
Installing and removing the power
module
Installing the power module
To avoid bodily injury and device damage, follow the procedures
in Figure 2 to install a power module.
Figure 2 Power module installation procedure
Before the installation, prepare an ESD wrist strap and a flat-blade
screwdriver yourself.
7
Installing the power module
1. Wear an ESD wrist strap, and make sure the strap makes good
skin contact and is reliably grounded.
2. Remove the blank panel from the target power module slot.
{If the blank panel is as shown in Figure 3, thread the
flat-blade screwdriver through the hole in the handle of the
blank panel and pull the blank panel out.
{If the blank panel is as shown in Figure 4, put your forefinger
in the hole in the blank panel and pull the blank panel out.
Skip this step if the target slot does not have any blank panel
installed.

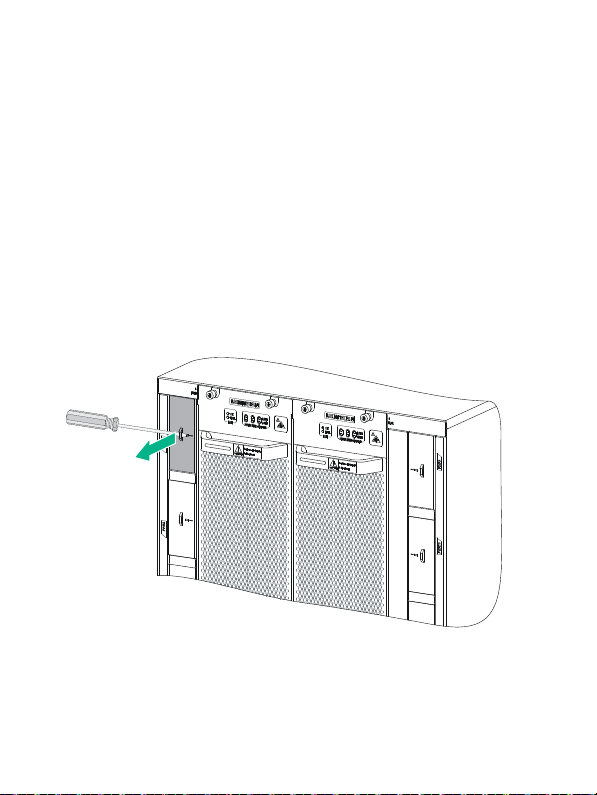

Figure 3 Removing a blank panel (1)
