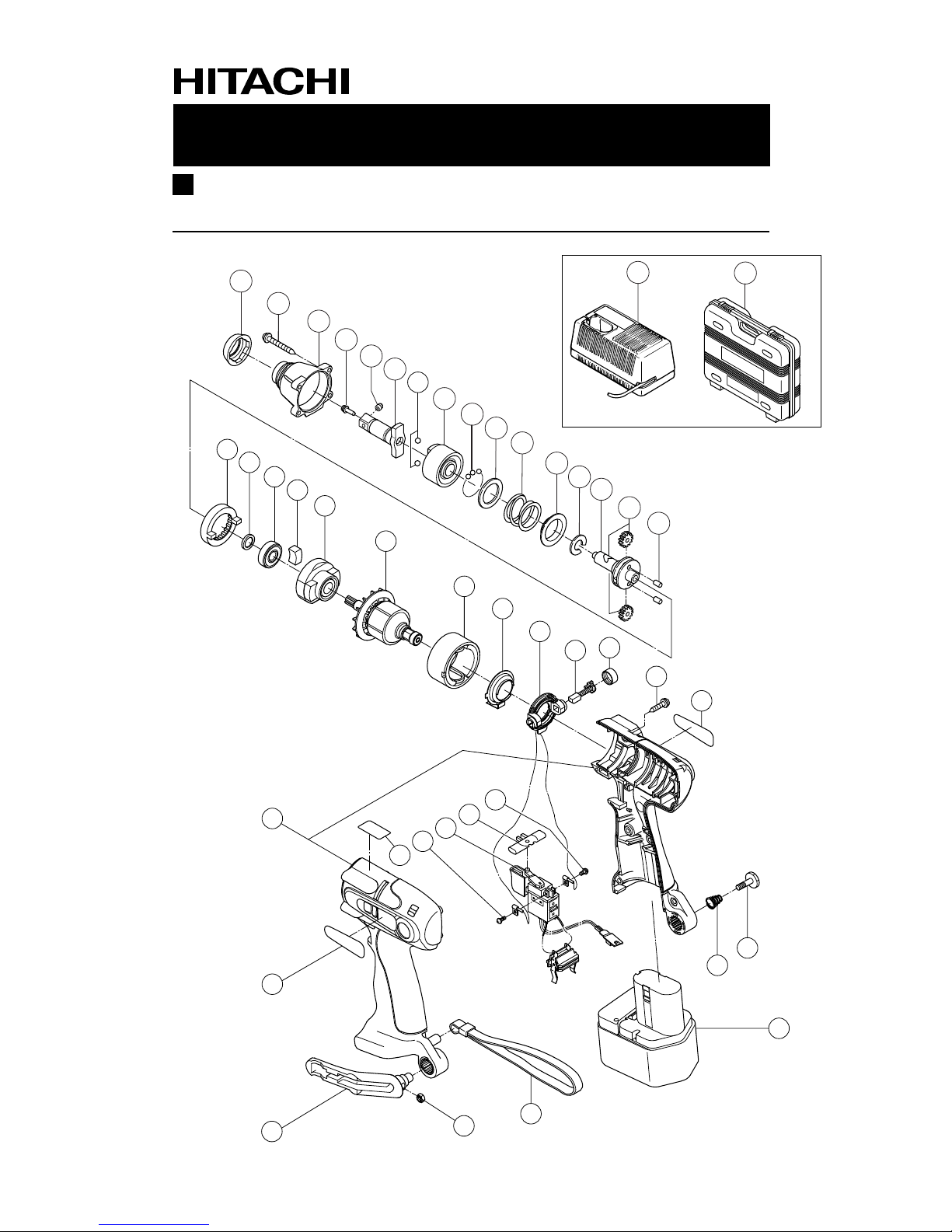

ELECTRIC TOOL PARTS LIST
LIST NO.
CORDLESS IMPACT WRENCH
Model WR 12DM
2001
•
10
•
25
(E1)
F864
501
1
2
7
3
4
6
5
8
910
11
17 18
19 20
21
22
23
24
25
26 27
28
32
34
33
30
32
31
35
36 37 38
39
40
41
29
13 14
12
15
16
502
*ALTERNATIVE PARTS
--- 2 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
10 -- 01
WR 12DM
1 320-383 FRONT CAP 1
2 319-917
TAPPING SCREW (W/SP. WASHER) D4X25 (BLACK)
4
3 320-382 HAMMER CASE 1
4 985-209 PIN RETAINER 1
5 985-208 PLUNGER 1
6 320-384 ANVIL (L) ASS’Y 1 INCLUD.4,5
7 959-154 STEEL BALL D5.556 (10 PCS.) 2
8 319-916 HAMMER 1
9 959-148 STEEL BALL D3.175 (10 PCS.) 28
10 315-978 WASHER (J) 1
11 319-915 HAMMER SPRING 1
12 316-172 WASHER (S) 1
13 316-171 STOPPER 1
14 319-912 SPINDLE 1
15 319-913 IDLE GEAR SET (2 PCS.) 2
16 319-914 NEEDLE ROLLER 2
17 319-910 RING GEAR 1
18 319-911 WASHER (E) 1
19 690-1VV BALL BEARING 6901VVCMPS2L 1
20 319-909 DAMPER 2
21 319-908 INNER COVER 1
22 360-557
ARMATURE ASS’Y (W/BALL BEARING) DC 12V
1
23 319-919 MAGNET 1
24 319-907 DUST GUARD FIN 1
25 320-376 BRUSH BLOCK 1
26 999-054 CARBON BRUSH 5X6X11.5 (1 PAIR) 2
27 319-918 BRUSH CAP 2
28 302-086
TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
7
* 29 NAME PLATE 1
30 320-381 HOUSING (A).(B) SET 1
* 31 CAUTION PLATE 1 FOR USA
32 994-532
MACHINE SCREW (W/SP. WASHER) M3X5
2
33 319-906 DC-SPEED CONTROL SWITCH 1
34 316-166 PUSHING BUTTON 1
35 HITACHI LABEL 1
36 320-378 HOOK ASS’Y 1 INCLUD.37
37 320-288 V-LOCK NUT M5 1
38 306-952 STRAP (BLACK) 1
39 319-926 HOOK SPRING 1
40 319-927 SPECIAL SCREW M5 1
* 41 320-387 BATTERY EB 1220BL (W/ENGLISH N.P.) 2
* 41 320-386 BATTERY EB 1220BL (W/ENGLISH N.P.) 1 FOR USA,CAN
* 41 320-388 BATTERY EB 1230HL (W/ENGLISH N.P.) 1
*ALTERNATIVE PARTS --- 3 ---
STANDARD ACCESSORIES
OPTIONAL ACCESSORIES
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
10 -- 01
WR 12DM
501 CHARGER (MODEL UC 14YF2) 1
502 320-377 CASE 1
* 601 310-378 BATTERY EB 12B (W/ENGLISH N.P.) 1
* 601 310-452 BATTERY EB 12B (W/ENGLISH N.P.) 1 FOR NZL,AUS
* 601 310-453 BATTERY EB 12B (W/ENGLISH N.P.) 1 FOR USA,CAN
602 CORNER ATTACHMENT ASS’Y 1 INCLUD.603-619
603 955-300 HOUSING 1
604 955-301 METAL 3
605 955-302 SPINDLE 1
606 HITACHI LABEL 1
607 955-303 BEARING RACE 2
608 955-304 NEEDLE THRUST BEARING (NTA-1413) 2
609 955-305 COVER 1
610 955-306 NEEDLE BEARING (NTN BK1012) 1
611 948-227 RETAINING RING FOR D47 HOLE 1
612 955-307 PINION 1
613 955-308 SLEEVE 1
614 955-309 WASHER 1
615 955-310 SOCKET COVER 1
616 955-311 SOCKET 1
617 303-247
SEAL LOCK HEX. SOCKET HD. BOLT M5X25
6
618 873-537 SOCKET PIN 1
619 873-187 O-RING (J1SW1516) 1
620 991-481 FORM TIE SOCKET ASS’Y 11.3MMX95L 1 INCLUD.618,619
621 992-610 UNIVERSAL JOINT ASS’Y 1 INCLUD.618,619
622 955-153 UNIVERSAL JOINT PIN 1
623 991-476 BIT ADAPTER ASS’Y 1 INCLUD.618,619
624 944-291 HEX. SOCKET ASS’Y 10MMX40L 1 INCLUD.618,619
625 873-632 HEX. SOCKET ASS’Y 12MMX40L 1 INCLUD.618,619
626 873-539 HEX. SOCKET ASS’Y 13MMX40L 1 INCLUD.618,619
627 873-540 HEX. SOCKET ASS’Y 14MMX40L 1 INCLUD.618,619
628 873-536 HEX. SOCKET ASS’Y 17MMX32L 1 INCLUD.618,619
629 873-624 HEX. SOCKET ASS’Y 19MMX34L 1 INCLUD.618,619
*ALTERNATIVE PARTS
--- 4 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
10 -- 01
WR 12DM
OPTIONAL ACCESSORIES
630 873-626 HEX. SOCKET ASS’Y 21MMX36L 1 INCLUD.618,619
631 873-627 HEX. SOCKET ASS’Y 22MMX40L 1 INCLUD.618,619
632 955-138 HEX. SOCKET ASS’Y (LONG) 12MMX52L 1 INCLUD.618,619
633 955-139 HEX. SOCKET ASS’Y (LONG) 13MMX52L 1 INCLUD.618,619
634 955-140 HEX. SOCKET ASS’Y (LONG) 14MMX52L 1 INCLUD.618,619
635 955-141 HEX. SOCKET ASS’Y (LONG) 17MMX52L 1 INCLUD.618,619
636 955-149 HEX. SOCKET ASS’Y (LONG) 17MMX75L 1 INCLUD.618,619
637 955-142 HEX. SOCKET ASS’Y (LONG) 19MMX52L 1 INCLUD.618,619
638 955-150 HEX. SOCKET ASS’Y (LONG) 19MMX75L 1 INCLUD.618,619
639 955-143 HEX. SOCKET ASS’Y (LONG) 21MMX52L 1 INCLUD.618,619
640 955-151 HEX. SOCKET ASS’Y (LONG) 21MMX75L 1 INCLUD.618,619
641 991-480 HEX. SOCKET ASS’Y (LONG) 21MMX125L 1 INCLUD.618,619
642 955-144 HEX. SOCKET ASS’Y (LONG) 22MMX52L 1 INCLUD.618,619
643 986-058
HEX. SOCKET FOR PLASTIC CONE 12MMX70L
1 INCLUD.618,619
644 873-633
EXTENSION BAR ASS’Y (SQUARE) 12.7MMX100L
1 INCLUD.618,619
645 993-658 SOCKET ASS’Y FOR DUCT 12MMX95L 1 INCLUD.618,619,646
646 993-659 SOCKET FOR DUCT 12MMX52L 1
647 992-613 SOCKET ASS’Y FOR DUCT 13MMX95L 1 INCLUD.618,619,648
648 992-614 SOCKET FOR DUCT 13MMX52L 1
649 992-615 SOCKET ASS’Y FOR DUCT 14MMX95L 1 INCLUD.618,619,650
650 992-616 SOCKET FOR DUCT 14MMX52L 1
651 309-922 GREASE FOR IMPACT DRIVER (500G) 1
Printed in Japan
(011025N)
