Huawei SmartModule1000A01 Manuale utente

HUAWEI TECHNOLOGIES CO., LTD.

Issue: 04

Part Number: 31500BWV

Date: 2020-05-11

SmartModule1000A01

Quick Guide

1Overview

•The information in this document is subject to change due to version upgrade or

other reasons. Every effort has been made in the preparation of this document

to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind,

express or implied. You can download this document by scanning the QR code.

•Operation personnel should understand the composition and working principles

of the grid-tied PV power system and local regulations.

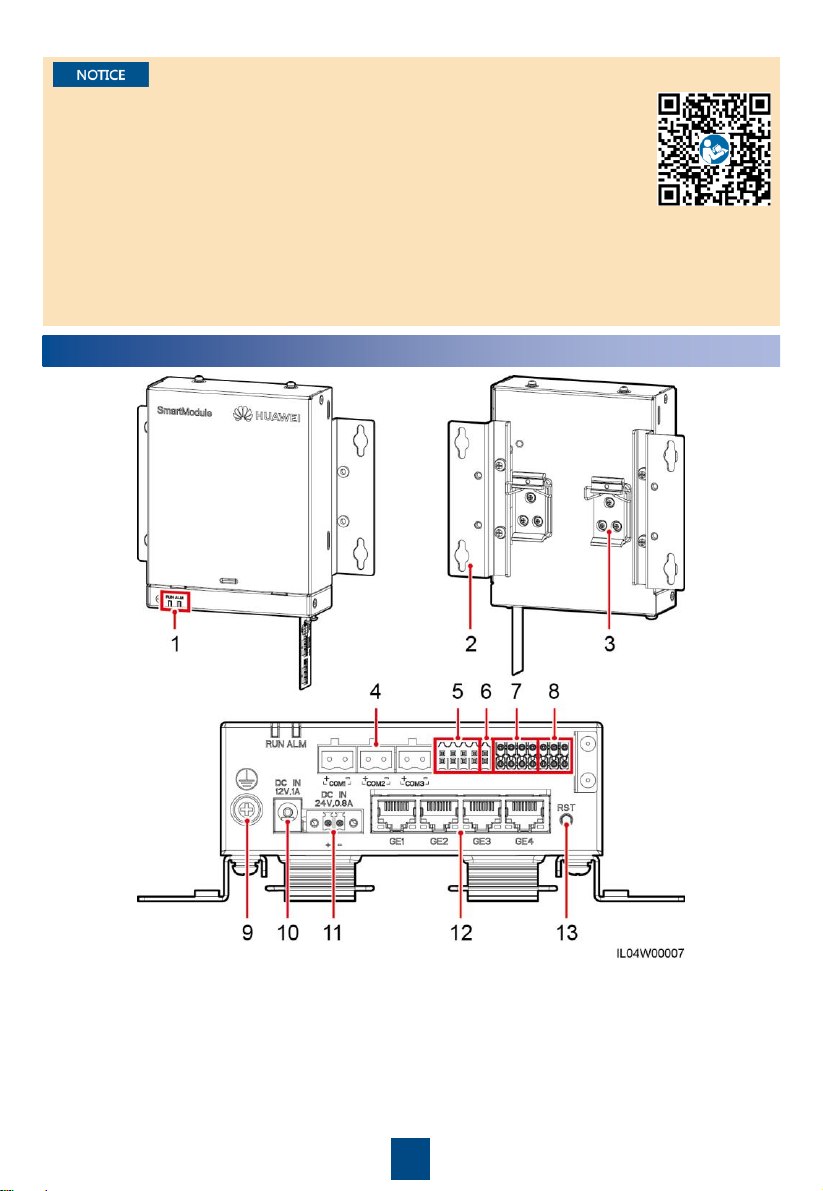

(1) LED indicators (RUN, ALM)

(2) Mounting ear

(3) Guide rail clamp

(4) COM ports (COM1, COM2, COM3)

(5) DI ports (DI)

(6) 12 V

output power port (12V/GND)

(7) AI ports (AI)

(8) Potential transformer (PT) ports (PT1, PT2)

(9) Protective ground point

(10) 12 V

input power port (DC IN 12V, 1A)

(11) 24 V

input power port (DC IN 24V, 0.8A)

(12) GE ports (GE1, GE2, GE3, GE4)

(13) RST button (RST)

•Before installing the device, closely read the user manual to get familiar with product

information and safety precautions. Huawei shall not be liable for any consequence caused by

violation of the storage, installation, and operation regulations specified in this document and

the user manual.

•Use insulated tools when installing the device. For personal safety, wear proper personal

protective equipment (PPE).

2Installation Requirements

3Device Installation

Dimensions Space

Wall-Mounted Installation

•Install the SmartLogger and SmartModule on a flat and secure interior wall.

•When wall-mounting the SmartLogger and SmartModule, ensure that the cable connection area

faces downward for ease of cable connection and maintenance.

•You are advised to use the delivered tapping screws and expansion tubes.

1. Connect the SmartLogger to the SmartModule using a connecting plate.

If the SmartLogger

and SmartModule

have been

combined before

delivery, skip this

step.

2. Install the SmartLogger and SmartModule.

Guide Rail-Mounted Installation (Stand-alone)

•Before installation, prepare a standard 35 mm guide rail and secure it.

•The recommended effective length of the guide rail is 360 mm or greater.

•Ensure that the SIM card slot on the SmartLogger is not blocked.

Guide Rail-Mounted Installation (Combined)

•Before installation, prepare a standard 35 mm guide rail and secure it.

•The recommended effective length of the guide rail is 360 mm or greater.

•Ensure that the SIM card slot on the SmartLogger is not blocked.

1. Connect the SmartLogger to the SmartModule using a connecting plate.

2. Install the SmartLogger and SmartModule.

If the SmartLogger and

SmartModule have been

combined before delivery,

you only need to remove

the mounting ears and

guide rail clamps in the

middle. You do not need

to use a connecting plate

to connect the

SmartLogger and

SmartModule.

4Electrical Connections

Preparing Cables

4.1

Type

Recommended Specifications

Protective

earthing (PE) cable

Outdoor copper cable with a cross

-sectional area of 4–6 mm2

–10 AWG

Ethernet

cable

Delivered

with the SmartModule

12 V

input power cable

Delivered

with the SmartModule

RS485 communications cable

Two

-core or multi-core cable with a cross-sectional area of 0.2–

2.5 mm

2or 24–14 AWG

DI signal cable

Two

-core or multi-core cable with a cross-sectional area of 0.2–

1.5 mm

2or 24–16 AWG

Output p

ower cable

AI signal cable

PT signal cable

For details about the cables and cable connection operations,

see the documents

delivered with the PT100/PT1000.

(Optional) 24 V

input power cable

Two

-core cable with a cross-sectional area of 0.2–1.5 mm2or

–16 AWG

•Connect cables in accordance with the installation laws and regulations of the country or region

where the project is located.

•Before connecting cables to ports, leave enough slack to reduce the tension on the cables and

prevent poor cable connections.

Connecting the PE Cable

4.2

•To enhance the

corrosion resistance of

the ground terminal,

you are advised to

apply silica gel or paint

on it after connecting

the ground cable.

•If the SmartLogger is

connected to the

SmartModule over a

connecting plate,

connect a PE cable to

the ground point of the

SmartLogger or

SmartModule based on

site requirements.

Connecting the Ethernet Cable

4.3

•The SmartModule can be connected to the SmartLogger and a PC over the GE port.

•Connect the LAN port on the SmartLogger to one GE port on the SmartModule using an

Ethernet cable.

•If the delivered network cable is too short, you are advised to prepare a network cable of Cat 5e

or higher specifications and shielded RJ45 connectors. It is recommended that the cable length

be less than or equal to 100 m. When crimping the network cable, ensure that the shielding

layer of the cable is securely connected to the metal shell of the RJ45 connectors.

(1) White

and-

orange

(2) Orange

(3) White

and-

green

(4) Blue

(5) White

and-

blue

(6) Green

(7) White

and-

brown

(8) Brown

Connecting the 12 V Input Power Cable

4.4

The SmartLogger connects to the power supply over the 12 V input power port, and the 24 V input

power port of the SmartLogger functions as the 12 V output power port to supply power to the

SmartModule.

Connecting the RS485 Communications Cable

4.5

Port

Identifier

Description

COM1, COM2, COM3

RS485A, RS485 differential signal+

–

RS485B, RS485 differential signal

–

•It is recommended that the RS485 communication distance be less than or equal to 1000 m.

•The SmartModule can connect to RS485 communications devices, such as a solar inverter, an

environmental monitoring instrument (EMI), and a power meter over the COM port.

•Ensure that the RS485+ and RS485–terminals are respectively connected to the COM+ and

COM–ports on the SmartModule.

Cascading Connection

•You are advised to connect fewer than 30 devices to each RS485 route.

•The baud rate, communications protocol, and parity mode of all devices on the RS485

cascading link must be the same as those of the COM ports on the SmartModule.

Connecting the DI Signal Cable

4.6

•The SmartModule can receive DI signals such as remote power grid scheduling commands and

alarms over DI ports. It can only receive passive dry contact signals.

•It is recommended that the signal transmission distance be less than or equal to 10 m.

Port

Description

DI1

Can receive passive

dry contact signals.

DI2

DI3

DI4

Connecting the Output Power Cable

4.7

•In the grid connection with limited power or audible and visual alarm scenarios, the

SmartModule can drive the coils of the intermediate relay over the 12 V output power port.

•It is recommended that the transmission distance be less than or equal to 10 m.

Intermediate relay

Connecting the AI Signal Cable

4.8

•The SmartModule can receive AI signals from the EMIs over the AI ports.

•It is recommended that the transmission distance be less than or equal to 10 m.

•AI ports 1, 2, 3, and 4 are for AI+ signals, and the GND port is for AI–signals.

Port

Description

AI1

Supports 0

–10 V

input voltage.

AI2

Supports 4

–

20 mA or

–20 mA input

current.

AI3

AI4

Connecting the PT Signal Cable

4.9

The SmartModule provides two PT ports, which can be used to connect to three-wire or two-wire

PT100/PT1000 temperature sensors.

Three-Wire System

PT100/PT1000 temperature sensor
