Kamstrup flowIQ 4200 Manuale utente
Installation guide
flowIQ® 4200 - US
Kamstrup Water Metering, LLC · 245 Hembree Park Drive, Ste. 110 · Roswell, GA 30076, USA · info-us@kamstrup.com
2Kamstrup A/S • 55123307_A1_EN-US_06.2022
Installation guide flowIQ® 4200
Contents
1 In general 3
1.1 Intended use and installation scenarios 3
2 Lids 4
3 Installation requirements 5
3.1 In general 5
3.2 Installation precautions 5
3.3 Operating pressure 5
3.4 Flow direction 6
4 flowIQ® 4200 installation 6
4.1 Sediments in the water 7
4.2 ‘Spool piece installation (only applies to 6” and 8” meters) 7
4.3 Split flange installation 8
4.3.1 General flange features and specifications 9
4.3.2 Criss-cross pattern 10
4.3.3 Installing the split flanges on the meter first 10
4.3.4 Installing the flange on the pipeline first 11
4.4 Installation angle 12
4.5 Straight inlet 12
4.6 Flow disturbance and flow cavitation 12
4.6.1 Service connection 12
5 FCC Cautions 13
6 ICES/ISED cautions 14
3Kamstrup A/S • 55123307_A1_EN-US_06.2022
Installation guide flowIQ® 4200
1 In general
Please read this guide carefully before installing Kamstrup water meters.
flowIQ® 4200 meters are used for measuring potable water and all variants are built for
submerged conditions.
All meters have an arrow on the side of the meter body, indicating the correct flow
direction through the meter.
Restrictions:
• Ensure that the meter is mounted in the correct flow direction
• Ensure correct operating pressure
• Avoid placing the meter in direct sunlight. For meters subjected to any kind of
mechanical impact, it is recommended to install a lid on the meter
1.1 Intended use and installation scenarios
flowIQ® 4200 meters are intended for measurements of cold water consumption in
industrial environments such as distribution networks and commercial buildings.
Installation scenarios can be in submerged conditions as well.
Ambient temperature range: 35-130 °F.
Disclaimer: In case of reasonably foreseeable misuse or incorrect mounting,
Kamstrup´s warranty obligations no longer apply.
4Kamstrup A/S • 55123307_A1_EN-US_06.2022
Installation guide flowIQ® 4200

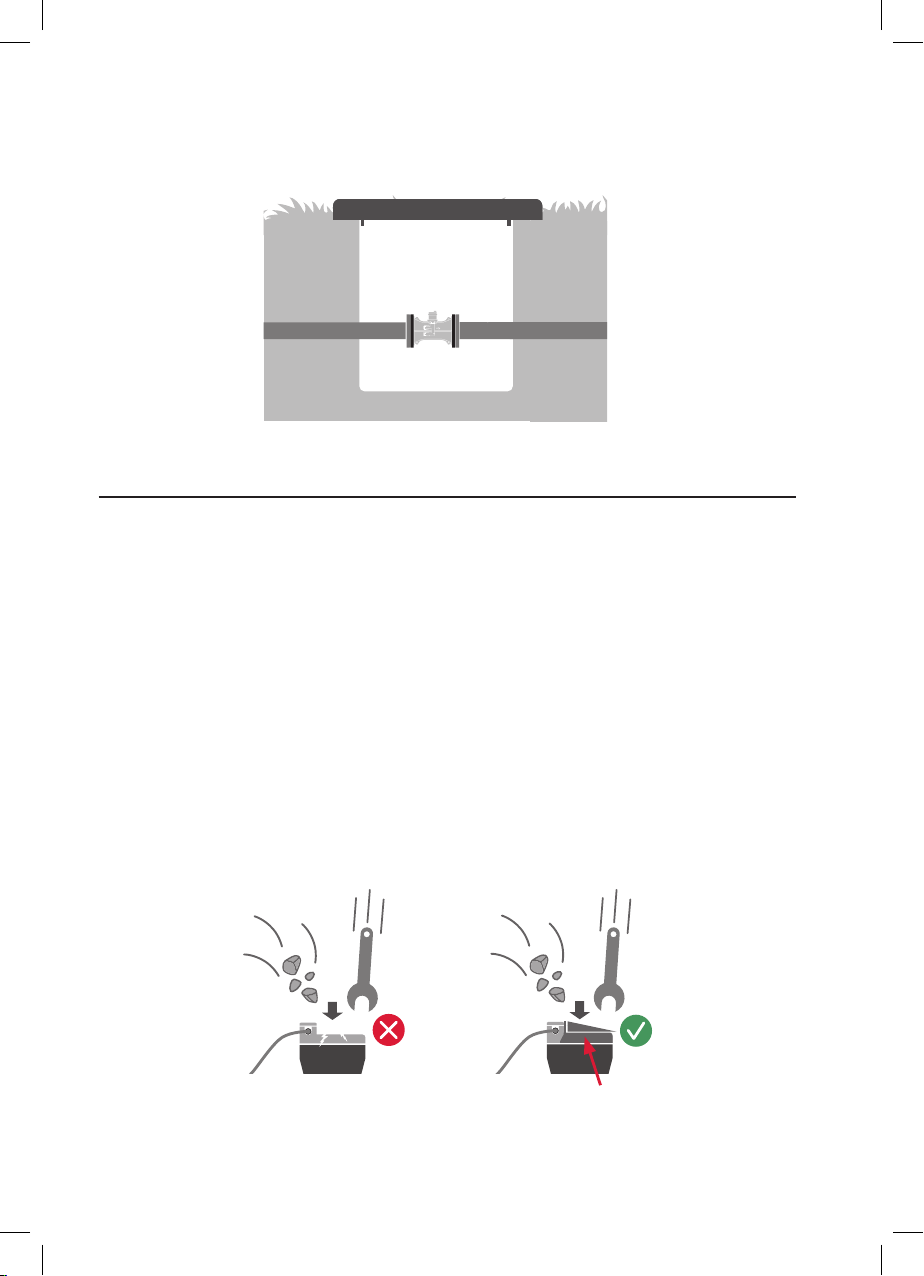

flowIQ® 4200 is suitable for mounting in well applications.
2 Lids
For meters subjected to any kind of mechanical impact, it is recommended to install a
lid on the meter.
It protects the meter display from direct sunlight and/or the glass from moderate
mechanical impact.
For flowIQ® 4200 meters, it is possible to install a lid.
The lid can be ordered as a separate accessory and will not be attached or mounted on
the meter from factory.
- Lid: type no: 66-99-645
Kamstrup requires the installation of a lid if the meter – installed in the intended
application – is:
• Installed in public places where unauthorized persons may have access to the meter
• Installed where it may be subject to some kind of mechanical impact
• Installed in direct sunlight (installation of lid is recommended)
5Kamstrup A/S • 55123307_A1_EN-US_06.2022
Installation guide flowIQ® 4200
3 Installation requirements
3.1 In general
When installing the meter, it must be orientated correctly in relation to flow direction:
• The flow direction is indicated by an arrow on the side of the meter
• The meter ought to be orientated so that the display is easy to read
3.2 Installation precautions
• The sealing surface of the flanged connection must be clean and level
• Replace gaskets when installing a new water meter
• ALWAYS use new gaskets
• Gaskets in original quality is of crucial importance

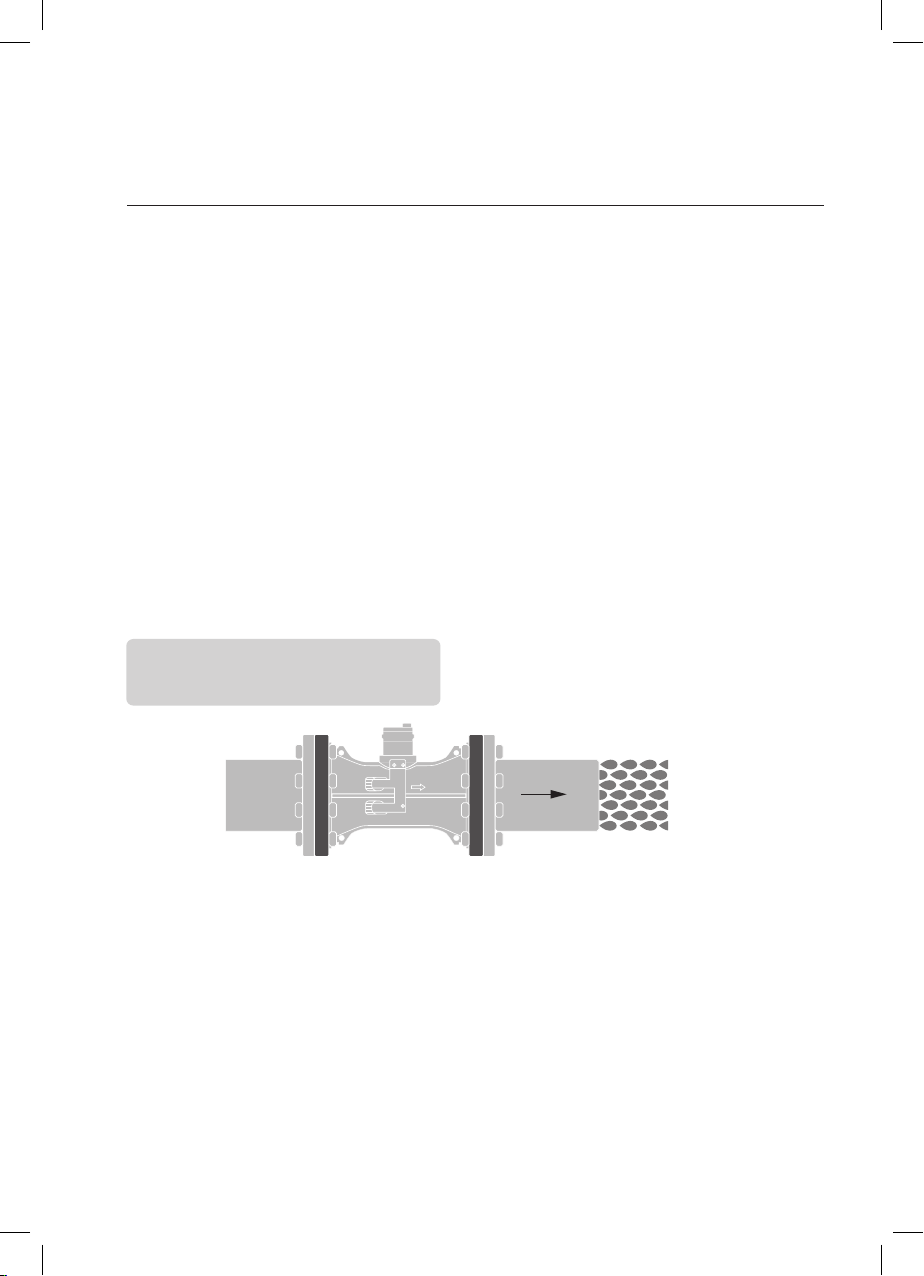

3.3 Operating pressure
In order to avoid entrapped air or cavitation in the meter – and to ensure correct
measurement under all circumstances – the operating pressure in the pipe installation
must always be minimum:
• 275 PSI – split flange meters – flowIQ® 4200
Note: Avoid installation where there
is no option for back pressure
6Kamstrup A/S • 55123307_A1_EN-US_06.2022
Installation guide flowIQ® 4200

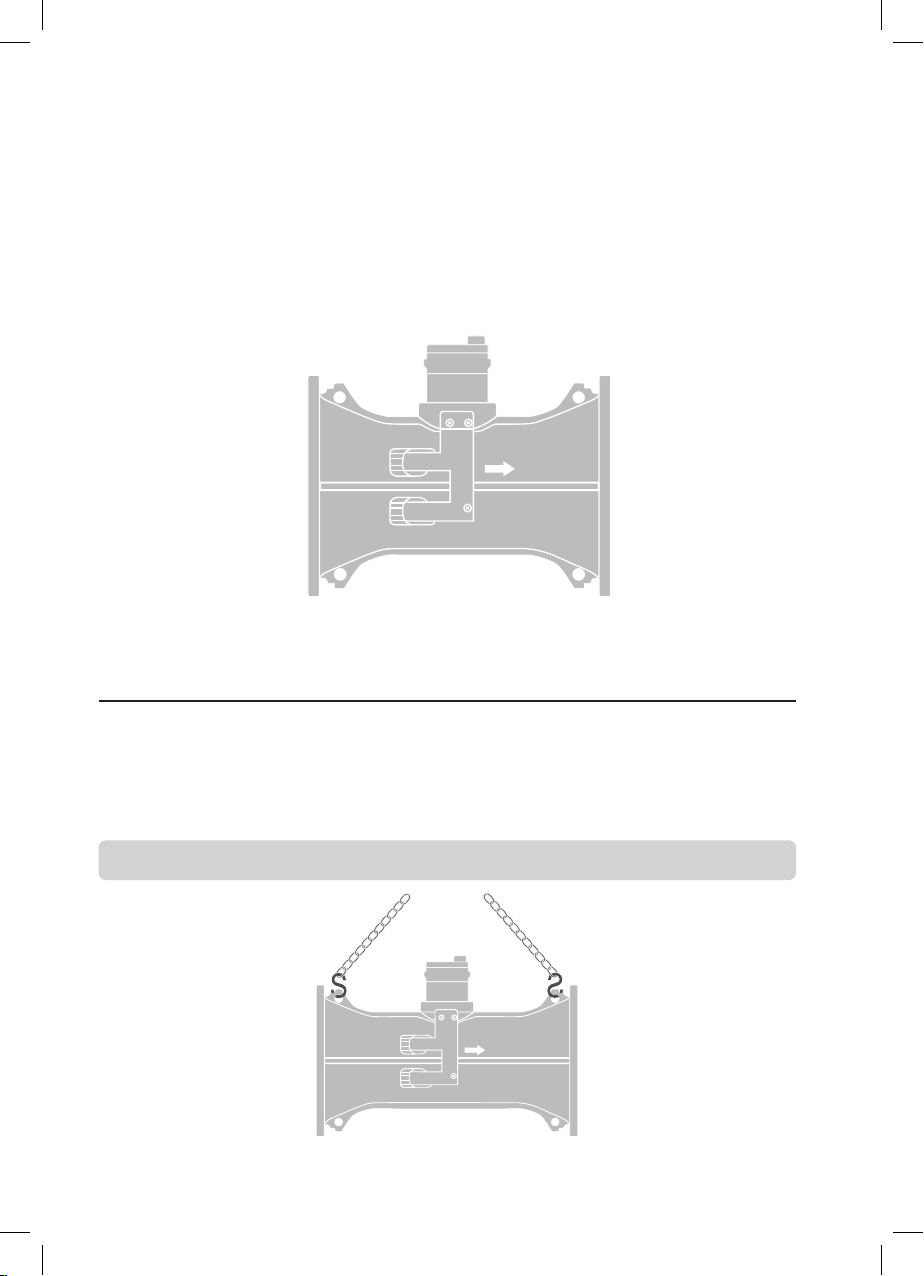

3.4 Flow direction
The meter has an arrow on the side of the meter, indicating the right flow direction
through the meter. Only this direction is legal. If flow is registered in the wrong direction,
the info code ‘REVERSE’ is visible in the display, which means that the meter detects
reverse flow. The meter calculates the volume in a separate register not verified for
billing. Reverse volume is NOT displayed on the meter.
4 flowIQ® 4200 installation
A flowIQ® 4200 meter is delivered with separate coated split flanges in cast iron.
Furthermore the 6” and 8” variants of the meter are delivered with spool pieces.
Use only the original split flanges and spool pieces from Kamstrup combined with
original fiber gaskets. Gaskets can be ordered separately.
flowIQ® 4200
Warning! Only lift the meter by using the lifting lugs.
7Kamstrup A/S • 55123307_A1_EN-US_06.2022
Installation guide flowIQ® 4200

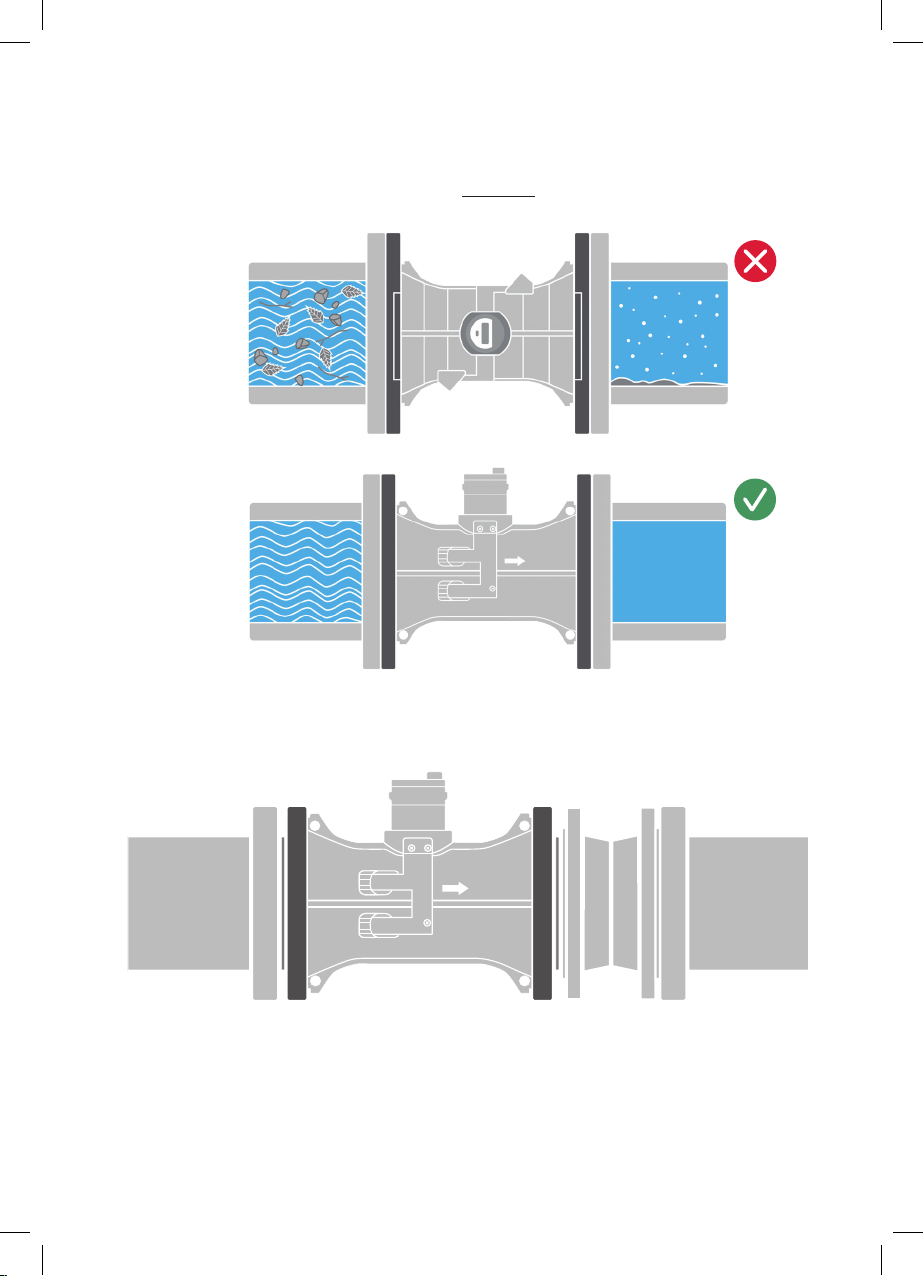

4.1 Sediments in the water
If the water contains sediments Kamstrup suggests to install the meter with the cup
facing upwards.
4.2 ‘Spool piece installation (only applies to 6” and 8” meters)
Spool pieces should be mounted on the pipeline flanges first to ensure flexible options in
regards to split flange installation on either pipeline or meter.
When mounting spool pieces, the described criss-cross pattern procedure applies.
8Kamstrup A/S • 55123307_A1_EN-US_06.2022
Installation guide flowIQ® 4200

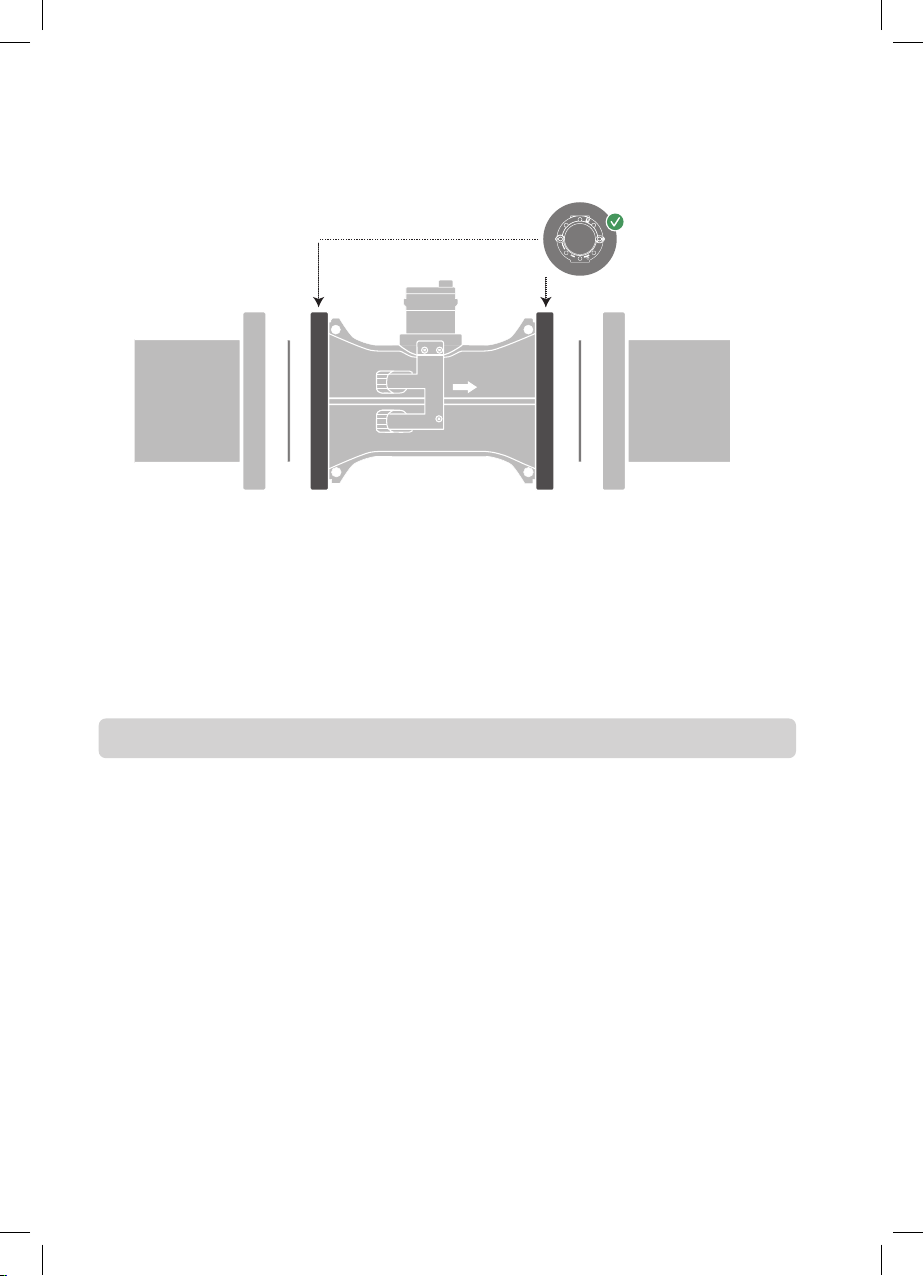

4.3 Split flange installation
Installation sketch:
Installing a meter with split flanges gives the option to install the flanges on the pipeline
systems first or on the meter itself. Best practice depends on the installation scenarios
and the space conditions.
Both options are described below and both installation options require the same
procedure for tightening the flange bolts in the described criss-cross pattern.
Tighten all flange bolts according to the described criss-cross pattern with the correct
tightening torque. Repeat this procedure three times in total to ensure correct meter
installation.
Note! Criss-cross pattern to be repeated three times.
9Kamstrup A/S • 55123307_A1_EN-US_06.2022
Installation guide flowIQ® 4200

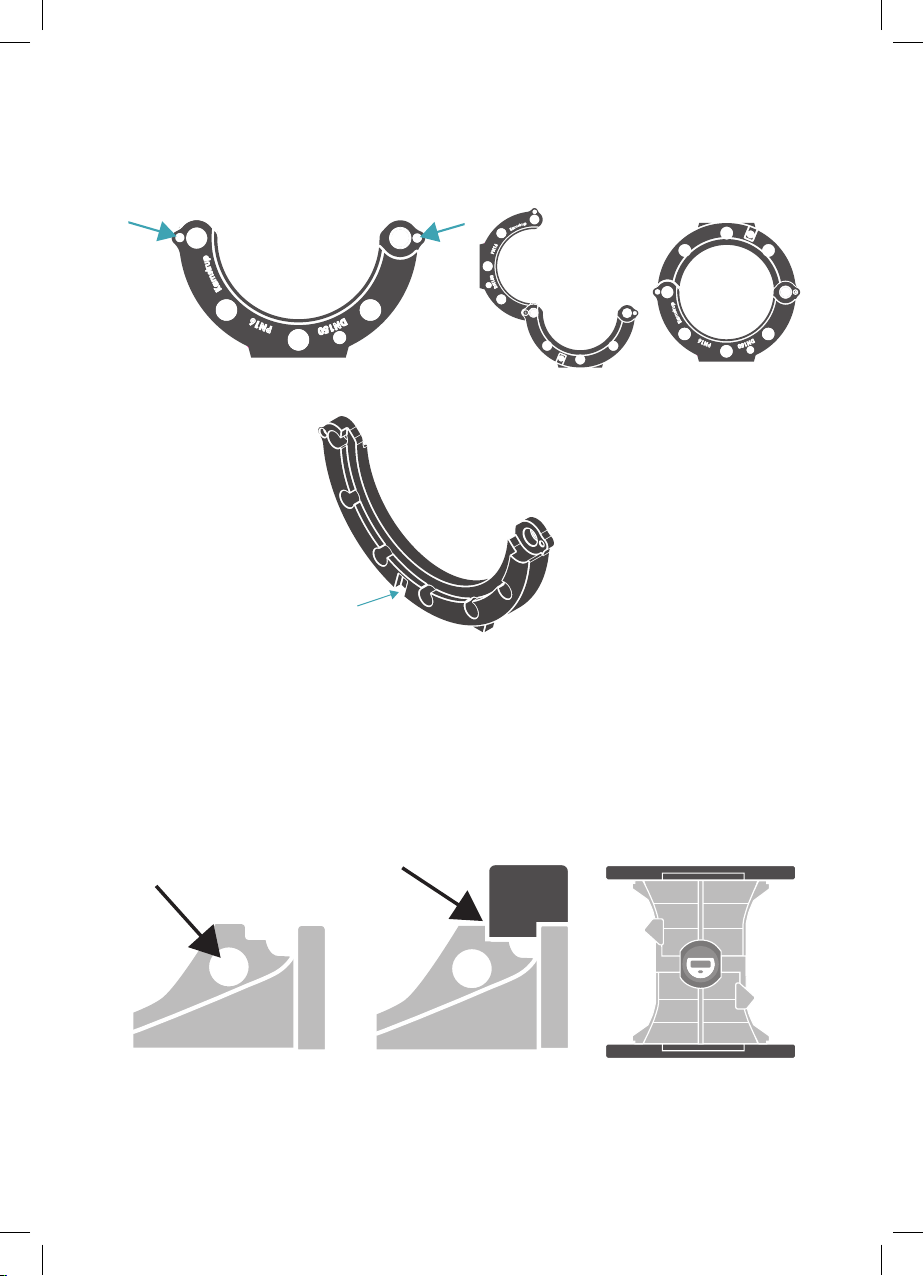

4.3.1 General flange features and specifications
Fixing bolt ¼” bolt and nut:
The fixing bolt thread is useful for connecting the two split flange parts during installation.
Pushing nut milling:
If extra space for the gasket is needed, insert a 7/16” nut in the pushing nut milling,
and insert a 7/16” bolt from the opposite side to press and enlarge the gap between the
flanges, thus creating space for the gasket.
Lifting lugs
The lifting lugs have two purposes:
• Supporting safe conduct regarding meter installation when lifting
• Fixating the split flanges on the meter
10 Kamstrup A/S • 55123307_A1_EN-US_06.2022
Installation guide flowIQ® 4200
4.3.2 Criss-cross pattern
Tighten all flange bolts in a criss-cross pattern according to the correct tightening
torque. Repeat this procedure three times according to the torque table below.
Follow the tightening pattern as shown in the figures below:
4.3.3 Installing the split flanges on the meter first
• Place the meter vertically on one end
• Fixate the two split flanges together by using a ¼” bolt
• Place the flange around the meter and close the flange by fixing a second ¼” bolt in
the opposite side
• Turn the meter upside down and install the other split flange
Meter flange
Meter size
Bolt size
inch
Tightening torque
PN16
6” 3/4” 180 ft x lbs
8” 3/4” 180 ft x lbs
10” 7/8” 250 ft x lbs
12” 7/8” 250 ft x lbs
8-bolt
1
2
3
45
6
7
8
12-bolt
1
2
3
4
11
12
5
10
67
8
9
