KitchenAid KSM150PSBK0 Manuale utente

c2008 KITCHENAID

5 QT. STAND MIXER

ARTISAN TILT HEAD

MODELS:

2−08 Litho in U.S.A. (skr) Part No. 8212010 Rev. G

KSM150PSWH0 (White)

KSM150PSCL0 (Crystal Blue)

KSM150PSBU0 (Cobalt Blue)

KSM150PSGP0 (Grape)

KSM150PSGR0 (Imperial Grey)

KSM150PSBK0 (Imperial Black)

KSM150PSCB0 (Cranberry)

KSM150PSOB0 (Onyx Black)

KSM150PSGN0 (Empire Green)

KSM150PSAC0 (Almond Creme)

KSM150PSGB0 (Glacier Blue)

KSM150PSIC0 (Ice)

KSM150PSLV0 (Lavender)

KSM150PSER0 (Empire Red)

KSM150PSMY0 (Majestic Yellow)

KSM150PSLM0 (Lemon)

KSM150PSPK0 (Pink)

KSM150PSPT0 (Pistachio)

KSM150PSMG0 (Martha Green)

KSM150PSCV0 (Caviar)

KSM150PSSF0 (Sunflower)

KSM150PSTG0 (Tangerine)

KSM150PSMC0 (Metallic Chrome)

KSM150PSCH0 (Chocolate)

KSM150PSVN0 (Vanilla)

KSM150PSWB0 (Wasabi)

KSM150PSVT0 (Violet)

KSM150PSBW0 (Blue Willow)

KSM150PSGC0 (Gloss Cinnamon)

KSM150PSMA0 (Mango)

KSM150PSML0 (Meyer Lemon)

KSM150PSOR0 (Spicy Orange)

KSM150PSPL0 (Dark Plum)

KSM150PSRB0 (Reef Blue)

KSM150PSSU0 (Surf Green)

KSM150PSCY0 (Bing Cherry)

KSM150PSMN0 (Melon)

KSM150PSGA0 (Green Apple)

KSM150PSCN0 (Citron)

KSM150PSPN0 (Persimmon)

KSM150PSCO0 (Cornflower Blue)

KSM150PSCT0 (Clementine)

KSM150PSWG0 (Williams Sonoma Green)

KSM150PSBF0 (Buttercup)

KSM150PSSM0 (Silver Metallic)

KSM150PSCPK0 (Pink)

KSM150PSBL0 (Bayleaf)

KSM150PSBY0 (Boysenberry)

KSM150PSFB0 (French Blue)

KSM150PSGG0 (Grass Green)

KSM150PSSY0 (Sunshine Yellow)

4KSM150PSWH0 (White)

4KSM150PSBU0 (Cobalt Blue)

4KSM150PSGR0 (Imperial Grey)

4KSM150PSOB0 (Onyx Black)

4KSM150PSGN0 (Empire Green)

4KSM150PSAC0 (Almond Creme)

4KSM150PSLV0 (Lavender)

4KSM150PSER0 (Empire Red)

4KSM150PSMY0 (Majestic Yellow)

4KSM150PSPK0 (Pink)

4KSM150PSPT0 (Pistachio)

4KSM150PSTG0 (Tangerine)

4KSM150PSMC0 (Metallic Chrome)

4KSM150PSBW0 (Blue Willow)

COLOR VARIATION PARTS

For Models: KSM150PS_ _0, 4KSM150PS_ _0

8212010 2

COLOR VARIATIONS PARTS

38212010

For Models: KSM150PS_ _0, 4KSM150PS_ _0

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Motor Housing

240291−1 White

9707165 Crystal Blue

240291−7 Cobalt Blue

9707126 Grape

240291−22

Imperial Gray

9704790 Imperial Black

9706796 Cranberry

240291−13

Onyx Black

240291−10

Empire Green

240291−16

Almond Creme

9706678 Glacier Blue

9707662 Ice

9706823 Lavender

240291−21

Empire Red

240291−20

Majestic Yellow

9707152 Lemon

9706473 Pink

9706836 Pistachio

9707433 Martha Green

9705243 Caviar

9707139 Sunflower

9706849 Tangerine

9704025 Metallic Chrome

9708141 Chocolate

9708221 Vanilla

9707649 Wasabi/Citron

9708299 Violet

9709600 Blue Willow

9709442 Gloss Cinnamon

9709398 Mango

9707139 Meyer Lemon

9708877 Spicy Orange

9709517 Dark Plum

9709385 Reef Blue

9709372 Surf Green

9708286 Melon

9709613 Persimmon

9709664 Bing Cherry

9709688 Green Apple

9709746 Cornflower Blue

9709734 Clementine

9709891 WS Green

9709903 Buttercup

W10121193

Silver Metallic

W10140788

Bayleaf

W10140801

Boysenberry

W10181821

French Blue

W10181807

Grass Green

W10181794

Sunshine Yellow

2 Trim Band

9706630 Black/Silver

9706632 Almond Creme

9706659 White On White

3 End Cover

240253−1 White

9707170 Crystal Blue

240253−8 Cobalt Blue

9707131 Grape

240253−23

Imperial Gray

240253−13

Black Crinkle

9706801 Cranberry

240253−14

Onyx Black

240253−11

Empire Green

240253−16

Almond Creme

9706668 Glacier Blue

9707667 Ice

9706828 Lavender

240253−22

Empire Red

240253−21

Majestic Yellow

9707157 Lemon

9706469 Pink

9706841 Pistachio

9707438 Martha Green

9705241 Caviar

9707144 Sunflower

9706854 Tangerine

240253−4 Metallic Chrome

9708146 Chocolate

9708226 Vanilla

9707654 Wasabi/Citron

9708304 Violet

9709595 Blue Willow

9709437 Gloss Cinnamon

9709393 Mango

9707144 Meyer Lemon

9708872 Spicy Orange

9709512 Dark Plum

9709380 Reef Blue

9709367 Surf Green

9708291 Melon

9709608 Persimmon

9709659 Bing Cherry

9709683 Green Apple

9709741 Cornflower Blue

9709729 Clementine

9709886 WS Green

9709898 Buttercup

W10121188

Silver Metallic

W10140783

Bayleaf

W10140796

Boysenberry

W10181816

French Blue

W10181802

Grass Green

W10181789

Sunshine Yellow

4 Planetary

240286−1 White

9707168 Crystal Blue

240286−10

Cobalt Blue

9707129 Grape

240286−24

Imperial Gray

9704797 Imperial Black

9706799 Cranberry

240286−16

Onyx Black

240286−13

Empire Green

240286−18

Almond Creme

9706695 Glacier Blue

9707665 Ice

9706826 Lavender

240286−23

Empire Red

240286−22

Majestic Yellow

9707155 Lemon

9706475 Pink

9706839 Pistachio

9707436 Martha Green

9705244 Caviar

9707142 Sunflower

9706852 Tangerine

9706670 Metallic Chrome

9708144 Chocolate

9708224 Vanilla

9707652 Wasabi/Citron

9708302 Violet

9709597 Blue Willow

9709439 Gloss Cinnamon

9709395 Mango

9707142 Meyer Lemon

9708874 Spicy Orange

9709514 Dark Plum

9709382 Reef Blue

9709369 Surf Green

9708289 Melon

9709610 Perismmon

9709661 Bing Cherry

9709685 Green Apple

9709743 Cornflower Blue

9709731 Clementine

9709888 WS Green

9709900 Buttercup

W10121190

Silver Metallic

W10140785

Bayleaf

W10140798

Boysenberry

W10181818

French Blue

W10181804

Grass Green

W10181791

Sunshine Yellow

COLOR VARIATIONS PARTS

8212010

For Models: KSM150PS_ _0, 4KSM150PS_ _0

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

5 Lower Gearcase

240350−4 White

9707162 Crystal Blue

240350−31

Cobalt Blue

9707123 Grape

240350−86

Imperial Gray

9707103 Imperial Black

9706792 Cranberry

240350−56

Onyx Black

240350−46

Empire Green

240350−62

Almond Creme

9706690 Glacier Blue

9707659 Ice

9706819 Lavender

240350−84

Empire Red

240350−82

Majestic Yellow

9707149 Lemon

9706471 Pink

9706832 Pistachio

9707430 Martha Green

9706911 Caviar

9707136 Sunflower

9706845 Tangerine

9706662 Metallic Chrome

9708138 Chocolate

9708218 Vanilla

9707646 Wasabi/Citron

9708296 Violet

9709603 Blue Willow

9709445 Gloss Cinnamon

9709401 Mango

9707136 Meyer Lemon

9708880 Spicy Orange

9709520 Dark Plum

9709388 Reef Blue

9709375 Surf Green

9708283 Melon

9709616 Persimmon

9709667 Bing Cherry

9709691 Green Apple

9709749 Cornflower Blue

9709737 Clementine

9709894 WS Green

9709906 Buttercup

W10121196

Silver Metallic

W10140791

Bayleaf

W10140804

Boysenberry

W10181824

French Blue

W10181810

Grass Green

W10181797

Sunshine Yellow

6 Pedestal

240151−1 White

9707160 Crystal Blue

240151−8 Cobalt Blue

9707121 Grape

240151−21

Imperial Gray

9707101 Imperial Black

9706791 Cranberry

240151−13

Onyx Black

240151−11

Empire Green

240151−15

Almond Creme

9706687 Glacier Blue

9707657 Ice

9706818 Lavender

240151−20

Empire Red

240151−19

Majestic Yellow

9707147 Lemon

9706467 Pink

9706831 Pistachio

9707428 Martha Green

9705237 Caviar

9707134 Sunflower

9706844 Tangerine

9706682 Metallic Chrome

9708136 Chocolate

9708216 Vanilla

9707644 Wasabi/Citron

9708294 Violet

9709605 Blue Willow

9709447 Gloss Cinnamon

9709403 Mango

9707134 Meyer Lemon

9708882 Spicy Orange

9709522 Dark Plum

9709390 Reef Blue

9709377 Surf Green

9708281 Melon

9709618 Persimmon

9709669 Bing Cherry

9709693 Green Apple

9709751 Cornflower Blue

9709739 Clementine

9709896 WS Green

9709908 Buttercup

W10121198

Silver Metallic

W10140793

Bayleaf

W10140806

Boysenberry

W10181826

French Blue

W10181812

Grass Green

W10181799

Sunshine Yellow

Colors Subject To Change.

Any Color Not Listed is

No Longer Available.

If Additional Colors Are Added,

This Page Will Be Updated.

BASE AND PEDESTAL UNIT

For Models: KSM150PS_ _0, 4KSM150PS_ _0

8212010

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9709785 Use & Care Guide

8212010 Repair Parts List

2 9709923 Shield, Pouring

3 Beater, Flat

9708472 White, Coated

4 9706619 Bowl, 5 Qt.

5 3400020 Screw

6 4162529 Screw Cap Kit

7 9709707 Foot, Base

8 9706446 Whip, Wire

9 9708471 Hook, Dough

10 9709055 Latch

11 24452 Latch, Link &

Lever

12 110679 Screw, Pivot

13 116241 Washer, Spring

14 8533912 Washer

15 103993 Screw, Latch

Bearing

16 24450 Link, Latch

17 Lever, Latch

9709280 Black

242928−2 White (Storm Gray)

242928−3 Buff

18 16910 Pin, Hinge

19 Pedestal

REFER TO PAGES 2 thru 4

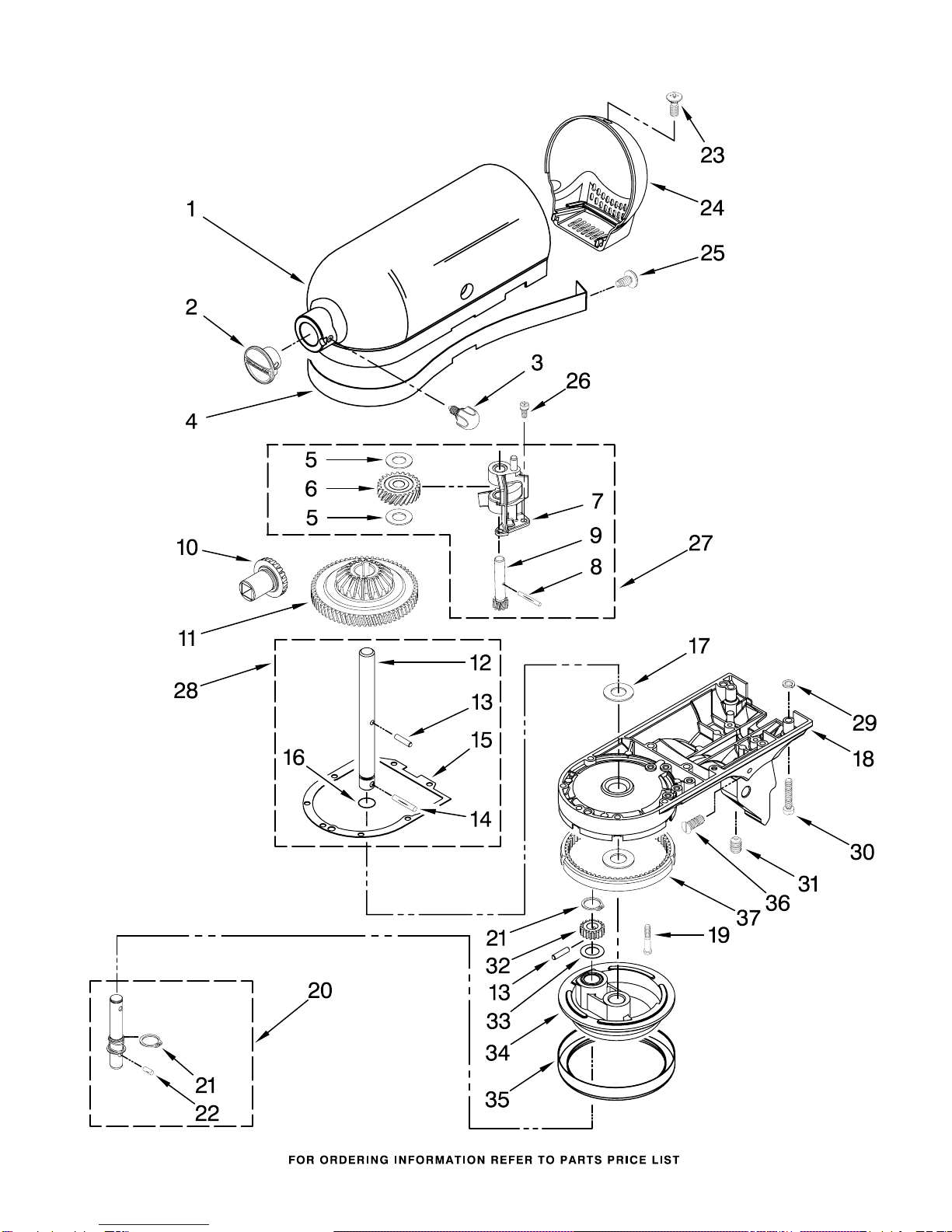

CASE, GEARING AND PLANETARY UNIT

For Models: KSM150PS_ _0, 4KSM150PS_ _0

8212010 6

CASE, GEARING AND PLANETARY UNIT

78212010

For Models: KSM150PS_ _0, 4KSM150PS_ _0

Illus. Part

No. No. DESCRIPTION

1 Gearcase Motor

Housing

2 Cap, Attachment

Hub

242765−2 Chrome

242765−4 White

242765−5 Almond Creme

3 Thumb Screw

9709194 Black

240374−2 White (Storm Gray)

240374−3 Buff

4Band, Trim

5 3180161 Washer

W10112253

Worm Gear

7 240308 Worm Gear Bracket

And Bearing

8 9705444 Pin

9 240210−2 Shaft & Pinion

10 9705130 Gear, Attachment

Hub Level

11 9709627 Bevel Pinion

Center Gear

12 240026 Shaft, Vertical

Center

13 240018−1 Pin (Vertical

Center Shaft)

14 9705443 Pin, Groove

15 4162324 Gasket, Transmissn

16 67500−55 O−Ring

17 3180163 Washer

18 Lower Gear Case

19 103994 Screw

20 4176067 Agitator Shaft

21 9703438 Ring

22 9704677 Pin, Groove

23 4162914 Screw

24 Cover, End

25 311932 Screw

26 3400022 Screw

27 240309−2 Worm Gear Bracket

and Gear

28 4160474 Center Shaft &

O−Ring

29 8533914 Washer, Spring

Lock

30 3400025 Screw

31 3400203 Screw, Set

32 9703903 Pinion, Gear

Agitator Shaft

33 9706090 Washer

34 Planetary

35 240285 Ring, Planetary

Drip

36 89411 Screw, Adjusting

37 9703904 Gear, Internal

Refer to Pages 2 thru 4

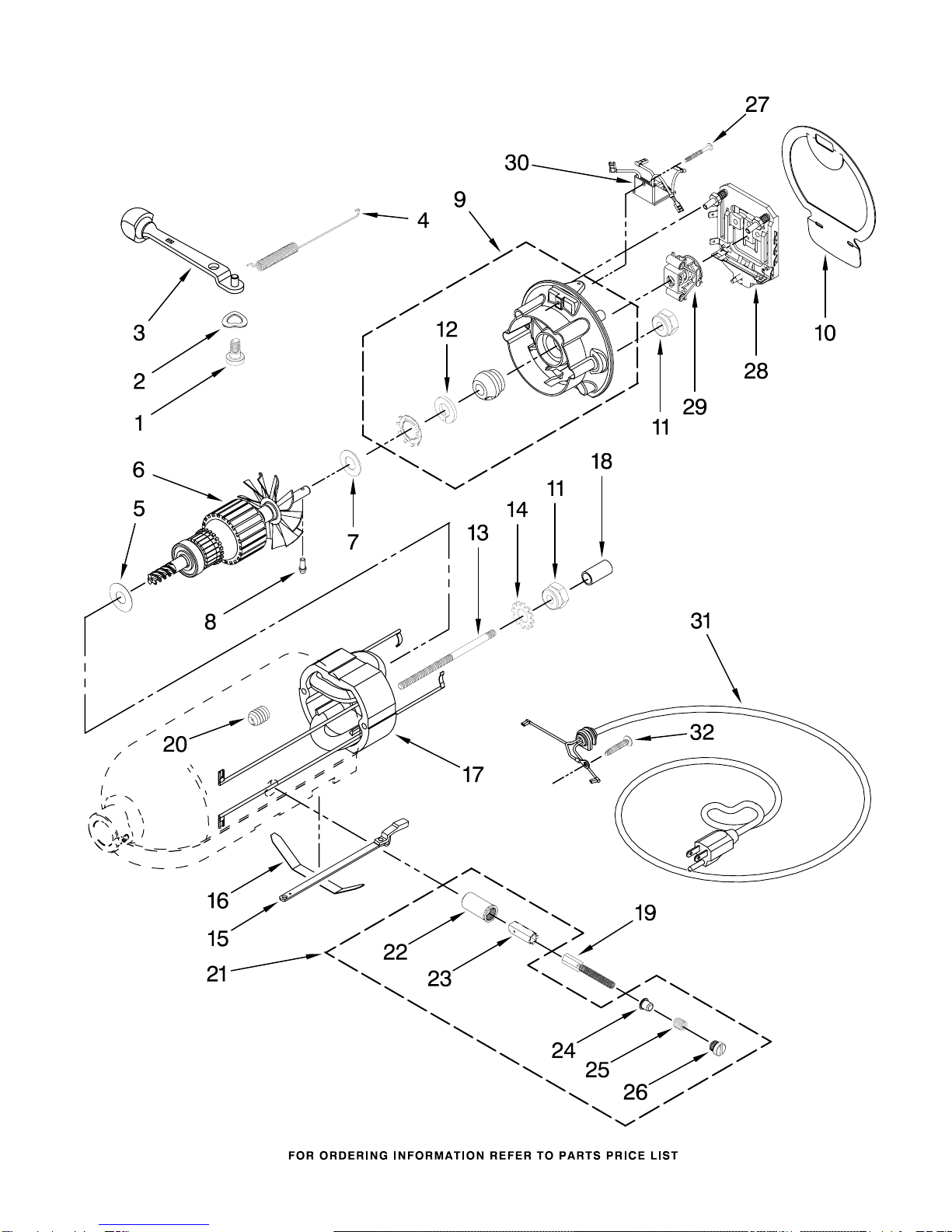

MOTOR AND CONTROL PARTS

For Models: KSM150PS_ _0, 4KSM150PS_ _0

8212010 8

MOTOR AND CONTROL PARTS

8212010

For Models: KSM150PS_ _0, 4KSM150PS_ _0

Illus. Part

No. No. DESCRIPTION

1 110679 Screw, Pivot

2 116241 Washer, Spring

3 Lever, Speed

Control Assy

9709276 Black

3184194 White on White

3184195 Almond Creme

4 3183680 Spring, Control

Plate

5 9704324 Washer, Ball

Bearing (Front)

6 9708315 Armature & Bearing

7 3180162 Washer

8 16998 Stud, Governor

Drive

9 3180526 Bracket, Bearing

Assembly

10 240775−1 Seal, End

W10131078

Nut

12 3180238 Washer

13 240769 Screw

W10068270

Washer

15 3184176 Speed Link & Cam

16 240205 Spring, Flat

17 9702695 Field Assembly

18 4162634 Sleeve, Motor Stud

19 9706416 Brush, Carbon

20 9707926 Screw, Set

21 4162546 Brush Holder

22 3179908 Housing, Brush

Holder

23 240680 Insert, Brush

Holder

24 116286 Cap, Spring Seat

25 116287 Spring, Cap

26 Cap, Brush Holder

3184212 Black

3184211 White

3184213 Almond Creme

W10068260

Screw

28 240904−2 Control Plate Assy

29 17830 Governor Assembly

30 9706595 Phase Control Brd

31 Cord, Power

W10164882

White

W10164883

Black

32 3184609 Screw, Self Tap

ACCESSORY PARTS

8212010

For Models: KSM150PS_ _0, 4KSM150PS_ _0

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

4164839 Speed Disc

(Service Tool)

4160588 Grease, Planetary

4164778 Mixer Attachment

Pak (Includes Food

Grinder (FGA),

Food Strainer

(FVSP), And

Vegetable Slicer,

(RVSA)

(FPPA)

4164749 Food Grinder

(FGA)

8211924 Grain Mill

(KGMA)

4164768 Pasta Maker And

Food Grinder

(Includes SNP

Pasta Maker

Plates)

(SNFGA)

4164775 Fruit/Vegetable

Strainer Parts

(Use With FGA

Model Only) (FVSP)

4164750 Rotor Slicer/

Shredder(With

4 Standard Cones)

Fine Shredder,

Coarse Shredder,

Thick Slicer,and

Thin Slicer

(RVSA)

9704568 Pouring Shield

(KPS2CL)

4164824 Pasta Maker Plates

(SNPA)

4164774 Fruit/Vegetable

Strainer and Food

Grinder (FVSFGA)

3180617 Cover, Decorative

(Cotton Polyester)

4162838 Food Tray (FT)

4164748 Juicer (JE)

4164747 Can Opener (CO)

4164803 Sausage Stuffer

Kit (SSA)

8212519 Ice Cream Maker

(KICA0WH0)

3177924 Bowl Cover,

Plastic Non−

Sealing

4163337 Bowl, Stainless

With Handle

3180262 Bowl, 3 Qt.

4162160 Bowl, Satin

Stainless

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KitchenAid Miscelatore

KitchenAid

KitchenAid KSM8990ER Manuale utente

KitchenAid

KitchenAid KL26M8XOB5 Manuale utente

KitchenAid

KitchenAid STAND MIXER K5SS Guida rapida

KitchenAid

KitchenAid 5K45SSC Manuale utente

KitchenAid

KitchenAid 5KSM150PSSWH4 Manuale utente

KitchenAid

KitchenAid KSM500PSER0 Manuale utente

KitchenAid

KitchenAid KPM50 GR Manuale utente

KitchenAid

KitchenAid 3KSMC895 Manuale utente

KitchenAid

KitchenAid 5KSM5 Manuale utente

KitchenAid

KitchenAid 5K45 Series Manuale utente

KitchenAid

KitchenAid 5K45SS Manuale utente

KitchenAid

KitchenAid 5KSM150PSRWH0 Manuale utente

KitchenAid

KitchenAid KP2671XAC - Professional Stand Mixer Manuale utente

KitchenAid

KitchenAid KSM450BK0 Manuale utente

KitchenAid

KitchenAid KJG01A Series Manuale utente

KitchenAid

KitchenAid KSM158GBCA - 90th Anniversary Limited-Edition Stand... Manuale utente

KitchenAid

KitchenAid K4SSWH - 4.5-qt. Bowl-Lift Stand Mixer Guida rapida

KitchenAid

KitchenAid ACCOLADE 400 Guida rapida

KitchenAid

KitchenAid 8212410 Manuale utente

KitchenAid

KitchenAid KSM100PSER0 Manuale utente

KitchenAid

KitchenAid Professional 600 Series Manuale utente

KitchenAid

KitchenAid 5K45SS Manuale utente

KitchenAid

KitchenAid 4KSMC50S Guida rapida

KitchenAid

KitchenAid 5KSM1CBT Manuale utente

Manuali Miscelatore popolari di altre marche

Bosch

Bosch GRW 9 Manuale utente

MULTIQUIP

MULTIQUIP Whiteman WM45E Guida

Jay-Lor

Jay-Lor 5050 Manuale utente

Sunbeam

Sunbeam FPSBSM210X Manuale utente

MULTIQUIP

MULTIQUIP Whiteman MC94S Guida

Thinky

Thinky ARE-250 Manuale utente

Midas

Midas XL4 Manuale utente

bianco

bianco PURO 4 Manuale utente

Paso

Paso DAG9200 Manuale utente

Sima

Sima SFX-9A Manuale utente

better chef

better chef IM-815WC Istruzioni per l'installazione

ALLEN & HEATH

ALLEN & HEATH GR1 Manuale utente

Lacor

Lacor 69083 Scheda tecnica

M-Audio

M-Audio Midiman SAM Manuale utente

Buffalo

Buffalo CP921 Manuale utente

Pentair

Pentair HYPRO Cleanload 3376-0870 Istruzioni operative

Cuisinart

Cuisinart SM50WHE Manuale utente

Hobart

Hobart HCM-300 Manuale utente
