KOBE Range Hoods

Deluxe Series

RA22 SQB-5 Series

Model No.: RA2230SQB-5 (30”)

RA2236SQB-5 (36”)

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

IMPORTANT

READ THIS FIRST

READ BEFORE INSTALLATION

1. Carefully check all contents of packages.

2. Thoroughly inspect the unit for any shipping damages, cosmetic

damages or defects.

3. Have a certified contractor/electrician test the unit before installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL

PACKAGING MATERIAL.

2. Have your original invoice as proof of purchase and product serial

number ready.

3. Contact your merchant for product replacement due to shipping

damages, cosmetic damages or defects.

4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to

[email protected] .

NO RETURN, NO REFUND, NO EXCHANGE IF:

1. PRODUCT HAS BEEN INSTALLED

2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED

3. MISSING ORIGINAL PACKAGING MATERIAL

AND/OR PARTS

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 1

COMPONENTS OF PACKAGE.................................................................................................. 3

INSTALLATION.......................................................................................................................... 4

OPERATING INSTRUCTIONS................................................................................................... 7

MAINTENANCE......................................................................................................................... 9

SPECIFICATIONS....................................................................................................................10

MEASUREMENTS & DIAGRAMS.............................................................................................11

PARTS LIST..............................................................................................................................12

CIRCUIT DIAGRAM..................................................................................................................14

TROUBLE SHOOTING.............................................................................................................15

WARRANTY .............................................................................................................................16

WARRANTY INFORMATION FORM.........................................................................................18

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL W I RI NG MUST B E DO NE BY A PROFESSIONAL AN D I N

AC CO R D A N CE W I TH NA T I ONA L A ND LOC AL E LE C T RI CAL CO DES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or

garages.

NOTE - This warranty is void without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8. Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIALAWAY FROM FLAMES. If the flames do not go

out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as thosepublished

by the National Fire Protection Association (NFPA), and the American Society for Heating,

Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, installation by 2 persons is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which must

be recycled or disposed of according to Local, State, and Federal Codes.

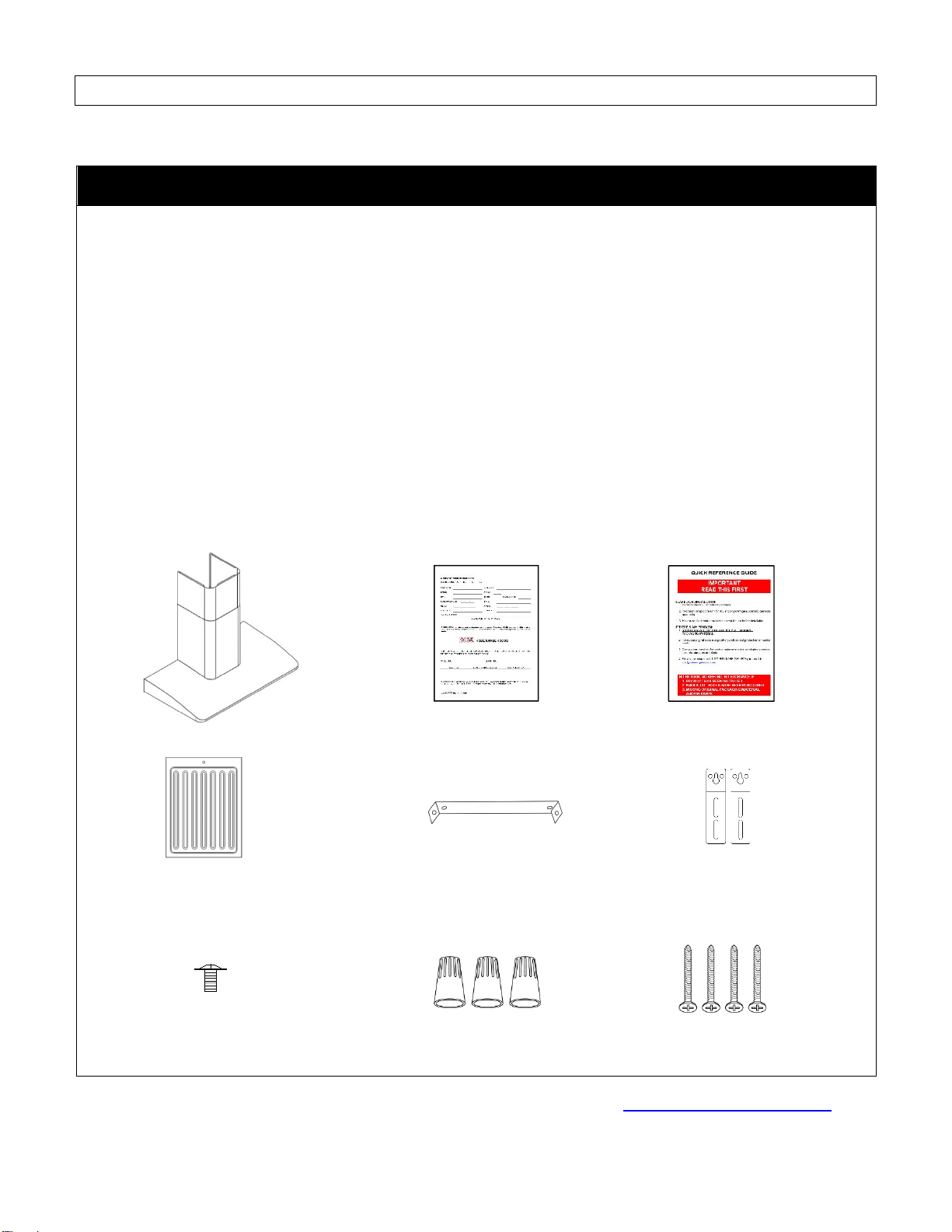

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box

{A} KOBE Range Hood

{B} Warranty Registration Card

{C} Quick Reference Guide

{D} Baffle Filter x 2 (30” hood)

x 3 (36” hood)

{E} Duct cover Mounting Bracket

{F} Hood-Mounting Bracket x 2

{G} Screws Package

{H} Wire Cap x 3

{I} Screws Package

{A}

{B}

{C}

{D}

{E}

{F}

* Pre-installed

{G}

{H}

{I}

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880.

3/16

“

x 3/8

”

(8PCS)

Knob attached to baffle filter

M4 x1-1/2” (4)

Wire Cap (3)

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

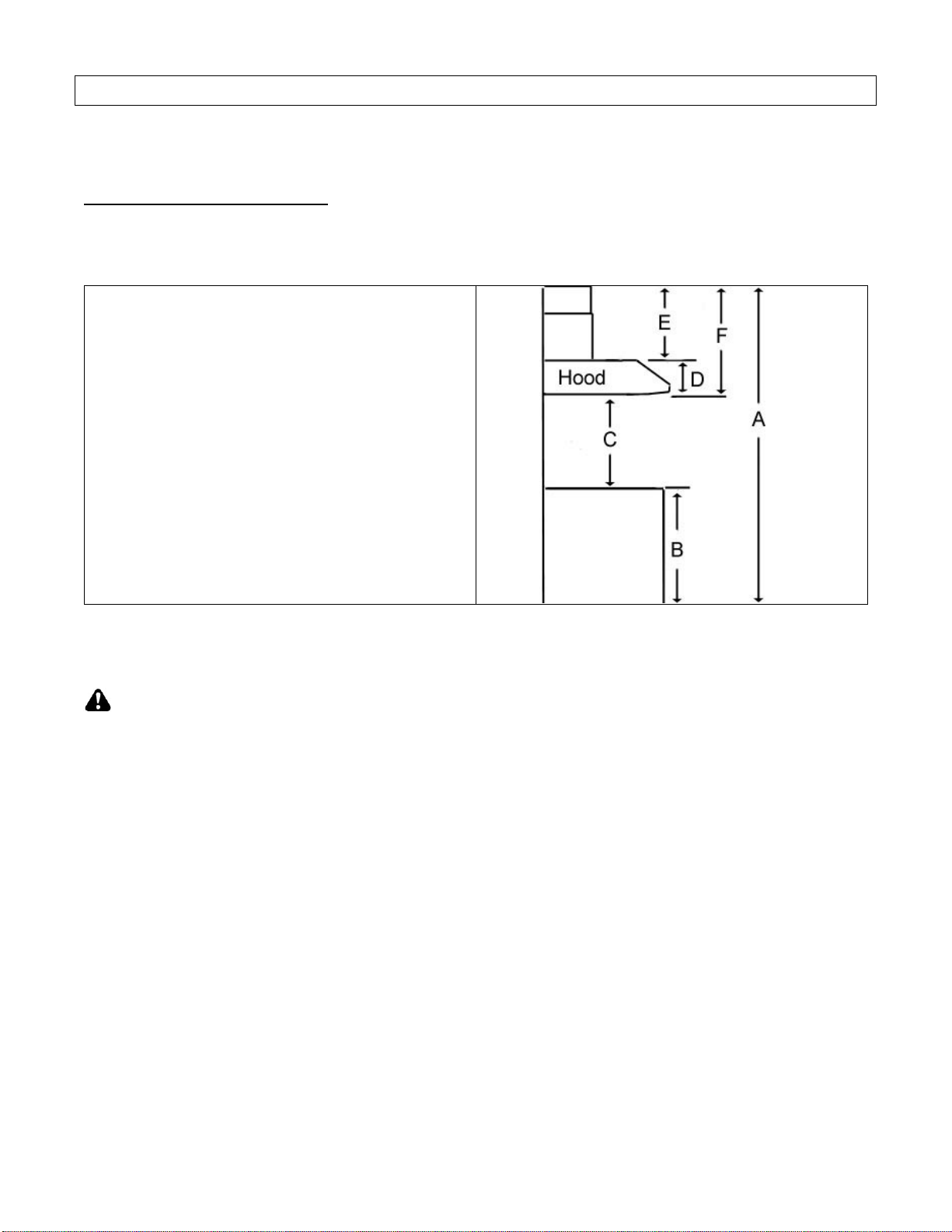

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

TABLE

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36")

C = Preferred Height of Counter Top to

Hood Bottom (Minimum 26"to 30")

D = Height of Hood

E = Height of Duct Cover [F – D]

F = Height of the Hood Installation

[A – (B+C)]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY

OCCUR.

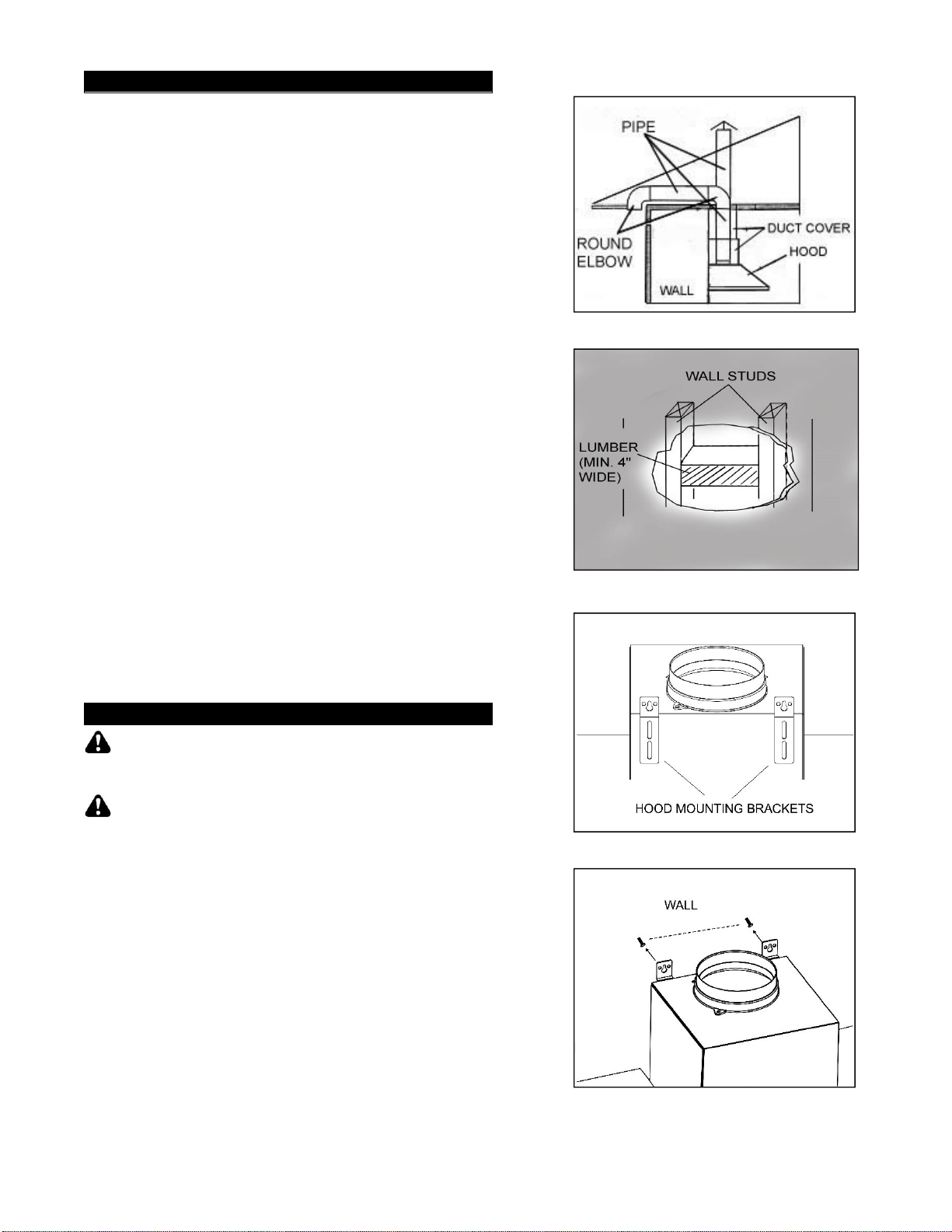

Preparation before Installation

NOTE:TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING

THE VENT OPENING.

- Decide the location of the venting pipe from the

hood to the outside. (Figure 1)

- A straight, short venting run will allow the hood

to perform more efficiently.

- Try to avoid as many transitions, elbows, and

long run as possible. This may reduce the

performance of the hood.

- Temporarily wire the hood to test for proper

operation before installing.

- Important: Peel any protective film off the hood.

- Use duct tape to seal the joints between pipe

sections.

- If necessary, prepare back wall frame with cross

framing lumber for secure installation. Refer to

Table 1 and measurements on Page 11 to

decide the level of the lumber. (Figure 2)

- Optional step for adjusting hood-mounting

bracket height:

- Loosen hood-mounting brackets at the back

of the hood, adjust brackets and tighten

screws as shown in Figure 3.

- If necessary, remove the rubber stand on the

back of the hood and discard.

Hood Installatiom

CAUTION:

USE HAND TOOLS ONLY. DO NOT

OVER TIGHTEN SCREWS. IT MAY CAUSE DAMAGE

TO THE HOOD.

CAUTION

: If moving the cooking range is

necessary to install the hood, turn off the power

in an electric range at the main electrical box.

SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE. And use a protective covering to

protect cooktop and/or countertop from damage.

1. Using references in Table 1 and measurements

on Page 11, mark the leveling locations point for

hood-mounting bracket on the wall.

2. Secure two mounting screws (provided) to the

wall, leaving an 1/8” spacefrom the wall. (Figure

3. Align the hood-mounting bracket to the mounting

screws on the wall and hang hood into place.

Figure 1

Figure 2

Figure 3

Figure 4

4. Secure and tighten the mounting screws.

CAUTION

: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

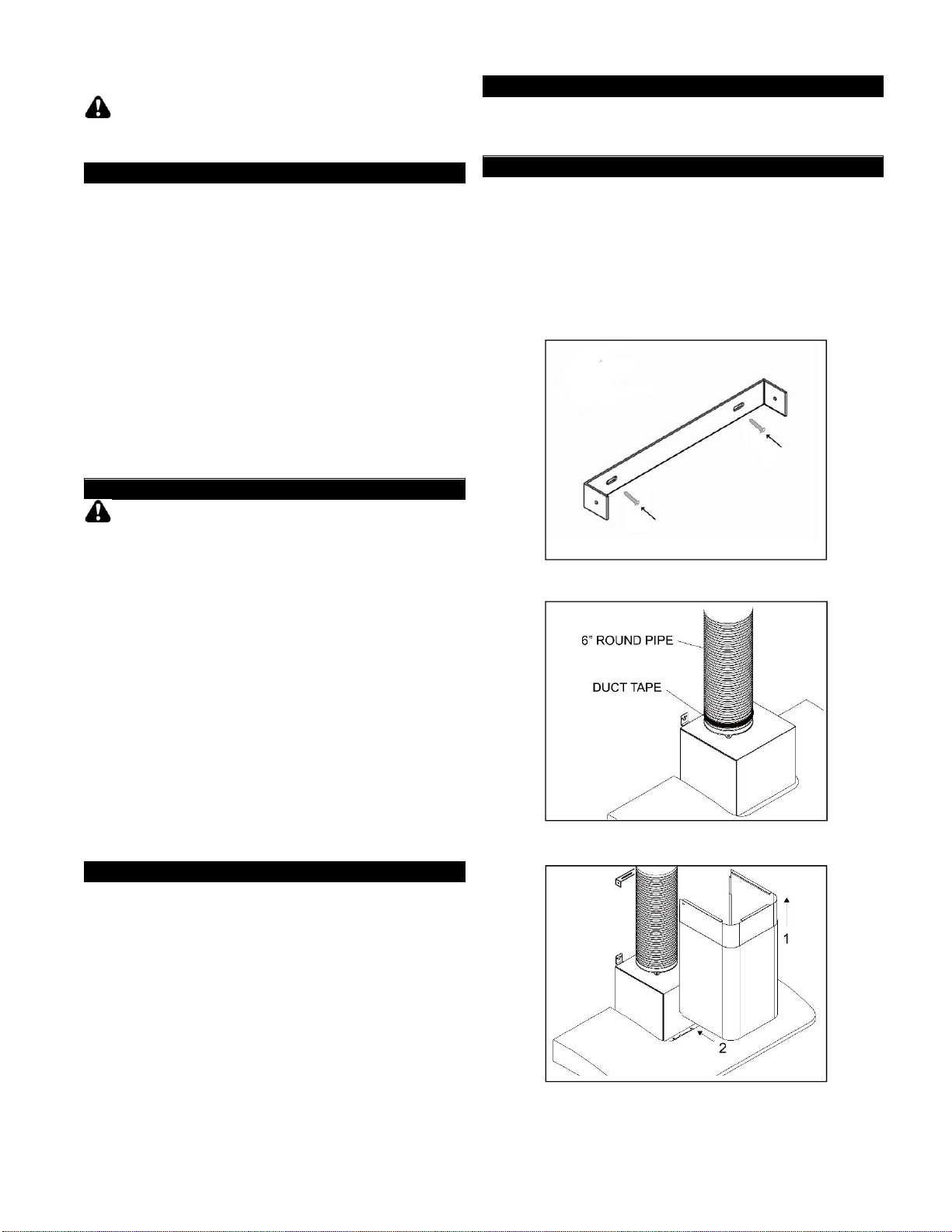

Ductwork Installation

5. Using Reference Efrom Table 1 and

measurements on Page 12, mark the leveling

point for duct cover-mounting bracket.

6. Secure the duct cover-mounting bracket to the

wall with two screws (provided). (Figure 5 and

Figure 8) Make sure all screws are tightened.

NOTE: Inner duct cover will cover the duct

cover-mounting bracket.

7. Use 6” steel pipe (not provided) to connect the

plastic exhaust on the hood to the ductwork

above. Use duct tape to ensure all joints are

secure and air tight as shown in Figure 6.

Wiring to Power Supply

THIS RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE BY

QUALIFIED ELECTRICIAN IN ACCORDANCE

WITH ALL APPLICABLE NATIONAL AND

LOCAL ELECTRICAL CODES. BEFORE

CONNECTING WIRES, SWITCH POWER OFF

AT SERVICE PANEL AND LOCK SERVICE

PANEL TO PREVENT POWER FROM BEING

SWITCHED ON ACCIDENTALLY.

8. Connect three wires (black, white and green)

to house wires and cap with wire connectors.

Connect according to color: black to black,

white to white, and green to green.

9. Test the operation of the hood before

performing the next step. Make sure power is

supplied to the hood.

Duct Cover Installation

10. Slide inner duct cover up 2 inches before

sliding entire duct cover onto the hood. (Figure

11. Align the inner duct cover to the duct cover-

mounting bracket. Secure inner duct cover

with two (3/16” x 3/8”) screws (provided).

12. Fasten outer duct cover to plastic plate on the

hood with four (3/16” x 3/8”) screws (provided).

Install / Uninstall Accessories

13. Place baffle filters underneath the hood.

Final Assembly

14. Turn power ON in control panel. Check all lights

and fan operation.

15. Leave this Installation Instructions and Operation

Manual for the homeowner.

Figure 5

Figure 6

Figure 7

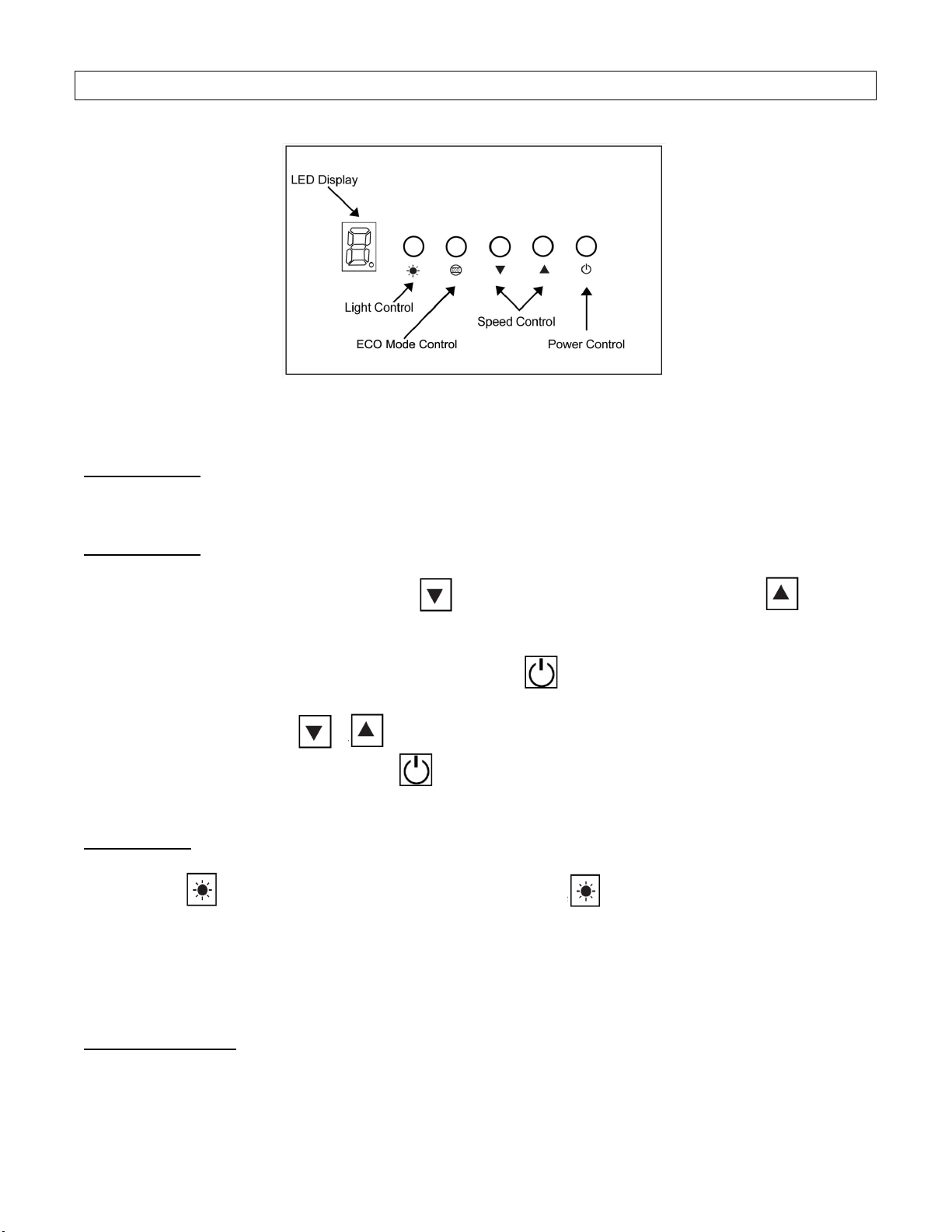

OPERATING INSTRUCTIONS

Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while

cooking. Adjust speed as needed.

Power Control

Press Power Control to turn On/Off the range hood.

Speed Control

The fan will start on Speed #3. Press button to decrease the speed level.Press button to

increase the speed level.

To activate 3-minute delay shutoff, press and hold button. Once the delay shutoff has been

activated the LED Display will flash and fan speed will change to Speed #3. Speed level can be

adjusted by pressing or button during the 3-minute countdown.

To turn fan off immediately, press button a second time.

Light Control

Press button to turn LED lights ON. Each press of button will cycle the light intensity

through Bright, Medium Bright, Dim, and OFF.

Lights are controlled independently from Power Control and delay shutoff. Turning the power off

will not turn lights off.

ECO Mode Control

ECO Mode is set to turn fan on QuietMode™ setting for 10 minutes every hour to remove excess

moisture, microscopic particles and odors for better kitchen air quality.

ECO Mode is independent from the Power Control and delay shutoff.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KOBE Cappa di ventilazione

KOBE

KOBE OVS-CHX2030SQB-40 Guida alla risoluzione dei problemi

KOBE

KOBE PREMIUM IN2630SQB-700 Guida alla risoluzione dei problemi

KOBE

KOBE RA38 Series Guida alla risoluzione dei problemi

KOBE

KOBE INX26 SQB-700-3 Series Guida alla risoluzione dei problemi

KOBE

KOBE CHX22 SQB-1 Manuale per l'uso e la cura

KOBE

KOBE RA2830SB Guida alla risoluzione dei problemi

KOBE

KOBE IS2436GSF-1 Guida alla risoluzione dei problemi

KOBE

KOBE IS2436GSB Manuale utente

KOBE

KOBE IS2336SQB-DC16-1 Guida alla risoluzione dei problemi

KOBE

KOBE RA3830SQ Guida alla risoluzione dei problemi

KOBE

KOBE INX2730SQB-700-2 Guida alla risoluzione dei problemi

KOBE

KOBE IN2642SQB-1200-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH3830SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE RA0230SQB-DC-5 Guida alla risoluzione dei problemi

KOBE

KOBE CH2230SQ-1 Guida alla risoluzione dei problemi

KOBE

KOBE RA9430SQB Guida alla risoluzione dei problemi

KOBE

KOBE OVS-CHX8130SQB-40 Istruzioni per l'installazione e il funzionamento

KOBE

KOBE INX2636SQB-700-3 Manuale utente

KOBE

KOBE INX2930SQBF-500-1 Guida alla risoluzione dei problemi

KOBE

KOBE IN2636SQB-1200 Guida alla risoluzione dei problemi

KOBE

KOBE IS2336SQ Guida alla risoluzione dei problemi

KOBE

KOBE OVS-CHX9130SQB-40 Guida alla risoluzione dei problemi

KOBE

KOBE RA9230SQB-DC30-1 Guida alla risoluzione dei problemi

KOBE

KOBE CH7730SQ Guida alla risoluzione dei problemi

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente
