Kramer Yarden 4-O Manuale utente

KRAMER E LE CT RONICS L TD .

USER MANUAL

MODEL:

Yarden 4-O (SPK-W412T-K)

On-Wall Speakers

P/N: 900

-300351 Rev 1

This page is intentionally left blank

Yarden 4-O –Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Recycling Kramer Products 3

3Overview 4

3.1 Defining the Yarden 4-O 5

4Installing the Yarden 4-O 6

4.1 Choosing the Best Location 6

4.2 Installing the Speaker Wires 6

4.3 Installing the Mounting Bracket 7

4.4 Setting up an Array Installation 9

4.5 Connecting the Yarden 4-O 11

5Technical Specifications 12

Figures

Figure 1: Yarden 4-O 5

Figure 2: Adjust Tap Selector 7

Figure 3: Yarden 4-O with Brackets Connected 8

Figure 4: Square Layout 9

Figure 5: Hexagonal Layout 9

Figure 6: Square Layout Parallel Wiring 10

Figure 7: Connecting the Yarden 4-O 11

Yarden 4-O - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer Yarden 4-O On-Wall Speakers, which

are ideal for:

Restaurants and cafes

Boutiques and shops

Boardrooms and meeting rooms

Classrooms and lecture venues

Yarden 4-O - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer Speakers away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

Do not open the housing of the speaker; doing so may reduce the

quality of the sound.

Yarden 4-O - Getting Started

2.2 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

Yarden 4-O - Overview

3 Overview

The Yarden 4-O includes a pair of high performance on-wall speakers that can be

mounted on the wall either vertically or horizontally. The mounting brackets, made

of painted steel, can be attached to each speaker, letting you rotate each speaker

from side to side. The Yarden 4-O speakers feature a multi-tap power transformer

for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are

suitable for an array installation.

Yarden 4-O - Overview

3.1 Defining the Yarden 4-O

This section defines the Yarden 4-O:

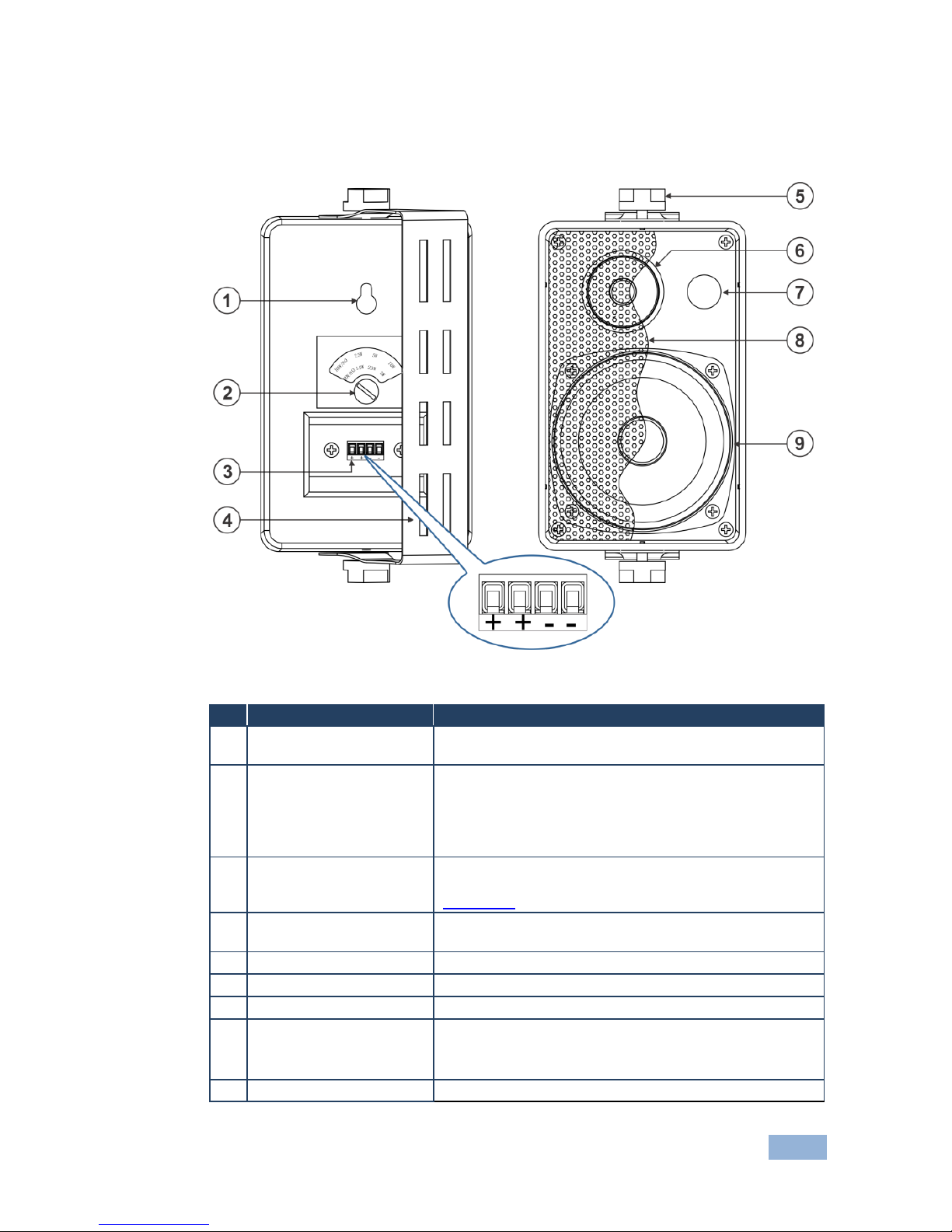

Figure 1: Yarden 4-O

Feature

Function

Keyhole Mounting Point

Use to hang the speaker directly on the wall (instead of

using the brackets)

Tap Selector

Adjust each speaker to the appropriate tap setting:

For 70V, 1.2W, 2.5W or 5W; for 100V, select 2.5W, 5W

or 10W or select 8(to bypass the transformer when

connecting directly to an amplifier without using the

70/100V array option)

Input and Output

Terminal Block

Connectors

One +, - pair for the input and the other pair to output to

the next speaker in an array configuration (see

Section 4.4)

Bracket

Use to mount the speaker onto the wall (allowing rotation

to the left/right side)

Bracket Knobs (2)

Use two knobs to fasten the bracket to the speaker

Tweeter

Reproduces the higher frequency sounds

Bass Port

Enforces the low-frequency sounds

Speaker Grille

Protects the internal components of the speaker from

foreign objects

Do not remove this from the speakers

Woofer Driver

Reproduces low frequencies

Yarden 4-O - Installing the Yarden 4-O

4 Installing the Yarden 4-O

This section explains how to:

Choose the best location for your speakers (see Section 4.1)

Install the speaker wires (see Section 4.2)

Install the mounting brackets (see Section 4.3)

Setup an array installation (see Section 4.4)

Install the Yarden 4-O (see Section 4.5)

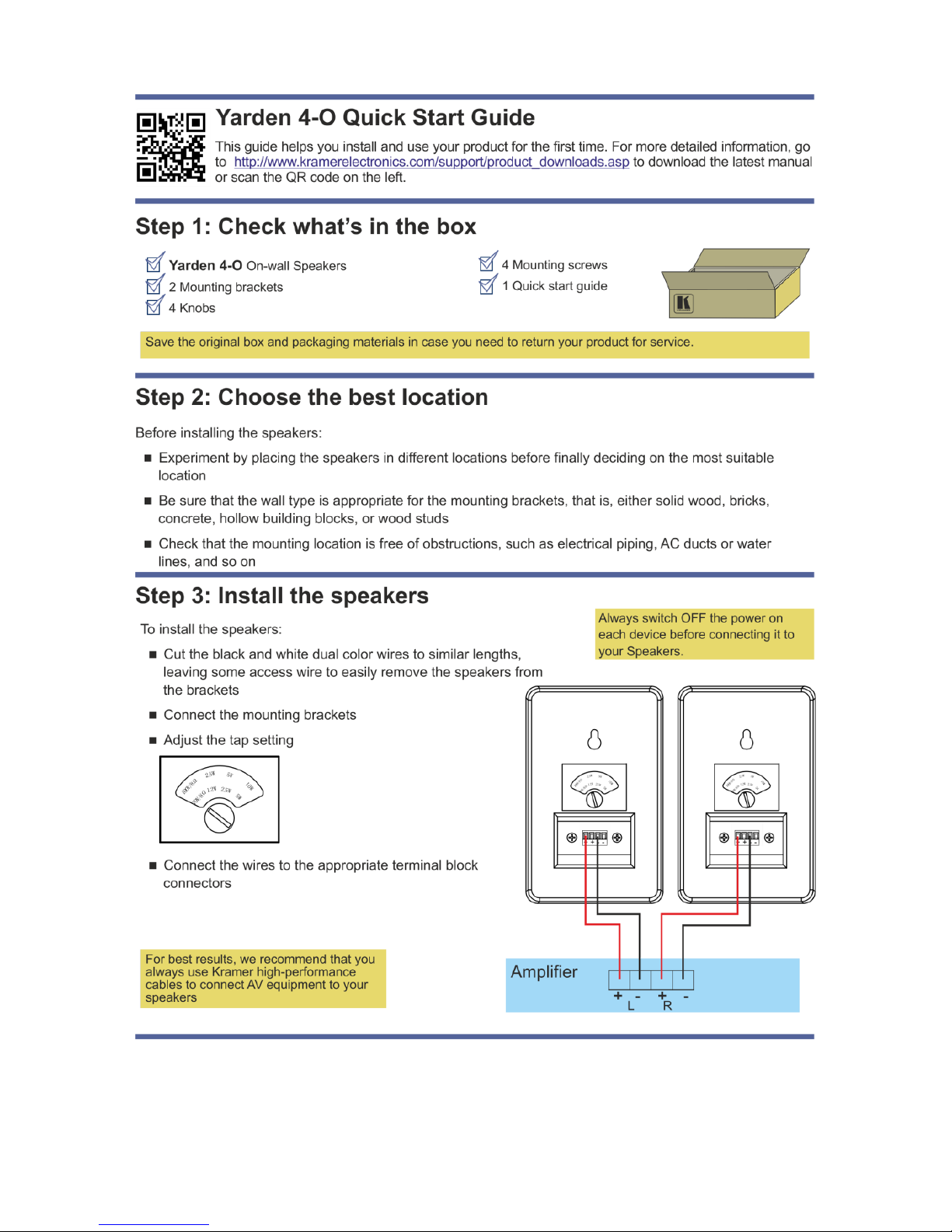

4.1 Choosing the Best Location

Before installing the speakers:

Experiment by placing the speakers in different locations before finally

deciding on the most suitable location

Be sure that the wall type is appropriate for the mounting brackets, that is,

either solid wood, bricks, concrete, hollow building blocks, or wood studs

Check that the mounting location is free of obstructions, such as electrical

piping, AC ducts or water lines, and so on

4.2 Installing the Speaker Wires

To install the speakers, do the following:

1. Prepare the wires for the speakers:

Cut the wires to similar lengths

For achieving high quality sound

Measure the length from each speaker to the receiver, and cut the

wires accordingly, adding some access wire length to let you easily

remove the speakers from the bracket without having to disconnect the

input wires

2. Strip the ends of the wires to expose a length of approximately 3/8 inch.
