Macnaught Retracta R3 Manuale utente

Instruction Manual Page 1

Owners Manual

Quality Hose Reels

IMR3-issue 9

Model Type

Air

Air/Water

Hot/Cold Water/Coolant

Horticultural

Weed pesticide

Oil / Grease

Instruction Manual Page 2

Thank you for purchasing the Retracta R3 retractable hose reel.

PLEASE READ THIS SAFETY INFORMATION CAREFULLY BEFORE USE.

Read and retain this instruction manual to assist you in the operation of your new product.

‘CAUTIONS’ are listed throughout this manual to advise of actions that may cause damage to you’re

the operator or to the equipment.

The following general warnings should be observed when installing, operating or maintaining hose reel equip-

ment. Further specific warnings pertaining to specific dangers may be found within this document

CAUTION

* Do not exceed the maximum working pressure for

this reel. (Refer to the product specifications)

* Only use compatible fluids with this reel.

(Refer to compatible fluids in product specifications)

* Check equipment daily for wear or damage.

(Replace worn or damaged items immediately with

genuine replacement parts).

* Use equipment for intended use only.

* Check equipment daily for leaks.

(Repair or replace as required)

* Do not alter or modify equipment.

Before attempting any maintenance

disconnect and turn off supply line,

then release the line pressure.

* Do not let go of the hose when rewinding.

* Use reel in well ventilated areas if toxic or flammable

fluids are in use

* Do not attempt to stop leaks with your hand or body.

Note,

This is not an exhaustive list of hazards and warnings. All care should be taken to maintain safe working proce-

dures when installing, operating and maintaining the equipment. It is recommended that only trained professional

trades people with the appropriate working knowledge of such equipment be charged with its installation and

maintenance.

INTRODUCTION

* Operator should wear appropriate protection

equipment to protect against personal injury .

* Caution should be observed against burning due to

hot water teperature when using hot water reels.

Instruction Manual Page 3

Fig.1 Wall mounting (max height 1.4m) Fig.2 Overhead mounting

(max height 4.5m)

Fig.4 BB200 Bracket

High wall mounting (max height 4.5m)

Fig.3 BB200 Bracket - Floor/Bench

INSTALLATION INSTRUCTIONS

INCREASE SPRING TENSION

1) Remove screws 2) Add 2 complete turns

Note: 1 click on hub equals 90 deg 3) Replace screws

CAUTION Before attempting any maintenance

disconnect and turn off supply line,

then release the line pressure.

1) Use appropriate hardwear to secure and support

the reel and bracket to desired location and weight

of the fluids.

7) Purge the air from the reel and check for any leaks

or damage before initial use.

8) Before carrying out any maintenance, close isola-

tion valve and remove all line pressure.

2) Prevent the reel from swiveling in the overhead

position (figure 2) by install locking bracket RP157

(supplied).

3) If spring recoil tension requires adjusting refer to

“Add spring tension” for correct proceedure

4) Connect the fluid supply line to the side of the reel

making sure to tighten appropriately.

5) It is recommended that an isolation valve is in-

stalled before the reel inlet.

6) Connect a desired hose-end attachment and tighten

appropriately. Thread sealant may be required.

(refer to back page for mounting bracket template)

(ALL MODELS)

Instruction Manual Page 4

REMOVE / REPLACE TENSION

SIDE PLATE

2) Hold hub and remove screws 3) Release spring tension

4) Remove screw and center hub 5) Remove screws. 6) Remove side plate

7) Fit new side plate. 8) Fit screws.

10) Fit screw.

9) Fit screws

11) Add 2 complete turns 12) Fit screws

1) Remove screws with

magnetic screwdriver

Before attempting any maintenance

disconnect and turn off supply line,

then release the line pressure.

(ALL MODELS)

Instruction Manual Page 5

1) Pull out hose and latch

HOSE REPLACEMENT INSTRUCTIONS

2) Remove screws 3) Remove screws 4) Remove plate

5) Remove cable tie 6) Remove swivel

7) Remove old hose 8) Fit new hose

9) Attach hose to the swivel 11) Fit cable tie

10) Fit swivel assembly 12) Fit sideplate

13) Fit screws. 14) Fit screws 15) Recoil hose evenly into reel

Before attempting any maintenance

disconnect and turn off supply line,

then release the line pressure.

(Air/Water/Hort) (Hot Water)

(High Press Water and Oil)

(Air/Water/Hort) (Hot Water)

(High Press Water and Oil)

(ALL MODELS EXCEPT GREASE)

Instruction Manual Page 6

(GREASE)

1) Pull out hose and latch 2) Remove screws

7) Remove hose from swivel

3) Remove sideplate 4) Remove screws

5) Remove swivel

13) Fit screws. 14) Fit side plate 16) Recoil hose evenly into reel

10) Fit hose to swivel 11) Fit cable tie

6) Remove cable tie 8) Remove old hose

9) Fit new hose 12) Fit swivel through side plate

15) Fit screws.

Before attempting any maintenance

disconnect and turn off supply line,

then release the line pressure.

HOSE REPLACEMENT INSTRUCTIONS

Instruction Manual Page 7

1) Pull out hose and latch 2) Remove screws

6) Remove circlip

7) a) Remove body from shaft

b) Replace o’rings

c) Apply water resistant grease

d) Re-fit swivel body and circlip

Swivel O’ring Replacement instructions

(use steps 1-7 & 9-14)

Swivel replacement Instructions

(use steps 1-5 & 8-14)

3) Remove screws 4) Remove plate

5) Remove cable tie

8) Remove swivel 9) Fit swivel assembly 10) Fit cable tie 11) Fit sideplate

13) Fit screws 14) Recoil hose evenly into reel

Before attempting any maintenance

disconnect and turn off supply line,

then release the line pressure.

12) Fit screws.

(AIR / AIR-WATER / COOLANT)

(HORTICULTURAL / WEED PESTICIDE)

SWIVEL REPLACEMENT

SWIVEL SEALS REPLACEMENT

Instruction Manual Page 8

1) Pull out hose and latch 2) Remove screws

6) Remove circlip

a) Remove body from shaft

b) Replace o’rings

c) Apply water resistant grease

d) Re-fit swivel body and circlip

Swivel O’ring Replacement instructions

(use steps 1-7 & 10-15)

Swivel replacement Instructions

(use steps 1-5 & 8-15)

3) Remove screws 4) Remove plate

5) Remove cable tie

12) Fit sideplate 13) Fit screws. 14) Fit screws 15) Recoil hose evenly into reel

8) Remove hose from swivel 10) Fit swivel assembly 11) Fit cable tie

Before attempting any maintenance

disconnect and turn off supply line,

then release the line pressure.

9) Fit hose to new swivel

Oil Swivel

Hot Water Swivel

Hot Water Swivel Hot Water Swivel

Oil Swivel Oil Swivel

(OIL / HOT WATER)

SWIVEL REPLACEMENT

SWIVEL SEALS REPLACEMENT

Instruction Manual Page 9

SWIVEL REPLACEMENT

Before attempting any maintenance

disconnect and turn off supply line

then release line pressure.

1) Pull out hose and latch 2) Remove screws 3) Remove sideplate 4) Remove screws

5) Remove swivel 6) Remove cable tie 7) Remove SB6 swivel 8) Fit new SB6 swivel

9) Fit cable tie 10) Fit swivel through side plate 13) Fit screws. 14) Fit side plate

16) Recoil hose evenly into reel

15) Fit screws.

(GREASE)

Instruction Manual Page 10

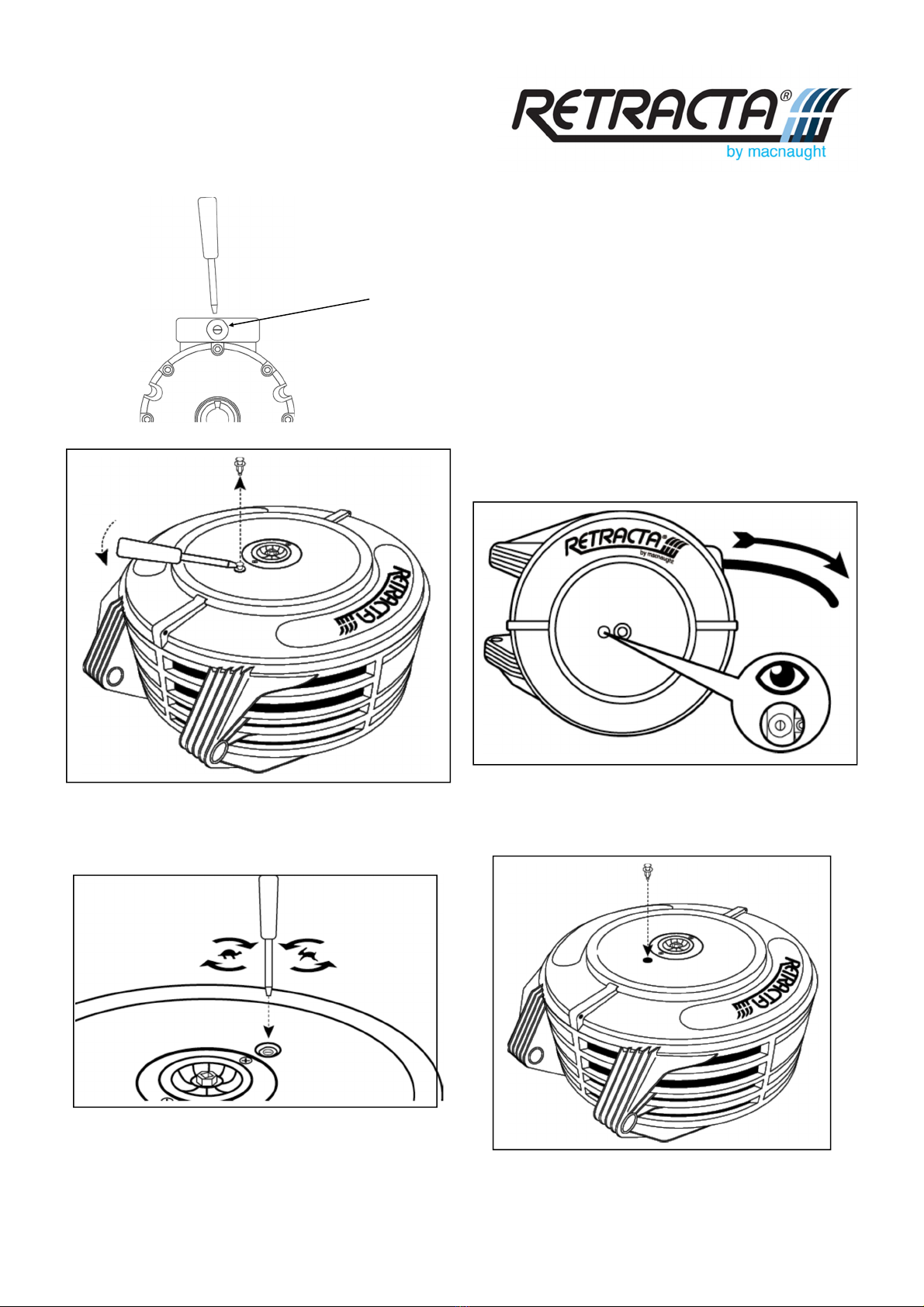

RACR ADJUSTMENT

CONTROL INSTRUCTIONS

Adjustment Screw

1. Lift centre button to unlock then lift out plug 2. Pull hose out and latch when adjustment

screw appears

3. Adjust speed as desired

4. Replace plug then press centre

button to lock

(Clockwise for slower return)

(Counter clockwise for faster return)

(FOR MODELS FITTED WITH RACR)
