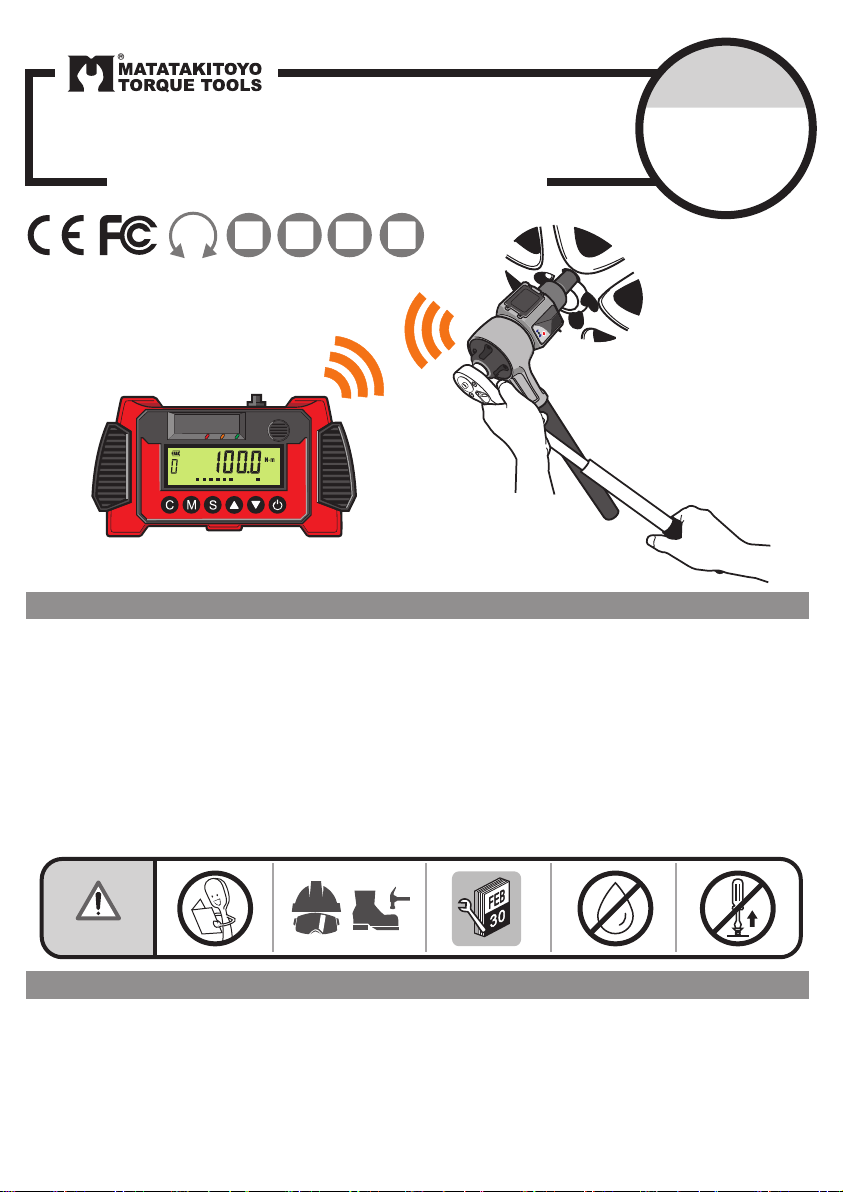

Matatakitoyo Torque Tools WMT Manuale utente

1. Study this instruction before use.

2. Please wear gloves and goggles when working.

3. This tool away from water, always store in a dry place and safe environment.

4. Over torque will cause tool damage and personal injury.

5. Never use additional accessories with this tester that were not included and are not from this

manufacturer, doing so could result in damage to the tester.

6. Always operate tester in a clean and organized work place.

7. This tester should always be kept clean, dry, and free from oil and grease.

8. This tool should be recalibrated a period of 1 years, or 5,000 cycles, whichever occurs ﬁrst.

To contact with local vendor, an authorized repair center for supporting.

Manual

WARNING

BEFORE STARTING

SPECIFICATIONS

1 Years

5,000 Times

TORQUE

3/4”

1/2”

1-1/2”

1”

WMT

Models covered

OPERATION MANUAL

Wireless Torque Multiplier

•Worldwide 2.4 GHz ISM Band

•

Directions & Accuracy : C.W. ±1％ / C.C.W. ±1.5％

•Display : 5 Digits LCD

•Temp. Range-OPerating : -5℃~55℃

•Temp. Range-Storage : -20℃~70℃

•Humidity : 0~90％

•RS-232 Data out / Optional

•Unit Selection : kg-m, N-m, ft.lb, in.lb

•

Operating Mode : Auto Reset & Track (See Page-3 Tolerance Setting)

•Memory : 20 Readings

•

Battery (Receiver) : 1.5V UM-3 (AA)x3 (Do not use low-discharge battery)

•

Battery (Transmitter) : 1.5V UM-4 (AAA)x3 (Do not use low-discharge battery)

•Distance : 20m

FUNCTION

CONTENTS

PANEL

789

1112

14 13

5 6 7 8

1 2 3 4

Transducer

(Transmitter)

Monitor

(Receiver)

ManualReaction armReaction bar Supplied in

a plastic box

Wireless range may vary due to environ-

mental and computing conditions.

1 Receiver Power switch / Backlight switch

2 Down / Decrease

3 Up / Increase

4 Set

5 Memo

6 Zero / Quit / Conﬁrm

7 Buzzer

8 Data out / RS232 / Optional

9 LED indicator (Green)

LED indicator (Yellow)

LED indicator (Red)

LCD-Display

Aux. / Reserved

Receiver Battery Box / AA x 3

Stander

Transmitter Battery / AAA x 3

Transmitter Power switch

Status LED

1 Battery

2 Communication

3 Directions

4 Unit

5 Memo

6 Setting

7 Tolerance

8 Level Bar

Press the Button 1 Time

LCD Blinking

Work mode

Idle LED light

Backlight ON Backlight OFF

Beep Sound Power OFF

Press the Button 1 Sec.

STATUS ICON DESCRIPTION

HOW TO USE

Power

Pre-set

Memory block

RS-232 Connection

Zero

Backlight

RS-232 Port

Power ON

Power OFF

Idle

Power Status

Select

Tolerance

Unit

Values

Transmitter Transmitter

0%：Track mode

1%~9%：Auto Reset mode

FCC ID : 2AC96WET ; 2AC96WDP

This device complies with Part 15 of the FCC Rules. Operation is subject to following

two conditions : (1)This device may not cause harmful interface, and (2) thisdevice

must accept any interface received, including interference that may cause undesired

operation.

DIMENSIONS

E-mail:[email protected]om

www.matatakitoyo.com

Made in Taiwan

MATATAKITOYO TOOL CO., LTD.

No. 63, Ln. 493, Sec. 3, Zhongshan Rd., Tanzi Dist.,

Taichung City 42754, Taiwan

TEL : 886-4-2533 5893

Manufacturer Aug. 2020

Edition

MAINTENCE AND STORAGE

AUTO RESET MODE

Level Bar (5% per dot)

1. Clean this tool by wiping with a clean cloth after operation and storage in a dry environment.

2. Do not dip any type of liquid in this tool. This may damage the internal of this tool.

Beep Speed

Slow Rapid

Tolerance ％

Torsion

Red

Green

Yellow

Over the range

Within the range

Lower then the range

Notice : The changes or modiﬁcations not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

IMPORTANTNOTE : To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device

is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements

and vcid user’s authority to operate the device.

Tolerance：1%~9%

Ex. : 1000Nm±5％

MA1

ITEM NO.

3.77

9.36

11.00

WMT-1500N

WMT-3000N

WMT-4500N

WMT-6000N

221.0

240.9

1/2”

3/4”

1/2”

3/4”

1”

1-1/2”

421.2

496.6

182.9

204.3

72.2

91.6

1:3

1:30

92.5

88.0

Torque Ratio D

40.0

55.7

150-1500 Nm

300-3000 Nm

400-4500 Nm

600-6000 Nm

Range KG

A A1

COMING SOON COMING SOON Unit：mm
