Mountup MU2002 Manuale utente

Polished Aluminium Dual Monitor Wall Mount

Instruction Manual

If you have any questions , please contact us.

75x75

100x100 32"

MU2002

V2.0

(1.5~8kg)x2

(3.3~17.6lbs)x2

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of

this product, please contact us.

Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or

serious injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do not exceed

weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

This product contains small items that could be a choking hazard if swallowed. NOT FOR CHILDREN UNDER 3 YEARS.

ADULT SUPERVISION IS REQUIRED.

WARNING!

NOTE: Not all hardware included will be used.

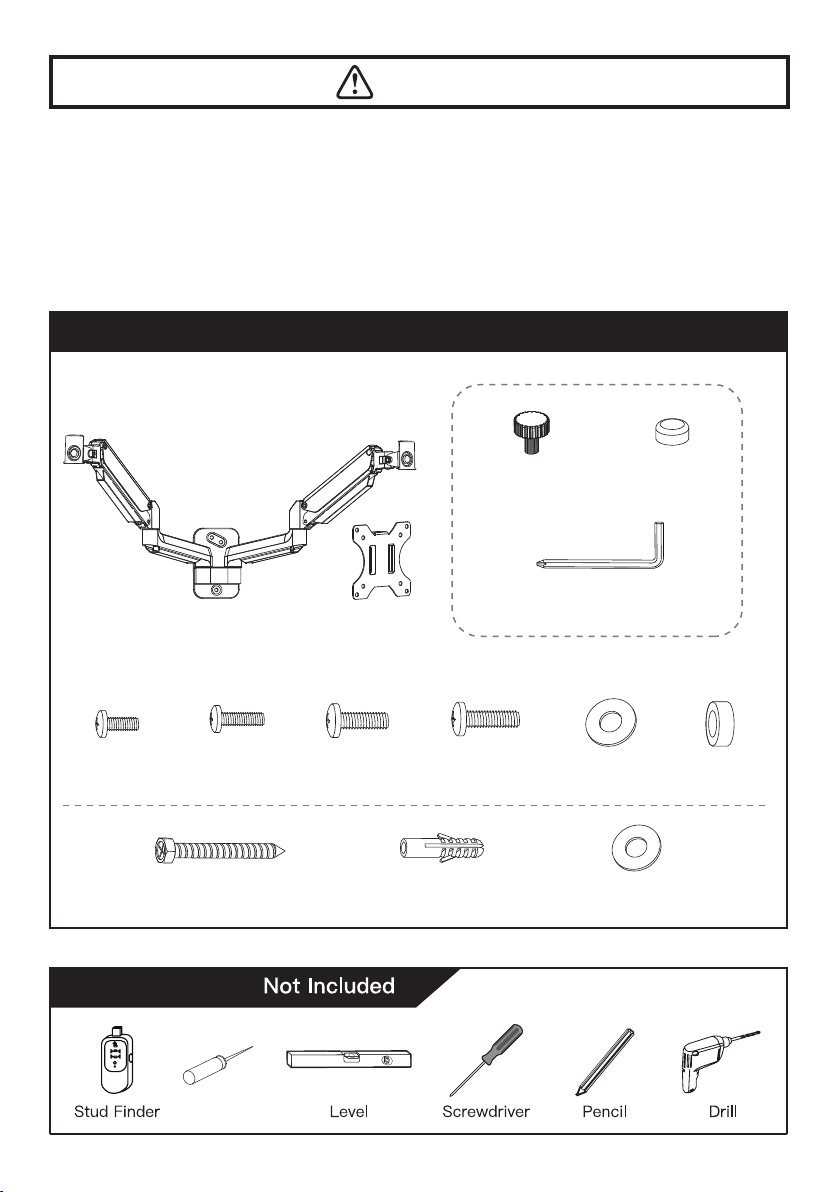

PACKAGE CONTENTSPACKAGE CONTENTS

A (x1)

Arm Assembly

D (x3)

Decorative Cover

E(x1)

6mm Allen Key

B (x2)

VESA Plate

C (x2)

Bolt

M-E (x8)

D6 Washer

M-C (x8)

M6x12

M-B (x8)

M4x16

M-D (x8)

M6x16

M-A (x8)

M4x12 M-F (x8)

Spacer

W-B (x3)

Anchor

W-C (x3)

Washer

W-A (x3)

Lag Bolt

( )

Installation Tools

Awl

ASSEMBLY STEPS

STEP 1: Attach Arm Assembly to Wall

OPTION A: Wood Stud Installation

ø 4.5mm

(ø 3/16")

55mm

(2.2")

Locate your studs. Verify and mark

Position the Arm Assembly (A) at your

desired height and line up the holes

withyour stud center line. Level the

Arm Assembly (A) and mark the pilot

hole locations.

Drill pilot holes using a ø3/16 in.

(ø4.5 mm) diameter drill bit.

Caution:

Do notuse anchor in drywall

or wood！A

Install Arm Assembly (A) using lag

bolts (W-A) and washers (W-C).

Tighten the lag bolts until they are

Assembly (A).

W-C W-A

STEP 1: (Continued)

60mm

(2.4")

ø10mm

(ø 3/8")

OPTION B: Solid Concrete Wall Installation

60mm (2.4 )

Position the Arm Assembly (A) at

yourdesired height , level the Arm

Assembly (A) and mark the pilot hole

locations.

Drill pilot holes using a ø3/8 in.

(ø10 mm) diameter drill bit.

Install Arm Assembly (A) using lag

bolts (W-A), anchors (W-B)and

washers (W-C). Tighten the lag bolts

the Arm Assembly (A).

W-C W-A

W-B

STEP 2: Attach Decorative Cover

Attach Decorative Covers (D) to Lag Bolts (W-A).

W-A

NOTE: Hand tighten screws toavoid over tightening.

STEP 3 : Attach Monitor

M-A

M-C

M-E

M-B

M-D

M-E

M-F

OPTION B: Curved Back Monitor

Attach the VESA plate (B) to back of monitor and secure

with screws (M-B) or (M-D) with washers (M-E)and

washers(M-F)using 6 mm Allen Key (E). Do not tighten

the screws excessively or your monitor might be damaged.

OPTION A: Flat Back Monitor

Attach the VESA plate (B) to back of monitor and

secure with screws(M-A)or(M-C) with washers(M-E)

using 6 mm Allen Key (E). Do not tighten the screws

excessively or your monitor might be damaged.

STEP 4: Hang Monitor

Slide the monitor onto the head of swivel arm, install the security bolt (C). Make sure the security

bolt is installed before you rotate the monitor.

Refer to below illustrations to adjust tilting angle of your monitor.

Tilts down

Note:

1. Loosen the tilting bolt.

2. Adjust monitor to your

desired tilting angle.

3. Retighten the tilting bolt to

Important Notice:

The gas spring tension is pre-set to the weakest level by default, please hold your monitor

by both hands and do not let go so soon after the VESA plate is attached to the swivel arm.

It's suggested to loose hold of the monitor in a slow & gentle way while observing if the gas

spring arm falls down greatly.

STEP 5: Adjust Tension

Note1:

Be sure to keep the arm in horizontal position during adjustment.

CAUTION

For proper functioning of this mount, depending on dierent weight of monitor you might need to adjust

tension in upper arm using 6 mm allen key (E).

Falls down

After being attached to the arm, the monitor fallsdown

and can not stay at the desired height by itself.

Turn counter-clockwise(“+”direction) to increase gas

spring tension until the monitor canstay at the desired

height by itself.

After being attached to the arm, the monitor rises up and

can notstay at the desired heightby itself.

Turn clockwise(“-”direction) to reduce gas spring tension

until the monitor canstay at the desired height by itself.

Rises up

As for how many circles the screw should be turned, the table below is for reference.

Note2:

Monitor Weight 1.5kg 3kg 4kg 5kg 6kg 7kg 8kg

Circles (AT LEAST) 108643min 12

STEP 5: (Continued)

STEP 6: Cable Management

On the bottom portion of the spring arm, insert the cable and slide the cable cover down;

On the upper portion of the spring arm, insert the cable and press the tabs on the inside of the cable cover

slightly inward and slide down to reattach the cable cover.

For both bottom and upper portion of the spring arm, just slide the cable cover up and away from the spring

arm, do not need to take much eort to pull the ends of the cable cover away from the spring arm.

Adjust as Desired

max280mm

+90°

-45°

180°

360°

180°

360°

Note: When tilted, if the monitor sags or does not stay,

please fasten the tilting bolt on the mount until the

monitor canbe held at any angle as needed.

Adjust monitor position and rotation.
