Mountup MU0011 Manuale utente
60LBS
27KG
Max:
Max:400x400mm/16x16"
Min:75x75mm/3x3"
26"~55"
(A1)
If you have any questions, please contact us via help@jollyholding.com
MU0011 INSTALLATION INSTRUCTION
- 1 -
Velcro cable ties X5 Bubble level X1 HDMI cable X1
v3
- 2 -
Hammer
3/8"(10mm)
Masonry Drill Bit
7/32"(5.5mm)
Wood Drill Bit
AwlStud Finder
Socket Wrench
1/2"(13mm)
ElectrodrillScrewdriverPencil
3
What is your wall
made of?
Solid concrete
wall?
●This product is designed for use in wood stud or solid concrete wall.
- DO NOT install into drywall alone.
●The wall must be capable of supporting five times the weight of the TV and mount
combined.
●Do not apply this product to any purpose not indicated by MOUNTUP.
●Incorrect installation may result in product damage or body injury. MOUNTUP shall
bear no responsibility for any damage or injury resulted from incorrect installation,
incorrect assembly or misuse.
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the
installation, assembly or use of this product, contact Customer Service via
help@jollyholding.com
5
Safety Caution
2M2M
Band Tape
Drywall with
wood studs?
CAUTION:
Yes --- Perfect!
No --- This mount is NOT compatible.
MAX:
400mm/16"
MAX:400mm/16"
Yes --- Perfect!
No --- This mount is NOT compatible.
4
Installation Tools
(Not Included)
2Does your TV
(including accessories)
weigh less than
60 LBS (27 KG)?
1Is your TV VESA
equal to/greater than
75x75mm /3x3" and
equal to/less than
400x400mm/16x16"?
Before getting started, let’s make sure this mount is perfect for you!
60LBS
27KG
Max:
DO NOT install
into drywall alone
Perfect! Perfect!
Wood Stud Install
Concrete Install
Arm and Wall Plate
Hardware Included
01 x1
Brackets
02 x2
This product contains
small items that could be a choking hazard if
swallowed. Before starting assembly, verify
all parts are included and undamaged. If
any parts are missing or damaged, do not
return the damaged item to your dealer;
please contact our customer service team.
Never use damaged parts!
NOTE: Not all parts and hardware included
will be used.
WARNING:
Philips Screws
M6 x 15mm
M6 x 30mm
Philips Screws
M4 x 12mm
M4 x 30mm
Washers
Ø6mm
M4-5-6
Spacers
L10mm
x4
x4 x4x4
Philips Screws
M8 x 25mm
M8 x 45mm
x4
x4 x8 x4
Spacers
L5mm
x8
TV Screws / Washers
M-A M-B M-C M-D M-E M-F
Hardware （Wall /Product)
5/16 x 2½ in
Lag Bolts
x3 x1
CA
Washers
Ø8mm
x3
B
Open end wrench
- 3 -

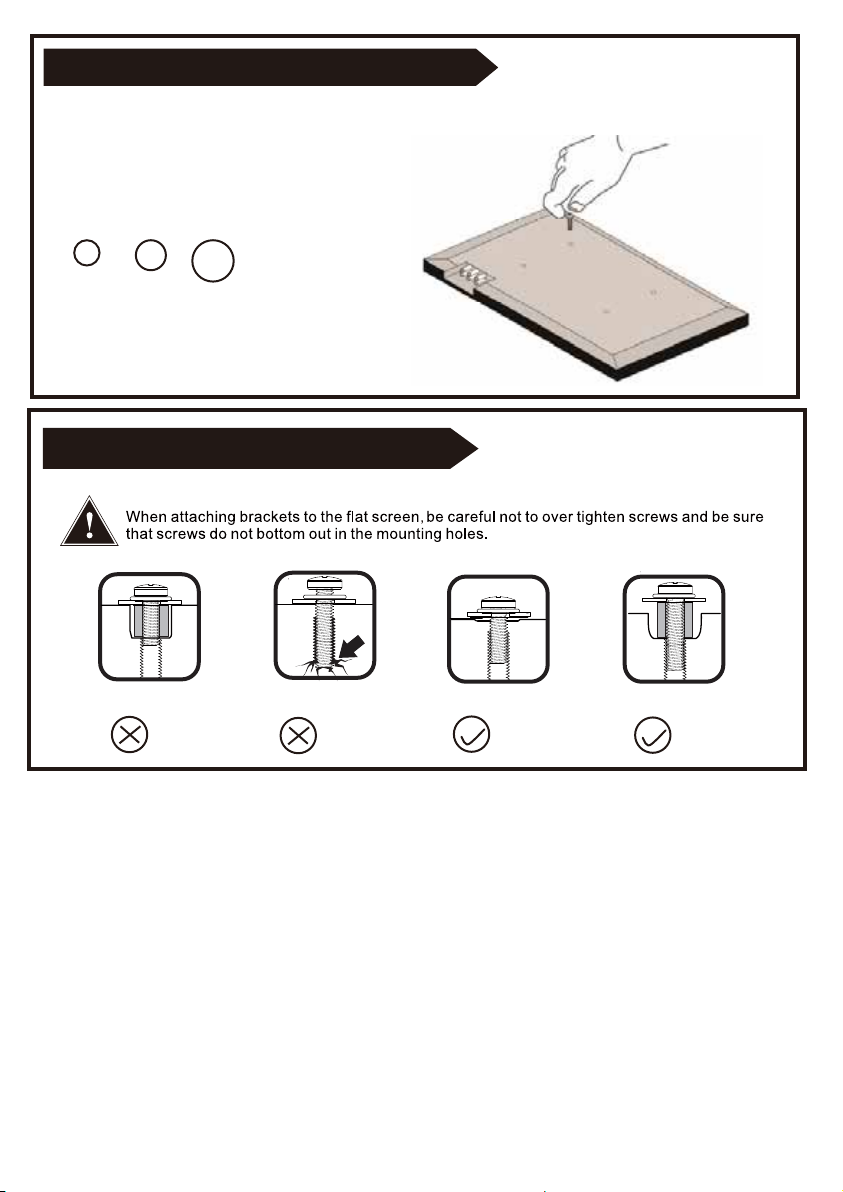

STEP 1-1 Select TVScrew Diameter
Thread screws by hand into the threaded holes on the back of your TV to select which screw
diameter fits your TV.
M6M4 M8
STEP 1-2 Select TV
Screw Length
Correct Correct
Too Long
Too Short
- 4 -

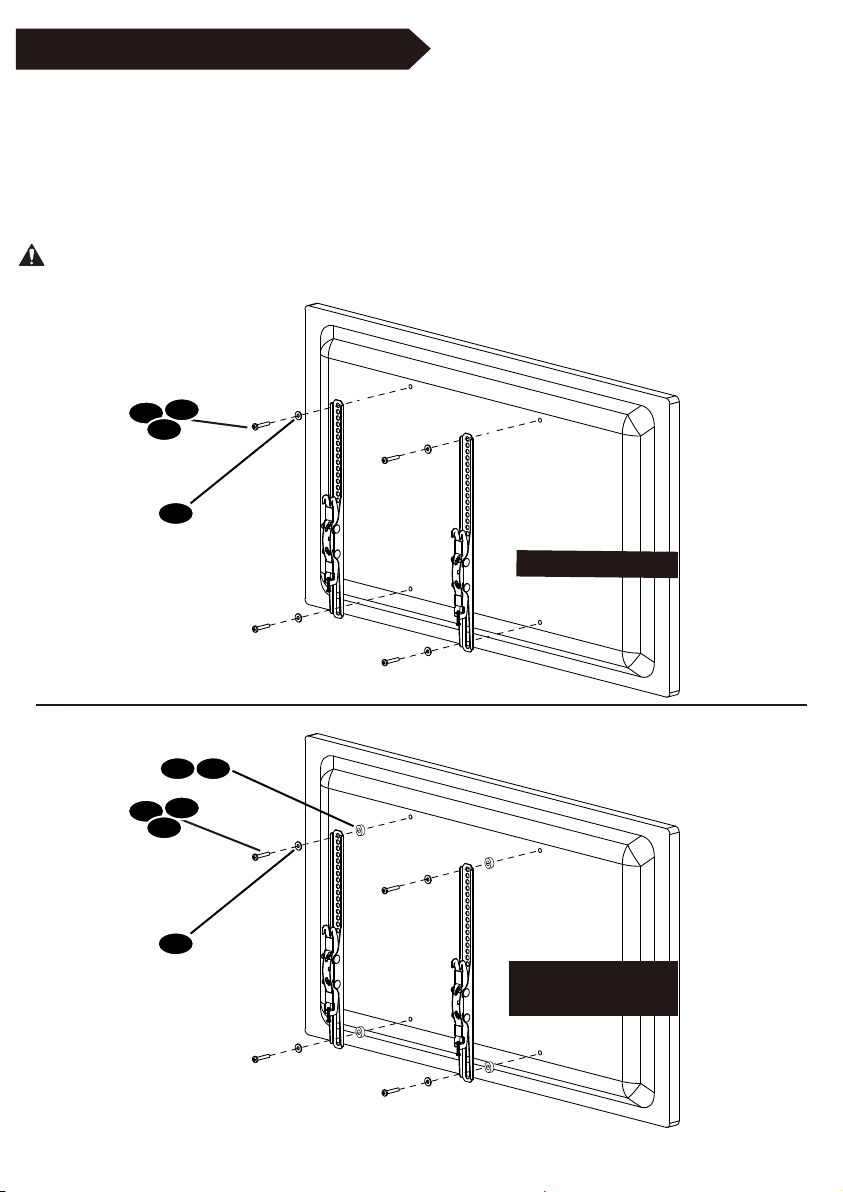

STEP 1-3
Attach the Bracket
Position your brackets over your TV hole pattern - making sure the brackets are centered
and level over the TV hole pattern.
Secure thebrackets using your screw/washer/spacer selection:
(a) for Flat Back
(b) for Round Back / Extra space
CAUTION: Ensure bracket is securely fastened before moving on to the next step.
M-E
M-FM-D
M-A
(a) Flat Back
M-E
(b) Round Back /
Extra Space
Not for M8 screws
Use the shorter screws
Not for M8 screws
- 5 -
M-B
M-C
M-A
Use the longer screws
M-B
M-C

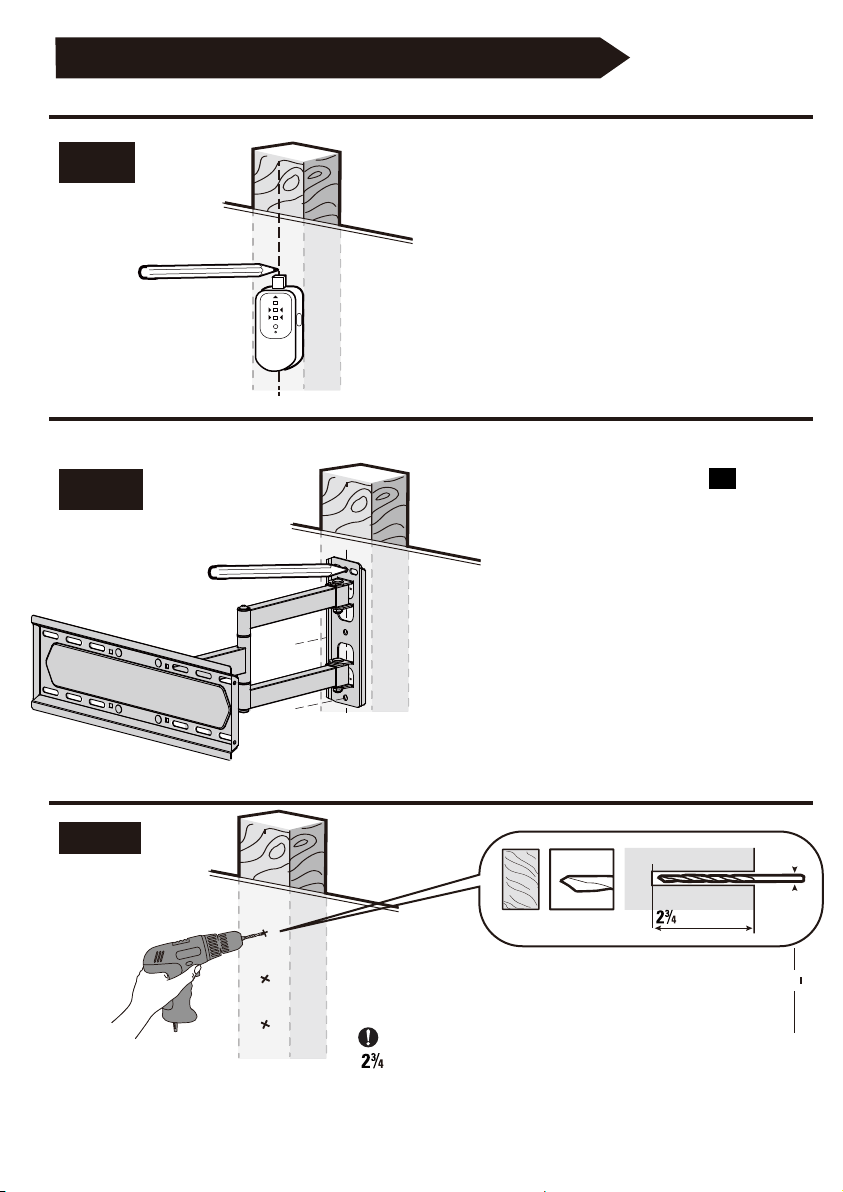

STEP 2A Wall Plate Installation (Wood stud)
2A-1
2A-2
Locate your studs. Verify and
mark the center of the stud by
finding the stud edges using an
awl, a thin nail, or an
edge-to-edge stud finder.
Position the wall plate at
your desired height and line up
the holes with your stud center
line. Level the wall plate and
make the holes x3.
01
2A-3
Drill pilot holes using a 7/32 in. (5.5 mm)
diameter drill bit.
IMPORTANT: Pilot holes must be
in. (70 mm).
Be sure to drill into the center of thestud.
drilled to a depth of
7/32 in.
Ø5.5 mm
in. (70 mm)
- 6 -

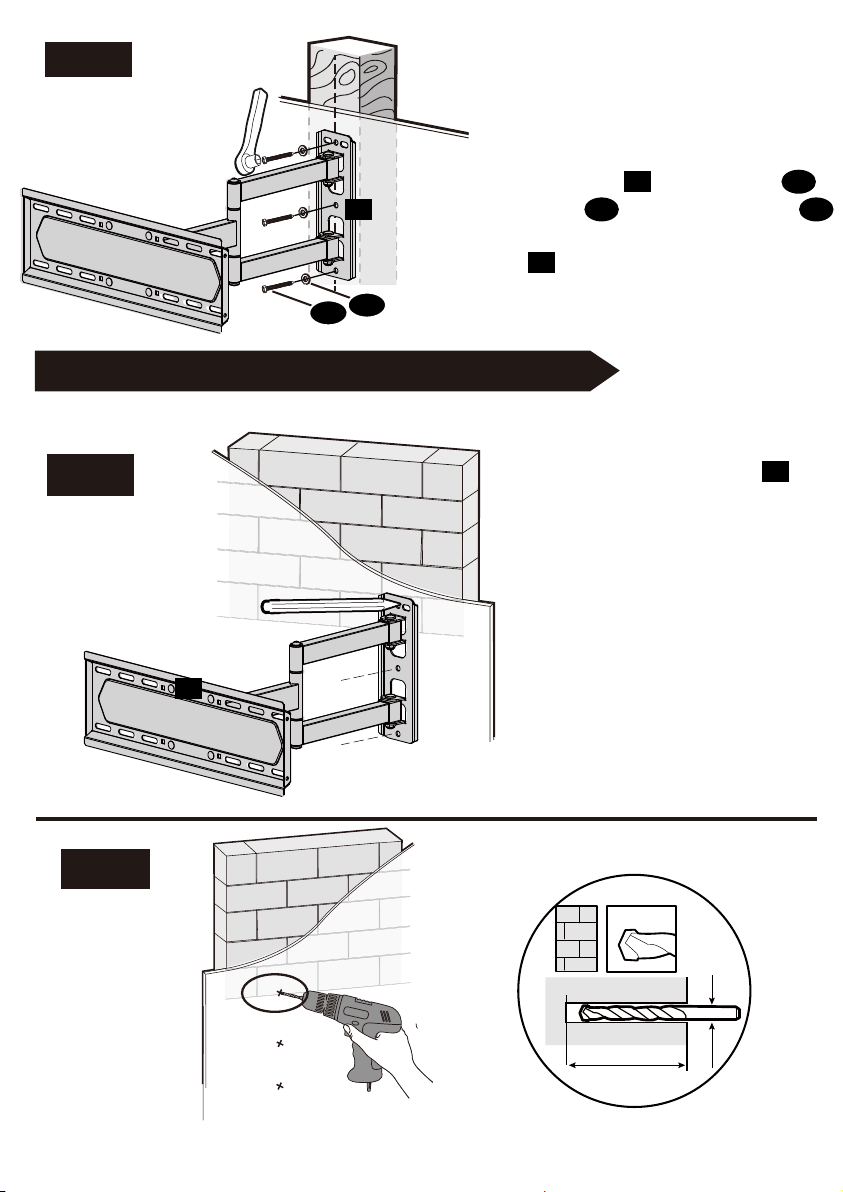

2A-4
01 A
Install wall plate using lag bolts
and washer B . Tighten the lag bolts
until they are pulled firmly against the wall
plate .
01
01
AB
- 7 -
01
Position the wall plate
at your desired height ,
level the wall plate and
mark the polit hole loca-
tions.
01
Drill pilot
holes
2B-2
2B-1
2.75in 70 mm
Ø 10 mm
Ø 10 mm
STEP 2B Wall Plate Installation (Concrete or Brick)
AB
Secure TV with brackets against the
horizontal plate with the pre-assembled
screws
Preassembled
screw
- 8 -
AB
Concrete Wall
Concrete Wall

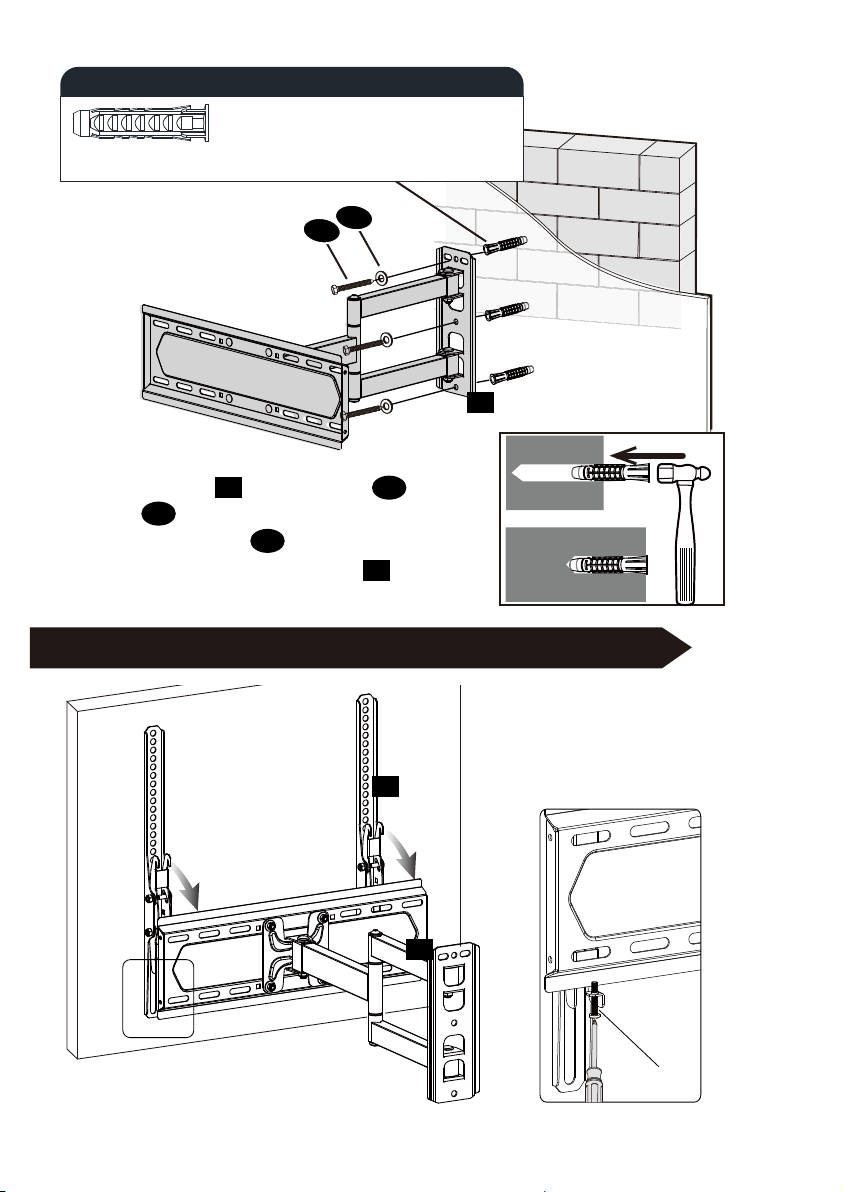

STEP 3 Lift and hang TV with brackets onto wall bracket.
these additional pieces shipped directly to you.
Concrete Wall Anchor
4pcs
Concrete wall anchor (NOT INCLUDED)
01 A
B
01
Install wall plate using lag bolts ,
washer and anchor (not included).
Tighten the lag bolts until they are
pulled firmly against the wall plate .
A
01
02
01

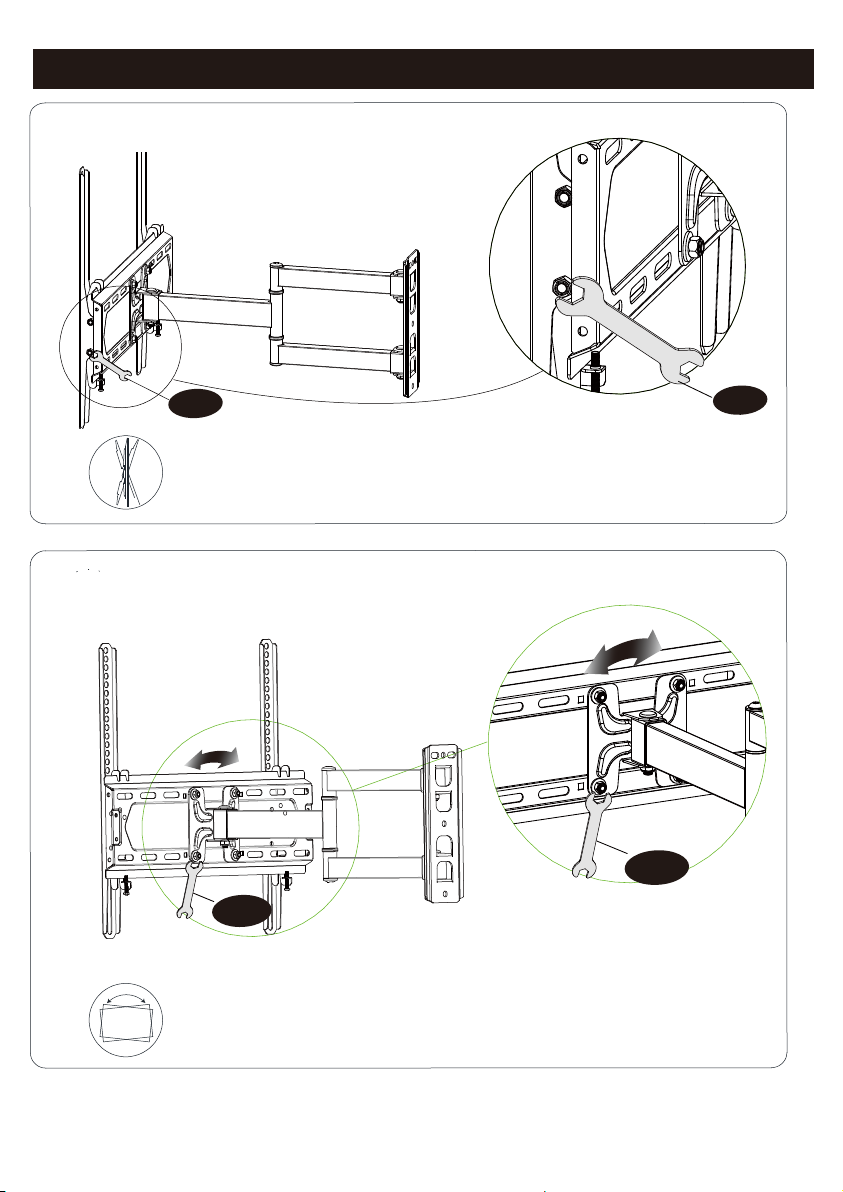

Tilting angle adjustment (+5° / -10°)
Pull TV to your desired angle then fasten tilting nuts with
open end wrench.
Leveling adjustment (-3°/+3°)
If needed, TV can be leveled ±3 degrees via adjusting the 4 nuts
with the open end wrench.
(Tilting)
(Leveling)
±3°
C
C
- 9 -
Adjustments
± 3°
± 3°
C
C
Product dimensions:
-
5
°
10°
-3° /+3°
498mm
230mm
MAX:400mm
MIN:75mm
MAX:400mm
MIN:75mm
425mm
435mm
435mm
84mm
- 10 -
