Mountup MU4003 Manuale utente
Single Monitor Mount
Instruction Manual
If you have any questions , please contact us.
MU4003
V2.0
75x75
100x100
8kg/17.6lbs
32"
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of
this product, please contact us.
Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or
serious injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do not exceed
weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
This product contains small items that could be a choking hazard if swallowed. NOT FOR CHILDREN UNDER 3 YEARS.
ADULT SUPERVISION IS REQUIRED.
NOTE: Not all hardware included will be used.
DO NOT EXCEED WEIGHT CAPACITY.
WARNING!
PACKAGE CONTENTS
17.6lbs
(8kg)
B (x1)
Swivel Arm
C (x1)
Clamp
D (x1)
Pole
G (x3)
Bolt
F (x1)
Base Plate
J(x1)
4mm Allen Key
H(x1)
Support Plate
K(x1)
6mm Allen Key
I(x1)
Bolt
E(x1)
Wire Clip
A (x1)
VESA Plate
M-E(x4)
D6 Washer
M-A (x4)
M4x12
M-B (x4)
M4x16
M-C (x4)
M6x12
M-D (x4)
M6x16
01
M-F (x4)
Spacer
OPTION A: Clamp Installation
Install the Clamp (C) to the Pole (D) using 3pcs Bolt (G). Tighten using 4mm Allen key (J).
Secure stand to the desktop by tightening the plastic knob or by using 6mm Allen key (K).
ASSEMBLY STEPS
STEP 1: Clamp Installation OR Grommet Base Installation
02
G
J
10-80mm
K
OR
D
C
STEP 1: (Continued)
03
OPTION B: Grommet Base Installation
If existing grommet hole comes with a plastic protector, remove it to ensure a at surface before installing
the desk mount.
Loosen the screw, separate the clamp (C) into two parts.
Install the Grommet Base Plate (F) to the Pole using 1pc Bolt (G). Position pole (D) on the mounting surface
and secure using the support plate (H) and the bolt separated from clamp. Secure the pole to the desktop
by tightening the plastic knob or by using 6mm Allen key (K).
C
10-80mm
D
F
H
G
K
OR
DESK
DESK
ø 0.39"~3.1"
STEP 2 : Arm Installation
04
Install wire clip (E) and swivel arm (B) to the pole (D). Fasten the bolt with supplied 6mm Allen key (K).
L
D
B
E
05
CAUTION:To select the correct screws (M-A or M-C)
for your monitor, you can try to screw it on your
monitor by hand. The one can screw inside is the
correct screw for your monitor.
STEP 3 : Attached Monitor
A
A
M-A
M-C
M-E
K
M-B
M-D
M-E
M-F
K
OPTION A: Flat Back Monitor
For flat back monitor, secure VESA plate (A) to monitor
using screws (M-A or M-C) and washers (M-E). Tighten
the screws using 6mm Allen key (K).
OPTION B: Curved Back Monitor
For monitor with curved or recessed back, align spacers (M-F)
with mounting holes in monitor, and secure VESA plate (A) to
monitor using screws (M-B or M-D) and washers (M-E). Tighten
the screws using 6mm Allen key (K).
STEP 4 : Hang Monitor
06
Slide monitor with VESA plate onto mounting bracket.
Secure with security bolt (I).
I
07
STEP 5: Tilt Adjustment
Tighten or loosen tilt joint using 6mm Allen Key (K).
STEP 6: Cable Management
Manage cables with installed Wire Clip (E).
K
E
08
STEP 7: Tool Management
STEP 8: Adjust as Desired
Store 4mm Allen Key (J) and 6mm Allen Key (K) in Wire Clip (E).
Adjust monitor position and rotation.
Note: When tilted, if the monitor sags or does not stay,
please fasten the tilting bolt on the mount until the
monitor can be held at any angle as needed.
J
K
+45°
-45°
90°
360°
E
09

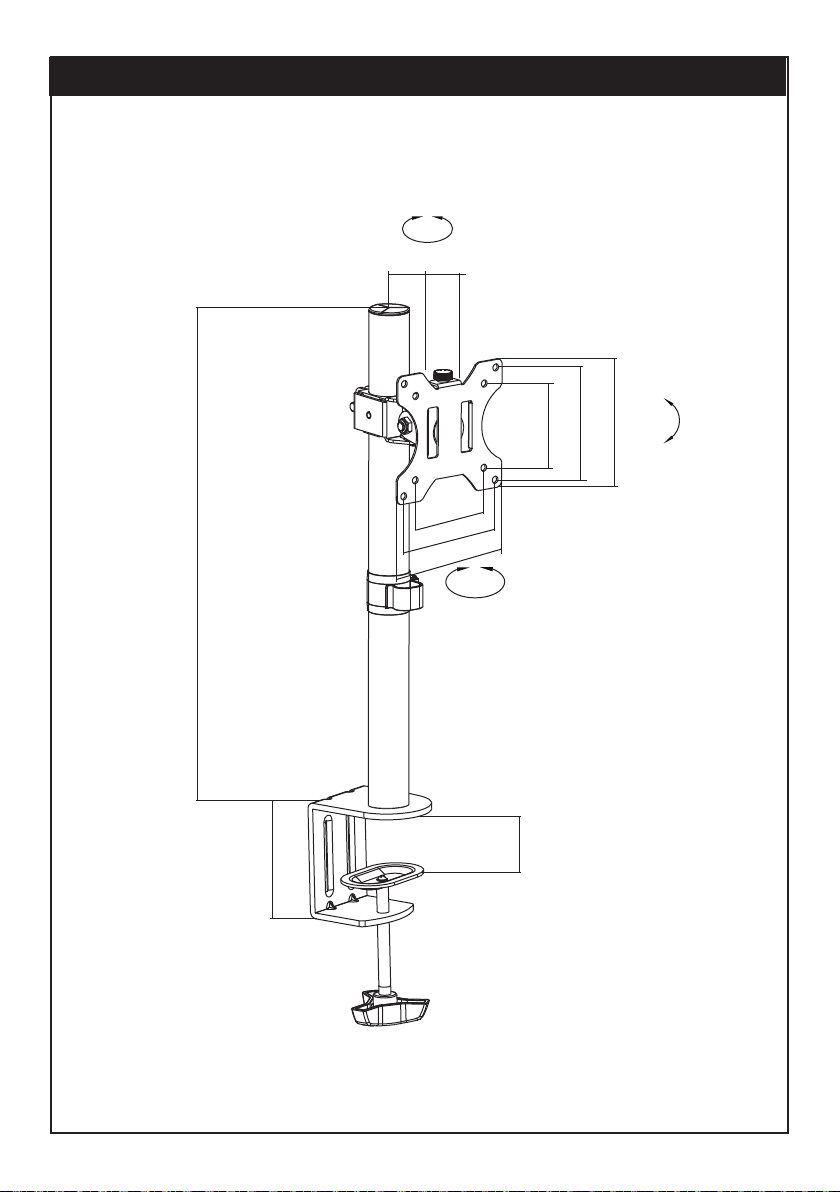

Product Dimensions
105mm/4.13"
0mm~80mm
0“-3.15”
75mm
100mm
114mm
360°
403mm/15.8"
90°
38mm
1.5"
50mm
1.96"
-45°
+45°
114mm
100mm
75mm
/2.9”
/3.9“
/4.48“
