Panel Layout of EDS-728/828 Series

COUPLER

MODE

RING

PORT COUPLER

PORT

FDX/HDX

STAT

PWR1 FAULT

MASTER

PWR2

LNK/ACT

SPEED

IM-4MSC

PWR

IM-4MST

PWR

IM-4TX

PWR

RS-232

Console

T.RING

1M-2 GTX

P1 P1

P2 P2

1M-2 GSFP

RELAY1

PWR1

PWR2

V1 V2 INPUT: 24VDC

DI1

V2+

V2-

V1+

V1-

DI2

RELAY2

13 1314 1515

1. System status LEDs

2. Push-button switch to select mode for Interface Module

3. Interface Module mode LEDs

4. Fast Ethernet Interface Module port LEDs

5. Terminal block for 2 power inputs, 2 DIs, and 2 DOs

6. Sticker showing pin contacts

7. Serial console port

8. Screw to attach Fast Ethernet Interface Module

9. Gigabit Ethernet Module LEDs

10. Two cartridge receptors for Gigabit Ethernet Interface Modules

11. Fast Ethernet Interface Modules

12. Sockets for Fast Ethernet Interface Modules

13. DIN-Rail braces

14. Ribs for radiating heat

15. Screw holes for wall mounting kit

16. Grounding screw

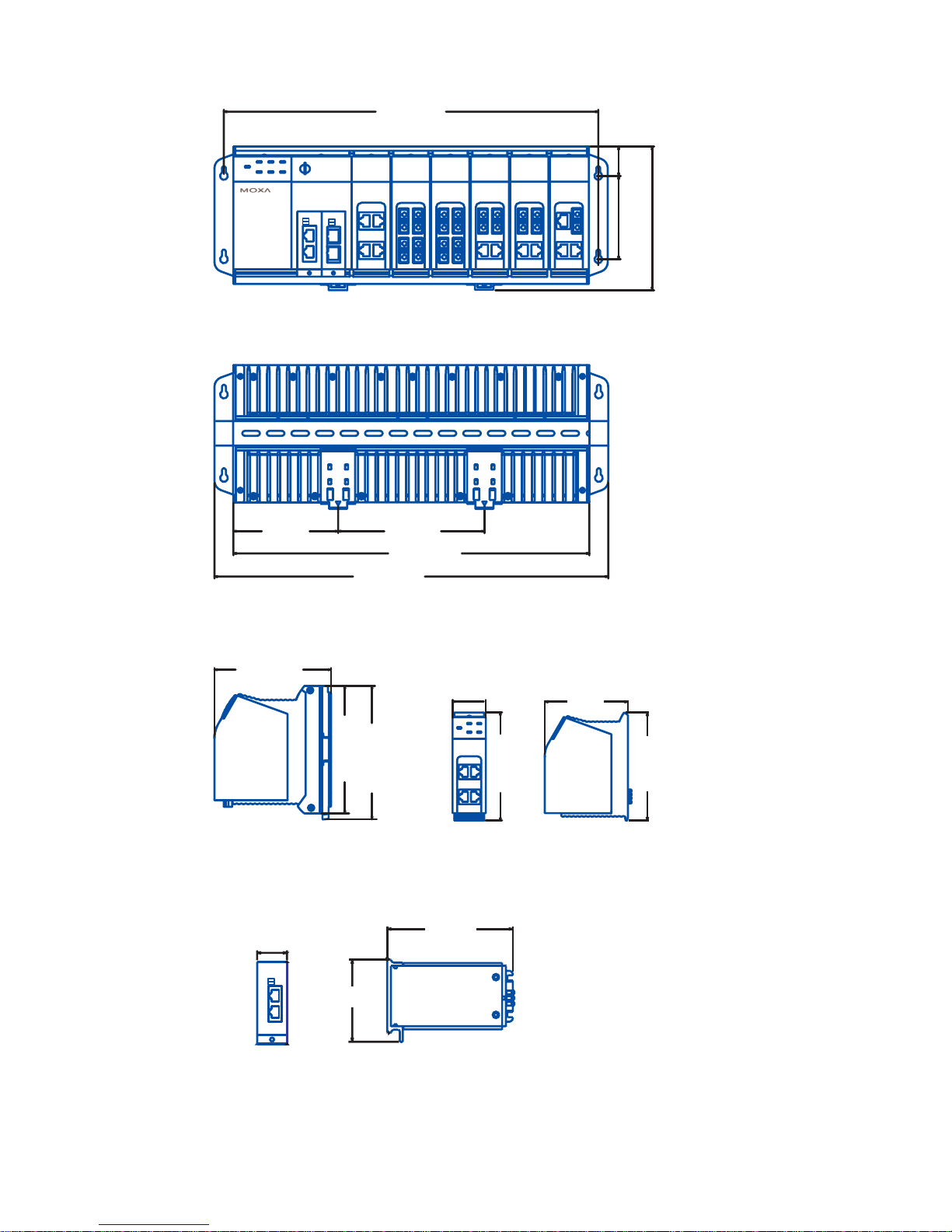

Mounting Dimensions (unit = mm)

381.70

3085.00

142.47

Front View

EtherDevice Switch

80.6 201.2

362.40

401.00

Rear View

128.00

142.47

140.00

Side View

Gigabit Ethernet Interface Modules

Front View Side View

101.1

65.9

Fast Ethernet Interface Modules

127.8

100

Side View

Front View

EDS-728/828

DIN-Rail Mounting

The DIN-Rail attachment plates are permanently fixed to the back panel of the

EDS-728/828. Do not attempt to remove the attachment plates, since doing so

could damage the product.

To Install:

Lock the brace by pressing the clips and then insert the top of the DIN-Rail

into the notches at the bottom of the top array of heat radiating ribs. Press the

EDS until the brace snaps into place.

To Release:

Use a flat-blade screw driver as a lever to force the braces downwards, and

then pull the EDS-728/828 out away from the DIN-Rail.

Wall Mounting (optional)

For some applications, you will find it convenient to mount the EDS-728/828

on the wall, as illustrated below.

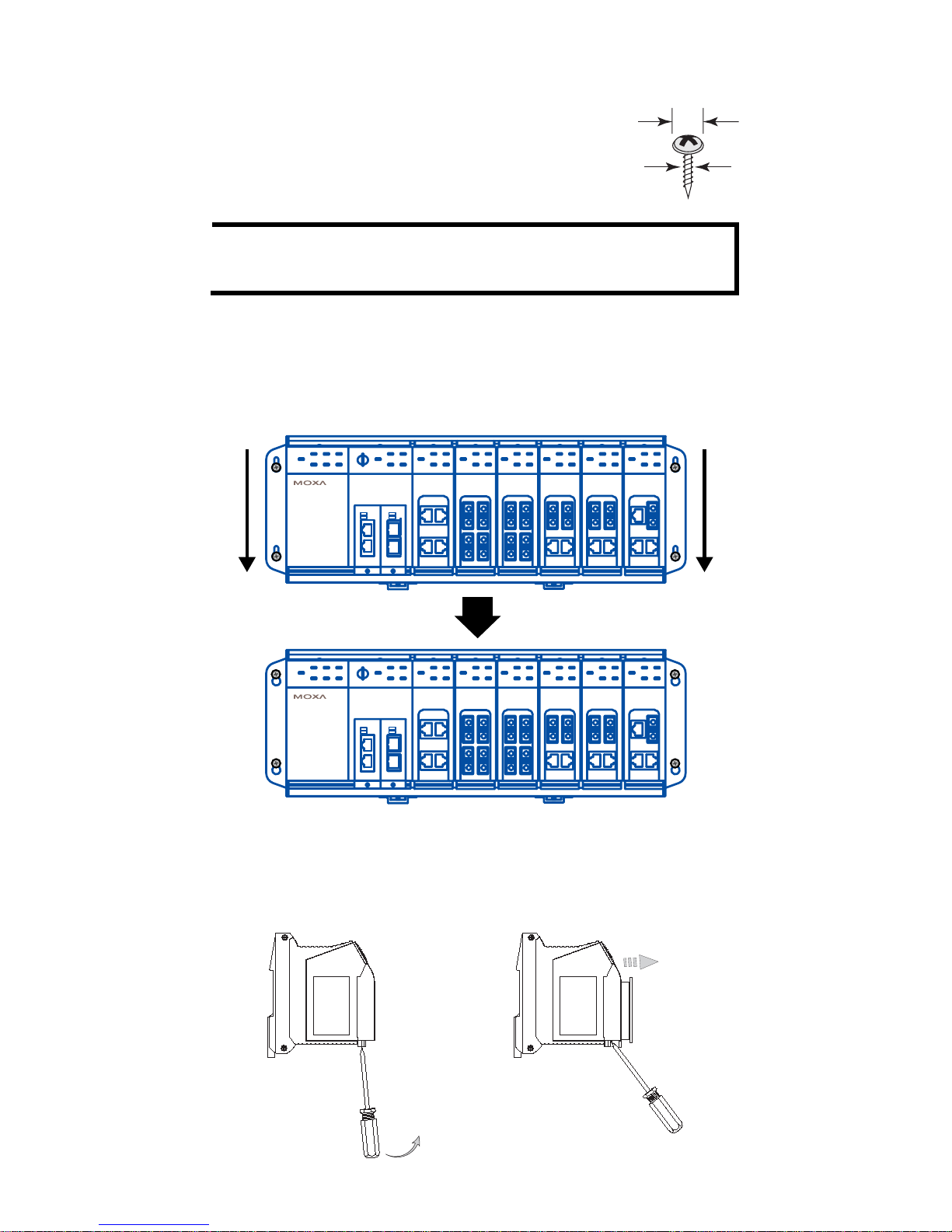

STEP 1: Remove the aluminum DIN-Rail attachment plate from the

EDS-728/828’s rear panel, and then attach the wall mounting plates, as shown

in the diagram.

STEP 2:

Mounting the EDS-728/828 on the wall requires 4 screws to

ensure that the switch does not come loose from the wall.

Use the switch, with wall mounting plates attached, as a

guide to mark the correct locations of the 4 screws. The

heads of the screws should be less than 6.0 mm in diameter,

and the shafts should be less than 3.5 mm in diameter, as

shown in the figure at the right.

6.0 mm

3.5 mm

NOTE Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw into one of

the keyhole-shaped apertures of the Wall Mounting Plates.

Do not screw the screws in all the way—leave about 2 mm to allow room for

sliding the wall mount panel between the wall and the screws.

STEP 3: Once the screws are fixed in the wall, insert the four screw heads

through the large parts of the keyhole-shaped apertures, and then slide Moxa

EDS downwards, as indicated. Tighten the four screws for added stability.

EtherDevice Switch

EDS-728/828

Uninstalling IM-2G Modules

As shown in the figure below, use a flat-blade screw driver as a lever, and pull

or push it to force the IM-2G module outwards. Then pull the module out away

from the EDS-728/828.

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa EDS-728/828.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

You should also pay attention to the following guidelines:

yUse separate paths to route wiring for power and devices. If power wiring

and device wiring paths must cross, make sure the wires are perpendicular

at the intersection point.

yNOTE: Do not run signal or communications wiring and power wiring in

the same wire conduit. To avoid interference, wires with different signal

characteristics should be routed separately.

yYou can use the type of signal transmitted through a wire to determine

which wires should be kept separate. The rule of thumb is that wiring that

shares similar electrical characteristics can be bundled together.

yKeep input wiring and output wiring separated.

yIt is strongly advised that you label wiring to all devices in the system when

necessary.

Grounding Moxa EtherDevice Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw, on the side panel of the EDS-728/828, to the grounding surface

prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well-grounded

mounting surface, such as a metal panel.

Wiring the Relay Contact

In this section, we explain the meaning of the two contacts used to connect the

alarm contact.

The EDS-728/828 has two sets of relay output—relay 1 and relay 2. Each relay

contact consists of the two contacts of the terminal block on the

EDS-728/828’s top panel. Refer to the next section for detailed instructions on

how to connect the wires to the terminal block connector, and how to attach the

terminal block connector to the terminal block receptor.

RELAY1 RELAY2 PWR1 PWR2

V2+

V2-V1+

V1-

DI1

I1I2

DI2

Top View

Front View

FAULT: The two sets of relay

contacts of the 6-pin terminal block

connector are used to detect

user-configured events. The two

wires attached to the Fault contacts

form an open circuit when a

user-configured event is triggered.

If a user-configured event does not

occur, the Fault circuit will be

closed.

Wiring the Redundant Power Inputs

The EDS-728/828 has two sets of power input—power input 1 and power input

2. The top two contacts and the bottom two contacts of the 6-pin terminal block

connector on EDS’s top panel are used for EDS’s two digital inputs.

RELAY1 RELAY2 PWR1 PWR2

V2+

V2-V1+

V1-

DI1

I1I2

DI2

Top View

Front View

STEP 1: Insert the

negative/positive DC wires into the

V-/V+ terminals.

STEP 2: To keep the DC wires

from pulling loose, use a small

flat-blade screwdriver to tighten

the wire-clamp screws on the front

of the terminal block connector.

STEP 3: Insert the plastic terminal

block connector prongs into the

terminal block receptor, which is

located on the EDS-728/828’s top

panel.

Wiring the Digital Inputs

The EDS-728/828 has two sets of digital input—DI 1 and DI 2. Each DI

comprises two contacts of the 6-pin terminal block connector on EDS’s top

panel. The terminal block is also used for EDS’s two DC inputs. Top and front

views of one of the terminal block connectors are shown here.

RELAY1 RELAY2 PWR1 PWR2

V2+

V2-V1+

V1-

DI1

I1I2

DI2

Top View

Front View

STEP 1: Insert the negative

(ground)/ positive DI wires into the

┴/I1 terminals.

STEP 2: To keep the DI wires

from pulling loose, use a small

flat-blade screwdriver to tighten

the wire-clamp screws on the front

of the terminal block connector.

STEP 3: Insert the plastic terminal

block connector prongs into the

terminal block receptor, which is

located on the EDS-728/828’s top

panel.

Communication Connections

The pinout and cable wiring diagrams in this section show how the ports on the

EDS-728/828 connect to other devices:

Pinouts are diagrams that indicate the type of signal passing through each of

the port’s pins.

NOTE 1. The pin numbers for male DB9 and DB25 connectors, and hole

numbers for female DB9 and DB25 connectors are labeled on the

connector. However, the numbers are typically quite small, so you

may need to use a magnifying glass to see the numbers clearly.

2. The pin numbers for both 8-pin and 10-pin RJ45 connectors (and

ports) are typically not labeled on the connector (or port). Refer to

the Pinout diagram below to see how RJ45 pins are numbered.

RS-232 Connection

The EDS-728/828 has one RS-232 (10-pin RJ45) console port, located on the

front panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect the

Moxa EDS-728/828’s console port to your PC’s COM port. You may then use

a console terminal program to access the Moxa EDS-728/828’s console

configuration utility.

10-pin RJ45 Console Pinouts

10-Pin Description

1 ------

2 DSR

3 ------

4 GND

5 TxD

6 RxD

7 GND

8 ------

9 DTR

10 ------

110

10/100BaseT(X) Ethernet Port Connection

Below we show pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports.

MDI Port Pinouts MDI-X Port Pinouts 8-pin RJ45

Pin Signal Pin Signal

1 Tx+ 1 Rx+

2 Tx- 2 Rx-

3 Rx+ 3 Tx+

6 Rx- 6 Tx-

1000BaseT Ethernet Port Connection

1000BaseT data is transmitted on differential TRD+/- signal pairs over copper

wires.

MDI/MDI-X Port Pinouts

Pin Signal

1 TRD(0)+

2 TRD(0)-

3 TRD(1)+

4 TRD(2)+

5 TRD(2)-

6 TRD(1)-

7 TRD(3)+

8 TRD(3)-

100/1000Base Fiber Port Connection

The concept behind the duplex port and cable is quite straightforward. Suppose

you are connecting devices I and II. Contrary to electrical signals, optical

signals do not require a circuit in order to transmit data. Consequently, one of

the optical lines is used to transmit data from device I to device II, and the

other optical line is used to transmit data from device II to device I, for

full-duplex transmission.

All you need to remember is to connect the Tx (transmit) port of device I to the

Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx

(transmit) port of device II. If you make your own cable, we suggest labeling

the two sides of the same line with the same letter (A-to-A and B-to-B or

A1-to-A2 and B1-to-B2).

ATTENTION

This is a Class 1 Laser/LED product. To avoid causing serious

damage to your eyes, do not stare directly into the Laser Beam.

LED Indicators

LED Color State Description

System LEDs

On System has passed self-diagnosis test on

boot-up and is ready to run.

GREEN

Blinking System is undergoing the self-diagnosis

test.

STAT

RED On System failed self-diagnosis on boot-up.

On Power is being supplied to the main

module’s power input PWR1.

PWR1 AMBER

Off Power is not being supplied to the main

module’s power input PWR1.

On Power is being supplied to the main

module’s power input PWR2.

PWR2 AMBER

Off Power is not being supplied to the main

module’s power input PWR2.

The corresponding PORT alarm is

enabled and a user-configured event has

been triggered.

FAULT RED

Off

The corresponding PORT alarm is

enabled and a user-configured event has

not been triggered, or the corresponding

PORT alarm is disabled.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Moxa Technologies Interruttore

Moxa Technologies

Moxa Technologies EtherDevice EDS-P506E-4PoE Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7528 Manuale

Moxa Technologies

Moxa Technologies PT-G7828 Manuale utente

Moxa Technologies

Moxa Technologies IKS-6726-8PoE Series Manuale

Moxa Technologies

Moxa Technologies TN-4516A non-PoE series Manuale utente

Moxa Technologies

Moxa Technologies EDS-G2005-EL Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-726 Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-205A series Manuale

Moxa Technologies

Moxa Technologies EtherDevice Manuale utente

Moxa Technologies

Moxa Technologies EDS-4014 Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-G308-T Manuale

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP Manuale

Moxa Technologies

Moxa Technologies TN-G4516-8GPoE-4XGPoE-WV-T Manuale utente

Moxa Technologies

Moxa Technologies PT-7324 Series Manuale utente

Moxa Technologies

Moxa Technologies PT-G510 Series Manuale utente

Moxa Technologies

Moxa Technologies UPORT 1200 series Manuale utente

Moxa Technologies

Moxa Technologies NPort S8000 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510 Series Manuale

Moxa Technologies

Moxa Technologies PT-7528-24TX-HV Manuale utente

Moxa Technologies

Moxa Technologies TN-5308-LV Manuale utente

Moxa Technologies

Moxa Technologies ioLogik E1200 Series Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-600 Series Manuale

Moxa Technologies

Moxa Technologies EtherDevice EDS-G508E-T Manuale

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
