MP-Man MP-HD2 Manuale utente

MP-HD2

User’s Guide

Before operating this product, please read these instructions completely.

www.mpmaneurope.com

Getting Started

INTRODUCTION

Digital Audio Player (DAP) –HD2

Your Digital Audio Player (DAP) is a device that stores and plays multi-format digital audio

files including MP3, WMA and WAV files. Downloading hours of music from your PC,

transfer them into your DAP or use it for voice recording. Please read this manual carefully

before using this product for the first time.

KEY FEATURES

• Multi-format player supports: MP3, WMA, WMA w/ DRM and WAV files

• Windows Plug & Play support for Windows ME, 2000 and XP and Mac OSX

• USB Version 2.0

• OLED Display

• Voice Recording

• Six different music equalizer levels

• Power saving feature

PACKAGE CONTENTS

The packaging should include the following:

• Digital Audio Player

• Stereo Earphones

• USB Cable

• Carrying Case

• CD-ROM with Windows 98SE Driver and Manual

• Quick Start Guide

1GB -

PARTS DESCRIPTION

1. - Record Button

2. EQ/Repeat Button 7. USB Port

3. +/-/Mode Button 8. Built-in Microphone

4. - Power On/Off Button 9. Earphone Jack

5. Hold Switch

6. Navigation Control

CONTROLS

Key Functions

+/-/MODE Press to access into the Main Menu.

Press and hold to return to the previous Menu.

+ Push upward to increase the volume.

Push and hold upward to increase the volume rapidly.

- Push downward to decrease the volume.

Push and hold downward to decrease the volume rapidly.

Slide to the right to lock all keys functions.

Slide to the left to unlock all keys functions.

EQ Equalizer / Repeat button.

Press to access into the Repeat or Equalizer mode.

Press and hold to access into the other mode.

zPress to record.

Press to turn On and Off .

2GB -

There is a joystick key in the center that can be used to control several key

functions. Pushing the button up, down, left or right will achieve the following

actions:

+/-/MODE Press the button to access the Mode.

Push to the right to select the next file.

Push and hold to the right to fast-forward within the files.

Push to the left to select the previous file.

Push and hold on to the left to fast-rewind within the files.

Push downward to stop playback

II Push upward to start playback.

During playback push upward to pause playback.

CHARGING THE BATTERY

The Battery of the unit charges through the USB port of a computer. Plug one end of the

USB Cable into the USB socket of the DAP and plug the other end into the Computer.

zOnce connected, the screen will display the following:

Please charge the battery at least 12 hours for the first time before use.

3GB -

Downloading and Transferring Files

USB DRIVER INSTALLATION

For Windows ME, 2000 or XP:

These versions of Windows will detect your DAP after connecting with the USB cable and

the computer. (Please make sure the DAP is turned ON.)

For Windows 98SE:

Windows 98SE will not recognize the player until you have installed the driver using the

included installation CD-ROM. Follow the detailed instructions in this section to activate the

USB mass storage function, so you will be able to transfer files from your computer to your

player.

Installation Procedures for the Player Software

(For Windows 98SE only)

When connecting the player to the computer for the first time, please follow these instructions:

1. Insert the CD-ROM into the CD Drive. The auto-run program will display as shown

(Figure 1).

(Figure 1)

Remarks: If the setup does not start automatically, please run the setup.exe in your CD-ROM

drive directory. Double click “setup.exe” in the installation CD.

4GB -

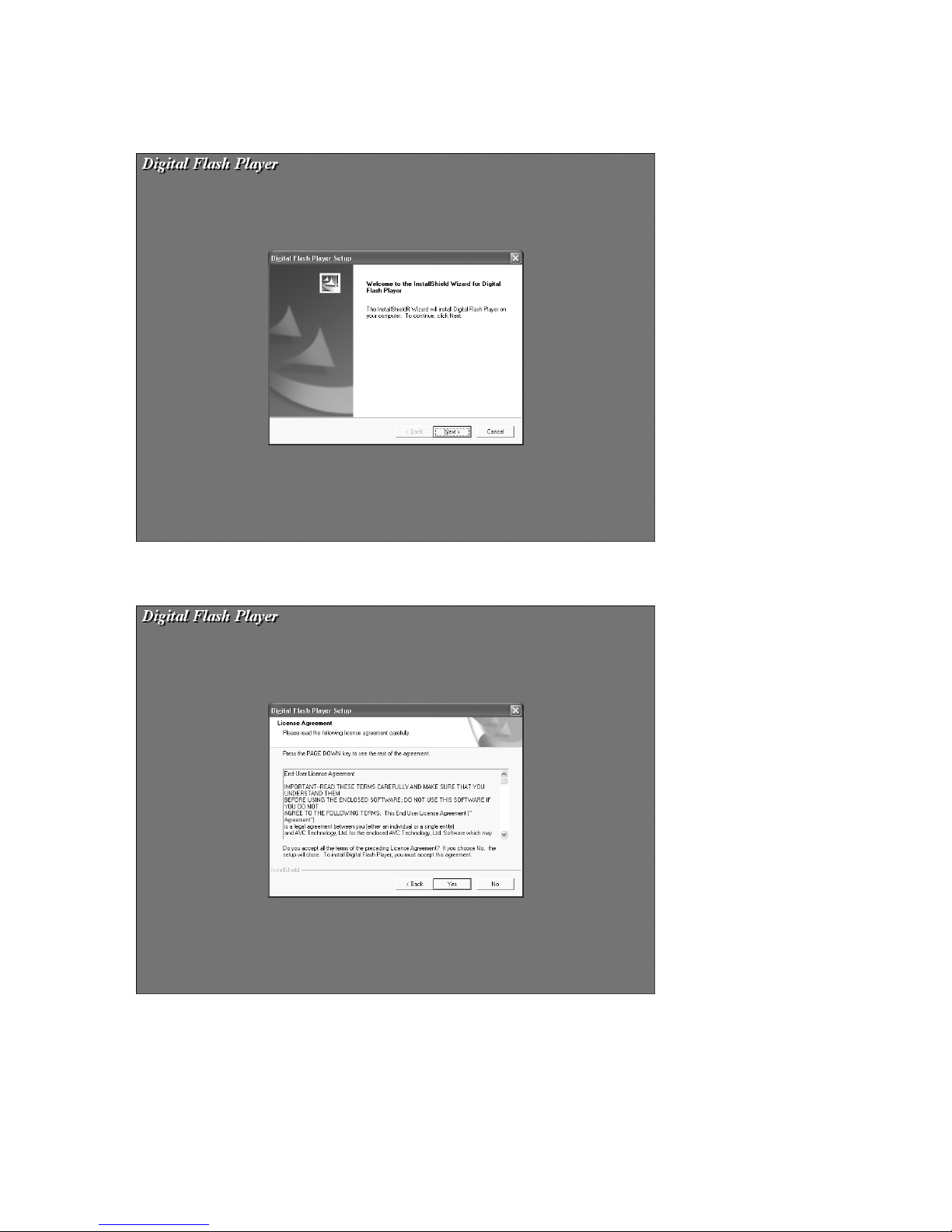

2. Follow the on screen instruction to install the software.

Click “Yes” to accept the License Agreement.

5GB -

Please install the software under the directory as prompted.

Warning: DO NOT change the installation path. Otherwise, the Player driver may not

run properly.

Click “Next” as prompted.

6GB -

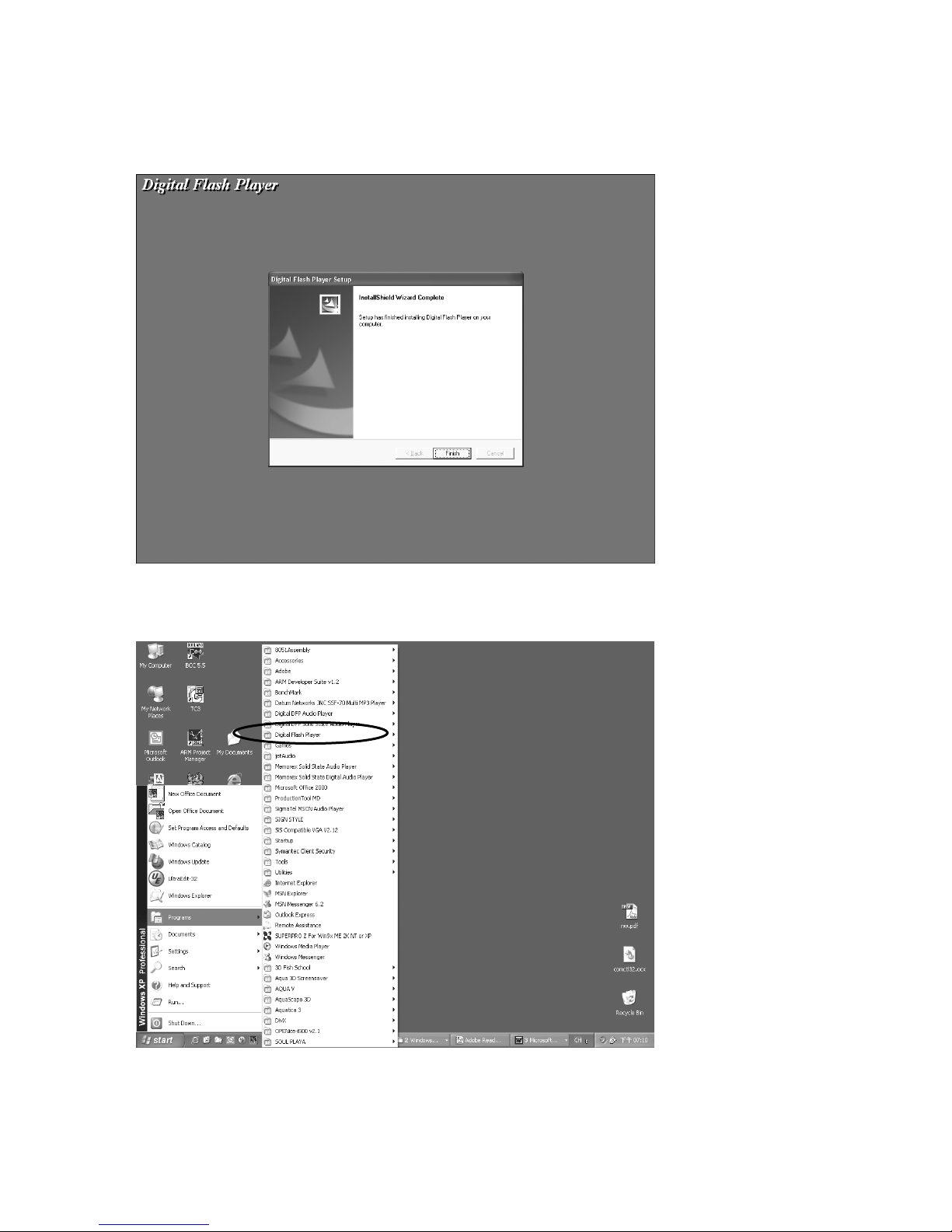

3. After successfully installing the driver software, please click “Finish” to complete the

installation.

4. When the installation is completed, the new program will be added to your Program

menu in the computer.

7GB -

TRANSFERRING FILES

Connect the DAP by using the supplied USB cable to the computer. If the unit is not On, then

press the button to turn the player ON. The following will be displayed on the display of

your DAP:

A “Removable Disk” will be added in My Computer. Open the “Removable Disk” folder:

Locate the files you wish to copy from your computer to your player. Drag and drop MP3,

WMA or WAV files on your computer into the “Removable Disk” folder. These files will

now be copied into your DAP.

Note: When you are finished transferring files, use the Safely Remove Hardware procedure

before disconnecting your player. (Please see the next section for detailed instructions.)

8GB -

DOWNLOADING WMA FILES WITH DRM

In order to download WMA files with DRM you must follow the procedure described below.

If you do not have “Windows Media Player 9” on your computer, you must go to

www.Microsoft.com to download and install this software. Before beginning the procedure

please turn the unit ON and connect the USB cable to the unit and to the USB port of your

computer.

1. Open the “Windows Media Player Browser,” and click on “Tools” in the menu bar. Then

click “Options...”.

9GB -
