USER GUIDE

SCC-CO20 Isolated Current

Output Module

The SCC-CO20 is an isolated current output module that outputs up to

20 mA. The output current level is proportional to the voltage applied to

the module by an analog output channel of an E/M Series DAQ device.

Conventions

The following conventions are used in this guide:

<> Angle brackets that contain numbers separated by an ellipsis represent

a range of values associated with a bit or signal name—for example,

AO <3..0>.

»The »symbol leads you through nested menu items and dialog box options

to a final action. The sequence File»Page Setup»Options directs you to

pull down the File menu, select the Page Setup item, and select Options

from the last dialog box.

This icon denotes a note, which alerts you to important information.

This icon denotes a caution, which advises you of precautions to take to

avoid injury, data loss, or a system crash. When this symbol is marked on

the product, refer to the Read Me First: Safety and Radio-Frequency

Interference document, shipped with the product, for precautions to take.

When symbol is marked on a product, it denotes a warning advising you to

take precautions to avoid electrical shock.

When symbol is marked on a product, it denotes a component that may be

hot. Touching this component may result in bodily injury.

bold Bold text denotes items that you must select or click in the software, such

as menu items and dialog box options. Bold text also denotes parameter

names.

SCC-CO20 Isolated Current Output Module User Guide 2 ni.com

italic Italic text denotes variables, emphasis, a cross-reference, or an introduction

to a key concept. Italic text also denotes text that is a placeholder for a word

or value that you must supply.

monospace Text in this font denotes text or characters that you should enter from the

keyboard, sections of code, programming examples, and syntax examples.

This font is also used for the proper names of disk drives, paths, directories,

programs, subprograms, subroutines, device names, functions, operations,

variables, filenames, and extensions.

SC-2345 SC-2345 refers to both the SC-2345 connector block and the SC-2345 with

configurable connectors.

SCC SCC refers to any SCC Series signal conditioning module.

What You Need to Get Started

To set up and use the SCC-CO20, you need the following items:

❑Hardware

– SC-2345/2350 with one of the following:

• SCC-PWR01

• SCC-PWR02 and the PS01 power supply

• SCC-PWR03 (requires a 7 to 42 VDC power supply,

not included)

– One or more SCC-CO20

– 68-pin E/M Series DAQ device

– 68-pin cable

– Quick Reference Label

❑Software

– The latest version of NI-DAQmx

❑Documentation

– SCC-CO20 Isolated Current Output Module User Guide

–SC-2345/2350 User Manual

–SCC Quick Start Guide

–Read Me First: Safety and Radio-Frequency Interference

– Documentation for your hardware

– Documentation for your software

©National Instruments Corporation 3 SCC-CO20 Isolated Current Output Module User Guide

❑Tools

– 1/8 in. flathead screwdriver

– Numbers 1 and 2 Phillips screwdrivers

– Wire insulation stripper

Note Software scaling of measurements is not supported on the Macintosh operating

system. Refer to the SCC-CO20 Module Pin Assignments section.

You can download NI documents from ni.com/manuals. To download

the latest version of NI-DAQmx, click Download Software at ni.com.

Device Specific Information

Note For general SCC module installation and signal connection information, and

information about the SC-2345/2350 carrier, refer to the SCC Quick Start Guide, available

for download at ni.com/manuals.

Installing the SCC-CO20

Caution Refer to the Read Me First: Safety and Radio-Frequency Interference document

before removing equipment covers or connecting/disconnecting any signal wires.

Plug the SCC-CO20 into either SC-2345/2350 analog output socket

J(X+17), where Xis 0 or 1. The SC-2345/2350 routes the voltage output of

E/M Series DAQ device analog output channel AO (X) to the SCC-CO20.

Connecting the SCC-CO20 to a Load

Note The signal names have changed. Refer to ni.com/info and enter rdtntg

to confirm the signal names.

The screw terminals are labeled by pin number <1..3>. Pin 1 is the ground,

pin 2 is the current sink, and pin 3 is the isolated loop supply. Figure 1

shows how the ground, sink, and supply connect to the E/M Series DAQ

device.

SCC-CO20 Isolated Current Output Module User Guide 4 ni.com

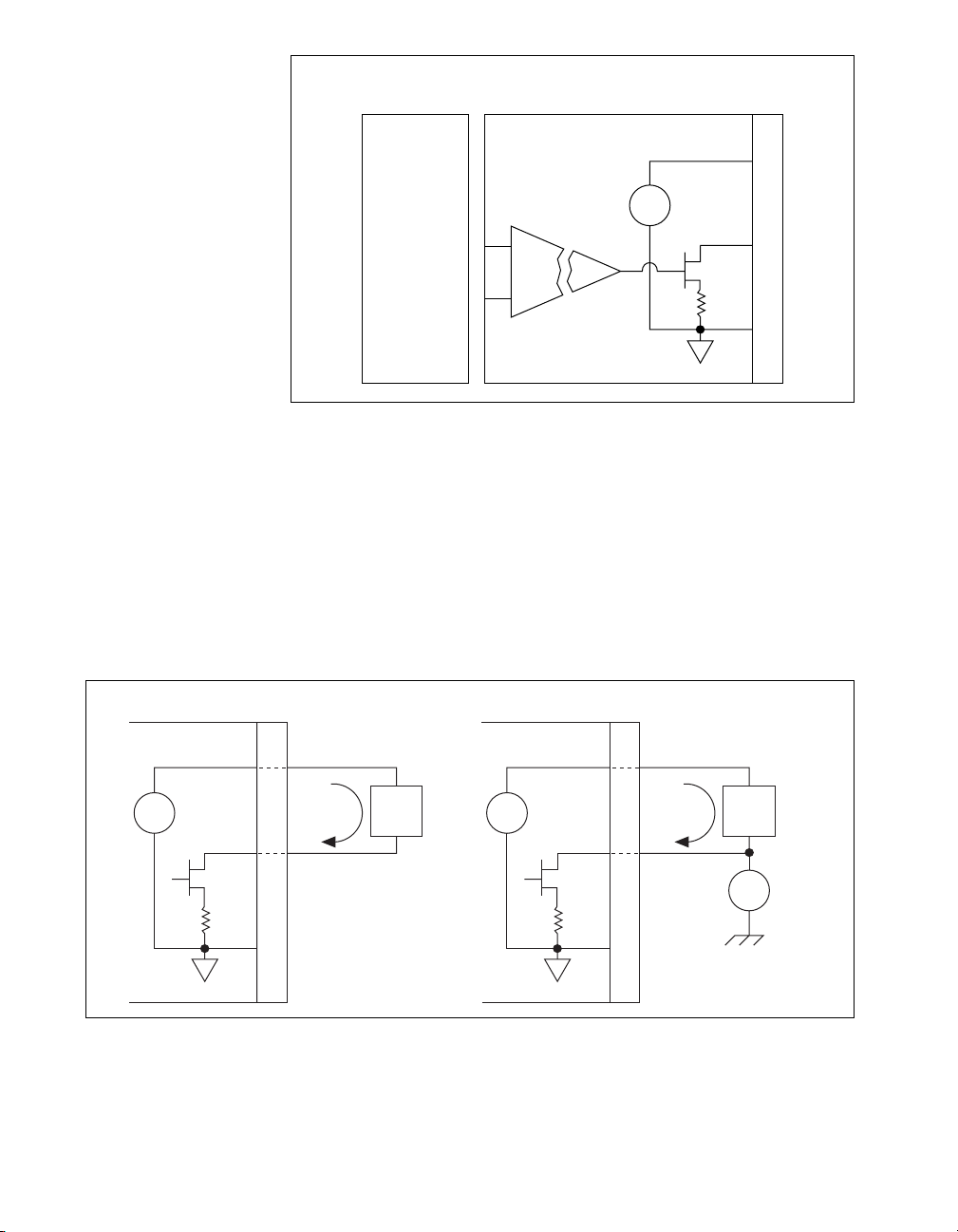

Figure 1. SCC-CO20 Signal Connections to E/M Series DAQ Device

Using the Isolated Loop Supply of the SCC-CO20

You can connect the SCC-CO20 to a load using either the isolated internal

loop supply or an external supply. The internal loop supply outputs a

voltage of 15 V with respect to the isolated ground reference. When using

the internal loop supply, the compliance voltage is 12.5 V. This allows for

a maximum load resistance of 625 Ωat 20 mA. Figure 2 shows how to

connect the SCC-CO20, using the internal loop supply, to a nonreferenced

(floating) load and to a load with a high common-mode voltage.

Figure 2. Connecting the SCC-CO20 Using the Internal Loop Supply

AO GND

E/M Series

DAQ Device

AO (X)

SCC-CO20

–

15 V iso

High

CMV

SCC-CO20

Load

–

15 V iso

–

20 mA 0

–

20 mA

SUPPLY

SINK

SCC-CO20

Load

–

15 V iso

3 SUPPLY

SINK

–

©National Instruments Corporation 5 SCC-CO20 Isolated Current Output Module User Guide

Note If your load is grounded and you are using the internal supply, connect the load

ground to the current sink terminal at pin 2 on the SCC-CO20. Do not connect the load

ground to the isolated ground terminal because doing so could defeat the module isolation.

Driving Higher-Resistance Loads with the SCC-CO20

In order to calculate the supply voltage your application requires, multiply

the load resistance by the current you need to sink, then add 2.5 V for the

voltage drop across the protection diode and the current-sink MOSFET.

If you need a higher voltage than the 15 V provided by the internal loop

supply, you can either add a second SCC-CO20 module or provide an

external loop supply.

Adding a Second SCC-CO20 Module

You can add another SCC-CO20 loop supply to create a supply of 30 V,

as shown in Figure 3. Do not use more than two SCC-CO20 modules on

a single circuit, because the resulting voltage can cause overheating and

damage the modules and other equipment.

SCC-CO20 Isolated Current Output Module User Guide 6 ni.com

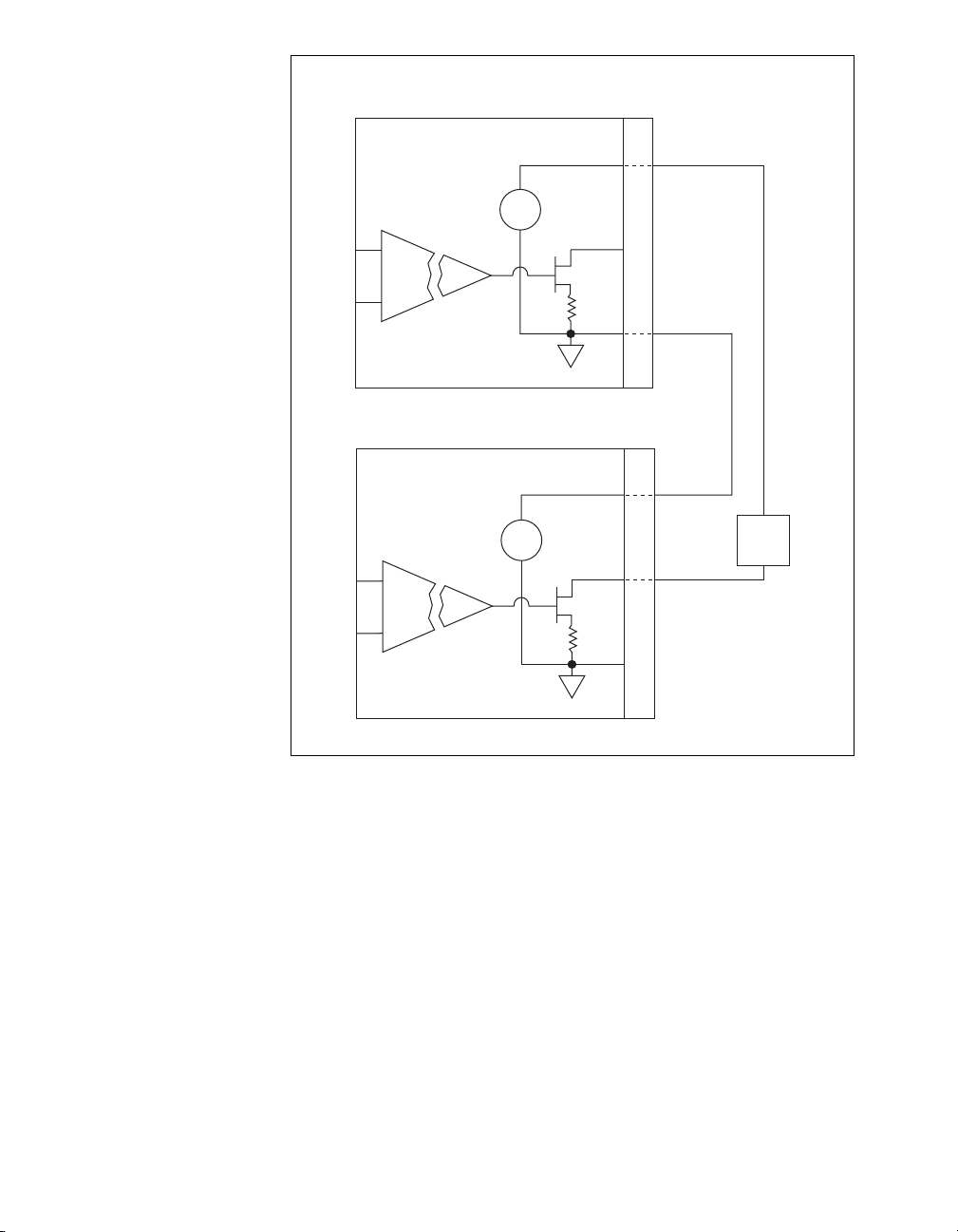

Figure 3. Connecting Two SCC-CO20 Modules to a Higher-Resistance Load

SCC-CO20

–

15 V iso

SCC-CO20

–

15 V iso

Load

SUPPLY

SINK

ISO GND

SUPPLY

©National Instruments Corporation 7 SCC-CO20 Isolated Current Output Module User Guide

Using an External Loop Supply

In order for the current sink to operate properly with an external loop

supply, the voltage must be within the range of 3 to 42 V. If the voltage is

too high, overheating can occur and damage the module. Figure 4 shows

four configurations using an external loop supply.

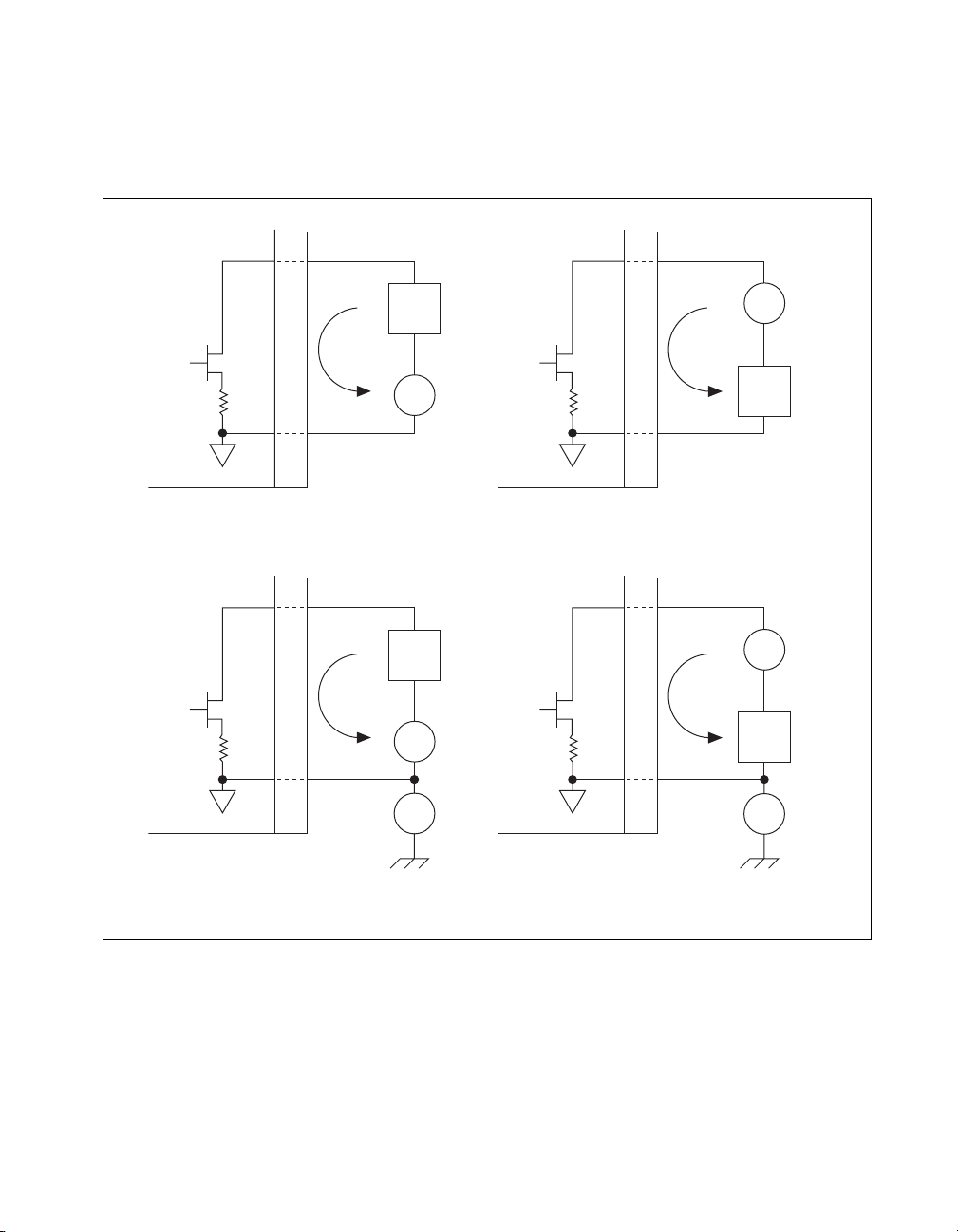

Figure 4. Connecting the SCC-CO20 Using an External Loop Supply

When you use an external loop supply, the order of the supply and load does

not matter as long as you do not create a second loop through which current

flows. If both the supply and the load are grounded, connect the signals as

shown in Figure 5.

High

CMV

High

CMV

Load

SINK

–

SCC-CO20

ISO GND

a. Nonreferenced load and external voltage supply (two circuits)

b. Referenced load and external voltage supply (two circuits)

Load

SINK

–

SCC-CO20

ISO GND

Load

SINK

–

SCC-CO20

ISO GND

Load

SINK

–

SCC-CO20

ISO GND

–

0–20 mA 0–20 mA

SCC-CO20 Isolated Current Output Module User Guide 8 ni.com

Figure 5. Connecting the SCC-CO20 to a Grounded External Loop Supply

and a Grounded Load

For information about how to configure the SCC-CO20 module using

NI-DAQmx, refer to the SCC Quick Start Guide.

Calibrating Gain and Offset Errors

The SCC-CO20 is calibrated at the factory before shipment. If you want

to adjust the gain and offset of the SCC-CO20 in your system using an

E/M Series DAQ device, you need a current meter (ammeter) with an

accuracy of at least ±2 μA.

To adjust the gain and offset of the SCC-CO20, complete the following

steps:

1. Disconnect the load from the SCC-CO20 you want to calibrate.

2. Set an output range of 0 to 10 V for AO (X), the E/M Series DAQ

device channel connected to the SCC-CO20.

3. Connect the negative lead of the ammeter to the current sink (pin 2)

and the positive lead to the current supply (pin 3) of the SCC-CO20.

4. Using your software, have AO (X) output 10 mVDC.

5. Adjust the offset potentiometer on the top of the SCC-CO20 until the

ammeter reads 20 μA. The offset is now calibrated.

6. Using your software, have AO (X) output 9 VDC.

7. Adjust the gain potentiometer on the top of the SCC-CO20 until the

ammeter reads 18 mA. The gain is now calibrated.

Load

–

20 mA

SINK

SCC-CO20

ISO GND

–

©National Instruments Corporation 9 SCC-CO20 Isolated Current Output Module User Guide

Note Normally you would adjust to 0 μA in order to calibrate the offset, but because

the SCC-CO20 cannot source current, it is impossible to know when you have adjusted

past 0 μA.

Using the SCC-CO20

The SCC-CO20 is a 0 to 20 mA programmable current sink. The current

output is controlled by AO (X), a 0 to 10 V unipolar DAC output channel

of an E/M Series DAQ device. The relationship between the AO (X)

voltage level and the current output of the SCC-CO20 is linear and is

described by the following equation:

where

VAO (X)is the AO (X) voltage level.

ICO20 is the SCC-CO20 current output in amperes.

The current sink is an N-channel power MOSFET sink to an isolated

ground reference. You can use the SCC-CO20 with industry-standard

0 to 20 or 4 to 20 mA current loops.

Note The current sink does not source current. If the input voltage is 0 V or less,

the module sinks 0 mA.

Isolated Ground Reference

Each SCC-CO20 module is referenced to its own isolated ground. Each

isolated ground can have up to 60 VDC of common-mode voltage between

itself and any other channel ground or chassis ground. Refer to the

Connecting the SCC-CO20 to a Load section for different ways to use

the isolated ground in signal connections.

AO X()

500

---------------ICO2

SCC-CO20 Isolated Current Output Module User Guide 10 ni.com

Specifications

These ratings are typical at 25 °C unless otherwise stated.

Electrical

Number of output channels.....................1

Output referencing..................................Nonreferenced (floating)

Input range..............................................0 to 10 V

Output range ...........................................0 to 20 mA

Voltage compliance ................................12.5 V

Maximum load resistance

5 mA ................................................2,500 Ω

10 mA ..............................................1,250 Ω

15 mA ..............................................830 Ω

20 mA ..............................................625 Ω

Absolute accuracy...................................0.1% of full-scale output range

Temperature drift ....................................0.5 μA/°C typ

1μA/°C max

Power Requirement

Analog power .........................................175 mW max

+15 V ...............................................5.8 mA max

–15 V ...............................................5.8 mA max

Digital power (+5 V) ..............................645 mW

+5 V .................................................129 mA max

Altri manuali per Isolated Current Output Module SCC-CO20

Indice

Altri manuali National Instruments Scheda di rete

National Instruments

National Instruments NI 9853 Manuale utente

National Instruments

National Instruments Network Device DAQ S Manuale utente

National Instruments

National Instruments NI CardBus-8310-to-PXI Expansion Manuale utente

National Instruments

National Instruments PCI-5911 Manuale utente

National Instruments

National Instruments NI 781xR Manuale utente

National Instruments

National Instruments NI 9425 Manuale utente

National Instruments

National Instruments Measure Data Acquisition Manuale utente

National Instruments

National Instruments NI 9403E Manuale utente

National Instruments

National Instruments Gigabit Ethernet Adapters Manuale utente

National Instruments

National Instruments Network Device NI PXI-7811R Manuale utente

National Instruments

National Instruments NI 9215 Manuale utente

National Instruments

National Instruments NI 9481E Manuale utente

National Instruments

National Instruments NI MATRIXx Xmath Manuale utente

National Instruments

National Instruments NI 9426 Manuale utente

National Instruments

National Instruments NI 9233 Manuale utente

National Instruments

National Instruments NI 9229 Manuale utente

National Instruments

National Instruments Module SCXI-1125 Manuale utente

National Instruments

National Instruments Module SCXI-1503 Manuale utente

National Instruments

National Instruments NI 6232 Manuale utente

National Instruments

National Instruments Monochrome Image Acquisition Device NI 1410 Manuale utente

National Instruments

National Instruments NI 6013 Manuale utente

National Instruments

National Instruments NI PCIe-8255R Manuale utente

National Instruments

National Instruments Network Adapter NI PXIe-1075 Manuale utente

National Instruments

National Instruments Network Adapter NI PXIe-6672 Manuale utente

Manuali Scheda di rete popolari di altre marche

FirstComm

FirstComm OBiWiFi5G Manuale utente

Sun Microsystems

Sun Microsystems Interface Adapter Manuale utente

TRENDnet

TRENDnet TU2-ETG Manuale utente

YASKAWA

YASKAWA SI-EN3 Manuale utente

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuale utente

Belkin

Belkin F5D7050 Manuale utente

3Com

3Com EtherLink 3C509B Manuale utente

TRENDnet

TRENDnet TEG-PCITX Manuale utente

Cisco

Cisco MC16E Manuale utente

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuale utente

TwinMOS

TwinMOS Booming Manuale utente

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuale utente

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuale utente

Hama

Hama 49276 Manuale utente

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuale operativo

Compaq

Compaq Wireless LAN 100 Manuale utente

Bose

Bose PowerMatch Dante Manuale utente

TRENDnet

TRENDnet TEG-PCITXR Manuale utente
