Northern Industrial Tools 816400 Manuale utente

H Y D R A U L I C T I E B A R T O O L K I T

OWNER’S MANUAL

WARNING: Read carefully and understand

all INSTRUCTIONS before operating. Failure to

follow the safety rules and other basic safety

precautions may result in serious personal injury.

Item #816400

Thank you very much for choosing a NORTHERN TOOL + EQUIPMENT CO., INC.

Product! For future reference, please complete the owner’s record below:

Model: _______________ Purchase Date: _______________

Save the receipt, warranty and these instructions. It is important that you read the

entire manual to become familiar with this product before you begin using it.

This machine is designed for certain applications only. Northern Tool + Equipment

cannot be responsible for issues arising from modification. We strongly recommend

this machine is not modified and/or used for any application other than that for which it

was designed. If you have any questions relative to a particular application, DO NOT

use the machine until you have first contacted Northern Tool + Equipment to

determine if it can or should be performed on the product.

For technical questions please call 1-800-222-5381.

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

MODEL

NO.

CAPACITY

(TON)

STROK

(mm)

MIN.

HEIGH

(mm)

MAX.

HEIGHT

(mm)

WEIGHT

(kg)

NOTE

816400-04A

0.75

WITHOUT

RETURN

SPRING

816400-10A

132

190

WITHOUT

RETURN

SPRING

816400-02A

140

213

0.82

WITHOUT

RETURN

SPRING

816400-04B

125

280

405

1.76

WITHOUT

RETURN

SPRING

816400-10B

140

363

503

5.2

WITHOUT

RETURN

SPRING

816400-02B

120

570

450

2.6

WITHOUT

RETURN

SPRING

816400-05B

130

670

540

5.15

WITHOUT

RETURN

SPRING

Save These Instructions.

CAUTION: Do not attempt to operate the Tire Spreader until you have read and

understood this instruction manual.

WARNING: The warnings, cautions and instructions in this manual cannot cover

all possible conditions or situations that could occur. It must be understood by the operator

that common sense and caution are factors that cannot be built into this product, but must

be supplied by the operator.

DIAGRAM & PARTS LIST

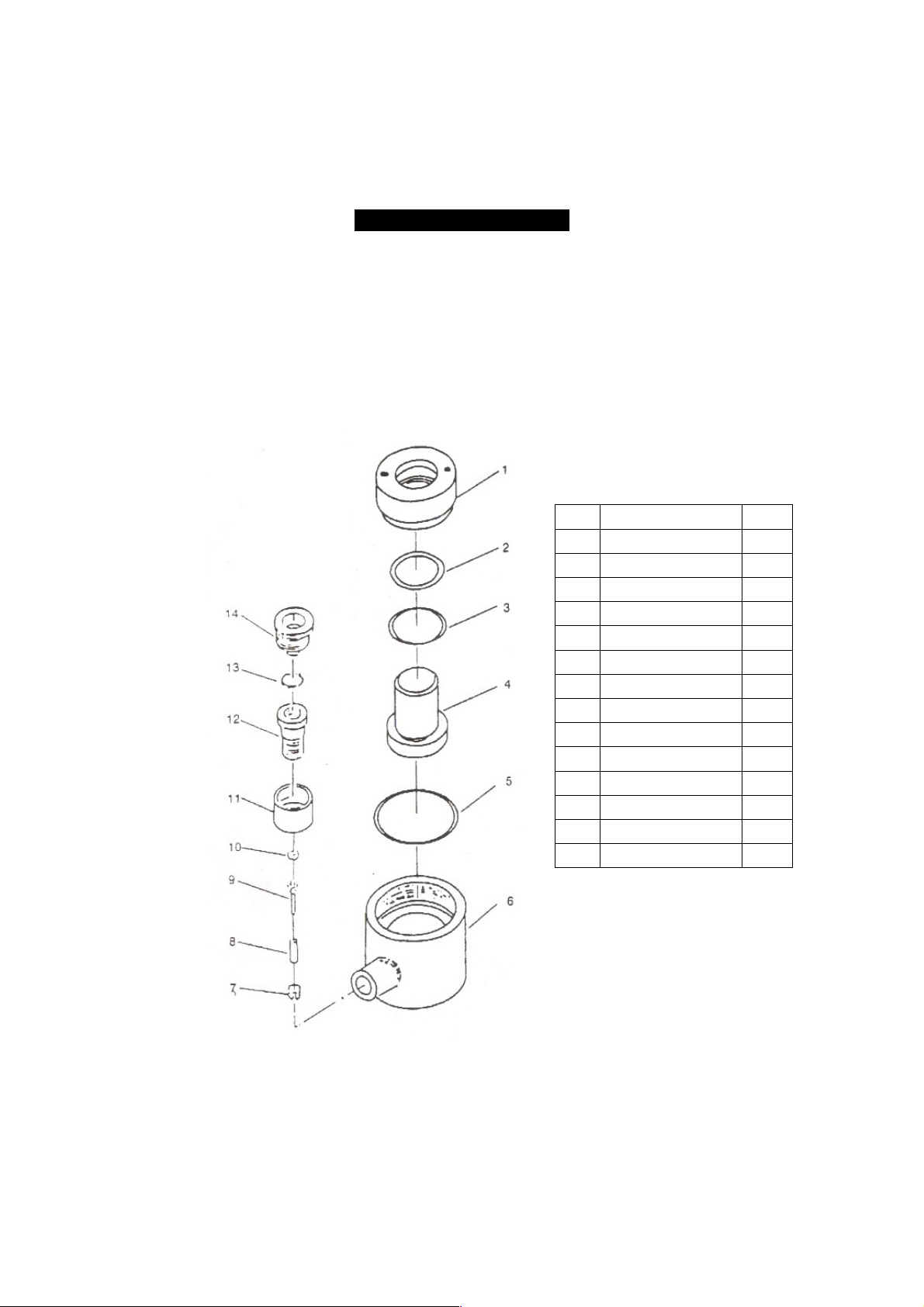

4-TON HYDRAULIC MINI-RAM

ASSEMBLY INSTRUCTIONS

DESCRIPTION

QTY

Nut

Seal Ring

O-ring

Ram

O-ring

Cylinder

Spindle Screw

Spring

Spindle

Oil Ring

Connection Nut

Hose Coupler

O-ring

Dust Cap

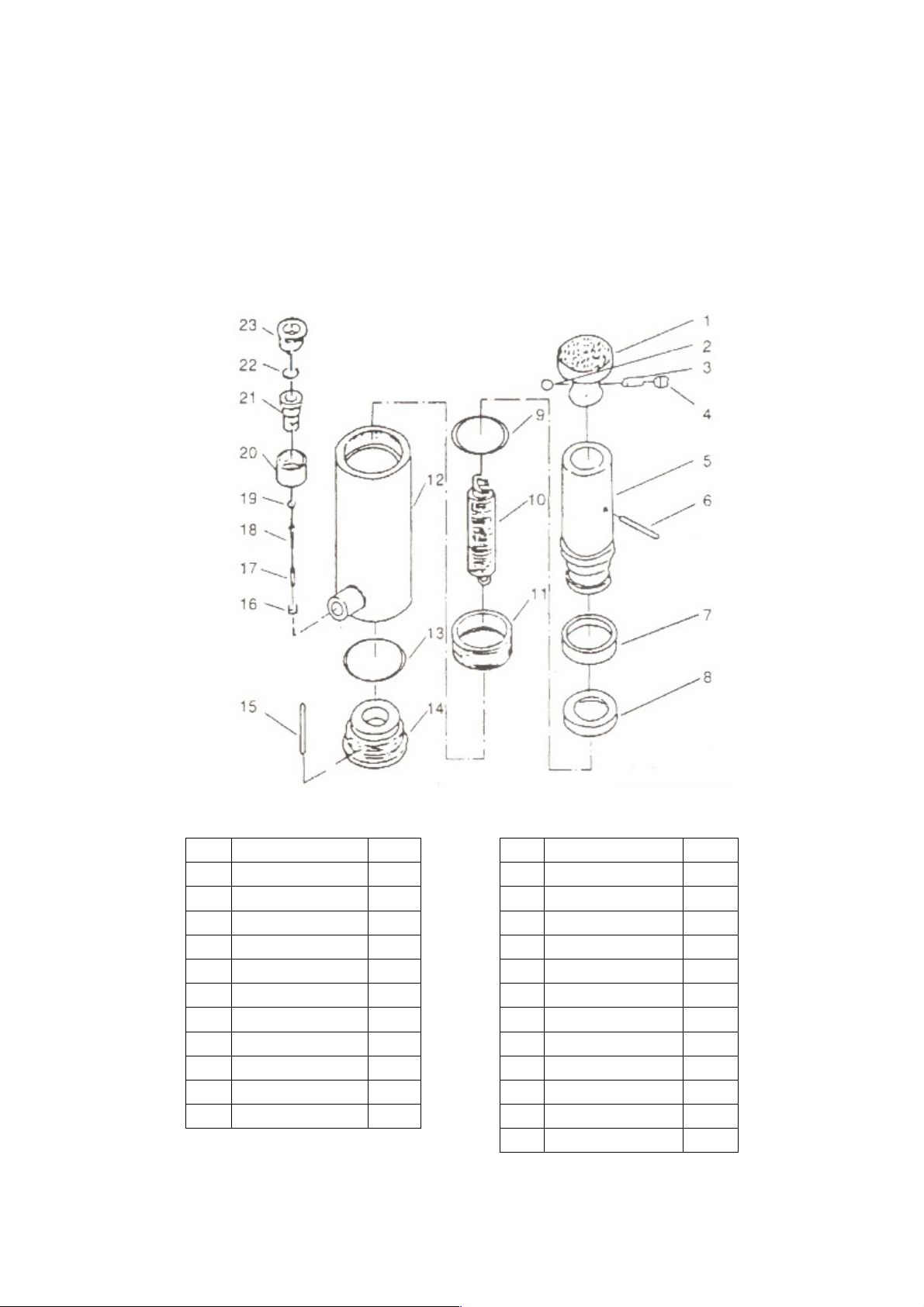

10-TON HYDRAULIC MINI-RAM

ASSEMBLY INSTRUCTIONS

DESCRIPTION

QTY

DESCRIPTION

QTY

Rammer

Cylinder

Steel Sphere

O-ring

Spring

Cover Nut

Screw

Ram

Spindle Screw

Spring

Guiding Collar

Spindle

Cap(nylon)

Oil Ring

O-ring

Connection Nut

Spring

Hose Coupler

Nut

O-ring

Dust Cap

2-TON HYDRAULIC MINI-RAM

ASSEMBLY INSTRUCTIONS

DESCRIPTION

QTY

Nut

Seal Ring

O-ring

Ram

O-ring

Cylinder

Spindle Screw

Spring

Spindle

Oil Ring

Connection

Nut

Hose Coupler

O-ring

Dust Cap

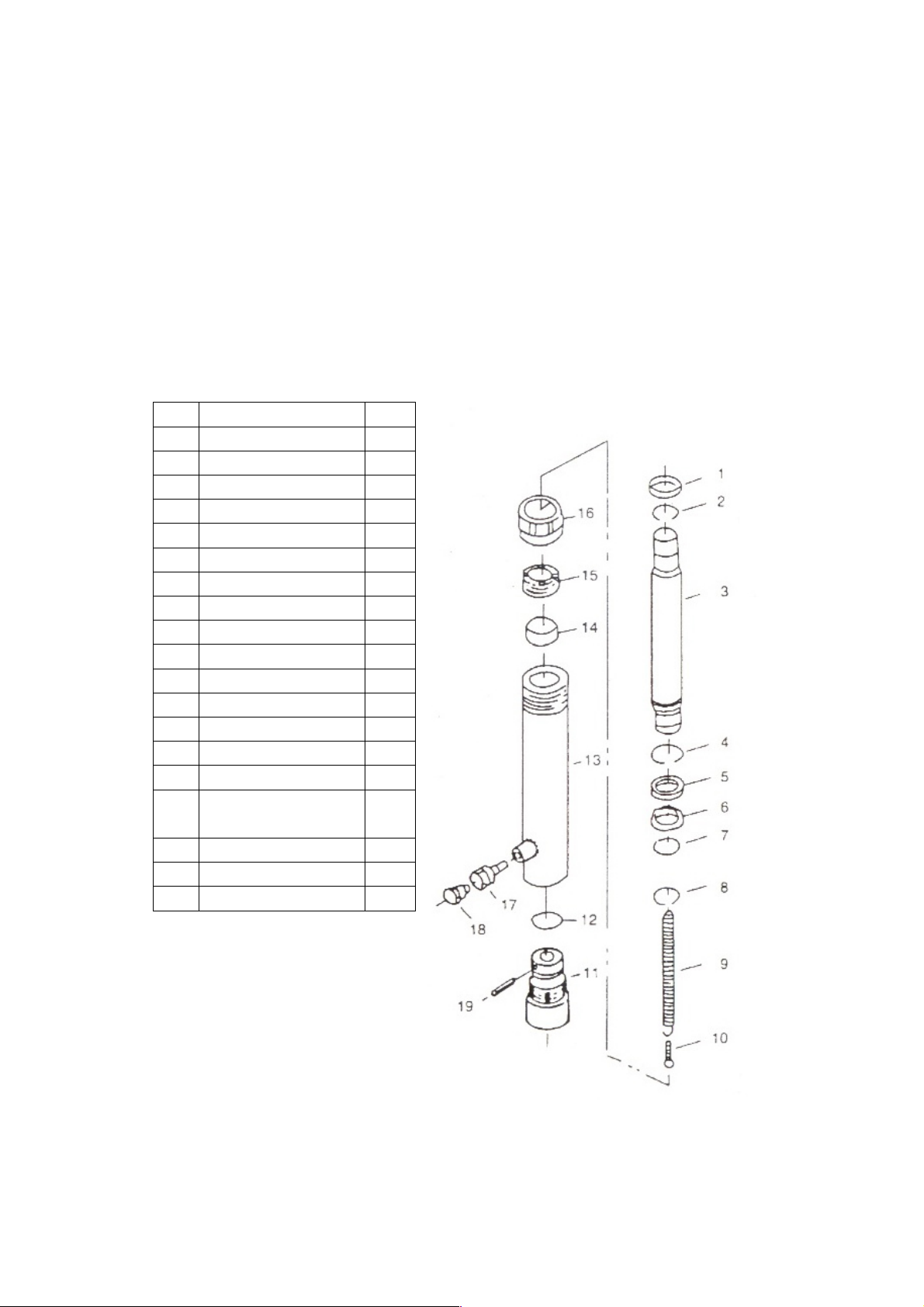

4-TON Porta－Power

ASSEMBLY INSTRUCTIONS

DESCRIPTION

QTY

Collar

Snap Ring

Piston Rod

Snap Ring

Bushing

U-cup

O-ring

Snap Ring

Spring

Screw

Cylinder Base

O-ring

Cylinder

Cylinder Collar

Cylinder Screw

Thread Protector

Ring

Quick Coupler

Dust Cover

Spring Pin

10-TON Porta－Power

ASSEMBLY INSTRUCTIONS

DESCRIPTION

QTY

Collar

Snap Ring

Piston Rod

Snap Ring

Bushing

U-cup

O-ring

Snap Ring

Spring

Screw

Cylinder Base

O-ring

Cylinder

Cylinder Collar

Cylinder Screw

Thread Protector

Ring

Quick Coupler

Dust Cover

Spring Pin

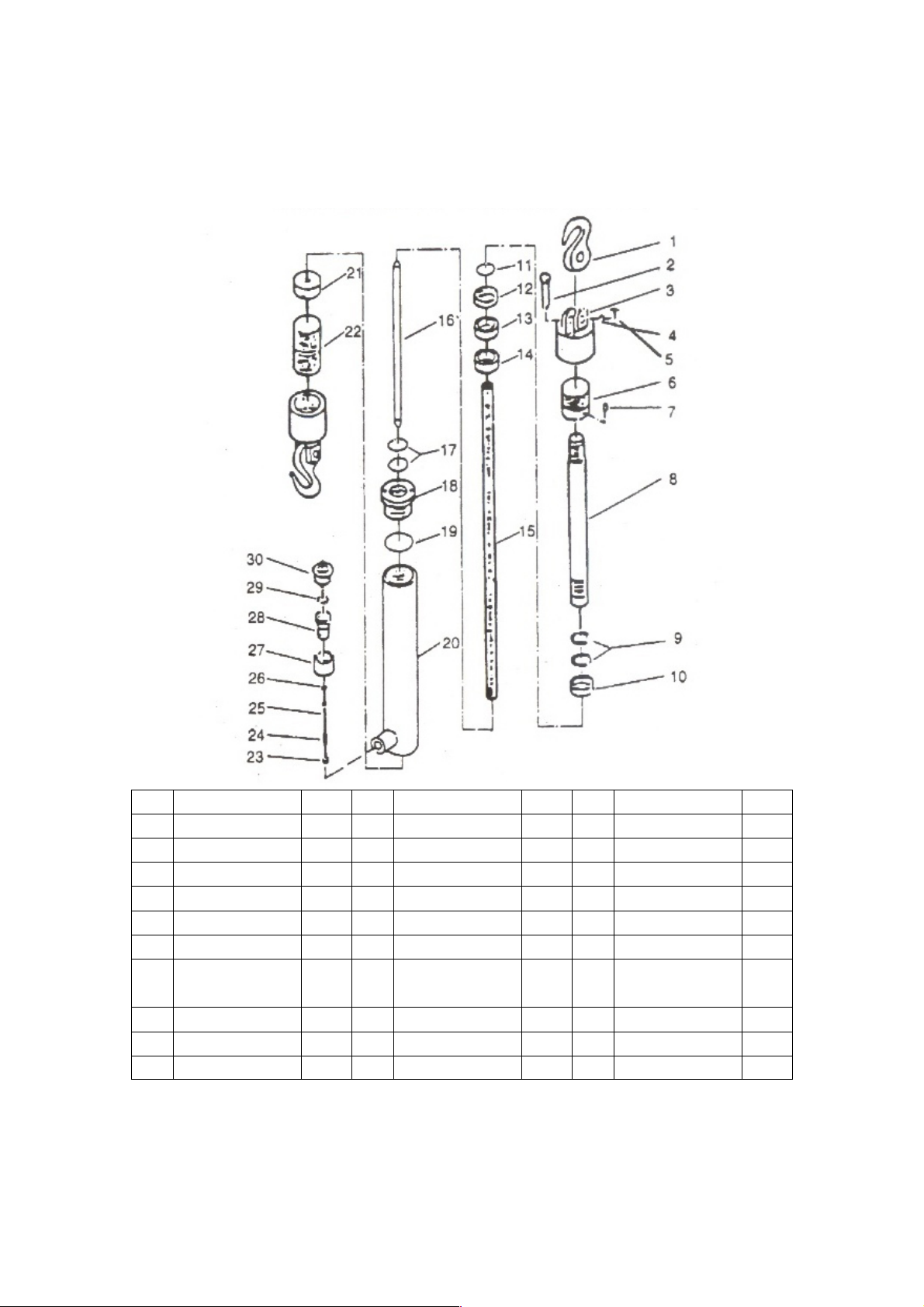

2-TON HYDRAULIC PULL BACK RAM

ASSEMBLY INSTRUCTIONS

DESCRIPTION

QTY

DESCRIPTION

QTY

DESCRIPTION

QTY

Hook

O-ring

Nut

Axle Pin

U-type Packing

Screw Coupler

Coupling Forge

Guiding Collar

Spindle Screw

Collar

Nut

Spring

Split Pin

Spring

Spindle

Nut

Shaft

Oil Ring

Screw

O-ring

Connection

Nut

Ram

Nut

Hose Coupler

Closing Ring

O-ring

Carrier Ring

Cylinder

Dust Cap

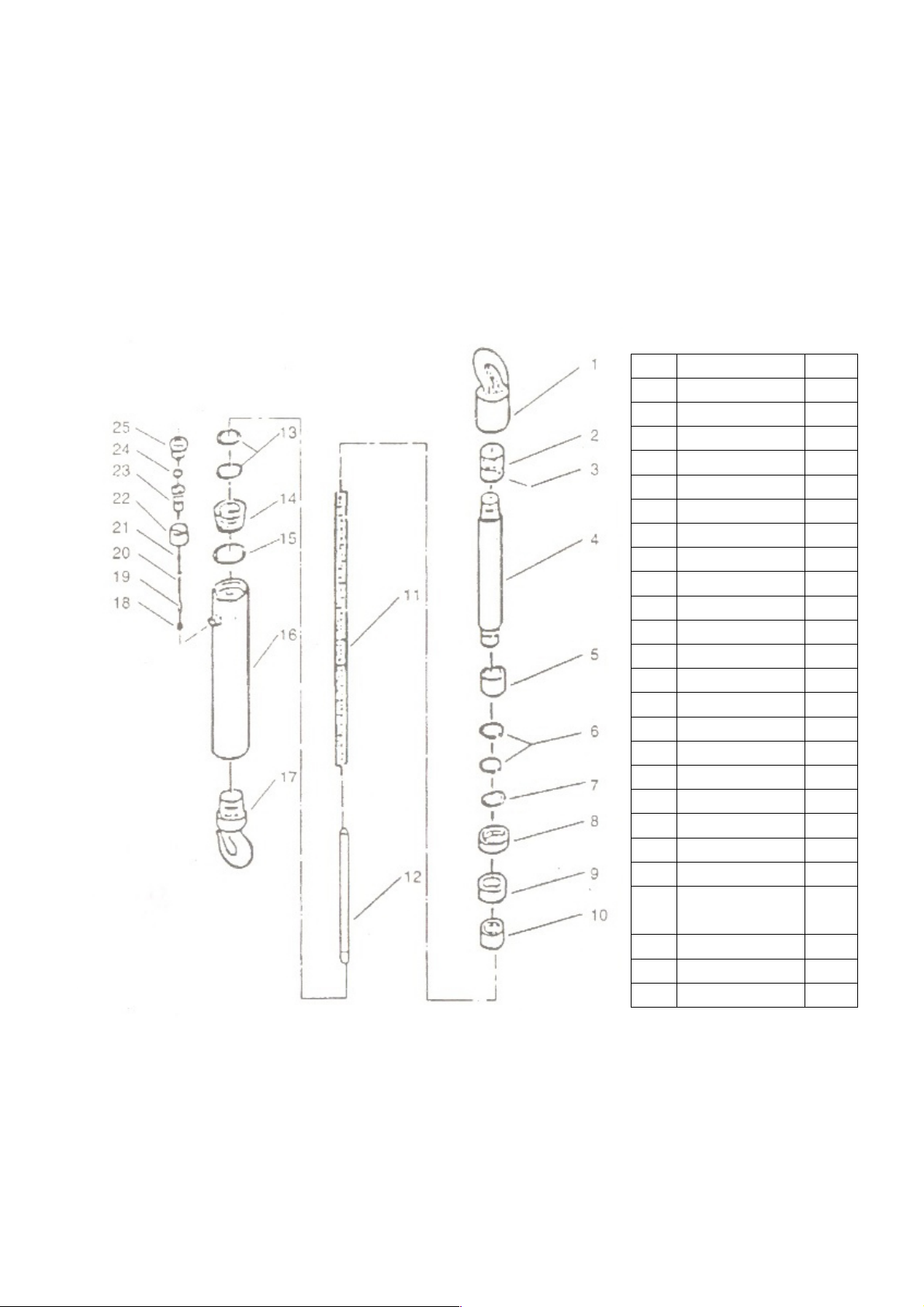

5-TON HYDRAULIC PULL BACK RAM

For 5-Ton Porta-Power

ASSEMBLY INSTRUCTIONS

NO.

DESCRIPTION

QTY.

Up-Hook

Nut

Hex Screw

Ram

Bushing

Closing Ring

O-ring

U-type Packing

Collar

Nut

Spring

Shaft

O-ring

Nut

O-ring

Cylinder

Down Hook

Spindle Screw

Spring

Spindle

Oil Ring

Connection

Nut

Hose Coupler

O-ring

Dust Cap
