Panasonic JS-950 Series Manuale utente

User’s Ｍａｎｕａｌ

POS Workstation

Model No. JS-950 Series

ontents

For USA / For CANADA

English

Read Me First …..….……..... 2

1.Getting Started

2.Operation

3.Appendix

Before operating this product,please read the instructions carefully,

and save this manual for future use.

■For USA

Federal Communications Commission Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment.

This equipment generates, uses and can radiate radio frequency energy and, If not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own

expense.

Mercury caution

This product has a fluorescent lamp that contains mercury. Dispose may be regulated in your

community due to environmental considerations. For disposal or recycling information, please

contact your local authorities, or the Electronic Industries Alliance:

http://www.eiae.org

Ce produit possede une lampe fluorescente contenant du mercure. Ceci est a mettre au rebut

selon la regulation locale dans votre communaute en raison des considerations a prendre pour

la protection de l'environnement. Pour obtenir les informations relatives a la mise au rebut ou

au recyclage, veuillez prendre contact avec les autorites locales ou Electronic Industries

Alliance: http://www.eiae.org

Battery

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate

Material-special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/Perchlorate.

■For CANADA

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

English

Read Me First

Introduction

Thank you for purchasing the JS-950 series Panasonic POS Workstation.

This manual describes the instructions for the POS Workstation.

Please read this manual carefully before using this product.

List of JS-950 series Product

Name Model Number. Remarks

JS-950WS-040 CPU:3.2GHz,Memory:512MB or 1GB

Main Unit POS Workstation JS-950WS-050 CPU:3.2GHz,Memory:2GB

JS-950D2R010 12” resistive Touch screen

JS-950D2C020 12” capacitive Touch screen

JS-950D5R010 15” resistive Touch screen

JS-950D5C010 15” capacitive Touch screen

Display

Unit Touch Display Unit

JS-950D5C020 15” capacitive Touch screen

JS-950H35010 3.5HDD moduleStorage

Unit Storage module Unit JS-950HCF010 Dual CF module

MSR Unit JS-950MG-010 Magnetic stripe reader module

Dallas Key Reader Unit JS-950DP-010 Dallas KEY Reader module

ID module

Unit Fingerprint Sensor Unit JS-950FS-010 Fingerprint Sensor module

JS-950RD-010 Rear Display module 2line

Rear Display Unit JS-950RD-020 Rear Display module 4line

JS-950SD-010 2nd Display module 8.4” resistive TP

Rear

Display

Unit 2nd Display Unit JS-950SD-020 2nd Display module 8.4” w/o TP

JS-950KT-UH0 AC cord kit UH

JS-950KT-UM0 AC cord kit UM

JS-950KT-A10 AC cord kit A

JS-950KT-E10 AC cord kit E

JS-950KT-F10 AC cord kit F

JS-950KT-K10 AC cord kit K

JS-950KT-W10 AC cord kit W

AC cord Kit AC cord kit

JS-950KT-Z10 AC cord kit Z

1. Getting Started

■Precautions

[POS Workstation: JS-950 series]

IMPORTANT

Install a socket outlet adjacent to the equipment so that it will be easily accessible.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

1. Avoid Radio Frequency Interference

Do not place the POS Workstation near a television or radio receiver.

2. Avoid Stacking

Do not place heavy objects on the POS Workstation.

3. Keep Small Objects Away

Do not insert paper clips or other small objects into POS Workstation.

There is the risk of heat, fire or explosion.

4. Keep Dry

There is the risk of heat, fire or explosion.

5. Do Not Disassemble the POS Workstation

Do not attempt to disassemble the POS Workstation. There is the risk of heat, fire or explosion.

6. Do Not Touch the Plug with Wet Hands.

There is the risk of electric shock.

7. Be Certain to Plug Fully Into the Outlet.

There is the risk of electric shock or fire.

8. When Unplugging, Make Sure to Hold the Body of the Plug.

If the power cord or outlet is damaged, there is a risk of electric shock, short circuit or fire.

9. Do Not Use a Damaged Power Cord or Plug.

There is the risk of electric shock or fire.

10. Clean the Dust off the Plug, Periodically.

There is the risk of heat or fire.

11. Do not use With Any Other Battery

Please use the specified battery.

CAUTION: Risk of explosion if battery is replced by an incorrect type.

Dispose of used batteries according to the instructions and local requirements.

12. Do not Touch the Power-cord or Plug During a Storm.

There is the risk of electric shock or fire.

13. Do not use the POS Workstation outdoors.

This product assumes the indoor use. There is the risk of breakdown.

14. Do not put the POS Workstation on a slope or an unstable place.

This can cause damage to the unit or injury by falling.

Note:Do not open the Rear cover and Filter cover while the POS Workstation is operating.

■Name of each part & function

1. Operator’s Display

2. Front SW cover

3. POP Holder

4. Rear Display

5. USB connector

6. Power SW

Attention: Do not push Power SW by mistake when you insert the USB connector.

2. Operation

■AC Cord Kit Installation

1. How to install the AC Cord

(1) Carefully lay the Main Body Unit on a clear, flat surface as shown in figure (1).

(2) Unpack the AC Cord, and then connect it to AC Inlet as shown in figure (2).

(3) Fit the Cord Clamp to AC Cord, and fix it by attached screw as shown in figure (3)-1, 2 and

(4) Carefully replace the Main Body Unit in upright position as shown in figure (4).

Note:

3 types of Clampers for fixing AC Cord are enclosed in Carton Box of Main Unit.

Select 1 type of Clamper according to diameter of AC Cord.

Confirm the AC Code doesn't move after fixing the AC Code with the clamper.

Standard Configuration List for AC Cord and Clamper

Model No. Clamper type

JS-950KT-UH0 PC-3 ø5.6

JS-950KT-UM0 PC-03C ø6.9

JS-950KT-A10 PC-3 ø5.6

JS-950KT-E10 PC-03C ø6.9

JS-950KT-F10 PC-03C ø6.9

JS-950KT-K10 PC-03C ø6.9

JS-950KT-W10 PC-03C ø6.9

JS-950KT-Z10 PC-03C ø6.9

(1) (2) (3)-1

AC Inlet

(3)-2 (3)-3 (4)

■Display Unit Installation

Be sure to disconnect the power cable of the main block (POS Workstation) and confirm the

power is “OFF” before the operation below.

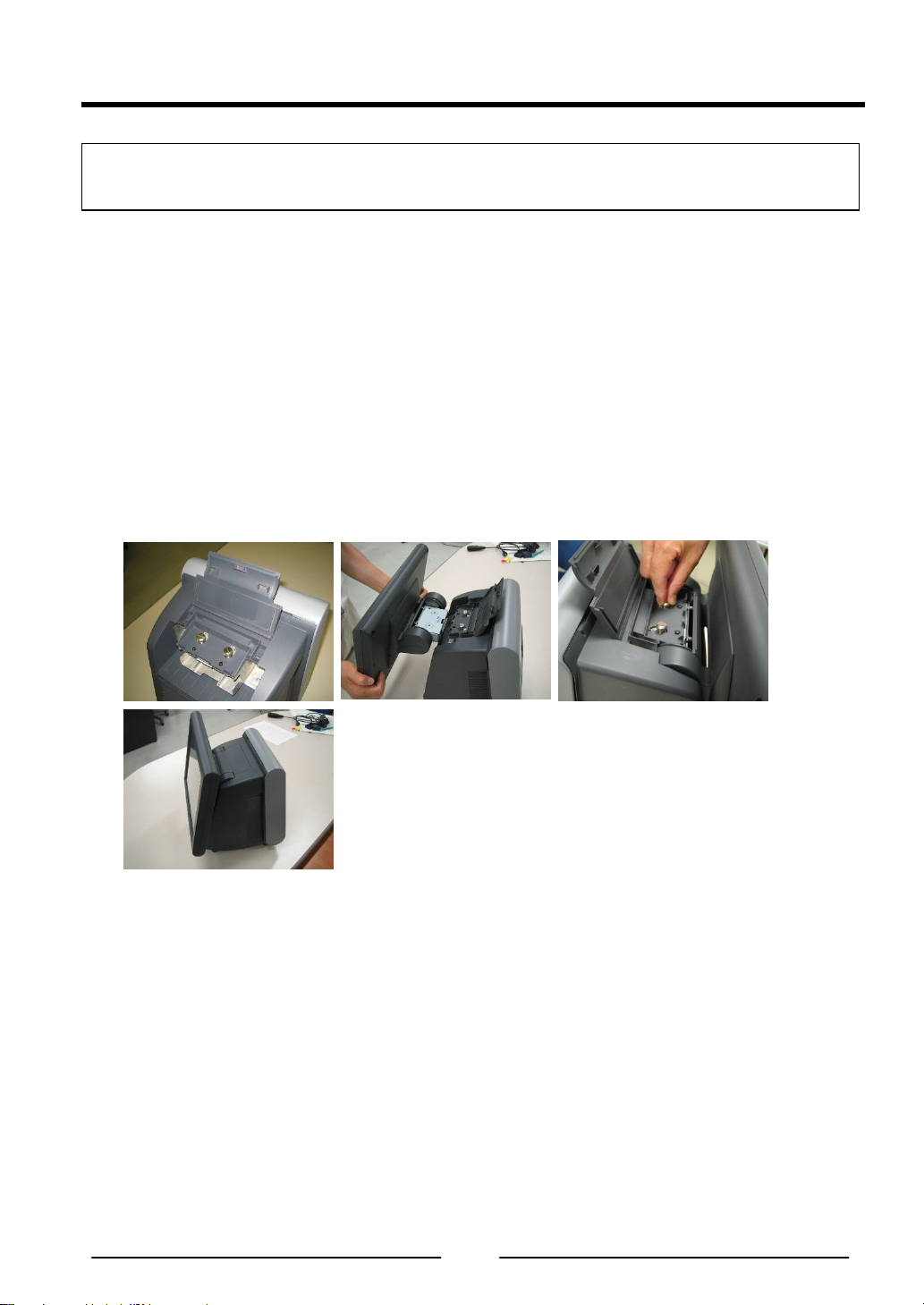

1. How to install the display unit

(1) Open the screw cover of the main unit (POS Workstation).

(2) Hold the display unit with both hands and insert the connector section of the display unit

into the connector inlet guide of the main unit slowly to connect the connector.

Note: When the connector section is connected, do not press the LCD surface of the

display unit.

(Failure to observe this may result in damage to functions of the LCD or touch panel.)

(3) Tighten the 2 thumbscrews of the main unit by hand to secure the display unit.

* Be sure to use hand when tightening the thumbscrews. Hold wire between the tips of

one’s first two fingers as shown in figure (3), and then tighten it.

* Make sure that no looseness is detected when trying to move the display unit.

(4) Close the screw cover of the main unit.

2. How to replace the display unit

(1) Place the main unit to make the display unit at right angle to the mounting table.

(2) Open the screw cover of the main unit.

(3) Loosen the 2 thumbscrews securing the display unit.

* The thumbscrews shall be loosened until the screws rotate without resistance.

(4) Hold the both sides of the display unit and pull out the unit slowly.

(5) Prepare a new display unit and perform replacement in accordance with the procedure 1,

“How to install the display unit”.

(1) (2) (3)

(4)

■Storage Unit Installation

Be sure to disconnect the power cable of the main block (POS Workstation) and confirm the

power is “OFF” before the operation below.

1. How to mount the storage unit

(1) Disconnect the 2 latches on the upper portion of the filter cover of the main unit by both

hands, pull the cover toward you while pressing the cover downward at the same time, and

remove the filter cover.

(2) Insert the storage unit into the prescribed inlet of the main unit slowly and connect the

connector of the main unit with the connector of the storage unit.

(3) Tighten the 2 thumbscrews supplied with the main unit by hand to secure the storage unit.

(4) Hitch the lower portion of the filter cover to the main unit, and push the cover until the

latches of both sides on the upper portion are connected to secure the cover.

(1) (2)

(3) (4)

2. How to replace the storage unit

(1) Place the main unit to make the display unit in parallel with the mounting table.

(2) Disconnect the 2 latches on the upper portion of the filter cover of the main unit by both

hands, pull the cover toward you while pressing the cover downward at the same time, and

remove the filter cover.

(3) Loosen the 2 thumbscrews securing the storage unit by hand, hold the band on the front

side of the storage unit and pull the band toward you slowly.

(4) Prepare a new storage unit.

Note: Exercise care to avoid any impact to the storage unit(s).

■Rear Display Unit Installation

Be sure to disconnect the power cable of the main block (POS Workstation) and confirm the

power is “OFF” before the operation below.

1. How to mount the rear display unit

(1) Loosen the thumbscrew on the lower portion of the rear cover at the rear display side of the

main unit by hand, and remove the rear cover.

* The thumbscrew shall be loosened until the screw rotates without resistance.

(2) Prepare a rear display to be used. (The contents here explain the 2-line type.)

(3) Connect the hook of the rear display to the hole of the main unit, and tighten the 2

thumbscrews by hand to secure it.

(4) Connect the connector of the rear display with the connector of the main unit.

* The cable connector has a clip to prevent the cable from coming out from the main unit.

(5) Gently press cable toward Display Unit so that it will not extend beyond the case.

In case of installation of 2 line Rear Display module, clamp the cable as shown in the fig.

(5)-1. In case of installation of 4 line Rear Display module, you do not need to clamp cable.

(6) Peel off the blind seal attached on the window of the rear cover.

(7) Attach the rear cover on the main unit, and tighten the thumbscrew on the lower portion by

hand to secure the cover.

(1)-2

( １ 4)－

(1)-1 (2)

(3)-2 (4)

(3)-1

(5)-2

(5)-1 (7)

2. How to replace the rear display

(1) Loosen the thumbscrew on the lower portion of the rear cover of the main unit by hand,

and remove the rear cover.

* The thumbscrew shall be loosened until the screw rotates without resistance.

(2) Disconnect the connector of the rear display from the connector of the main unit.

(3) Loosen the 2 thumbscrews securing the rear display, and remove the rear display.

* The thumbscrews shall be loosened until the screws rotate without resistance.

(4) Prepare a new rear display.

(5) Follow the steps (3), (4) and (5) of “How to mount the rear display unit”.

Altri manuali per JS-950 Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Terminale touch

Panasonic

Panasonic HMWIN Manuale utente

Panasonic

Panasonic JS-960WP0R50 Manuale utente

Panasonic

Panasonic GTWIN Manuale utente

Panasonic

Panasonic TY-FB9HD Manuale utente

Panasonic

Panasonic JS-925WS-010 Manuale utente

Panasonic

Panasonic HMX700 Series Manuale utente

Panasonic

Panasonic KXCAP150 - VIDEO PHONE W/LCD Manuale utente

Panasonic

Panasonic POS Workstation JS-950WS Manuale utente

Panasonic

Panasonic JS-960WS Series Manuale utente

Panasonic

Panasonic CT-2 Series Manuale utente

Panasonic

Panasonic S-LINK V SL-VTPR Series Manuale utente

Panasonic

Panasonic TY-FB9BD Manuale utente

Panasonic

Panasonic HMs700 Series Manuale utente

Panasonic

Panasonic TY-FB8HM Manuale utente

Panasonic

Panasonic JS-970 Series Manuale utente

Panasonic

Panasonic HMs700 Series Manuale utente

Panasonic

Panasonic JS-950 Series Manuale utente

Panasonic

Panasonic GT02 Manuale utente

Panasonic

Panasonic TY-42TM6G Manuale utente

Panasonic

Panasonic HMX700 Series Manuale utente

Panasonic

Panasonic GTWIN Manuale utente

Panasonic

Panasonic JS-925 series Manuale utente

Panasonic

Panasonic HMe Series Manuale utente

Panasonic

Panasonic FZ-VEBR11 Series Manuale utente

Manuali Terminale touch popolari di altre marche

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Manuale utente

Ingenico

Ingenico AXIUM EX4000 Manuale utente

Heisei Electronics

Heisei Electronics Q-POS 815 Manuale utente

Amano

Amano MTX-15 Manuale utente

FLOWBIRD

FLOWBIRD CWT Compact Touch Manuale utente

Demco

Demco SP7 Manuale utente

Lathem

Lathem PC600 Series Manuale utente

Partner

Partner MF-2352 Manuale utente

NCR

NCR RealPOS 7460-2 Manuale

Simrad

Simrad MS50 Istruzioni per il montaggio

Unitech

Unitech MR350 MKII Guida rapida

Jungheinrich

Jungheinrich WMT 210 Manuale utente

Motorola

Motorola MTP850 Manuale utente

YASKAWA

YASKAWA 62H-MDC0 Manuale utente

MVG industries

MVG industries NeptuLink Manuale utente

Price Industries Limited

Price Industries Limited FDC Manuale di istruzioni

Honeywell

Honeywell TemaKey Manuale utente

EBN

EBN BPC65-B-A16G Manuale utente
